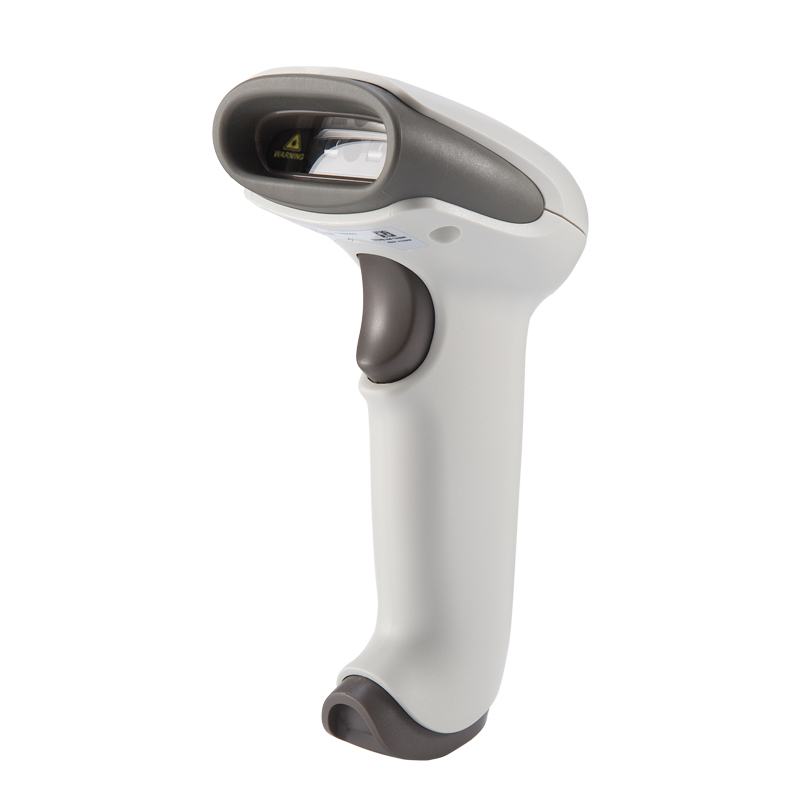

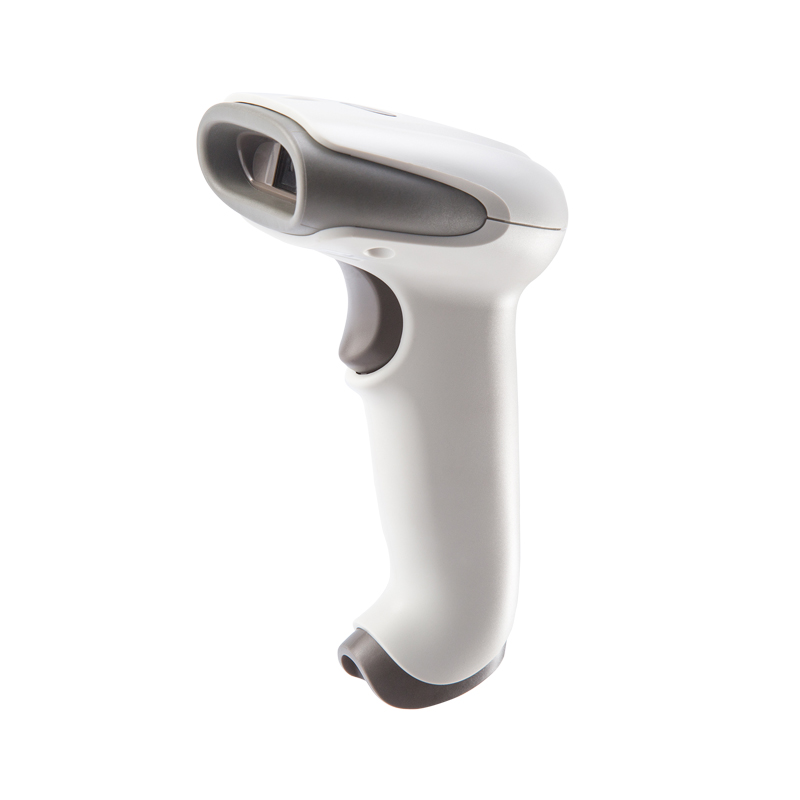

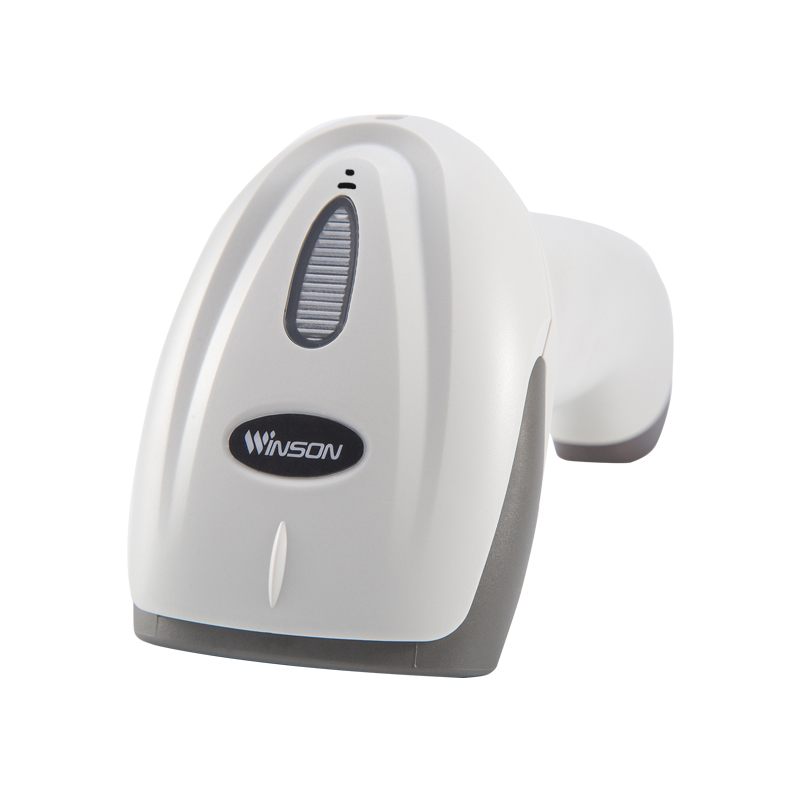

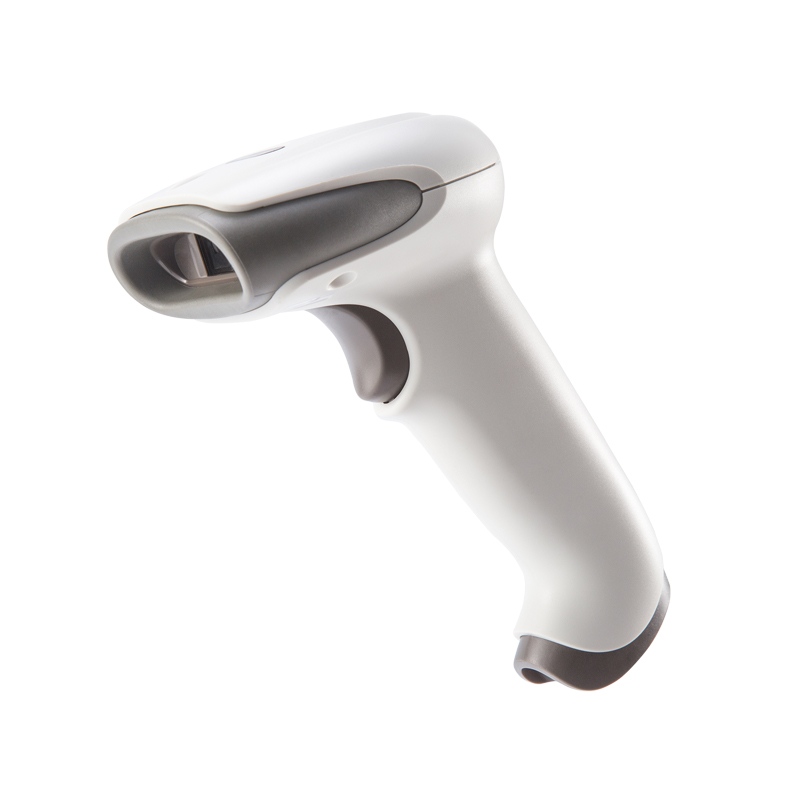

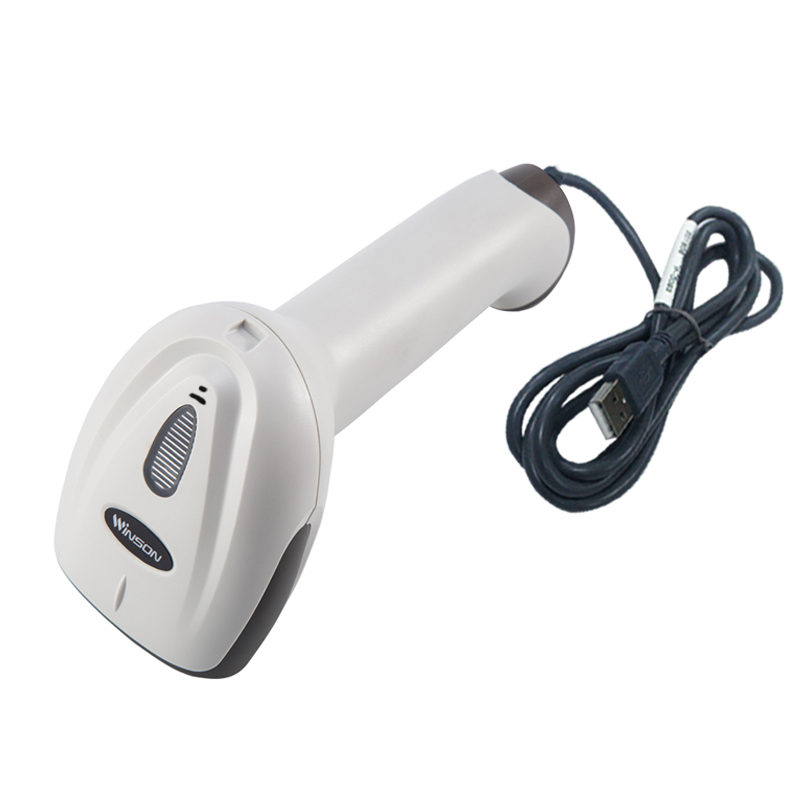

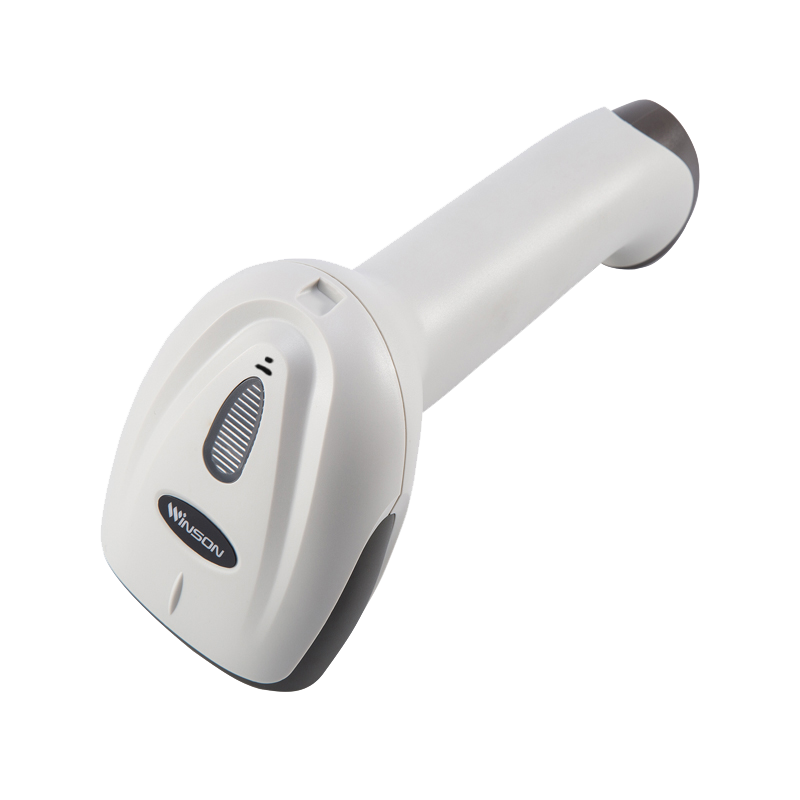

Compact Size Portable CCD Barcode Reader

$1.00 ~ $28.00 / unit

Options:

WNC-6080g

Get Latest Price

You might also like

Wholesale 2d handheld Long Range QR Code Scanner

$7.90

1 unit (MOQ)

Compact Size Portable CCD Barcode Reader

$1.00

1 unit (MOQ)

usb wireless scanner bar code scanner barcode product

Winson 2D CMOS Codabar Barcode Reader

Winson WNC-5060g Handheld Barcode Scanner

Basic Info

Model No.	WNC-6080g
Brand Name	winson
Certification	Ce, Other
product status	Stock
Types of	Barcode Scanner
Scanning element type	Ccd
Color point	32 Bit
Interface Type	Usb
place of origin	China
Warranty period (years)	1-Year
After-sales service	Call Center And On-Line Technical Support
Private Mold	Yes
Products Status	Stock
Type	Barcode Scanner
Scan Element Type	Cmos
Colour Depth	32 Bit
Interface Type	Usb, Rs232
Max Paper Size	N/A
Optical Resolution	640X480 pixels
Scan Speed	350 ±50 scans/second
Brand Name	CM
Place Of Origin	Guangdong, China
Warranty(Year)	1-Year
After-sales Service	Call Center And On-Line Technical Support
Software development kit (SDK)	NO
Color	Black
Product Type	QR Code Scanner
Interface	USB HID KEYBOARD/USB VCP or RS-232
Photo sensor	CMOS array sensor
Voltage requirement	DC5V±10%
Light Source	Red LED
Dimensions	90mm67mm168mm
Weight	130g
Indicator	Beeper, LED

Product description

2d Scanner Barcode Support over twenty different countries' keyboard layout

Oem Scan Module With mini USB receiver, plug and play, Ergonomic design, comfortable to hold.

Handheld Computer Support to put prefix or suffix before or after scanned data,turn on/ off buzzer, identity barcode type, add keyboard keys (TAB, CR&LF, etc.)

Product Description

Specification

Interface Supported	RS-232/USB HID KEYBOARD/USB VCP
Input Voltage	DC 5V±10%
Current	Max:135mA
Image Sensor	CCD Linear Sensor
Sensor Resolution	2500pixels
Light Source	632nm Red LED
Decoding rate:	350 scans/second±20 scans/second
Scanning Angle	Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40°
