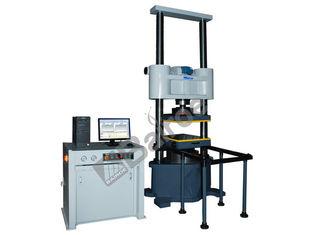

2000KN Computerized Hydraulic Servo Compression Testing Machine to Test on Non-Metal

• This product comprises a mainframe, a convey unit, a servo hydraulic system, a servo controller and the computer system. The compression space can be adjusted by electromechanically moving the crossbeam. A gap-eliminating unit is installed inside the crossbeam to eliminate the runout caused by the gap between the nut and the ball screw. The upper compression platen is integrated with a spherical seat to align itself automatically. The lower compression plated features a moveable design that can move back and forth while mounting or removing specimens.
• This product is born with a refined structure that enables more steady loads and precise controls. It adopts the leading high-performance AEC-1000 Controller, which is usually equipped on high-end material testing machines. The mechanical components collaborate with the pioneered modular Test Live computer testing software to ensure the stability, precision and reliability of the whole system.
• This product complies with the standards and requirements of GB/T 16825.1-2008, GB/T 2611-2007.
• The YAW-2000 series of microchip controlled automatic compression testing machine is mainly designed for compression under its rated loading capability. It features a bottom-mounted hydraulic cylinder, electrically adjustable test space, applicable to fields including construction, construction materials, road, bridge, higher education, mining, quality control department, Metrology and etc. to perform tests on metal, non-metal, jack, rubber base and other materials to inspect their mechanics performances.

Features:

• Support for multi-language user-interface extendibility.
• Dynamic display of load, displacement, time and real-time testing curve on the screen.
• Closed loop control of channels such as load, displacement, etc. Smooth switching in between.
• Constant loading speed test supported.
• Capable of holding on maximum load or displacement.
• Rounding off of numerical testing data complies with GB 8170-87 (UDC511.1/2) Rules of Rounding Off for Numerical Values, supports rounding off in sections and custom rounding off.
• Characteristic testing data can be marked on testing graphs.
• Capable of statistical operations on testing data (average, standard deviation, coefficient of variance).
• Automatic requesting for testing result data, also capable of launching an advanced analysis to inspect the data.
• As many as 20 layers of sensor linear compensation, elevates the precision of the instruments to the next level.
• Support saving, instant retrieving and inspection of testing results.
• Capable of re-analyzing test data and curves, and partial zooming of testing curves at will.
• Support Excel report templates and customized editing of test reports.
• Integrated with travel limit protection and full scale overload protection.

Technical Specifications:
