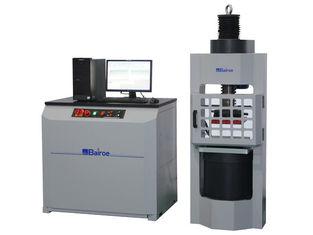

YAW-2000 Compression Testing Machine (frmae type) with hydraulic servo system

Features:

• Support for multi-language user-interface extendibility, pre-installed with American English and Simplified Chinese.
• Dynamic display of load, displacement, time and real-time testing curve on the screen.
• Closed loop control of channels such as load, displacement, etc. Smooth switching in between.
• Constant loading speed test supported.
• Capable of holding on maximum load or displacement.
• Support for compression tests on various metal or non-metal materials to inspect their mechanics performances.
• Domestically pioneered open-testing-method settings. Engineers may set up testing projects then operators may employ the projects for testing, greatly reduced the difficulty of the operations and the requirement in the skills and trainings of the operator.
• Domestically pioneered process-oriented design of testing control. Provides users with intuitive testing control procedures and a wide range of instruction types. Also supports dynamic instruction parameter assignment.
• Domestically pioneered highly efficient three-level operation model of testing data processing. Supports open testing data processing, appending custom testing data items and re-inspection of processed testing data.
• Rounding off of numerical testing data complies with GB 8170-87 (UDC511.1/2) Rules of Rounding Off for Numerical Values, supports rounding off in sections and custom rounding off.
• Characteristic testing data can be marked on testing graphs.
• Capable of statistical operations on testing data (average, standard deviation, coefficient of variance).
• Automatic requesting for testing result data, also capable of launching an advanced analysis to inspect the data.
• As many as 20 layers of sensor linear compensation, elevates the precision of the instruments to the next level.
• Support saving, instant retrieving and inspection of testing results.
• Capable of re-analyzing test data and curves, and partial zooming of testing curves at will.
• Support Excel report templates and customized editing of test reports.
• Integrated with travel limit protection and full scale overload protection.

Technical Specifications:
