2200mm width Retractable Loading Deck
$10000.00
≥1 Set/Sets
Color:
- Sky Blue
- Light Grey
- Lavender
Basic Info
| Model No. | SLD2200-L, SLD2200-H |
|---|---|
| Brand Name | Shenxi |
| Warranty Service | 1 Year |
| After-sales service | Online Technical Support, Free Spare Parts, Other |
| Engineering solution capability | Graphic Design, 3d Model Design, Total Solution For Projects, Cross Categories Consolidation, Others |
| Application scenario | Hotel, Apartment, Office Building, Leisure Facilities, Supermarket, Warehouse, Workshop, Other |
| place of origin | China |
Product description
Retractable Loading Deck Description
Loading platform is used to transfer cargo and materials to upper floors during the floor construction of high-rise buildings. It is fast and easy to assemble, safe and flexible to use, suitable for the buildings under tower crane construction, therefore it is an indispensable material-transferring equipment for modern high-rise buildings' construction.
Retractable Loading Deck Specifications
It is used to transfer cargo and materials to upper floors during the floor construction of high-rise buildings.

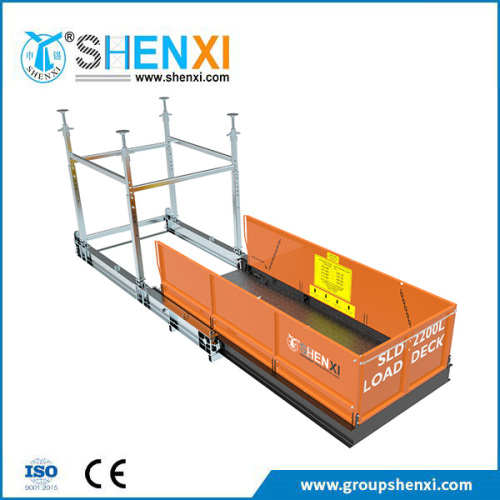

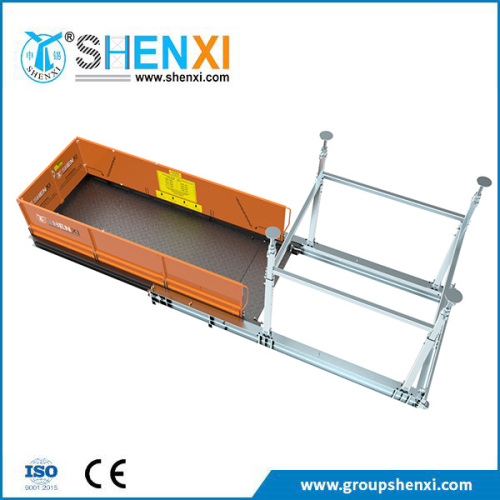

It consists of adjustable support prop, stationary frame, retractable platform, guardrail, safety door etc. The stationary frame is located on the floor slab of the building and a "H" frame in stationary frame is kept close to the slab edge; the movable deck rolls in or out on the stationary frame by the rollers fixed in the stationary frame and movable deck. To receive the material, rolls the movable deck out of the building edge. If don't use the platform, retract the deck back. The adjustable props support the platform between the two floors by transforming the load to the ceiling. Besides of above parts, there are the deck locking pin to lock the movable deck, side panels with safety lanyard line and door adjustment, front end doors with door lock, safety chain for longer loads. A foot operated leveling ramp is provided to allow the trolley roll up the deck.
|
Model |
Symbol |
Unit |
SLD 2200-L |
SLD 2200-H |
SLD 3200 |
SLD 4200 |
|
External width |
W1 |
mm |
2200 |
2200 |
3200 |
4200 |
|
Internal width |
W2 |
mm |
1740 |
1740 |
2740 |
3740 |
|
Distance between front and rear prop |
W3 |
mm |
2300 |
2300 |
2300 |
2300 |
|
Distance between left and right prop |
W4 |
mm |
2050 |
2050 |
3050 |
4050 |
|
Folded height/Stacking height |
H |
mm |
510/420 |
510/420 |
510/420 |
510/420 |
|
Height of the side panel |
H1 |
mm |
1100 |
1100 |
1100 |
1100 |
|
Min. prop height |
H2min |
mm |
2400 |
2400 |
2400 |
2400 |
|
Max. prop height |
H2max |
mm |
3300 |
3300 |
3300 |
3300 |
|
Retracted length |
L1 |
mm |
4845 |
5320 |
5320 |
5320 |
|
Extend length |
L2 |
mm |
7430 |
8985 |
8985 |
8985 |
|
Overhang length of stationary frame |
L3 |
mm |
1200 |
1450 |
1450 |
1450 |
|
Distance between the front prop and the slab edge |
L4 |
mm |
1065 |
1695 |
1695 |
1695 |
|
Extended length of movable deck |
L5 |
mm |
2665 |
3800 |
3800 |
3800 |
|
Weight |
TM |
t |
2.1 |
2.65 |
3.25 |
3.95 |
|
Safe Working load (UDL) |
SWL |
t |
2.5 |
5 |
5 |
5 |
Feature
When the Telescopic loading platform is used in the construction of high-rise building floors, it transfers the formwork and other materials to the upper floor. It is fast and convenient to assemble, safe and reliable, flexible and convenient to use, suitable for buildings with different heights, and is an indispensable material conveying equipment in the construction of modern high-rise buildings. It consists of steel pillars, fixed frames, telescopic platforms, guardrails, safety gates, etc.
Retractable Crane Loading Platform/deck 2500 kg capacity
For more detailed information, please see the following video
