Automatic Material Loading Deck
$10000.00
≥1 Set/Sets
Color:
- Sky Blue
- Light Grey
- Lavender
Basic Info
| Model No. | SLD2200/2600/3200/4000 |
|---|
Product description
Product Description

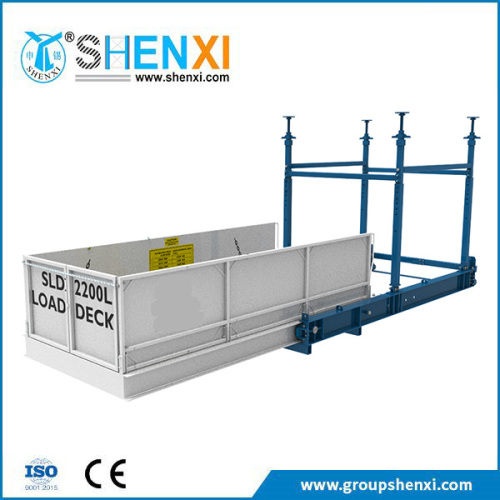

The Retractable Material Loading Platform allows heavy objects to be stacked vertically, lifted, and then entered and exited like a drawer on a shelf. These dynamics improve construction safety and reduce crane operation time by an incredible amount.
Product specifications
It is used to transfer cargo and materials to upper floors during the floor construction of high-rise buildings.
|
Model |
Symbol |
Unit |
SLD 2200-L |
SLD 2200-H |
SLD 3200 |
SLD 4200 |
|
External width |
W1 |
mm |
2200 |
2200 |
3200 |
4200 |
|
Internal width |
W2 |
mm |
1740 |
1740 |
2740 |
3740 |
|
Distance between front and rear prop |
W3 |
mm |
2300 |
2300 |
2300 |
2300 |
|
Distance between left and right prop |
W4 |
mm |
2050 |
2050 |
3050 |
4050 |
|
Folded height/Stacking height |
H |
mm |
510/420 |
510/420 |
510/420 |
510/420 |
|
Height of the side panel |
H1 |
mm |
1100 |
1100 |
1100 |
1100 |
|
Min. prop height |
H2min |
mm |
2400 |
2400 |
2400 |
2400 |
|
Max. prop height |
H2max |
mm |
3300 |
3300 |
3300 |
3300 |
|
Retracted length |
L1 |
mm |
4845 |
5320 |
5320 |
5320 |
|
Extend length |
L2 |
mm |
7430 |
8985 |
8985 |
8985 |
|
Overhang length of stationary frame |
L3 |
mm |
1200 |
1450 |
1450 |
1450 |
|
Distance between the front prop and the slab edge |
L4 |
mm |
1065 |
1695 |
1695 |
1695 |
|
Extended length of movable deck |
L5 |
mm |
2665 |
3800 |
3800 |
3800 |
|
Weight |
TM |
t |
2.1 |
2.65 |
3.25 |
3.95 |
|
Safe Working load (UDL) |
SWL |
t |
2.5 |
5 |
5 |
5 |
Feature

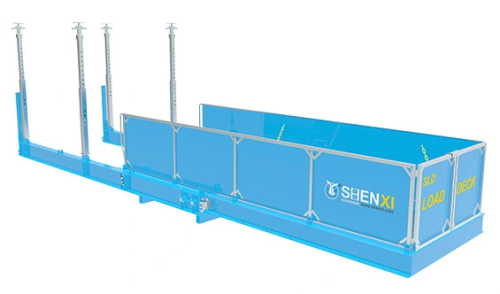

When the Retractable Material Loading Platform is used in the construction of high-rise building floors, it transfers the formwork and other materials to the upper floor. It is fast and convenient to assemble, safe and reliable, flexible and convenient to use, suitable for buildings with different heights, and is an indispensable material conveying equipment in the construction of modern high-rise buildings. It consists of steel pillars, fixed frames, telescopic platforms, guardrails, safety gates, etc.
Retractable Crane Loading Platform/deck 2500 kg capacity
For more detailed information, please see the following video
Video
loading deck
loading deck
loading deck
