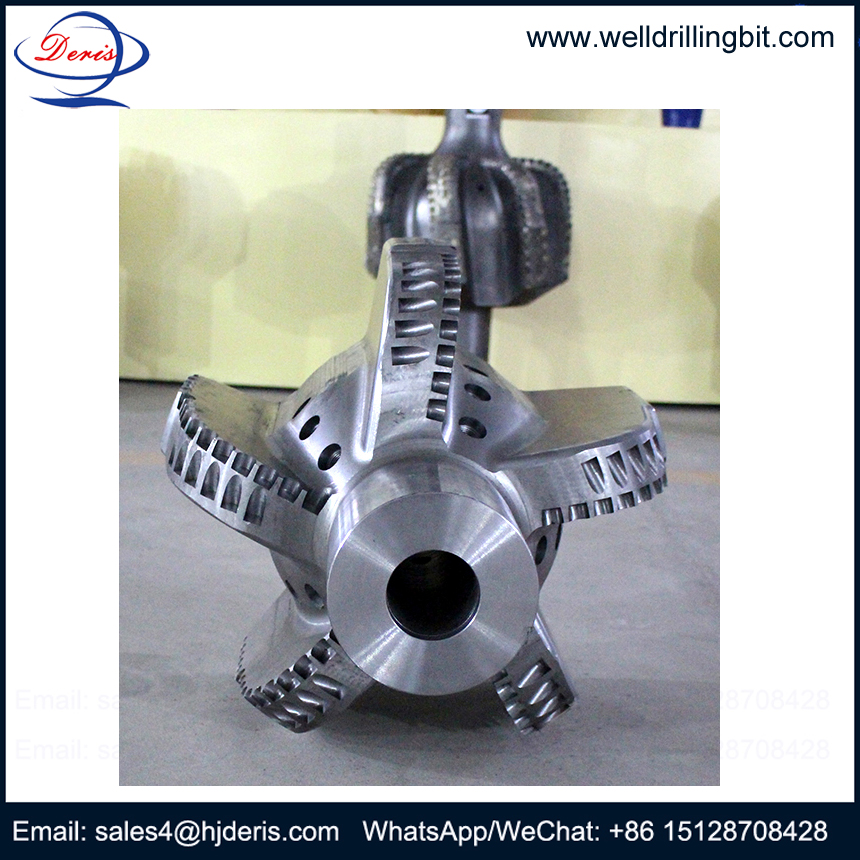

Horizontal Hole Openers, also known as HDD Reamers, are used to enlarge the pilot hole in Horizontal Directional Drilling(HDD) - HDD is used when trenching and excavating is not practical.This drilling technology allows for a steerable trenchless way to drill underground. Feature of PDC reamer bit 1.Which is a steel body PDC bit using arc-type double rows spiral design with seven blades,long parabolic crown structure,the rational allocation of different functions of the small size of the cutters. 2.Heavy cutter layout and high wear wide gauge design,effectively improve the PDC bit impact resistant and abrasive. While using a dynamic flow simulation technology to optimize the hydraulic design of the PDC bit.

There are three stages:

1>the first stage is to drill a small diameter pilot hole.
2>The second stage is enlarge the hole with a larger diameter cutting tool called an HDD Reamer,
Rock Reamer or Hole Opener.
3>The third stage is inserting the casing pipe or other product into the enlarged hole.

The parameters of PDC bit hole opener

Model	PDC Hole opener
IADC CODE	123 223 323 324 424 433 524 634
Available sizes:	10"~ 26" larger sizes can be custom as your requirement.
Blades	3/4/5/6/7/8/9 blades
API regular pin(inch)	3 1/2;4 1/2;6 5/8;7 5/8
Recommended make up torque(KN.M)	4 -4.8/6-7.5/9.5-12/16-22/38-43/46-54
Nozzle Qty	3/4/5/6/7/8/9NZ(according to your demands)
PDC Cutters	08MM/10MM/13MM/16MM/19MM
Applications	very hard formations with higher compressive strength and good drillability,such as mudstone,limestone,anhydrite,calcareous sandstone,sandstone,etc.
Material	Alloy steel,Carbide,Diamond
Packing	Wooden case or steel case
Payment terms	T/T,L/C,Western union
Delivery terms	By sea or by air
Delivery time	Within 3 to 30 days
Market	Canada, USA, Middle east, Africa, Europe, etc.

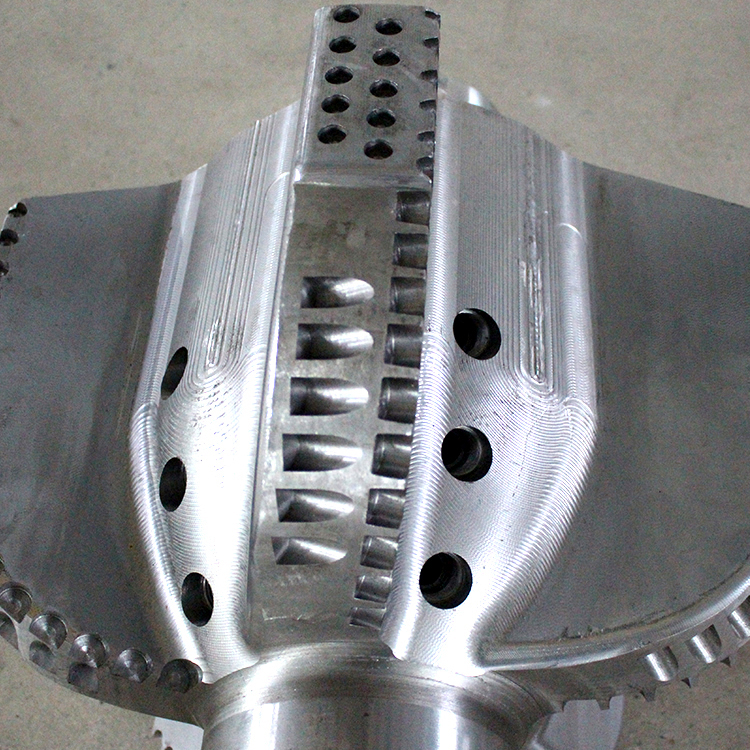

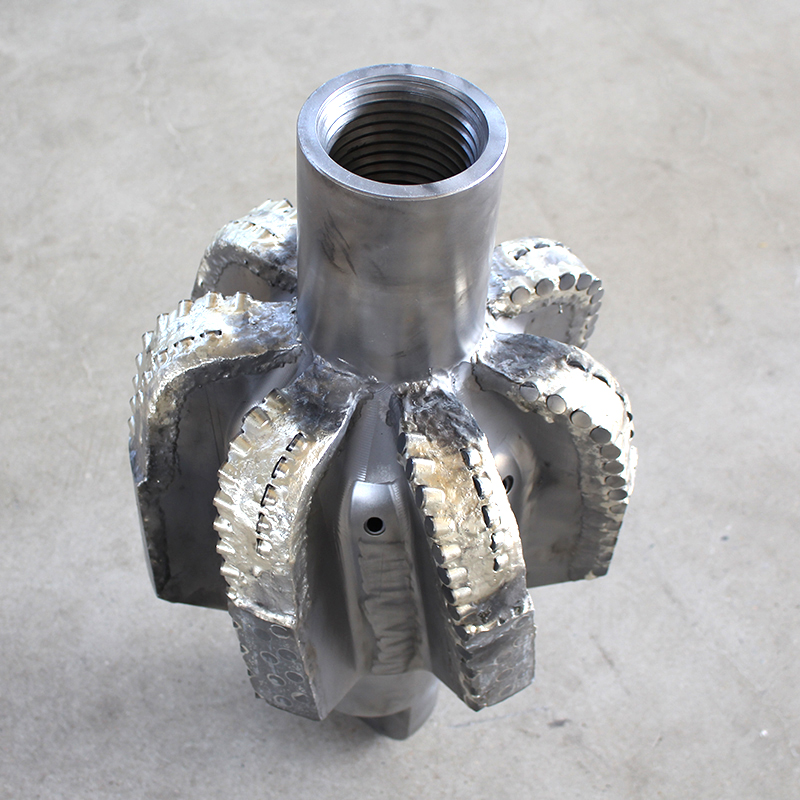

Use diamond PDC cutters ,Forging alloy steel body, hard alloy nozzle,Hard welding surface with hard alloy, using pure silver welding . Suitable for soft to extremely hard rock formation.

The size and type of hole opener with cones

Products parameter

Reamer Size	20"	24"	32"
Total length	1200mm	1200mm	1200mm
Cutter Size&Type	8 1/2 IADC637	8 1/2" IADC637	12 1/4" IADC637
Stabilizer Size	16"	18"	20"
Thread Connection	4 1/2" IF box&pulling eye	5 1/2"FH pin&box	5 1/2"REG pin&box
Recommend make up torque(KN.M)	46.1-54.2	46.1-54.2	62.4-70.6

My company information

Hejian Deris Petroleum Drilling Equipment Co., Ltd. Established in 2000 . Have 7 years export experienced . Both Professional Manufacturer and Supplier engaged in 3 " to 26" Tricone bit, 3 " to17 1/2" PDC bit, 300mm to 2000mm hole opener ,core barrel, single cone bit ,roller cone bits ,drag bit and drill pipe etc other drilling tools .
Products are widely used in petroleum, natural gas, hydrological address, ore drilling ,water well project , no-dig / Trenchless,Piling project .

Introducing the latest technology, advanced production equipment, Perfect testing system to e nsure superior quality .The company has a group of experienced designers and engineers who provide specialized solutions in the field of drilling.

 Over the years, the high quality products have been exported to more than 30 countries and regions such as the United States, Canada, Germany, Iran, Qatar, Chile and Southeast Asia at reasonable prices.

Certificate

 Hole openers Package and shipping

Package Type : wooden case ,also be packaged according to customers requirement
Transportation : by sea , by air or land transportation . Less than 50kg shipping by courier better

Delivery : If we have stock, the delivery time will need about 2~3 working days. In general, common size tricone bits and pdc bit, we have stock.

If we have no stock, such as the tci reamer and pdc hole opener, it will be 7-10 working days in total.

How about our Customers feedback ?

The drilling deepth more than 460meters 1 pc Metal seal bearing tci tricone bit  .

TCI Tricone bit Drilling 3500 meters well no problem

1 pc Hole opener drilling more than 10 well no problem

Drilling to 1600 meter the PDC drill bit continue work good enough
