I/O Interface

Power Input

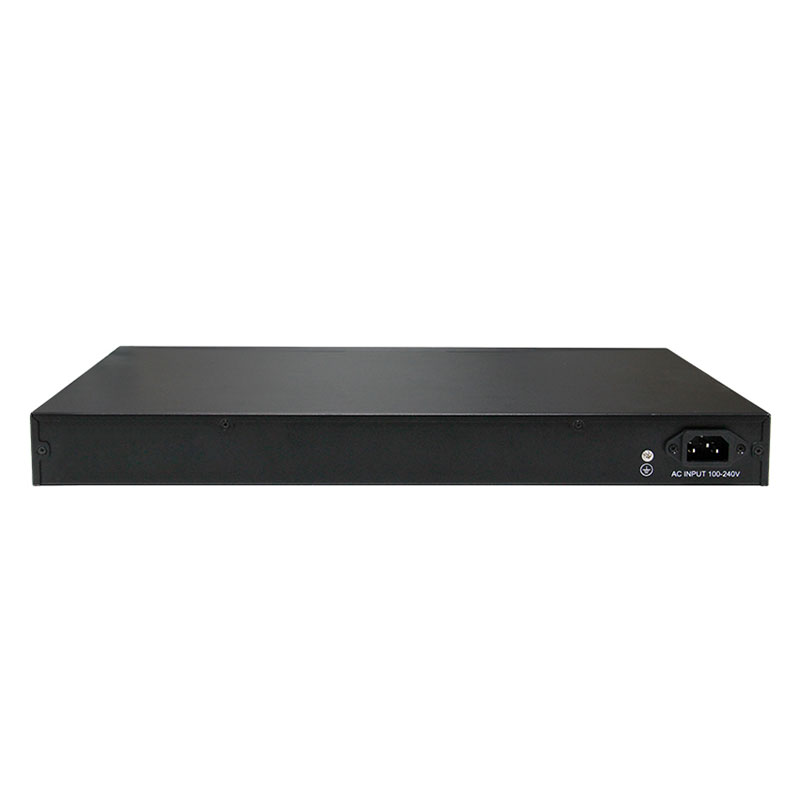

AC100-240V/50-60Hz

Ethernet

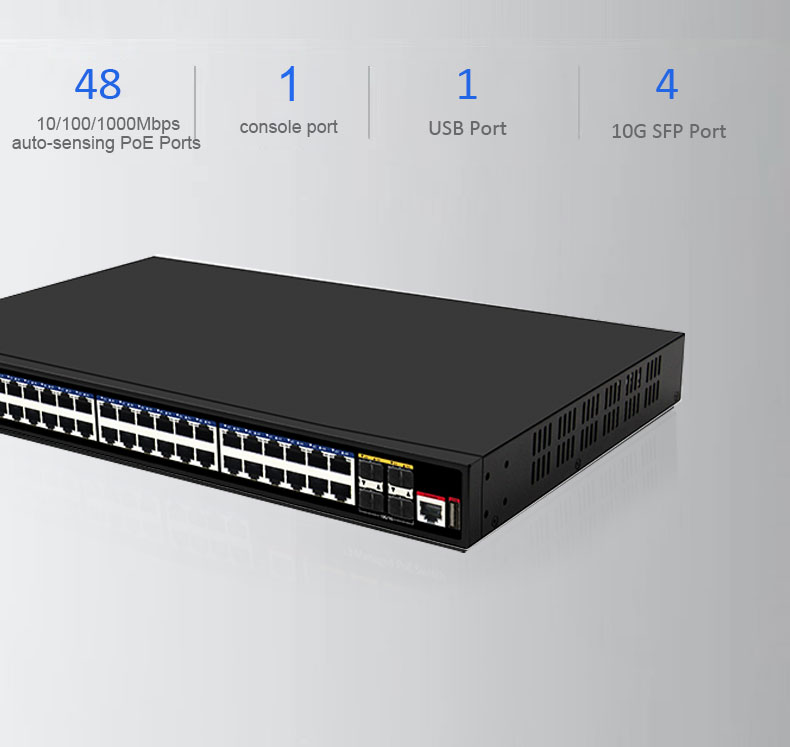

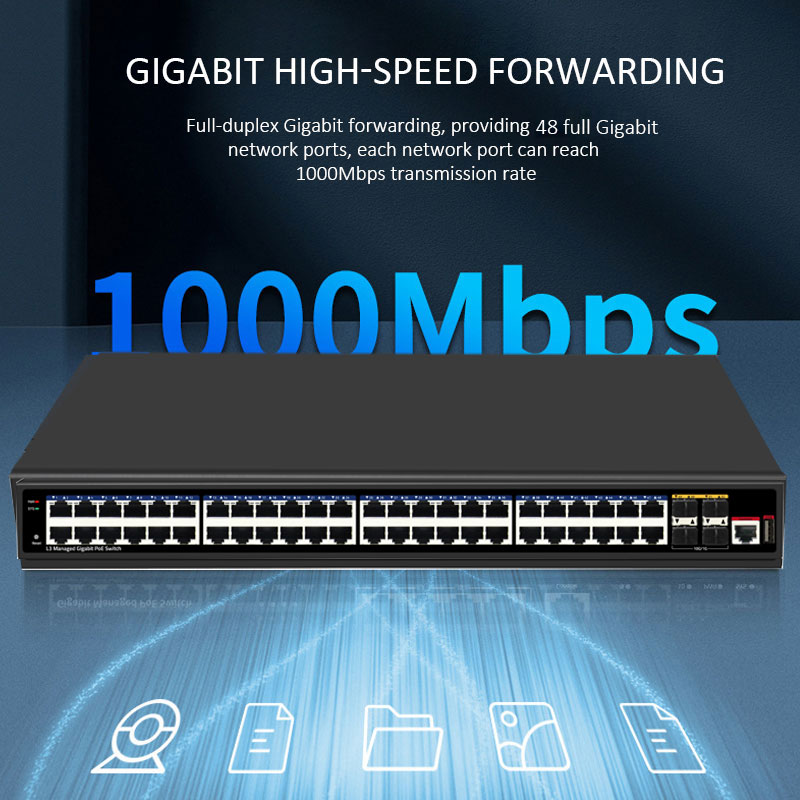

48* 10/100/1000Mbps POE Ports
4* 10G SFP+ Port
1* RJ45 Console Port
1* USB serial Port

Performance

Bandwidth

176Gbps

Packet Forwarding Rate

131Mpps

Buffer Memory

512MByte

Flash Memory

32MByte

DDR SDRAM

16Mbit

MAC Address

32K

Jumbo Frame

12Kbytes

VLANs

4096

MTBF

100000 Hours

Standard

Network Protocol

IEEE802.3 Ethernet MAC Protocol
IEEE802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae 10G Ethernet
IEEE802.3x Flow Control
IEEE 802.3az Energy-efficient Ethernet
IEEE 802.3ad Standard method for performing link aggregation
IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1D Spanning Tree Protocol(STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1Q （VLAN Bridge Operation）
IEEE 802.1p （VLAN Label）
IEEE 802.1X Client/Server Access Control and Authentication Protocol

POE Standard

IEEE802.3af (15.4W).
IEEE802.3at (30W),

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD),
EN61000-4-5 (Surge)

Network Medium

10Base-T : Cat3, 4, 5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)

Environment Standard

Working Environment

Working Temperature：-10~50°C
Storage Temperature：-40~70°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~90%，non-condensing
