Basic Info.

• Model NO. HHAIR4525.5
• Glass Thickness 3-19 mm
• Processing Services Beveling, Cutting, Drilling, Edging, Polishing
• Warranty 12 Months
• Mode Horizontal
• Axes 5
• Transport Package Container
• Specification 4500X2500 MMS
• Trademark H&H
• Origin China
• HS Code 8475299000
• Production Capacity 2000sets/Year

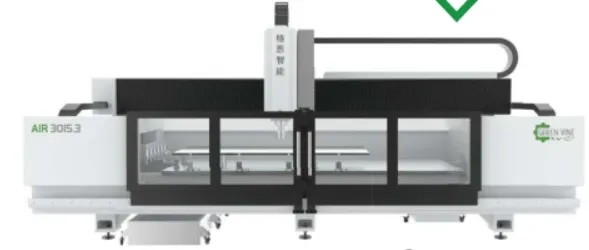

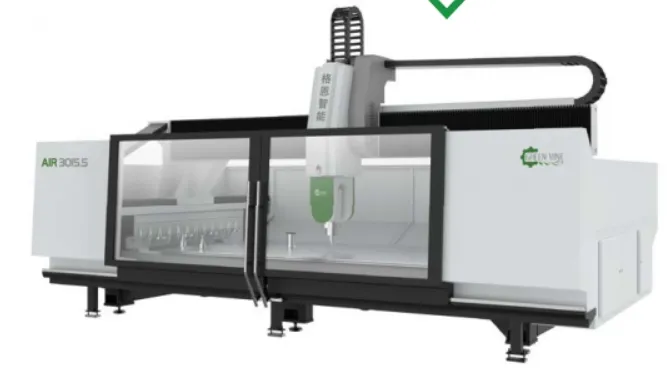

Product Description

Software:

• The operation mode is adopted in the combination of Germany Beckhoff numerical control system and PC, the machine is controlled under windows interface, and the operation is very simple.
• It has the functions of automatic tool allocation, automatic creation of machining program, automatic optimization of machining path, visual simulation of machining, tool management and so on.
• With QR code generation function, does not rely on ERP software. The processing information can be read and processing program can be generated automatically by scanning code.
• Graphic size and position information display function, convenient for information check.

Features:

• Covers small floor area, simple and flexible to connect vertical line, can be combined with vertical drilling machine, vertical edging machine and vertical washing machine to form automatic production line for efficient processing.

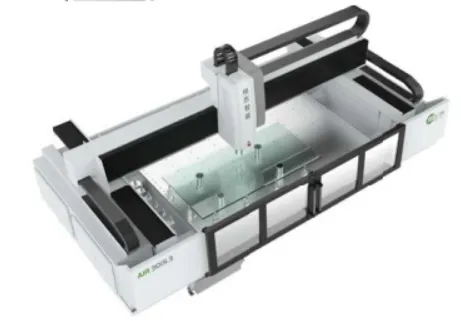

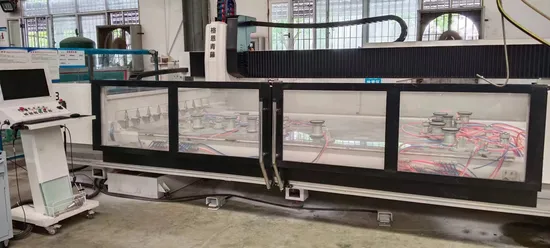

• The glass is fixed and driven to move by a multi clamps or sucker groups, so the processing and positioning are accurate.
• It can be used for drilling, milling, grinding internal edges, grinding external edges, countersinking, polishing internal and external edges, etc.

Function:

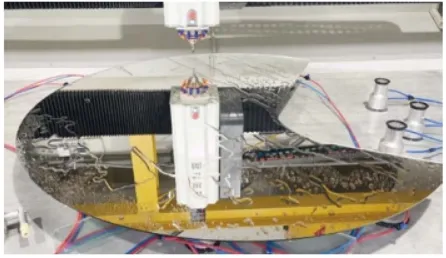

• Drill by two opposite spindles, mill, grind, polish, drill in the clamp interference area, process irregular orders, and accurately position addressing by measuring head.

Features:

• Front and rear spindles milling and grinding at the same time + optimized tool change + Y/V axis fast moving speed + processing program optimization = faster processing speed.
• Irregular graphics such as stair glass steps milling and baluster in parallelogram shape external edges grinding and polishing.
• Clamps in telescopic structure as optional function.

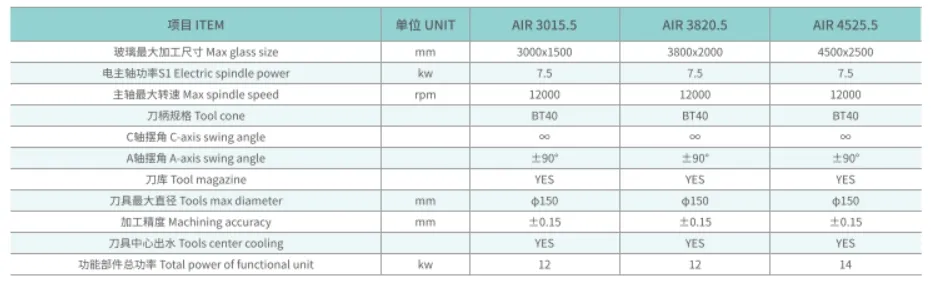

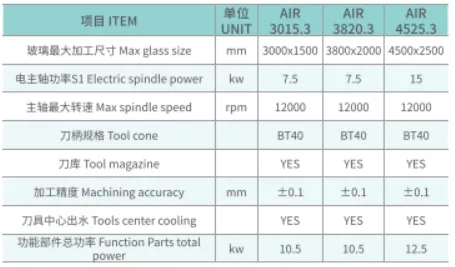

Technical Specifications:

• Max. glass size: 4500X2500 mms;
• Electric spindle power: 7.5 KW;
• Max spindle speed: 12000 rpm;
• C-axis swing angle: no limit;
• A-axis swing angle: +/- 90 degrees;
• Tools max diameter: 150mms;
• Tool cone: BT40;
• Tool magazine: YES;
• Machining accuracy: +/-0.15 mm/m;
• Tools center cooling: yes;
• Function parts total power: 12 KW.

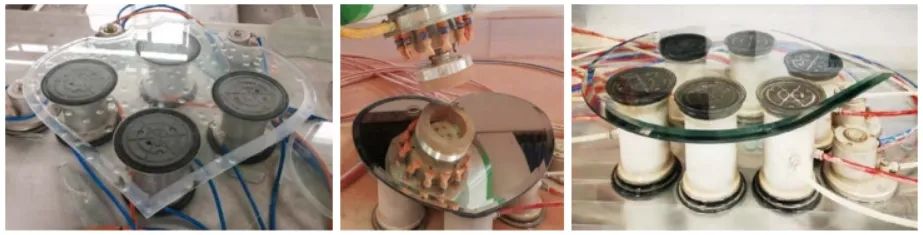

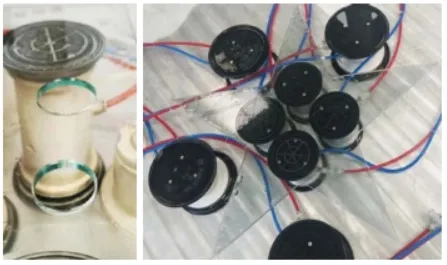

*It adopts suction cup groups to fix and drive glass, in addition to all the functions of vertical drilling and milling, it can also grind the four peripherals of the glass without interference. The front spindle is a multi-functional composite machining head, which is suitable for drilling, milling four peripheral grinding and polishing of special-shaped glass, with higher machining efficiency and intelligence.

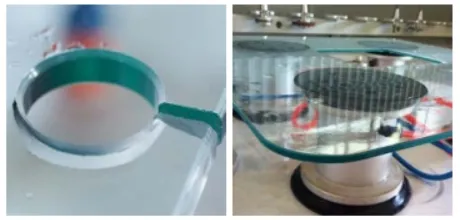

*It can process round, oval, star and other non-standard graphics.

*Smaller or narrower glass profiles can be processed.

*The glass can be directly transferred from the cutting table or the edging machine to the horizontal CNC through the transmission device, and the operation of loading and unloading is reduced.

*Drilling, milling, grinding, countersinking, polishing, processing irregular glass, precise positioning of measuring head.

*It can be equipped with double spindles for edging at the same time.

*Can be equipped with a right-angle tool holder processing stress groove.

*With AC axis rotation function, it can process rock plate and ceramic basin bevel.
