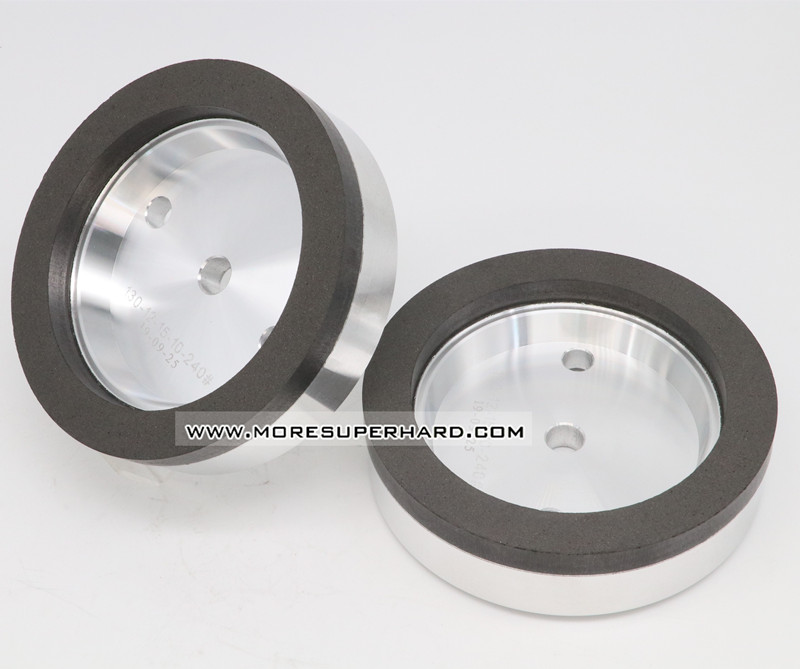

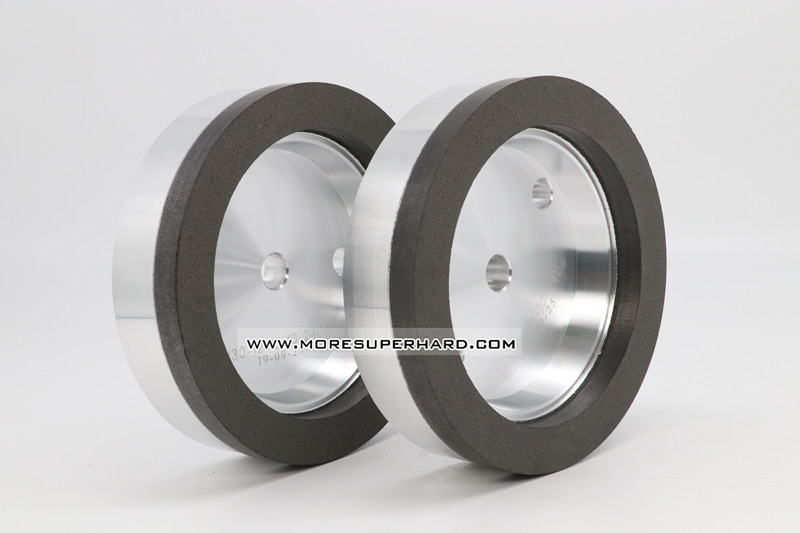

6A2 Resin Diamond Cup Grinding Wheel for CBN Tools
Basic Info
| Model No. | 1A1 6A2 |
|---|---|
| Brand Name | more super hard |
| Material | Diamond |
| Abrasive | Superabrasive |
| Shapes | Edge Shape |
| Types | Surface Grinding Wheel |
| Grain Size | 180# |
Product description
6A2 Resin Diamond Cup Grinding Wheel for CBN Tools
Good Self-sharpening
High Working Efficiency
Good Elastic&Good Polishing Performance
Application:
Especially for face and peripheral grinding of carbide&CBN tools.
Advantages:
1.Precision control of geometric tolerance
2.Good Self-sharpening
3.High Working Efficiency
4.Good Elastic&Good Polishing Performance
5.Superior insert edge quality
|
Type |
D(mm) |
T(mm) |
H(mm) |
W(mm) |
X(mm) |
|
6A2 |
100 |
40 |
32,40 |
5,10,20 |
10 |
|
125 |
40 |
32,40 |
5,10 |
10 |
|
|
150 |
40 |
32,40 |
5,10,15,20 |
8,10 |
|
|
Grit: 230/270,325/400, W40(500#), W35,W28(600#), W20(800#), W10(1500#), W7(2000),W5(3000#), ... |
|||||
When grinding CBN tools, resin bond diamond grinding wheel is mostly used. If the machining tolerance is big, you can use 140/170 for rough grinding,then use230/270,W35,W28 for fine grinding. If you want to save cost & time you can choose W35 for whole grinding.
6A2 Resin Diamond Cup Grinding Wheel for CBN Tools
