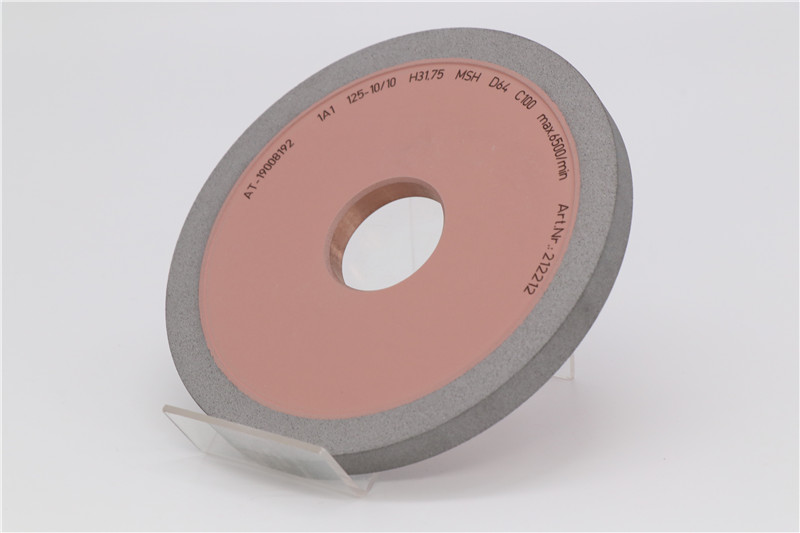

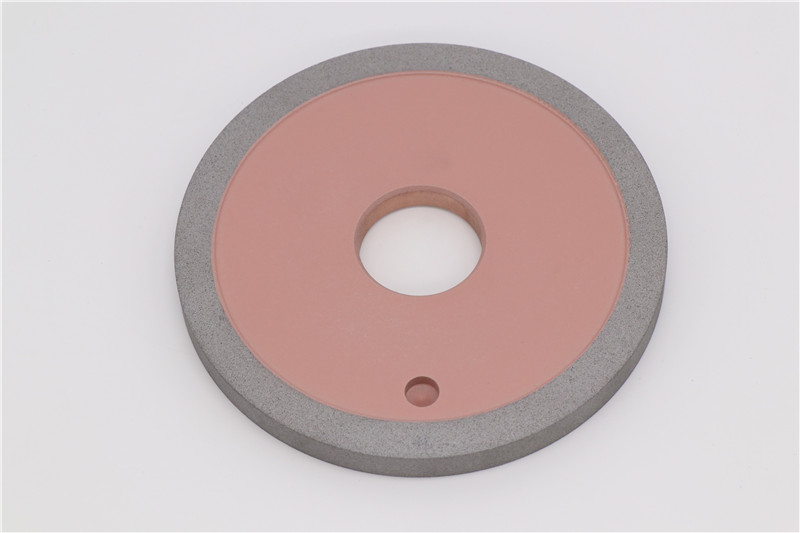

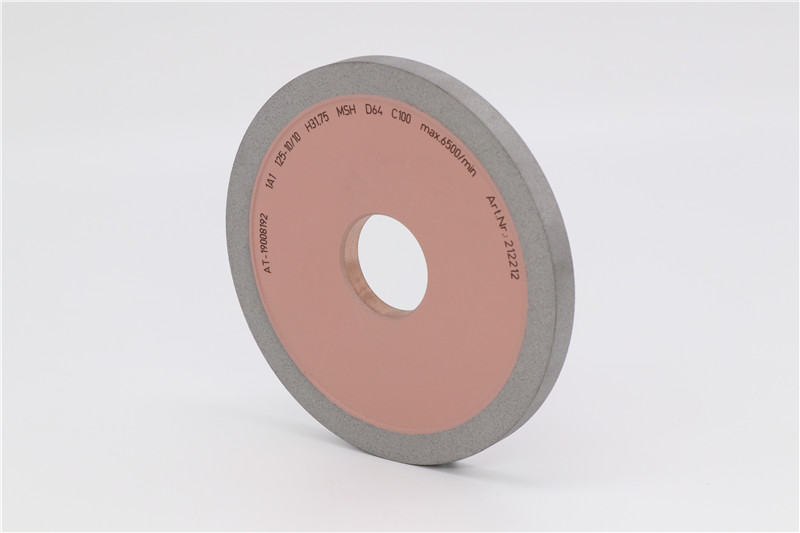

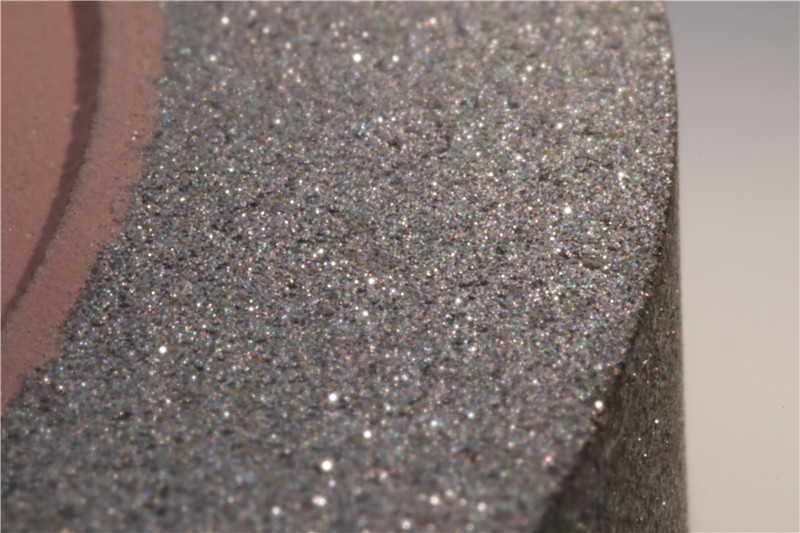

Diamond Flute Grinding Wheel for Carbide Tools
Basic Info
| Model No. | 1A1 6A2 |
|---|---|
| Brand Name | more super hard |
| Material | Diamond |
| Abrasive | Superabrasive |
| Shapes | Edge Shape |
| Types | Surface Grinding Wheel |
| Grain Size | 180# |
Product description
Diamond Flute Grinding Wheel for Carbide Tools
ONLINE TRUING & DRESSING CAPABILITY LOWER TOOLING COST | BETTER EDGE QUALITY
Applicable CNC Grinder: Anca?, Makino?, Rollomatic?, Star?, Walter?, etc
More Superhard offers the optimal product solution for every combination of machines and materials as well as for every grinding requirement. The Diamond flute grinding wheels are used for fluting milling cutter, drill.
Specifications of diamond flute grinding wheel
|
Model |
D (inch/mm) |
T (inch / mm) |
X (inch / mm) |
H (inch /mm) |
||||
|
1A1 |
4" |
100 |
1/4" |
6 |
1/4" |
6 |
1-1/4" |
31.75 |
|
1A1 |
4" |
100 |
3/8" |
10 |
3/8" |
10 |
1-1/4" |
31.75 |
|
1A1 |
4" |
100 |
1/2" |
12 |
3/8" |
10 |
1-1/4" |
31.75 |
|
1A1 |
4" |
100 |
5/8" |
15 |
3/8" |
10 |
1-1/4" |
31.75 |
|
1A1 |
5" |
125 |
1/4" |
6 |
1/4" |
6 |
1-1/4" |
31.75 |
|
1A1 |
5" |
125 |
3/8" |
10 |
3/8" |
10 |
1-1/4" |
31.75 |
|
1A1 |
5" |
125 |
1/2" |
12 |
3/8" |
10 |
1-1/4" |
31.75 |
|
1A1 |
5" |
125 |
5/8" |
15 |
3/8" |
10 |
1-1/4" |
31.75 |
|
1A1 |
6" |
150 |
1/4" |
6 |
1/4" |
6 |
1-1/4" |
31.75 |
|
1A1 |
6" |
150 |
3/8" |
10 |
3/8" |
10 |
1-1/4" |
31.75 |
|
1A1 |
6" |
150 |
1/2" |
12 |
3/8" |
10 |
1-1/4" |
31.75 |
|
1A1 |
6" |
150 |
5/8" |
15 |
3/8" |
10 |
1-1/4" |
31.75 |
DRAWING&SPECIFICATION
Application case of diamond flute grinding wheel
|
Model |
1A1 Diamond flute grinding wheel |
|
Workpiece Material |
Crabide, ceramics |
|
Workpiece |
Flute milling cutter, drill |
|
RPM (m/s) |
16 - 18 m/s |
|
SFM |
3150 - 3540 |
|
CNC Grinding Machine |
Anca? |
|
Coolant |
Oil or water soluble |
Diamond Flute Grinding Wheel for Carbide Tools
