Single Row Angular Contact Ball Bearing 7901C SIZE:12mm×24mm×6mm

Products and services

1. High precision: P0,P6,P5,P4,P2

2. Low noise

3. Small vibration

4. High reliability

5. Long serive life

6. Prompt delivery

7. Processing with supplied drawings

Type	Ball
Model Number	7901C
Brand Name	YW or OEM
Cage Material	brass,steel,nylon
Precision Rating	P0, P6, P5 ,P4 ,P2
Clearance Grades	C0,C2,C3,C4,C5
Vibration Grades	Z1V1,Z2V2 and Z3V3
Number of Row	Single Row
Seals Type	OPEN

Detailed Product Description

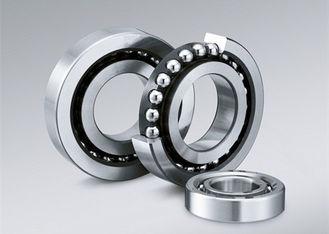

Single Row Angular Contact Ball Bearing 7901C

Bearing Designation	Boundary Dimensions(mm)					BasiC load Rating( kN )				Mass(kg)
						With Cutting Cage		With pressing Cage
	d	D	B	r (min.)	r1 (min.)	Cr	Cor	Cr	Cor	Approx
7901C	12	24	6	0.3	0,.15	3.20	1.70	-	-	0.010

Angular contact ball bearings are able to support radial load axial load .As single row angular contact ball bearings can only support axial load in single direction ,matched bearing mounting is often adopted to them as matched parts of bearings ,preload for them is more convenient .

Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions .

YW Precision angular contact ball bearings are designed for combination radial and axial loading.

• High Quality
• ISO9001:2000
• TS16949:2009
• Reasonable Price
• Good after Service
• More Than 15 Years Experience

Manufacturing &Process Control:

Advanced Metrology:

Hommel profile gauge,Zeiss length gauge,Hommel roughness gauge,Starrett projector,Roundcom roundness gauge,Surform roughness gauge,ABLT-2 bearing life tester
