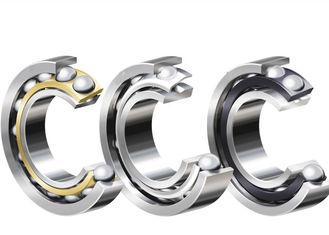

Single Row Angular Contact Ball Bearings 7000,7000B,7000C SIZE:10mm×26mm×8mm

Angular contact ball bearings are able to support radial load axial load .As single row angular contact ball bearings can only support axial load in single direction ,matched bearing mounting is often adopted to them as matched parts of bearings ,preload for them is more convenient .

Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions .

Please check the table for bearing detail dimensions.

Products and services

1. High precision: P0,P6,P5,P4,P2

2. Low noise

3. Small vibration

4. High reliability

5. Long serive life

6. Prompt delivery

7. Processing with supplied drawings

Type	Ball
Model Number	7000
Brand Name	YW or OEM
Cage Material	brass,steel,nylon
Precision Rating	P0, P6, P5 ,P4 ,P2
Clearance Grades	C0,C2,C3,C4,C5
Vibration Grades	Z1V1,Z2V2 and Z3V3
Number of Row	Single Row
Seals Type	OPEN

Single Row Angular Contact Ball Bearings 7000 series:

Bearing Designation	Boundary Dimensions(mm)					BasiC load Rating( kN )				Mass(kg)
						With Cutting Cage		With pressing Cage
	d	D	B	r (min.)	r1 (min.)	Cr	Cor	Cr	Cor	Approx
7000	10	26	8	0.3	0.15	5.00	2.35	-	-	0.021
7000B	10	26	8	0.3	0.15	4.65	2.15	-	-	0.021
7000C	10	26	8	0.3	0.15	5.30	2.45	-	-	0.021

Angular contact ball bearings can bear not only axail but also radial loading capacity.Though only bearing unilateral axial loading capacity, they can be used together with the bearings bears opposite axial loading capacity

• High Quality
• ISO9001:2000
• TS16949:2009
• Reasonable Price
• Good after Service
• More Than 15 Years Experience

Advanced Metrology:

Hommel profile gauge,Zeiss length gauge,Hommel roughness gauge,Starrett projector,Roundcom roundness gauge,Surform roughness gauge,ABLT-2 bearing life tester

Manufacturing &Process Control:
