Input/output Port

AC INPUT

AC100-240V，50/60Hz

Ethernet Port

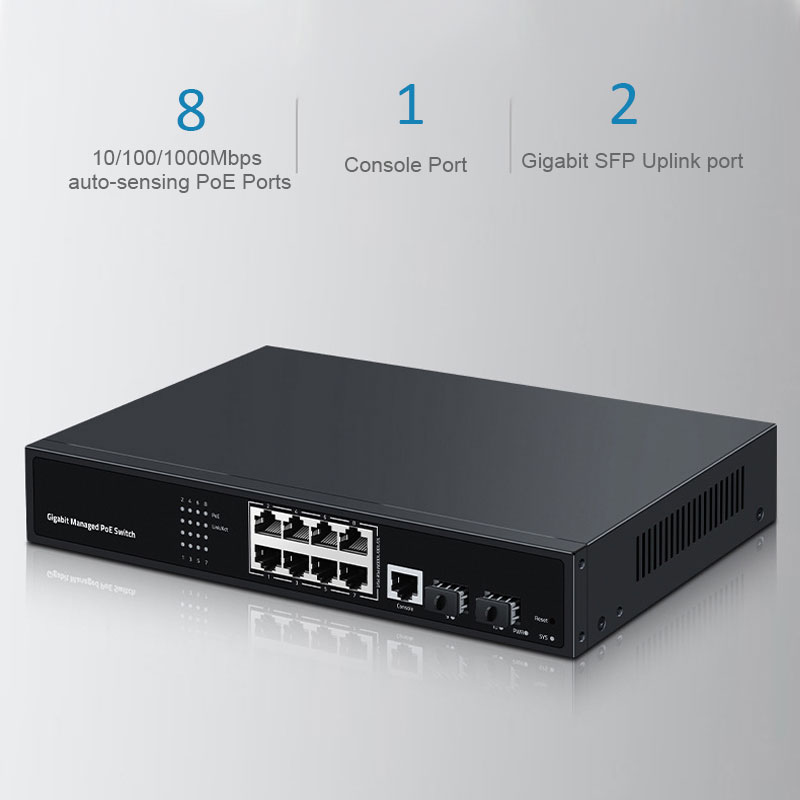

8 * 10/100/1000Mbps PoE Port
2* 1000Mbps SFP Port
1 * RJ45 Console Port

Performance

Bandwidth

20Gbps

Packet Forwarding rate

14.88Mpps

DDR SDRAM

128MB

Flash Memory

16MB

Packet Buffer Memory

4M

MAC Address

8K

Jumbo frame

9.6Kbytes

VLANs

4096

Standard

Network Protocols

IEEE 802.3：Ethernet MAC Protocol
IEEE 802.3i：10BASE-T Ethernet
IEEE 802.3u：100BASE-TX Fast Ethernet
IEEE 802.3ab：1000BASE-T Gigabit Ethernet
IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ad：Standard method for performing link aggregation
IEEE 802.3x：Flow control
IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)
IEEE 802.1q：VLAN Bridge Operation
IEEE 802.1x：Client/Server Access Control and Authentication Protocol
IEEE 802.1d：STP
IEEE 802.1s：MSTP
IEEE 802.1w：RSTP

PoE protocol

IEEE802.3af （15.4 W）
IEEE802.3at （30 W）

Network Media

10BASE-T: Cat3、4、5 or above UTP(≤100 M)
100BASE-TX: Cat5 or above UTP(≤100 M)
1000BASE-TX: Cat5 or above UTP(≤100 M)

Fiber Medium

Multi-mode Fiber: 50/125、62.5/125、100/140um
Single-mode Fiber: 8/125、8.7/125、9/125、10/125um

Environmental standards

Working Environment

Operating temperature: -10~50°C
Storage temperature: -40~70°C
Operating Humidity: 10%~90%, No condensation
Storage Humidity: 5%~90%, No condensation

Function indication

Indicator

PWR, SYS, PoE, Link/ACT

PWR（Power Indicator）

Lighting：Powered
Un-Light：No Power

SYS（System Indicator）

Flashing: System Start-up
Lighting: System Running

PoE

Lighting：PoE on
Un-Light：PoE off

Link/ACT

Lighting: Link connection
Flashing: Data transmission
Un-Light: Link disconnect

Reset

Short press restart, long press 5 seconds to restore factory Settings

Physical specifications

Product Information

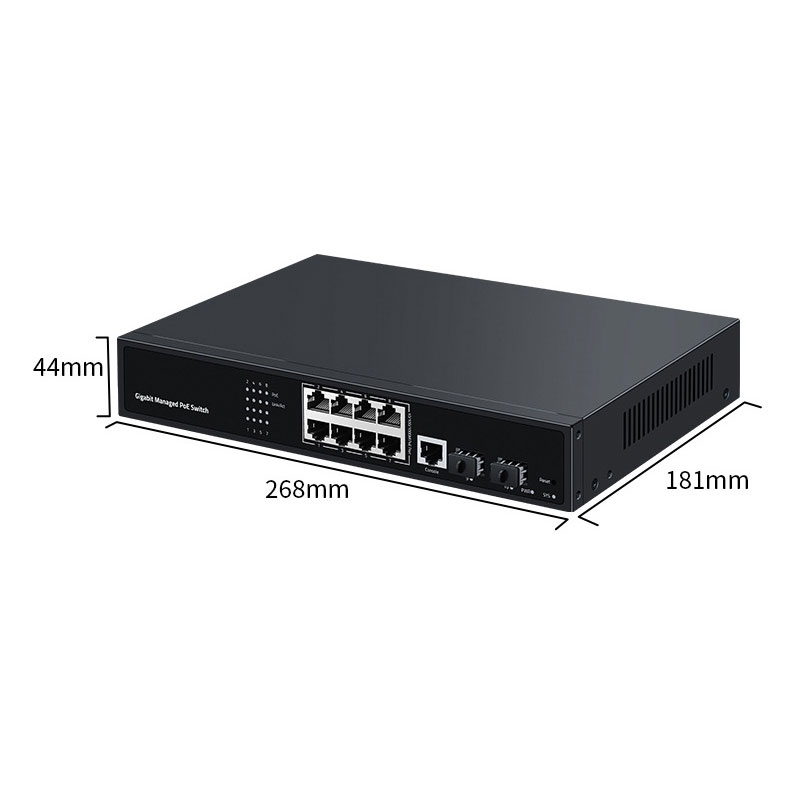

Product Dimensions: 268*181*44mm
Package Dimensions: 312*262*84mm
Product N.W: 1.08KG
Product G.W: 1.62KG

Packing Information

Carton Dimensions: 540*435*332mm
Packing Qantity: 10 pcs
Packing weight: 17.2KG

Power Supply

Input Voltage: AC100-240V/50-60Hz
Output: 52V 96W

Packing list

1. Ethernet switch: 1 Set
2. Instruction manual: 1 PCS
3. Certificate: 1 PCS
4. Power cord: 1PCS
5. Serial cable: 1PCS
6. Brackets: 1 pair

Order Information

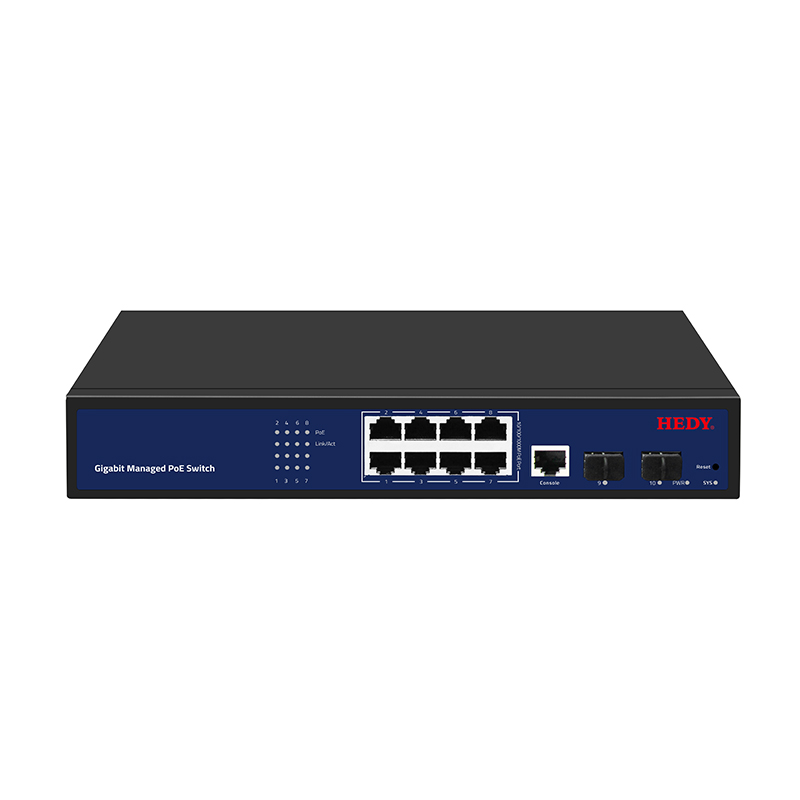

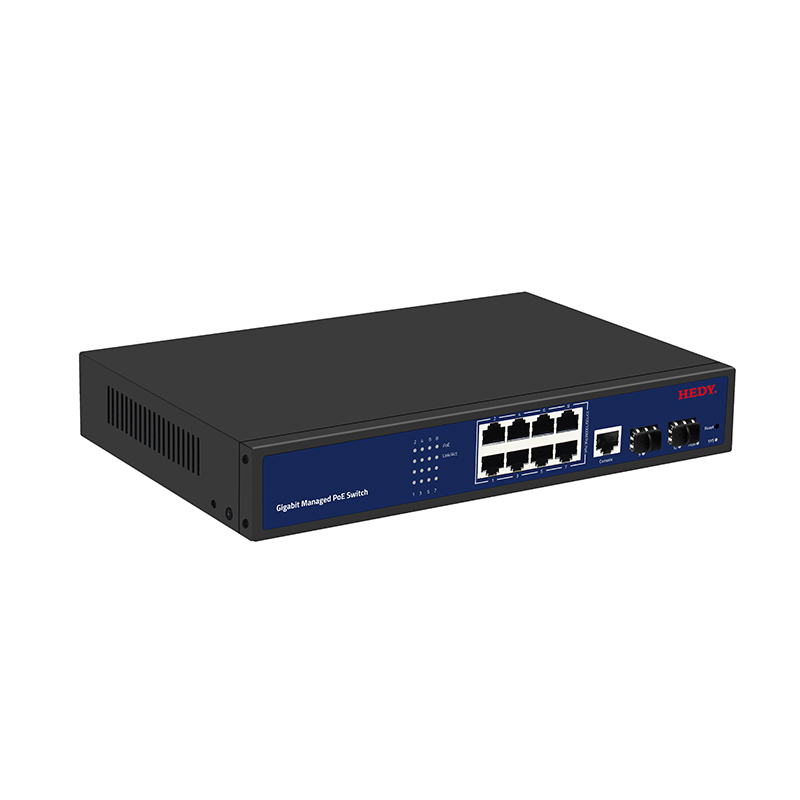

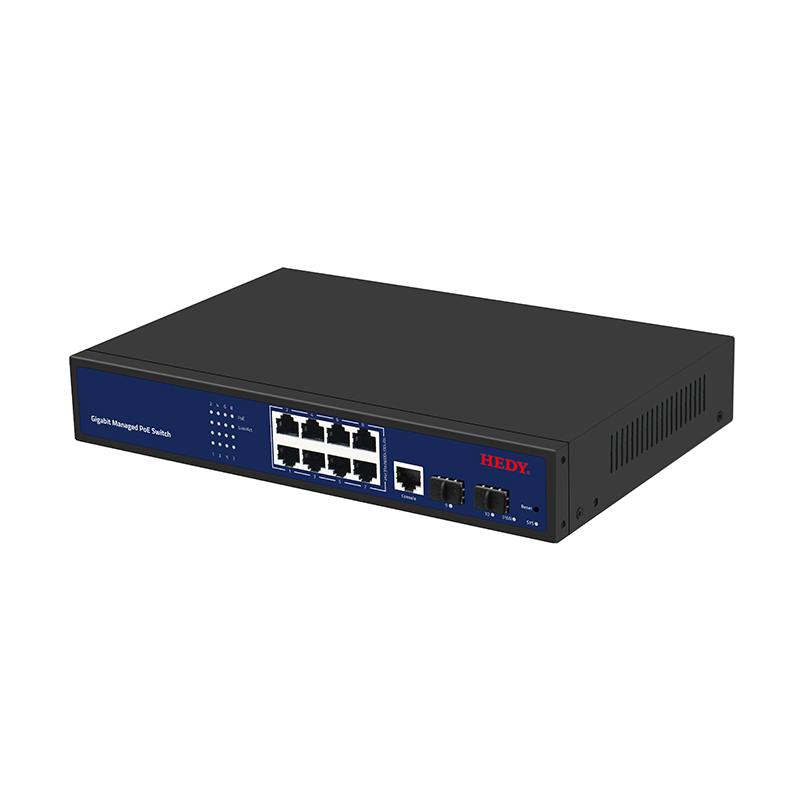

HM8G2S-96

10 Port Gigabit Managed Ethernet PoE Switch
