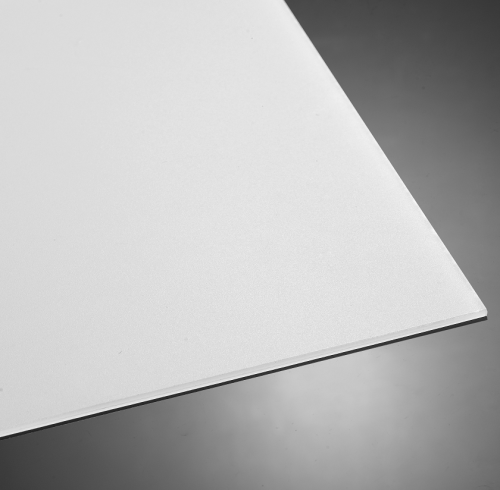

Acrylic Diffuser Sheet for Panel Light

$9.30 / Piece/Pieces

Get Latest Price

Model No.	Jk-DDS85-PMMA
Brand Name
place of origin	China
Material	Pc
Processing Service	Cutting, Moulding
Place of Origin	Guangdong, China
Brand Name	J.K Optics
Width(W)	1200mm
Thickness(T)	0.7mm-5.0mm
Usage	lighting fixture cover
Color	Milky, opal, etc
Finish	Glossy, Matte
Length(L)	1200mm
Size	1200*1200mm
Code	Jk-DDS85-PMMA-1.5
Light Transmittance	85%

Acrylic Diffuser Sheet for Panel Light

Acrylic Light Diffuser aim to eliminate the led spot of Led lighting, meanwhile to achieve the best light transmission and Increases light uniformity throughout the Diffuser Sheet.The PMMA Diffuser is produced with Optical grade PMMA raw material and scientific formula processing, the light can be reflected and refracted and scattering in the chemistry particles and resin continuously to achieve the Lighting Diffusion effection.

Acrylic Diffuser

A, For Back-lit Led Luminaire:

Code	Thickness (mm)	Appearance	Distance between lamps: working distance to diffuser	Transmission (Test by Transmission and haze Analyzer, ASTM D1003-61(1997)		Efficiency in typical LED luminaire	Commends
JK-90	1.2-5.0	One side matt, Another side Orange Peel Texture	1:2	80%		>90%	Highest efficiency, Good lamp hiding
JK-85	1.2-5.0	One side matt, Another side smooth	1:2.5	75%		>85%	Excellent efficiency, Increased lamp hiding
JK-76	1.2-5.0	One side matt, Another side smooth	1:2	70%		>80%	High efficiency, Excellent lamp hiding
JK-60	1.5-5.0	One side matt, Another side smooth or two side matte	1:1.5	60%	>75%		General efficiency, Strongest lamp hiding available

B, For side lighting Led Luminaire:

Code	Thickness(mm)	Appearance	Recommend Light Guide Plate	Transmission (Test by Transmission and haze Analyzer, ASTM D1003-61(1997)	Efficiency in typical LED luminaire	Commends
JK-76	1.2-5.0	One side matt, Another side smooth	Screen printed LGP	70%	>85%	Highest efficiency, General defect hiding
JK-70	1.5-5.0	One side matt, Another side Orange Peel Texture	Screen printed or Laser cutting LGP	65%	>80%	Excellent efficiency, Increased defect hiding
JK-60	1.5-5.0	One side matt, Another side smooth or two side matte	Screen printed or Laser cutting LGP	60%	>75%	Excellent efficiency, Strongest defect hiding

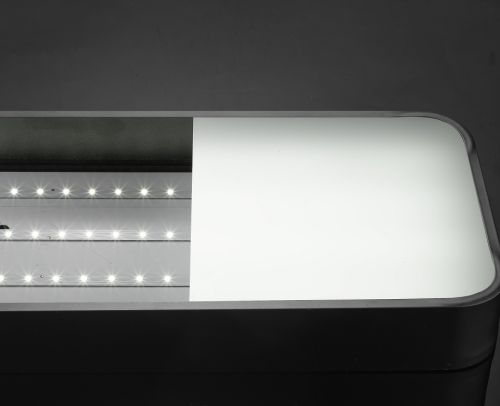

Acrylic diffusion sheet application

Acrylic Diffuser Sheet for Panel Light FAQ:

Are acrylic diffuser panels UV resistant?
Many acrylic diffusers are UV resistant, which prevents yellowing or degradation over time, especially outdoors or in high-exposure environments.

Can acrylic diffuser panels be customized?
Yes, acrylic diffuser panels can be customized in size, thickness, and surface texture to meet specific lighting design requirements.

How to install acrylic diffuser panel?
Acrylic diffusers are typically installed by inserting them into a compatible light fixture or frame, ensuring proper alignment and a secure connection.

Do acrylic diffuser panels require maintenance?
Acrylic diffuser panels are relatively low maintenance and can be cleaned with mild soap and water or a specialized acrylic cleaning product to remove dirt or stains.

Are acrylic diffusion panels flame retardant?
Many acrylic diffuser panels are manufactured with flame retardant additives to increase safety and comply with building codes and regulations.

What are the different types of acrylic diffusers?
Types of acrylic diffuser panels include standard, high-impact, UV-resistant, frosted and textured, with each type suitable for specific lighting applications.

Are acrylic diffusion panels environmentally friendly?
Compared to other materials such as PVC, acrylic diffuser panels can be recycled and are considered environmentally friendly, especially when sourced from sustainable suppliers.

Will acrylic diffusers turn yellow over time?
High-quality acrylic diffuser sheets are formulated to resist yellowing and discoloration, maintaining optical clarity and performance over the long term.

Can acrylic diffuser panels be cut to size?
Yes, acrylic diffuser panels can be easily cut to size using standard cutting tools, allowing them to be precisely customized to fit a specific lighting fixture or application.
