Led Light Diffusing Acrylic Sheet
Basic Info
| Model No. | Jk-DDS85-PMMA-1.2 |
|---|---|
| place of origin | China |
| Material | Acrylic |
| Processing Service | Cutting, Moulding |
| Place of Origin | Guangdong, China |
| Brand Name | J.K Optics |
Product description

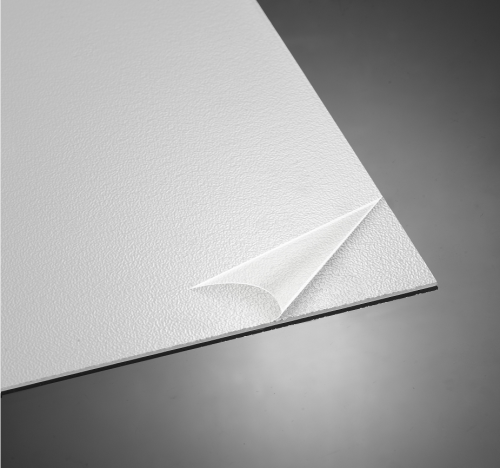

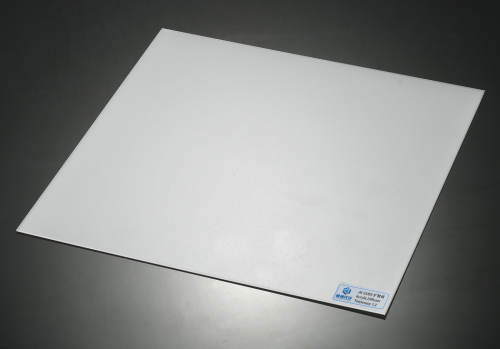

Led Light Diffusing Acrylic Sheet
Led Light Diffusing Acrylic Sheet is kind of opal PMMA product with soft matte texture on one side specifically designed for lighting lenses.Which aims to eliminate the led spot of Led lighting, meanwhile to achieve the best light transmission and Increases light uniformity throughout the Light Diffuser Sheet.
The Acrylic Diffusing Sheet is produced with Optical grade PMMA raw material and scientific formula processing, the light can be reflected and refracted and scattering in the chemistry particles and resin continuously to achieve the Lighting Diffusion effection.
A, For Back-lit Led Luminaire:
| Code | Thickness (mm) | Appearance | Distance between lamps: working distance to diffuser |
Transmission (Test by Transmission and haze Analyzer, ASTM D1003-61(1997) |
Efficiency in typical LED luminaire |
Commends | |
| JK-90 | 1.2-5.0 |
One side matt, Another side Orange Peel Texture |
1:2 | 80% | >90% |
Highest efficiency, Good lamp hiding |
|
| JK-85 | 1.2-5.0 |
One side matt, Another side smooth |
1:2.5 | 75% | >85% |
Excellent efficiency, Increased lamp hiding |
|
| JK-76 | 1.2-5.0 |
One side matt, Another side smooth |
1:2 | 70% | >80% |
High efficiency, Excellent lamp hiding |
|
| JK-60 | 1.5-5.0 |
One side matt, Another side smooth or two side matte |
1:1.5 | 60% | >75% |
General efficiency, Strongest lamp hiding available |
|
B, For side lighting Led Luminaire:
| Code | Thickness(mm) | Appearance |
Recommend Light Guide Plate |
Transmission (Test by Transmission and haze Analyzer, ASTM D1003-61(1997) |
Efficiency in typical LED luminaire |
Commends |
| JK-76 | 1.2-5.0 |
One side matt, Another side smooth |
Screen printed LGP | 70% | >85% | Highest efficiency, General defect hiding |
| JK-70 | 1.5-5.0 |
One side matt, Another side Orange Peel Texture |
Screen printed or Laser cutting LGP | 65% | >80% | Excellent efficiency, Increased defect hiding |
| JK-60 | 1.5-5.0 |
One side matt, Another side smooth or two side matte |
Screen printed or Laser cutting LGP | 60% | >75% | Excellent efficiency, Strongest defect hiding |
