Opal Fluorescent Light Diffuser for Panel Lighting

$9.30 / Piece/Pieces

Get Latest Price

Model No.
Brand Name
place of origin	China
Material	Acrylic
Processing Service	Cutting, Moulding
Place of Origin	Guangdong, China
Brand Name	J.K Optics
Width(W)	1200mm
Length(L)	1200mm
Usage	lighting fixture cover
Color	Milky, opal, etc
Finish	Glossy, Matte
Light Transmittance	85%
Size	1200*1200mm
Code	Jk-DDS85-PMMA-2.0
Thickness(T)	1.2mm-5.0mm

Opal Fluorescent Light Diffuser for Panel Lighting

Opal fluorescent diffusers for panel lighting are indeed a popular choice, especially in commercial environments such as offices, schools and other spaces where comfortable and evenly distributed lighting is crucial. Here are some of the key features and benefits of opal fluorescent light diffusers:

HIGH QUALITY Acrylic Construction: Opal fluorescent diffusers are typically constructed from high quality acrylic material, ensuring durability and longevity, making them suitable for long-term use in commercial environments.
SOFT Diffuse Light: The opal finish creates a soft, diffuse light that is good for the eyes and suitable for tasks that require prolonged concentration. It helps create a pleasant and welcoming atmosphere in the space.

Opal fluorescent diffusers are an excellent choice for panel lighting applications where even light distribution, reduced glare and a comfortable working environment are important considerations.

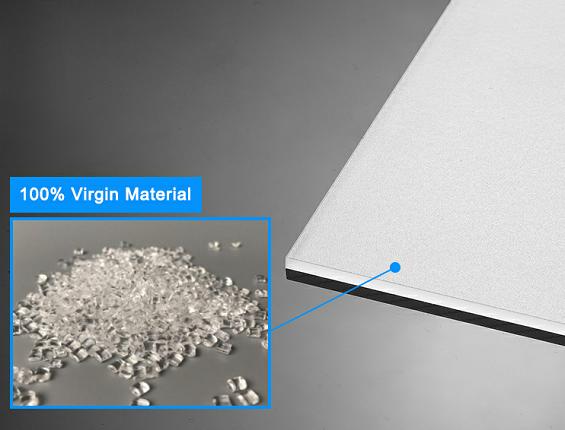

Acrylic Diffuser

Acrylic diffusion sheet application

A, For Back-lit Led Luminaire:

Code	Thickness (mm)	Appearance	Distance between lamps: working distance to diffuser	Transmission (Test by Transmission and haze Analyzer, ASTM D1003-61(1997)		Efficiency in typical LED luminaire	Commends
JK-90	1.2-5.0	One side matt, Another side Orange Peel Texture	1:2	80%		>90%	Highest efficiency, Good lamp hiding
JK-85	1.2-5.0	One side matt, Another side smooth	1:2.5	75%		>85%	Excellent efficiency, Increased lamp hiding
JK-76	1.2-5.0	One side matt, Another side smooth	1:2	70%		>80%	High efficiency, Excellent lamp hiding
JK-60	1.5-5.0	One side matt, Another side smooth or two side matte	1:1.5	60%	>75%		General efficiency, Strongest lamp hiding available

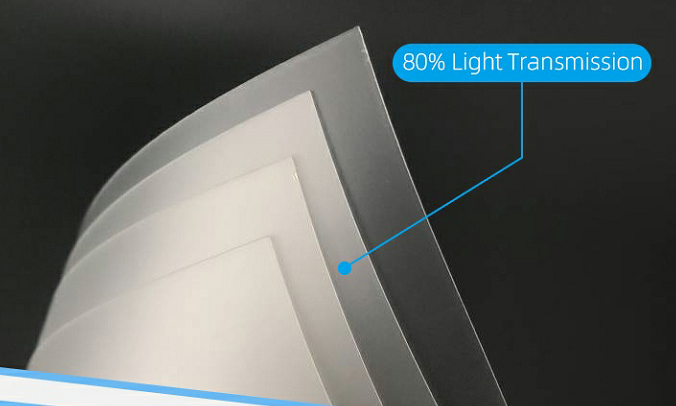

PMMA diffusion sheet light Transmission

B, For side lighting Led Luminaire:

Code	Thickness(mm)	Appearance	Recommend Light Guide Plate	Transmission (Test by Transmission and haze Analyzer, ASTM D1003-61(1997)	Efficiency in typical LED luminaire	Commends
JK-76	1.2-5.0	One side matt, Another side smooth	Screen printed LGP	70%	>85%	Highest efficiency, General defect hiding
JK-70	1.5-5.0	One side matt, Another side Orange Peel Texture	Screen printed or Laser cutting LGP	65%	>80%	Excellent efficiency, Increased defect hiding
JK-60	1.5-5.0	One side matt, Another side smooth or two side matte	Screen printed or Laser cutting LGP	60%	>75%	Excellent efficiency, Strongest defect hiding
