Advanced Image Setter Machine for Pad Printer

Video

1 / 6

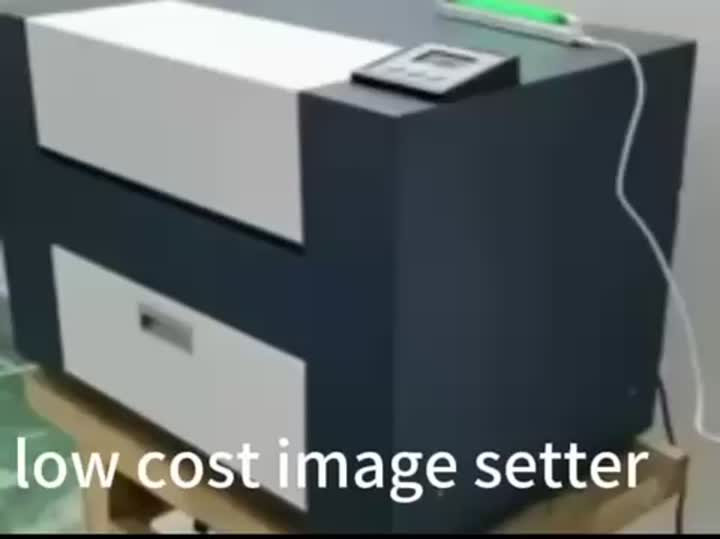

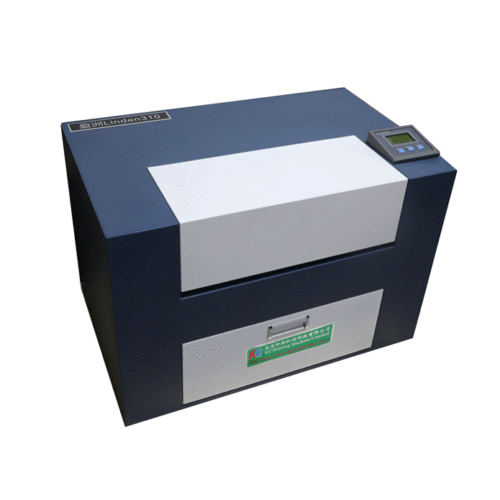

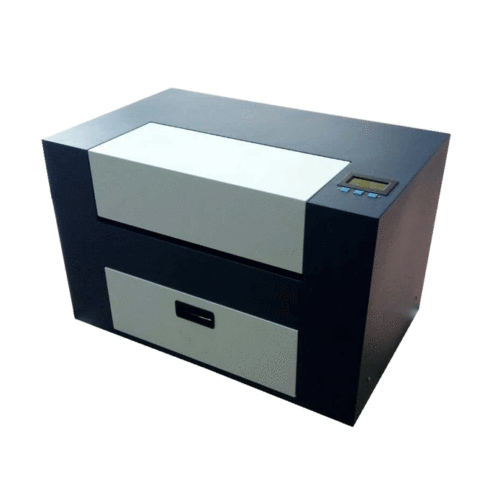

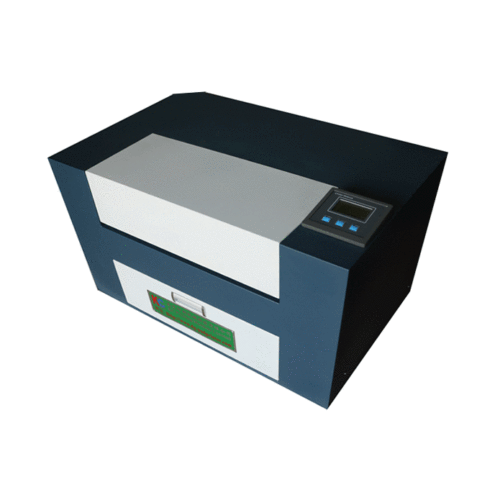

Advanced Image Setter Machine for Pad Printer

$5300.00

≥1 Bag/Bags

Model:

PM-410FL

Get Latest Price

You might also like

Top Selling Laser Setter Film Output Machine

1 Set/Sets (MOQ)

pad plate image output machine

1 Bag/Bags (MOQ)

Image setter machine for screen printer

1 Bag/Bags (MOQ)

Advanced Image Setter Machine for Pad Printer

1 Bag/Bags (MOQ)

Laser Image Setter for Film Output

1 Bag/Bags (MOQ)

Hot Selling Cost-Effective Image Setter for Printing

1 Set/Sets (MOQ)

Basic Info

Model No.	PM-410FL
Brand Name	KC
Applicable industry	Retail, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets)	Morocco, South Korea, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine
Showroom location (in which countries are there sample rooms overseas)	Egypt, United Kingdom, France, Brazil, Indonesia, Mexico, Russia, Morocco, South Korea
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	Ordinary Product
Core component warranty period	1 Year
Core components	Engine, Motor
status	New
Types of	Image Setter
degree of automation	Semi-Automatic
place of origin	China
warranty period	1 Year
Core selling point	Flexible Manufacturing, High-Accuracy, Accurate Temperature Control
Type	Virtual Drum Imagesetters
Scan Mode	Inner Drum Scanning
Recording Resolution	DPI
Performance Parameters	Recording Accuracy

Product description

Usage

Technical data

Laser film imagine setter //Parameter
Technical parameters	PM-410FL
	?
	?
	Max exports width: 410mm; Output speed: 85mm/min; Resolution ratio: 3000DPI; Record source : Semiconductor Laser Scan style: step; Repetition accuracy: 0.01mm; Film: Red laser phototypography film; Joint : Parallel USB2.0; Works style: semi-auto operation in darkness room; Operation environment : temperature10-30,humidity:20-80%
	PM-510FL
	Max exports width: 510mm; Output speed: 85mm/min; Resolution ratio: 3000DPI; Record source : Semiconductor Laser Scan style: step; Repetition accuracy: 0.01mm; Film: Red laser phototypography film; Joint : Parallel USB2.0; Works style: semi-auto operation in darkness room; Operation environment : temperature10-30,humidity:20-80%
	PM-610FL
	Max exports width: 610mm; Output speed: 85mm/min; Resolution ratio: 1800DPI; Record source : Semiconductor Laser Scan style: step; Repetition accuracy: 0.01mm; Film: Red laser phototypography film; Joint : Parallel USB2.0; Works style: semi-auto operation in darkness room; Operation environment : temperature10-30,humidity:20-80%
Works supply	110V-220VPower supply; 5-10M2 dark room; Computer: ( P e n t i u m 4 2 G Hz Processor / 5 1 2 M R AM / 1 0 GB/,Mainboard US B 2 . 0/ 17" Monitor/ 3 2 MB VGA / ?X V GA/ CD R OM Developing tray, Fixation tray.
Package list	Package Dimension: 900×600×750mm; Gross weight: 110Kg CBM: 0.4371
H.S.Code	8443198000
Certicate	CE

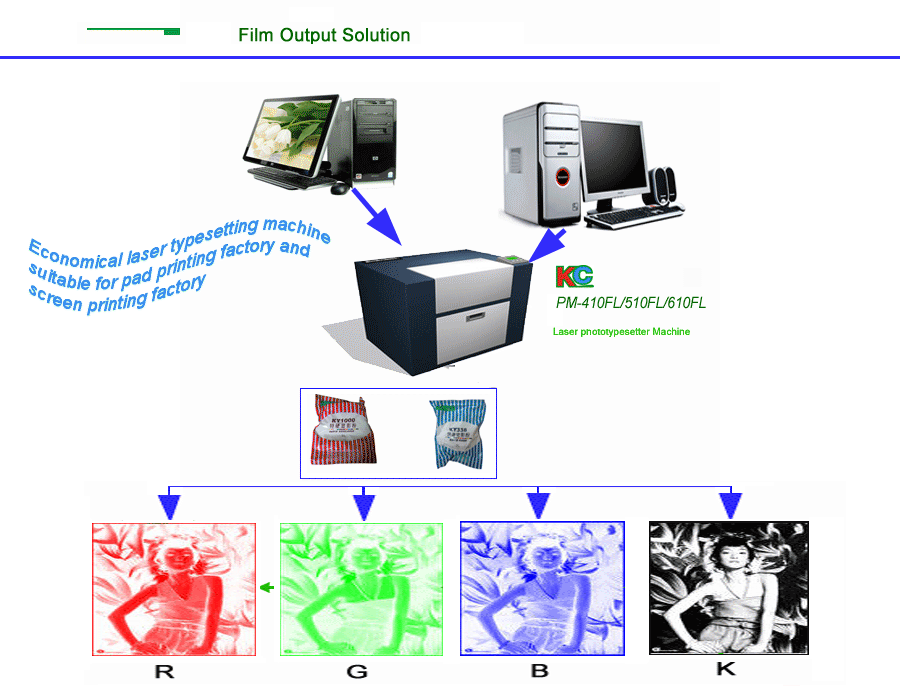

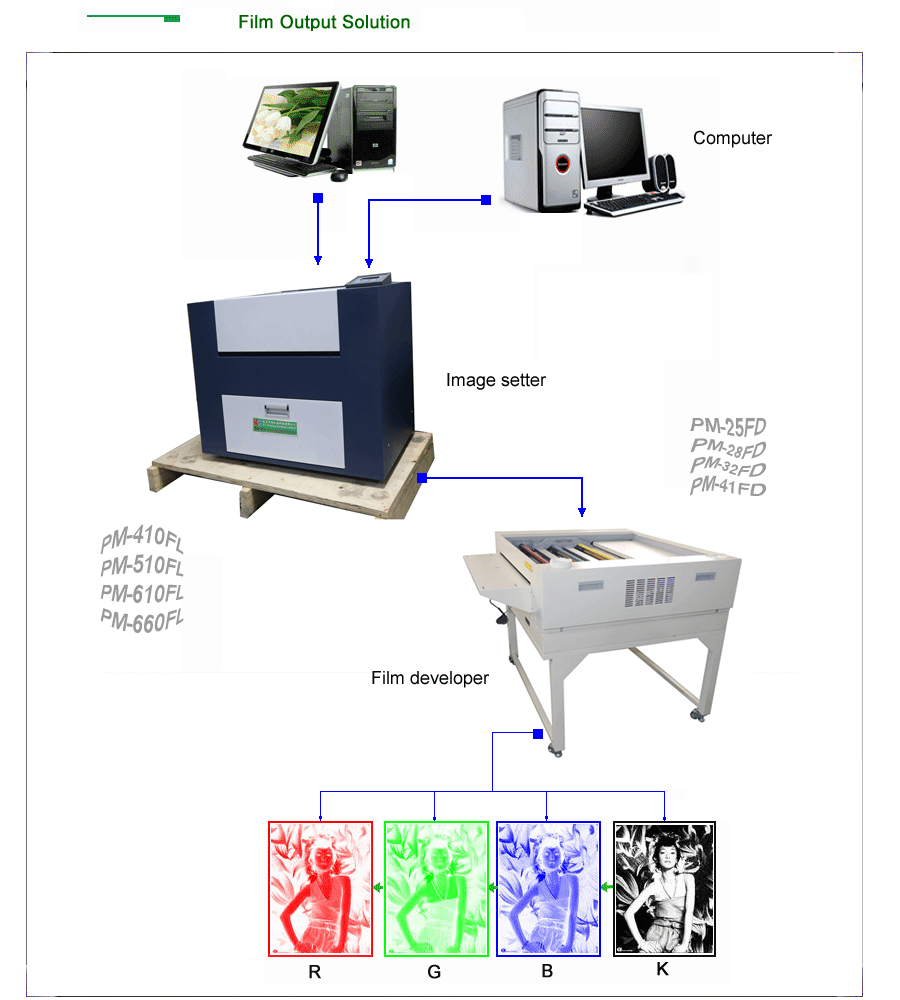

Solution

Catalogue

?? ? ?Most printing processes require printing plates, especially in the field of special printing, such as pad printing, screen printing, hot stamping, flexo printing, offset printing, and gravure printing. Some printing processes with higher technical barriers are developing towards computer direct platemaking technology (CTP), that is, using computer control to directly output the design draft stored in the computer to the printing plate to form a printing plate. Offset printing, flexo printing, and screen printing are relatively mature. Some printing processes with lower technical barriers still follow the traditional platemaking process. First, the image and text are output to the platemaking film, and then the platemaking film is used to cover the printing plate to make the printing plate. Pad printing, screen printing, and hot stamping still retain this process. The platemaking film becomes a film, which is formed by coating a photosensitive layer on a PET film. The transparent area of ??the platemaking film will transmit ultraviolet light, and the non-transparent area will block light. The photosensitive layer will solidify in the area that transmits ultraviolet light, and the photosensitive layer will not solidify in the area that does not transmit ultraviolet light, and will be washed away during development and washing.

Most pad printers, screen printers, and hot stamping machine operators are small-scale investors with meager profits, and may not be willing to buy expensive laser phototypesetters. However, the KC series laser phototypesetters are inexpensive, have moderate accuracy, and are easy to operate. They usually recover their costs in about three months. If you are engaged in pad printers, screen printers, and hot stamping machine processing business, or provide film output and plate making business for other printing factories, you can consider the KC brand laser phototypesetter.

Semiconductor luminescence lamp-house;
Flat operation mode;
Expert image controlling technology;
Film store box aggregated storing, measuring, cutting, feeding function installed
RIP 3.0 sent with machine, used both PC AND MAC system;
Design for pad film output.
The roll film feeding , suitable for the negative of the output of any length and Positive Film.
