Advanced Multi Function Screen Printing System

Video

1 / 7

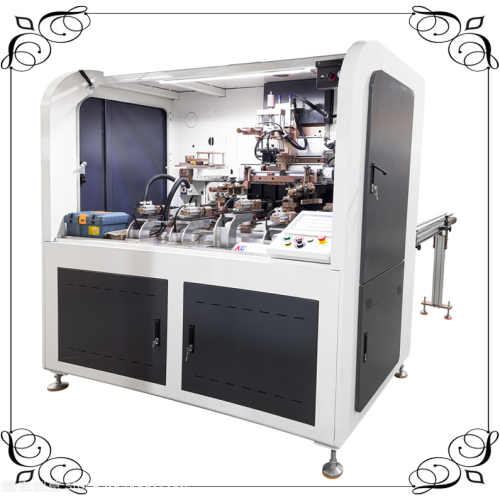

Advanced Multi Function Screen Printing System

$35000.00

≥1 Set/Sets

Model:

LAD-01

Get Latest Price

You might also like

Precision Shuttle Type Screen Printing Machine for Panels

$25000.00

1 (MOQ)

Newest Automatic Screen Printing Machine for Glass Bottles

1 Set/Sets (MOQ)

Automatic Glass Bottle Screen Printing Machine

1 Set/Sets (MOQ)

UVLED Automatic Paint Bucket Servo Screen Printing Machine

1 Bag/Bags (MOQ)

Automatic CCD Bottle Screen Printer for Quality Assurance

1 Set/Sets (MOQ)

UVLED Screen Printing Machine for Washing Machine Panels

1 Set/Sets (MOQ)

Advanced Multi Function Screen Printing System

1 Set/Sets (MOQ)

Innovative Design UVLED Bottle Screen Printing Machine

1 Set/Sets (MOQ)

Basic Info

Model No.	LD-A01
Brand Name	KC
Type of printing plate	Screen Printer
Applicable industry	Machinery Repair Shops, Restaurant, Food Shop, Energy &Amp; Mining
Out-of-warranty service	Video Technical Support, Online Support, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets)	Brazil, Indonesia, Mexico, Spain, Japan, Malaysia, Morocco, Kenya, South Korea, Colombia
Showroom location (in which countries are there sample rooms overseas)	Peru, Saudi Arabia, Pakistan, India, Russia, Spain, Thailand, Morocco, Kenya, Argentina, Uae, Sri Lanka
status	New
place of origin	China
use	Paper Printer, Label Printer, Cloths Printer
degree of automation	Semi-Automatic
Printing color number and surface number	Multicolor
warranty period	1 Year
Core selling point	Easy To Operate, Low Noise Level, Multi Color
Marketing type	Hot Product 2019, Ordinary Product, New Product 2020
Mechanical test report	Provided
Video factory inspection	Provided
Core component warranty period	1 Year
Core components	Bearing, Gear, Pressure Vessel
Style	Screen-process Printing Press
Color & Page	Multi-Colour Printing Press
Application	Printing Garments
Color	10 Color

Product description

Round/oval /square automatic? ?screen printing machine

//Usage and charactersSamples

Description

? The full-servo multi-function CCD positioning container screen printing machine is an industrial-grade screen printing equipment that integrates high precision, flexibility and intelligence. It is specially designed for the screen printing needs of complex-shaped containers (such as round, square, conical bottles, and special-shaped parts), and realizes the maximum adaptability of a machine to most containers.

1. Full servo drive system

Bottles have various shapes, sizes, and materials. If you want to print on a screen printer, you must use a servo drive system. When changing fixtures and screens, you can use intelligent data adjustment. For some oval, square bottles or bottles with more complex shapes, the printing head needs to float according to the shape during the printing process. Only a multi-axis linkage servo device can achieve this. The servo motor drives the X/Y/Z axis and rotation axis of the printing head to achieve a repeatable positioning accuracy of ±0.01mm.

2. CCD visual positioning technology

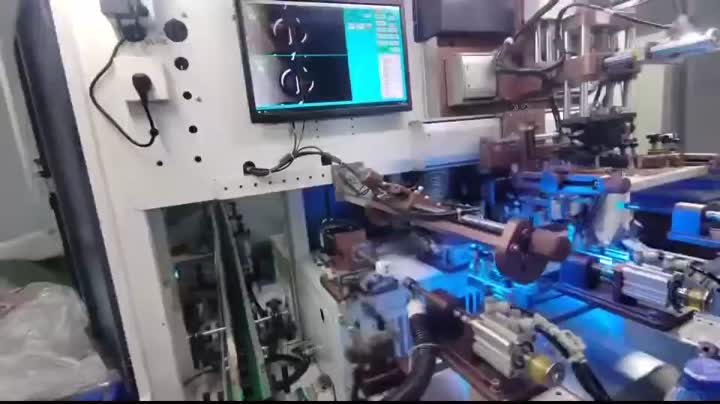

If there are special requirements for the starting position of the bottle, the CCD positioning technology is the most reliable. The industrial camera captures the container contour in real time, and the offset is calculated by combining the AI ??algorithm to achieve a positioning accuracy of ±0.02mm. Support dynamic adjustment of printing path to adapt to irregular containers such as cylindrical and conical shapes.

3. Flexible feeding technology

Bottles have complex shapes, and servo-driven manipulator gripping devices are usually used to ensure that the screen printer can still shuttle easily when changing bottles, and achieve perfect docking between the feeding mechanism and the printing mechanism.

4. UVLED curing device

In high-speed automation systems, UVLED is the most efficient and environmentally friendly technology, which can ensure instant drying of ink. This full servo machine is suitable for various types of UV inks, whether it is glass, metal, or plastic, as long as the appropriate power adjustment is made to achieve higher adhesion.

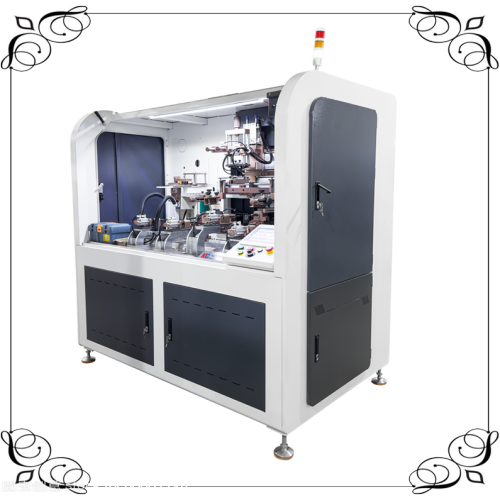

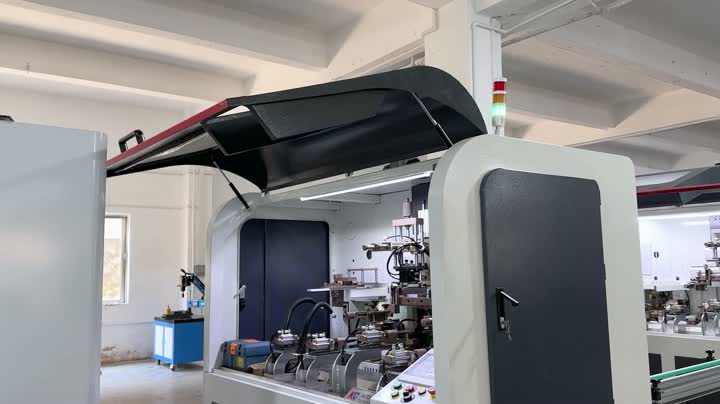

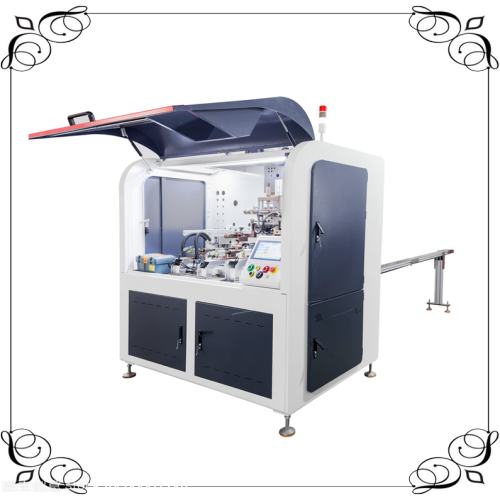

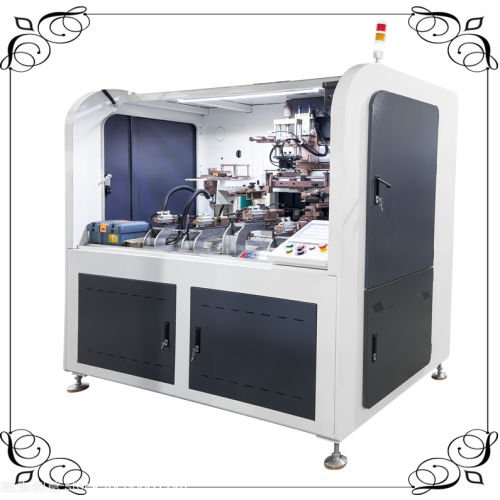

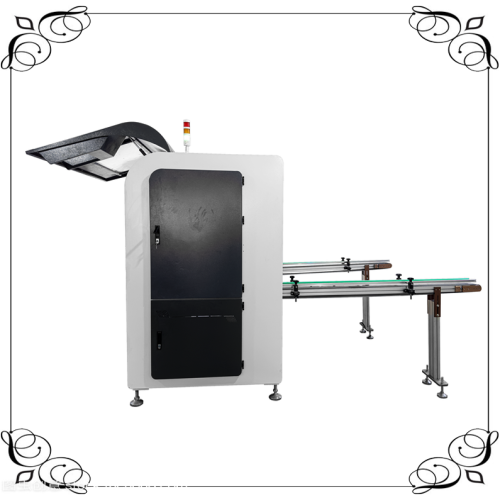

Machine details show

? ? ? For users, purchasing an automatic screen printing machine that can print on almost all shapes, such as cylinders, ovals, squares, and cones, and on almost all materials, such as plastic, metal, glass, and ceramic bottles, undoubtedly offers the lowest cost among fully automatic screen printing machines. This gives printing and processing plants a competitive edge in the market. The reasons why this type of screen printing machine possesses these functions are as follows:

1) The flexibility of the robotic arm:

During the loading and unloading stages, the robotic arm can be set and adjusted from multiple angles, directions, and structures. It can easily transfer products to bottles of different shapes using different methods, such as suction cups and grippers.

2) The versatility of built-in programs:

The fully automatic screen printing machine has built-in programs specifically designed for different shapes of products, such as cylinders, deformed shapes, ovals, and squares. When printing products of different shapes, you can select a specific program, set the corresponding parameters, and the machine can execute different printing processes. 3) Servo-based Printing

The printing motion for bottles of different shapes is completely different. Round bottles require left-right movement of the screen; square bottles require printing on all four sides, with the screen moving up and down according to the bottle's contours, while the squeegee performs flat printing; and for oval bottles, both the screen and squeegee move with the bottle's contours. All these actions require servo motors to control in stages.

This fully automatic multi-functional screen printing machine is ideal for factories with a wide variety of products and frequent changes in printing patterns. It's a powerful tool for handling rapidly changing markets and completing high-volume printing tasks in a short time.
