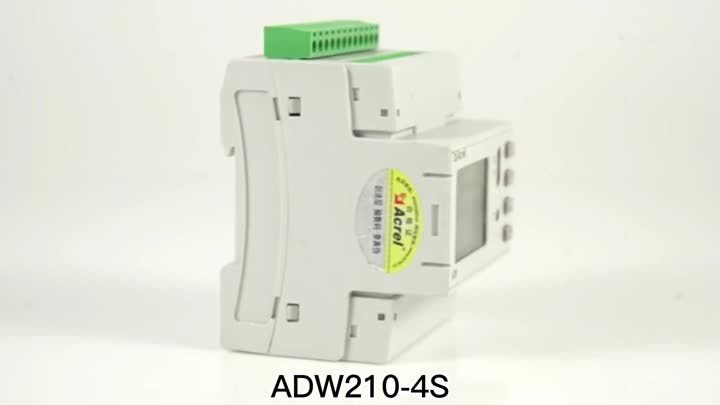

ADW210 IoT Wireless Multi-function Smart Energy Meter

● Measurement: Up to 4-channel 3-phase kWh, kVarh, Current, Power, 2~31st Harmonic and etc

● Voltage Rating: 3x220V/380V AC (3P4W)

● Current Rating: 5A, 100A, 400A or 600A AC (with external CTs)

● Frequency: 45~65Hz

● Communication: RS485 (MODBUS-RTU)

● Extra Function: Wireless Communication (4G, WiFi, LoRa and etc); Cable Temperature Measurement; DO/DI Function

● Display: LCD

● Dimension: 87.8*72*97.7mm（L*W*H) --- Main Body

● Wiring: 3-phase 4-wire Connection

● Installation: 35mm DIN Rail

● Standard&Certificate: CE; LVD

ADW210 is a multi channles three phase energy meter,it can maximum access 4 channels three phase,also can use as 12 channels single phase,these two methods just have the difference in wiring.The Multi Channel Energy Meter contains 12 pcs split core cts,the ampere input have 100A,400A,600A and secondarty input 5A,it is suitable for reconsutruciton project,cause the split core cts have wlan interface,you just need to insert the interface to energy meter,it can work.At the same time,the Din Rail Multi Channel Energy Meter can work with our gateway to upload data to our cloud platform,can use 4G or wifi or ethernet wireless communication.

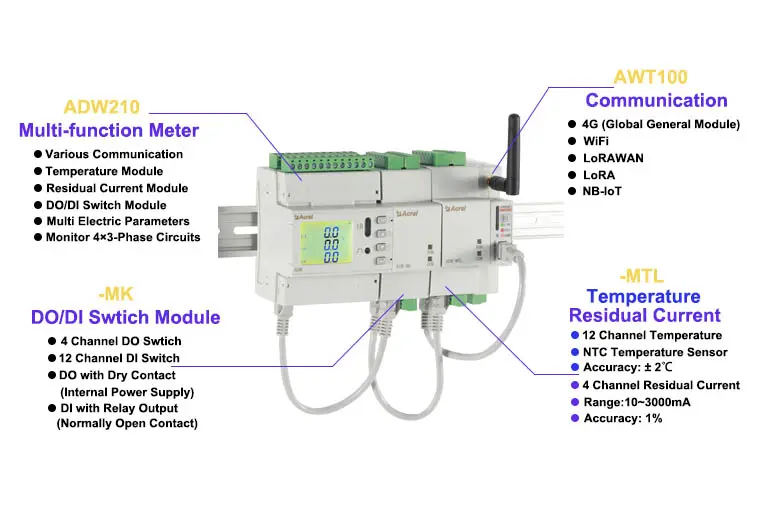

Features

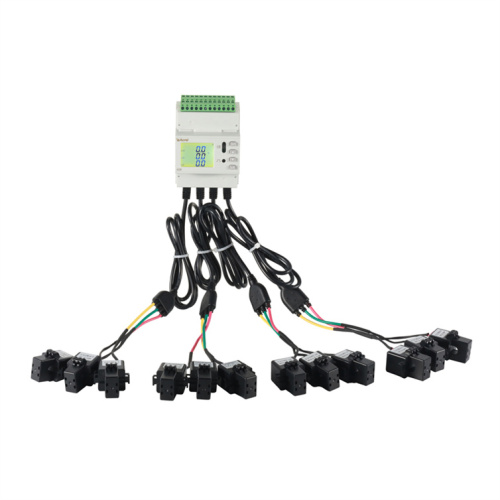

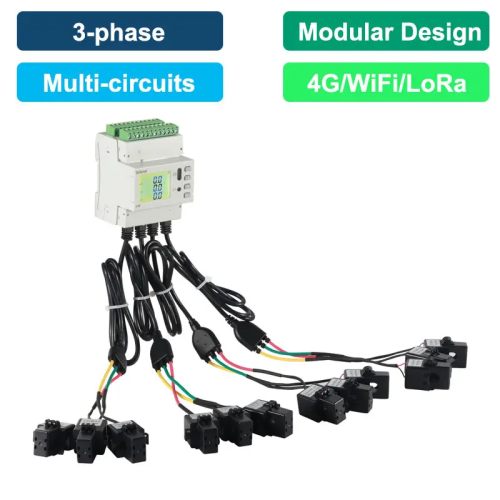

Multi-circuits Monitoring ● Monitor up to 4×3-phase circuits in total ● Paired CTs with specs of 5A/1.25mA; 100A/20mA; 400A/100mA or 600A/100mA ● External CTs Connectwith ADW210 Main Body thrrough RJ12 Interface

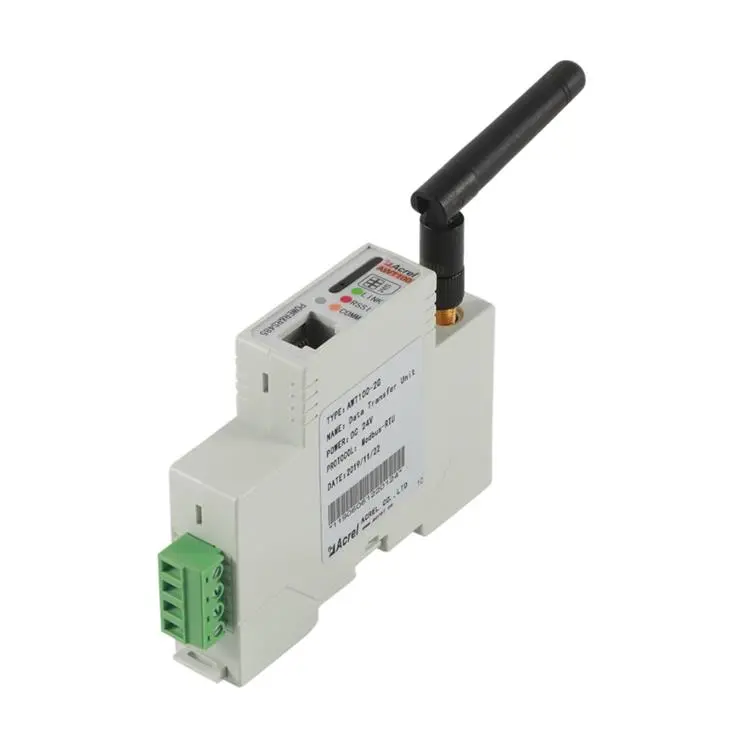

Expanded Communication Module --- AWT100 ● 4G (Global general module) ● WiFi ● LoRaWAN ● LoRa ● NB-IoT

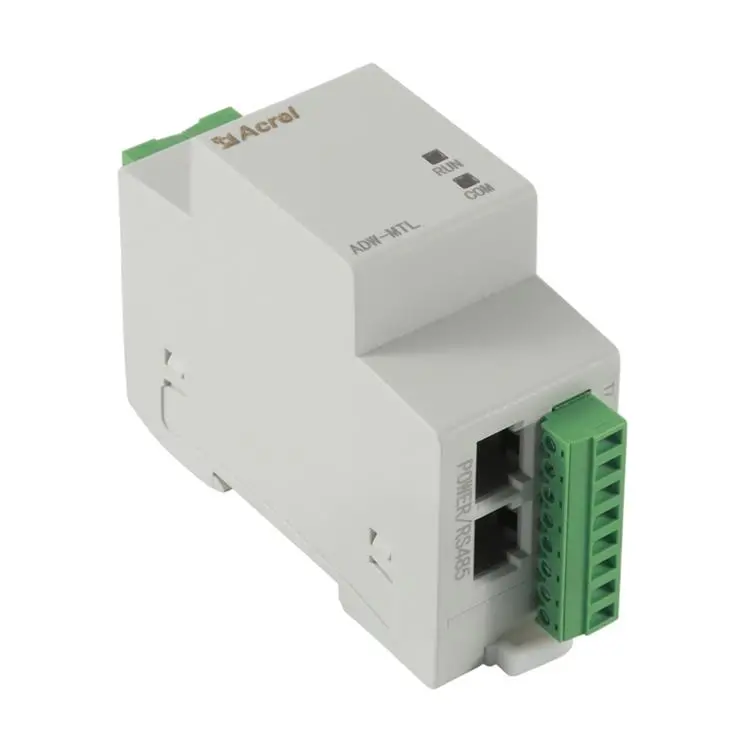

Cable Temperature&Residual Current Measurement Module --- MTL ● Temperature Measurement:-20℃~+100℃ ● Residual Current Measurement:10~3000 mA ● Accuracy：Temperature：± 2℃; Residual Current：1% (Class 1)

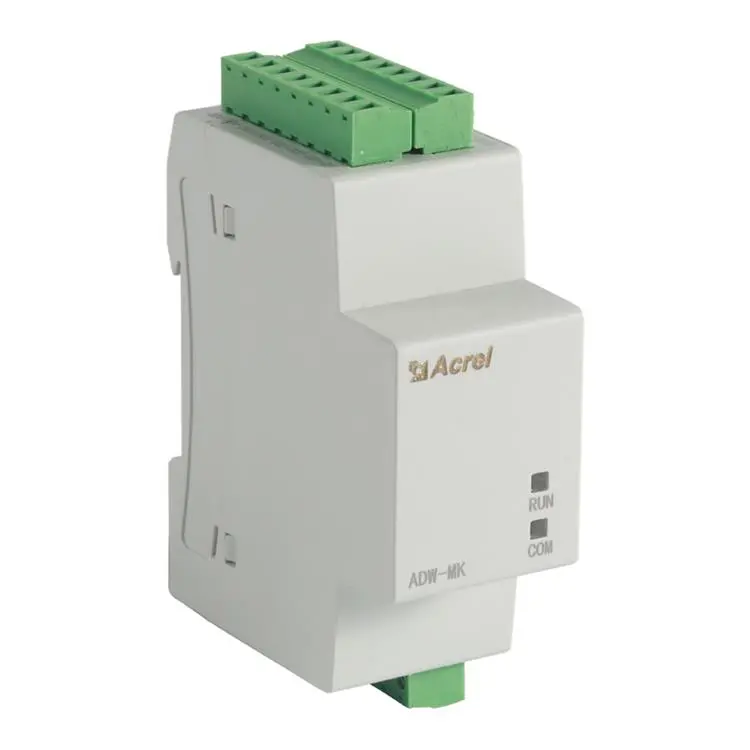

DO/DI Switch Extra Function Module --- MK ● 12 channel DI (Digital Input) ● 4 channel DO (Digital Output)

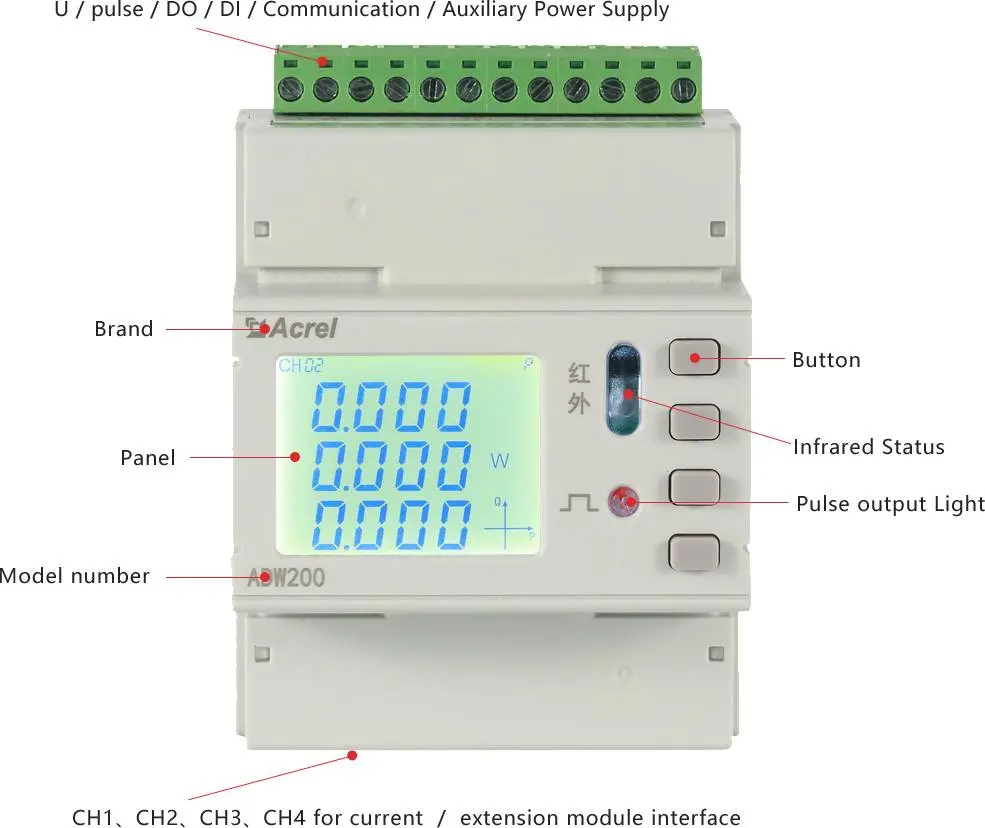

Wiring Illustration Display Sample

Wiring Diagram

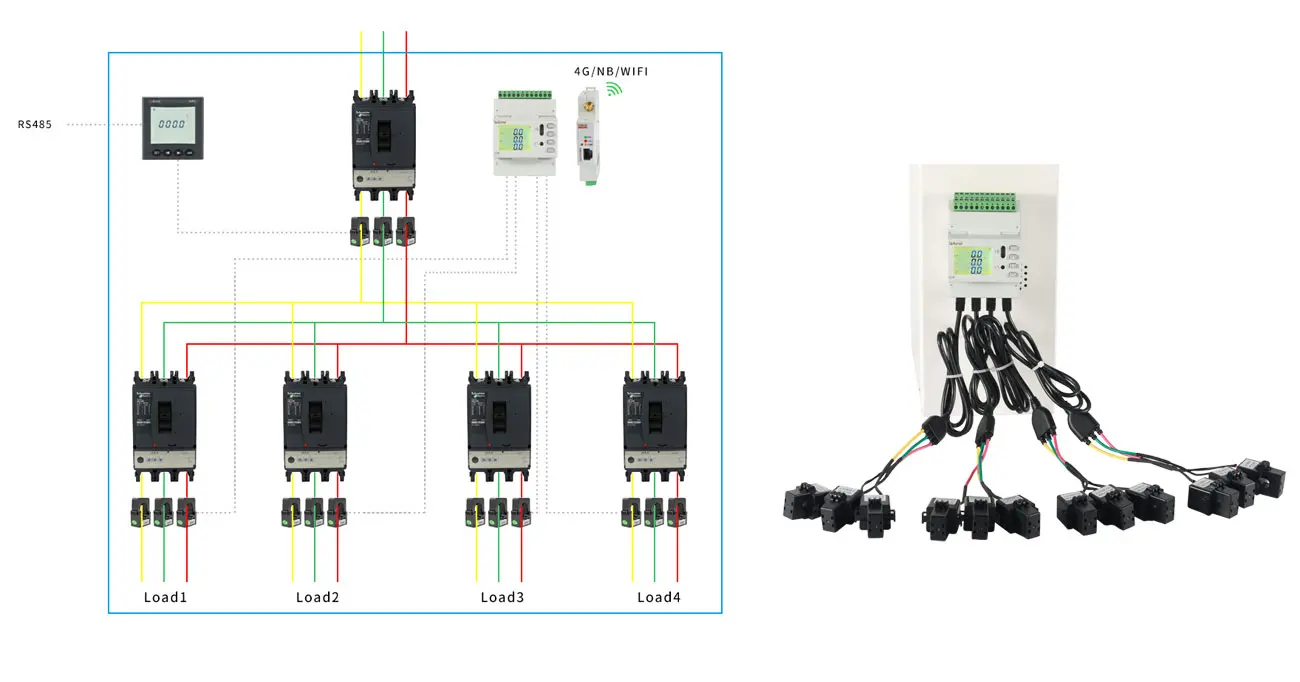

3-phase 4-wire Wiring of ADW210 monitoring 4 3-phase Circuits

Wiring between ADW210 Main Body and MTL&MK Extra Function Module through RJ45 Interface

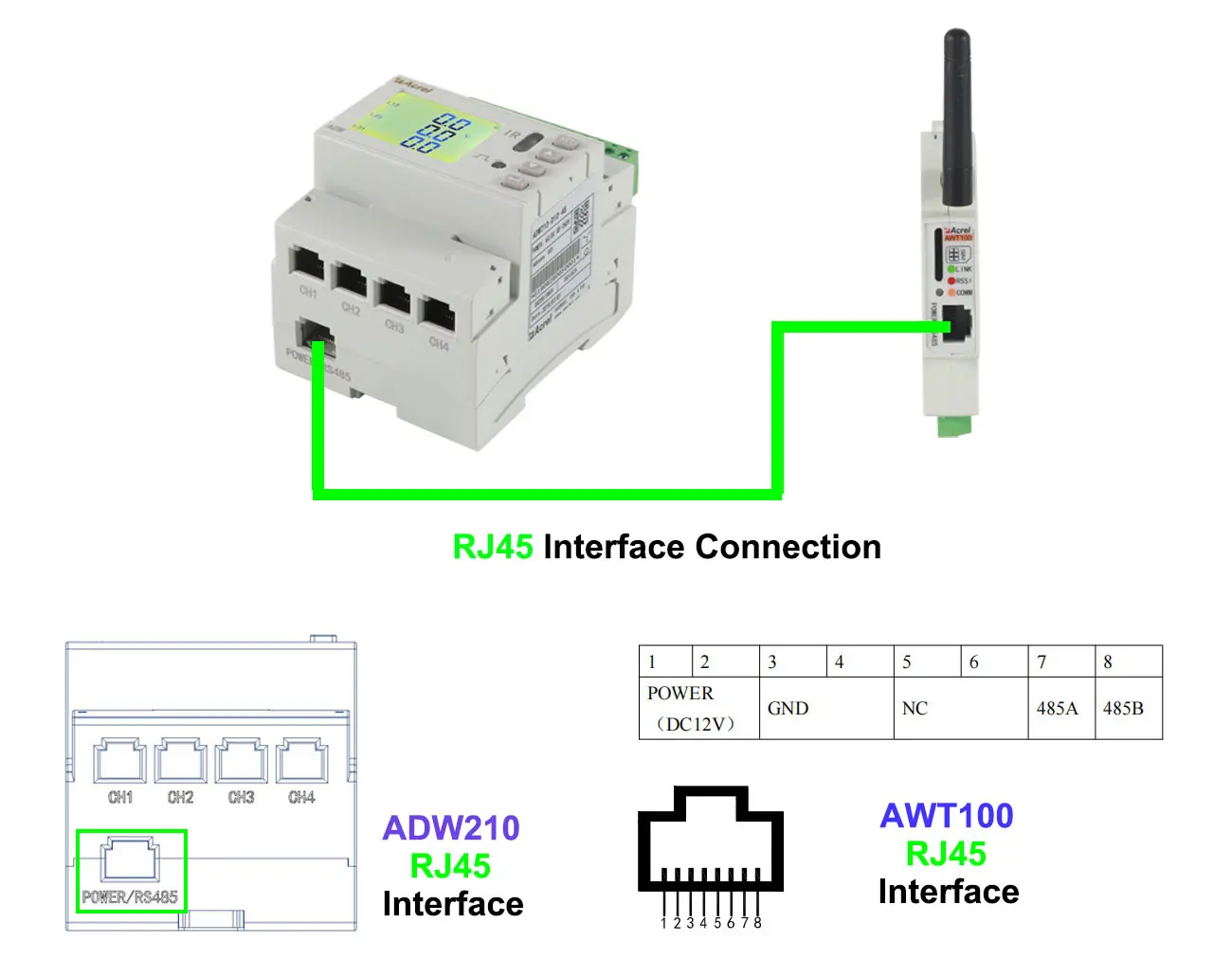

Wiring between 1 ADW210 Main Body and 1 AWT100 Communication Module (Attention: In the connection between 1 ADW210 and 1 AWT100 through RJ45 interface, we don't need Auxiliary Power Supply for AWT100)

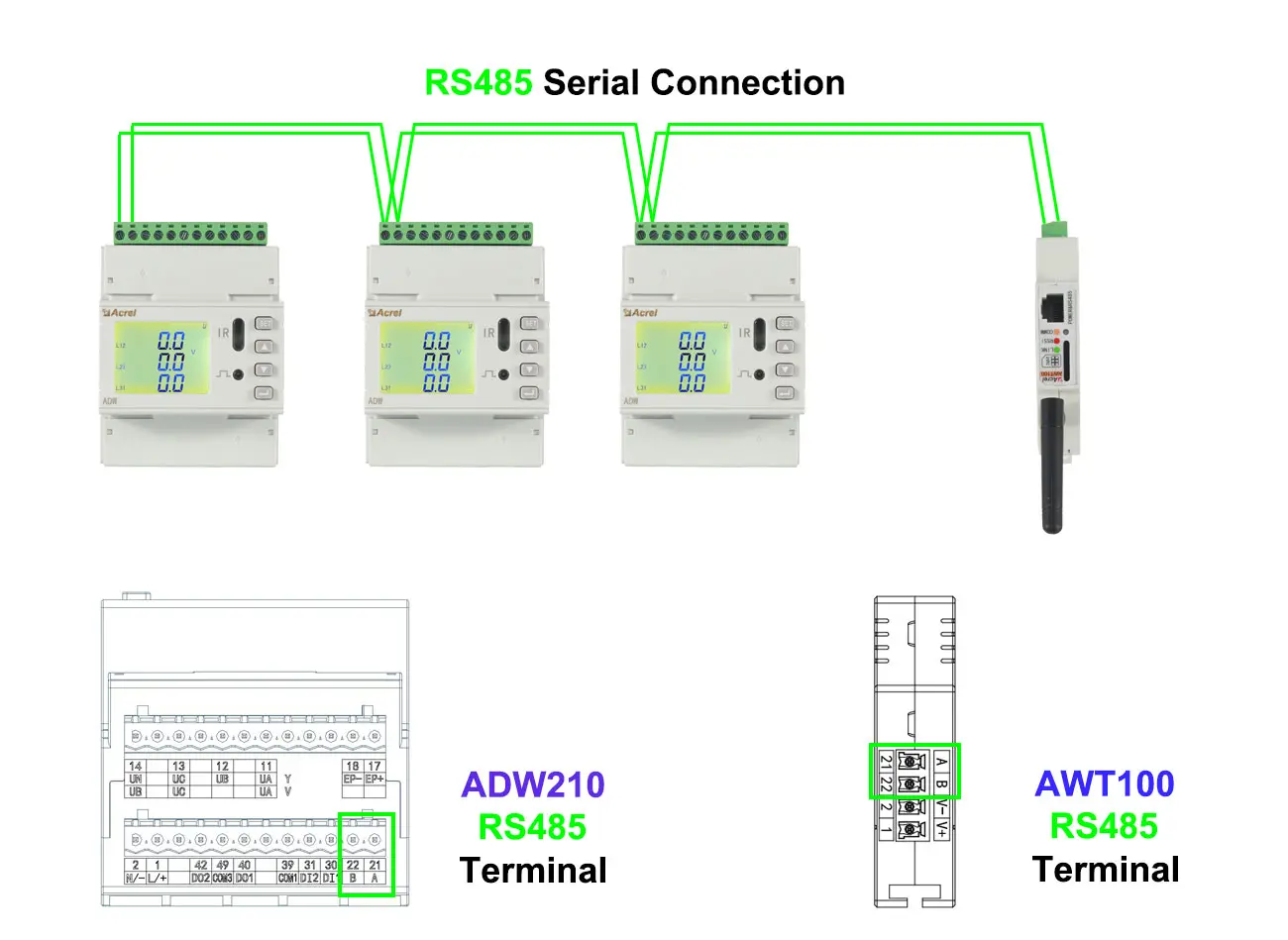

Wiring between more than 1 ADW210 Main Bodies and 1 AWT100 Communication Module (Attention: In the connection between more than 1 ADW210 and 1 AWT100 through RS485 Serial Ports, we need DC24 or DC12V Auxiliary Power Supply for AWT100)

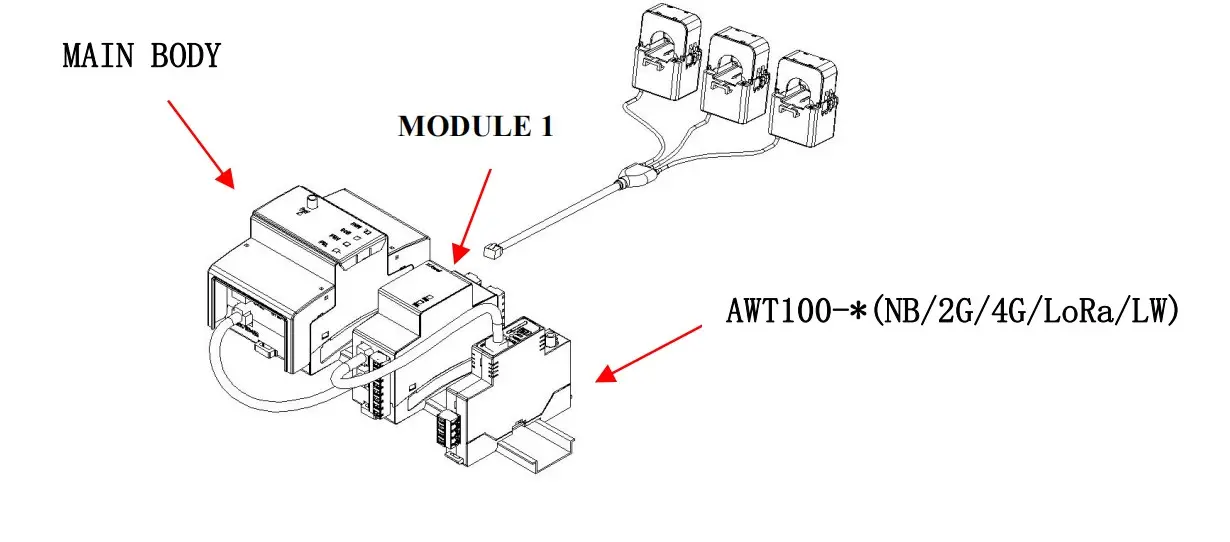

Installation

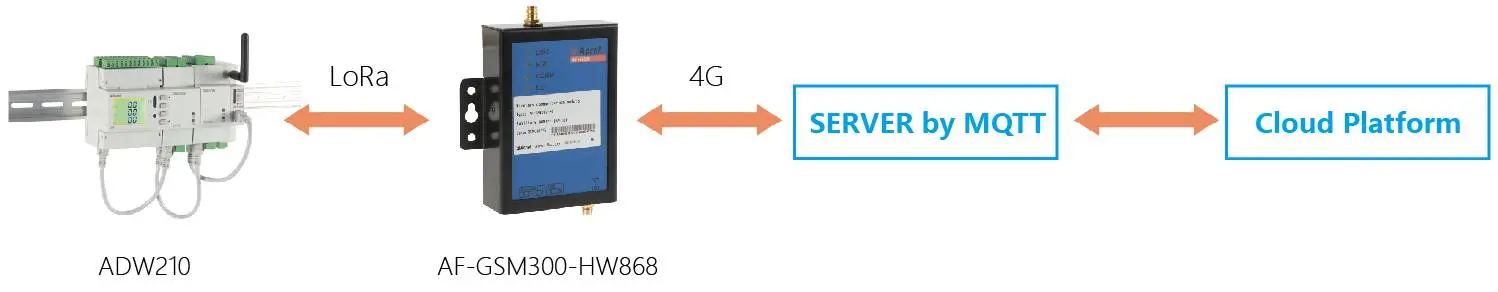

Typical Networking Connection
