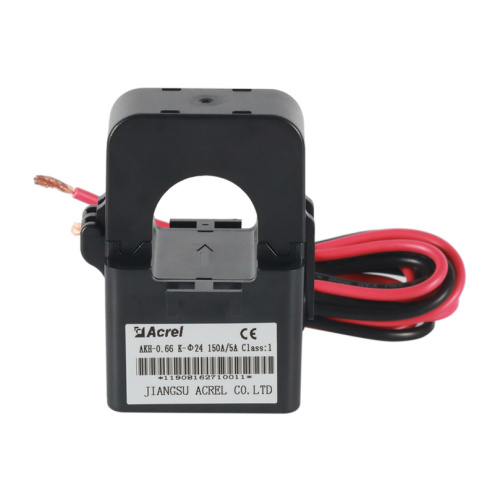

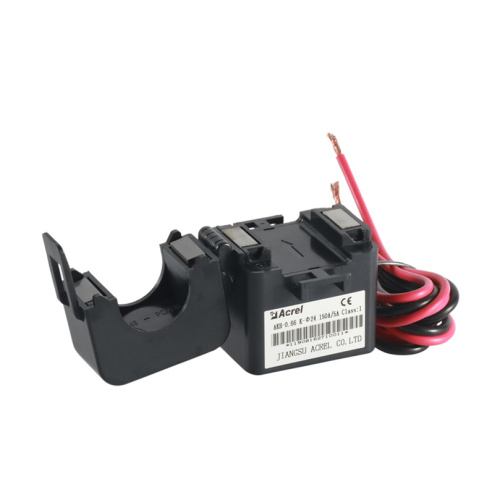

Split Core Current Transformer AKH-0.66/K-φ24
$8.90
≥1 Piece/Pieces
Options:
- AKH-0.66/K-φ10
- AKH-0.66/K-φ16
- AKH-0.66/K-φ24
- AKH-0.66/K-φ36
- AKH-0.66/K-φ50
Basic Info
| Model No. | AKH0.66/K-φ24 |
|---|---|
| Brand Name | Acrel |
| place of origin | China |
| use | Power, Current, Electronic, High Frequency |
| Phase | Single |
| Coil structure | Toroidal |
| Number of coils | Autotransformer |
Product description

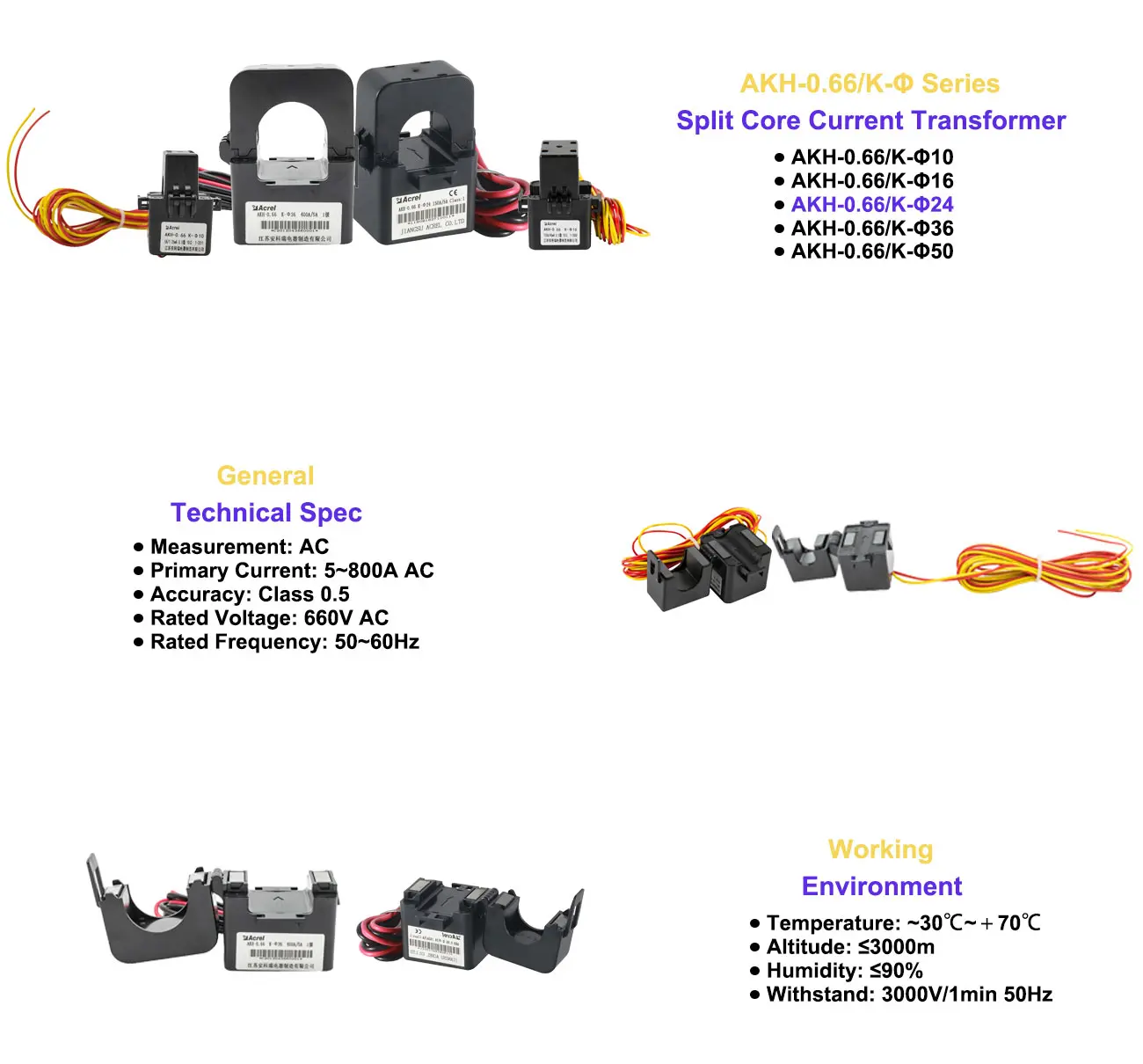

Split Core Current Transformer AKH-0.66/K-φ24
Acrel split core current transformer will be easy installed in cable ,split type current transformer dimension range is from 10mm to 50mm,it also have light advantages,will have less shipping cost.
● Measurement: Alternating Current (AC)
● Accuracy: Class 0.5
● Primary Current Input: 60~400A AC
● Rated Voltage: 660V AC
● Rated Frequency: 50~60Hz
● Installtion: Clamp-on (installed on Cable)
● Loop Count: 1 Loop
● Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE

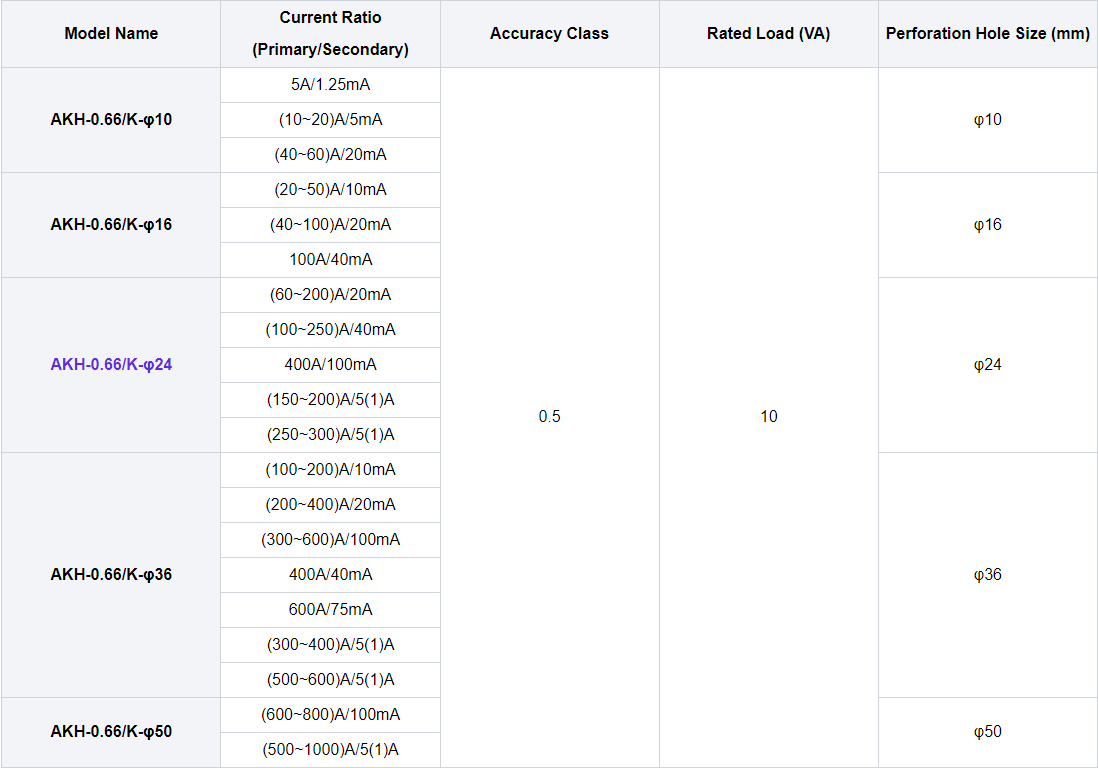

Series Overview

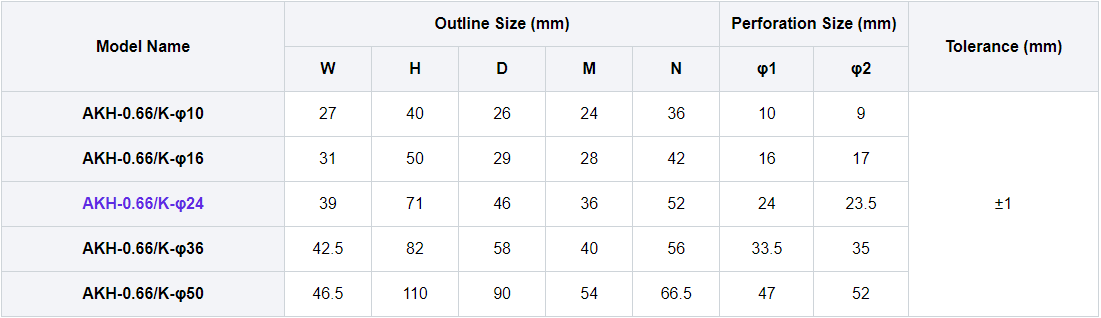

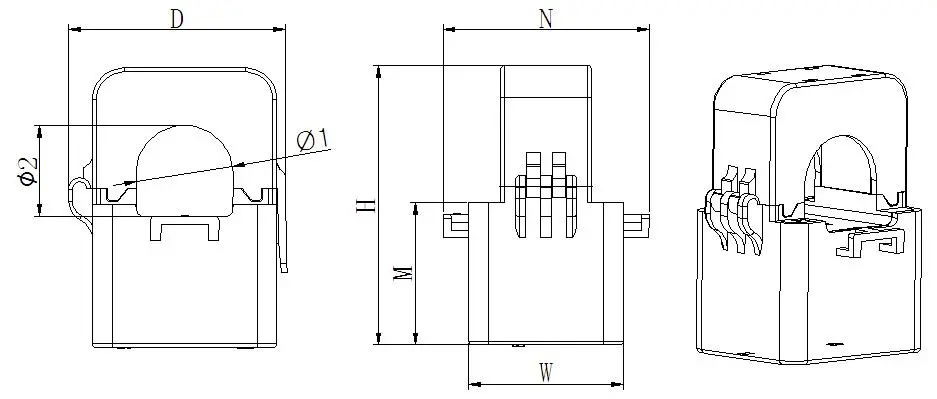

Dimension

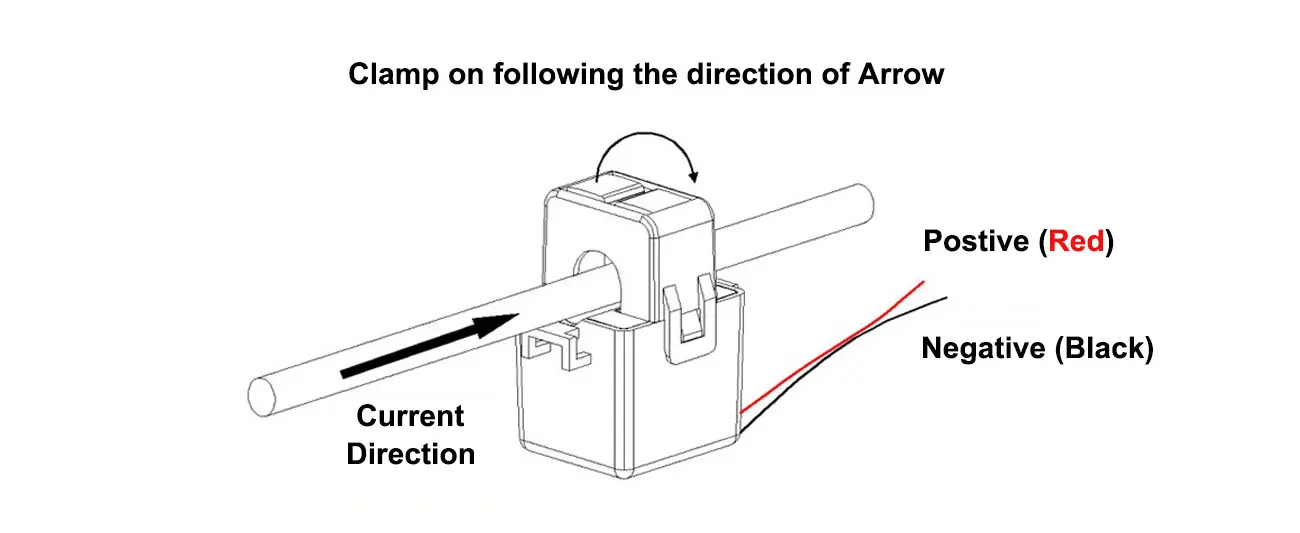

Installation Instruction

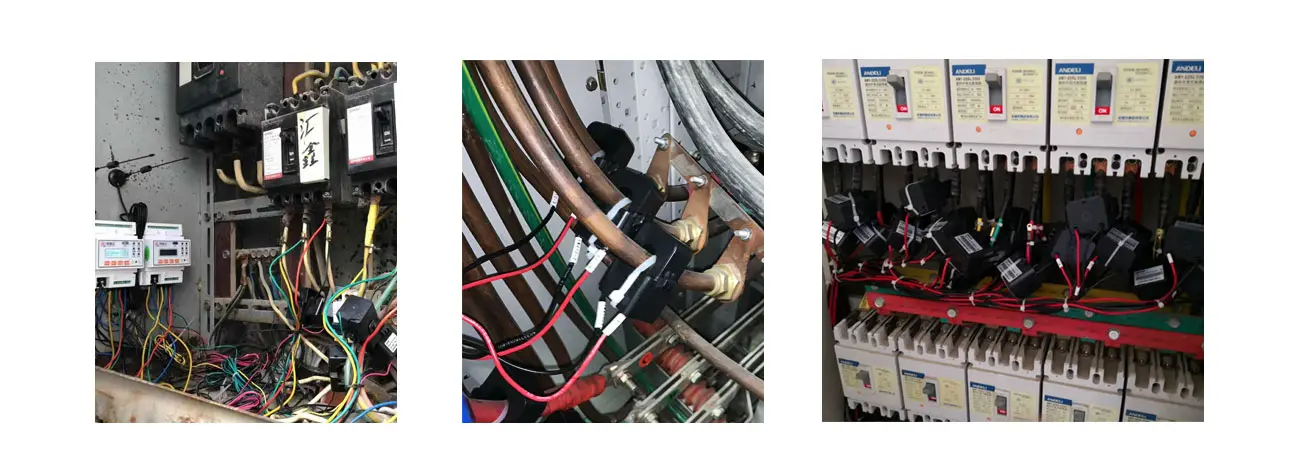

Work Site Application
 |
|
Work Site Application of AKH-0.66/K-φ Series Split Core CTs |

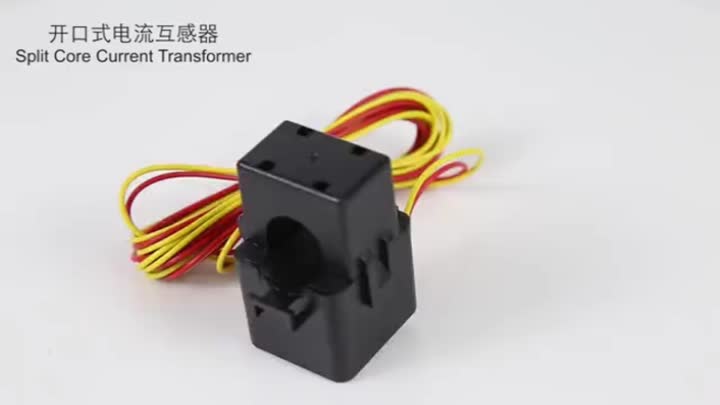

Video
