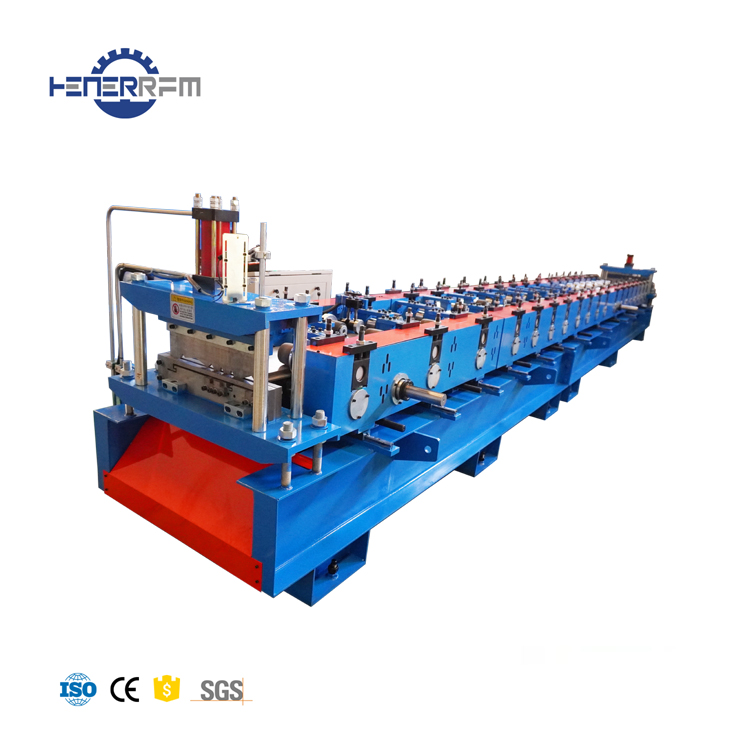

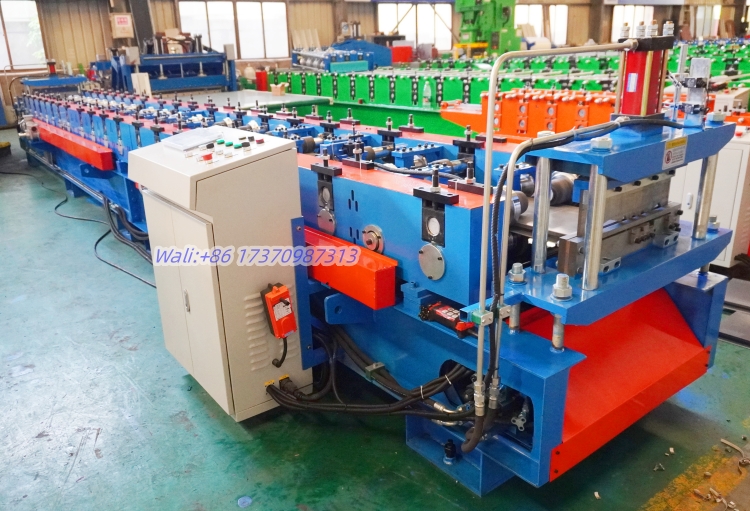

Automatic Changeover Button Wall Panel Forming Machine
$35000.00
≥1 set
$34800.00
≥2 set
Options:
- 20M/MIN
- HN 26-200-400
- 7.5KW
Basic Info
| Type | Tile Forming Machine |
|---|---|
| Tile type | Colored Steel |
| use | Wall |
| Place Of Origin | Hebei, China |
| Voltage | 380V 60Hz 3phases |
Product description
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??Automatic changeover button wall panel forming machine
?
The automatic type-changing buckle wall panel machine plays an important role in the field of building materials production, providing strong support for improving construction quality and efficiency.
1. It can automatically complete the wall panel type change operation, greatly improving production efficiency and reducing manual intervention and errors.
2. Ensure that the button wall panels produced are accurate in size and uniform in specifications, which improves product quality.
3. It can adapt to the production of wall panels of different types and specifications to meet the special needs of various customers in the market.
?
?
?
Work flow of production line
?

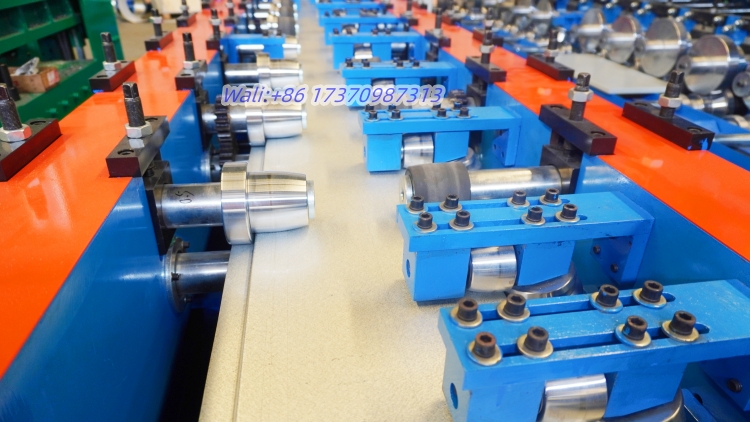

Main?Roll?Forming System:
| Roll Forming Machine | Rolling shaft | Shaft material:45# STEEL |
| Shaft diameter:70 mm | ||
| Tempering treatment to prevent deformed and improve hardness | ||

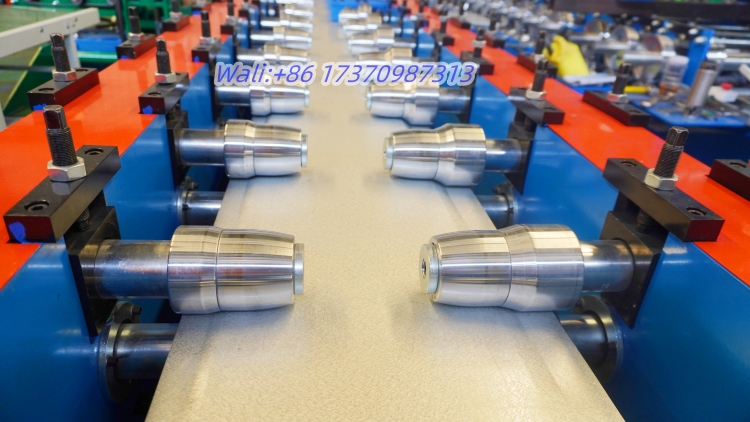

| Roller | 45# steel | |
| Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase service life | ||
| Rolling station |
19 rolling stations |
|
| Work speed | 15-20?m/min | |
| Machine?structure | Steel plate welded structure | |
| Machine?basic frame | 350# H steel welded ? | |
| Work power | 7.5 kw?Motor | |
| Rolling spacer | Anti rusty treatment | |
| Pull rod | Anti rusty treatment | |
| Transmission | By?Chains with cover | |
| ? | Noted: please fill the lube in case the chains getting dry |
?
?
?
?
?

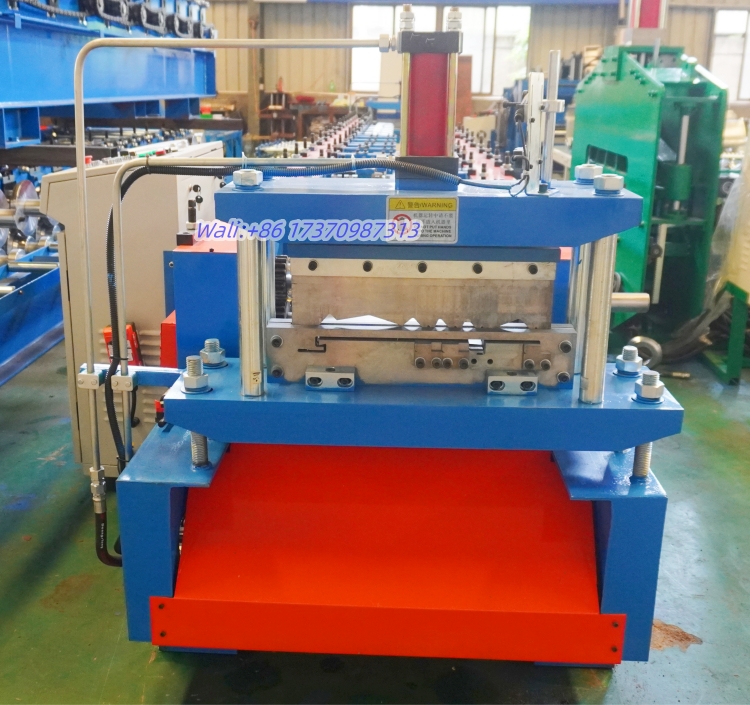

Shearing Mechanism:
Feature: Ensure stability, precision and cutting speed
It is used to make the step , the glazed tile's final formed.
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Function: Automatic cutting controlled by PLC
Material of blades :?D2 quenched
Power supply:?Electric Motor
Components: It contains one set of blade, one hydraulic tank and one cutter machine.
?
?
?
?
?
?
Adopted PLC , transducer, touch panel to ensure high speed with stability,
precision and lifetime.
Voltage: 380 v 50 hz 3 phase
Language: Chinese and English
Automatic length measurement
Automatic quantity measurement
Length Tolerance: 3 m±1.5 mm
Length inaccuracy can be amended easily.
Unit of length: millimeter (switched on the control panel)
Computer operating panel: touching screen and button together.
?
WHY CHOICE US

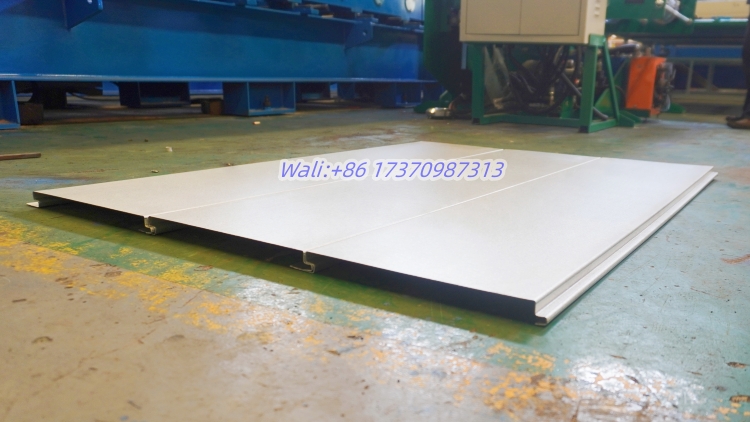

Application of the finished product:
?
?
?
Company Profile
??.Contact us:
If you want to get more pictures or videos of the machines, feel free contact us.
We will give you the best experience!
