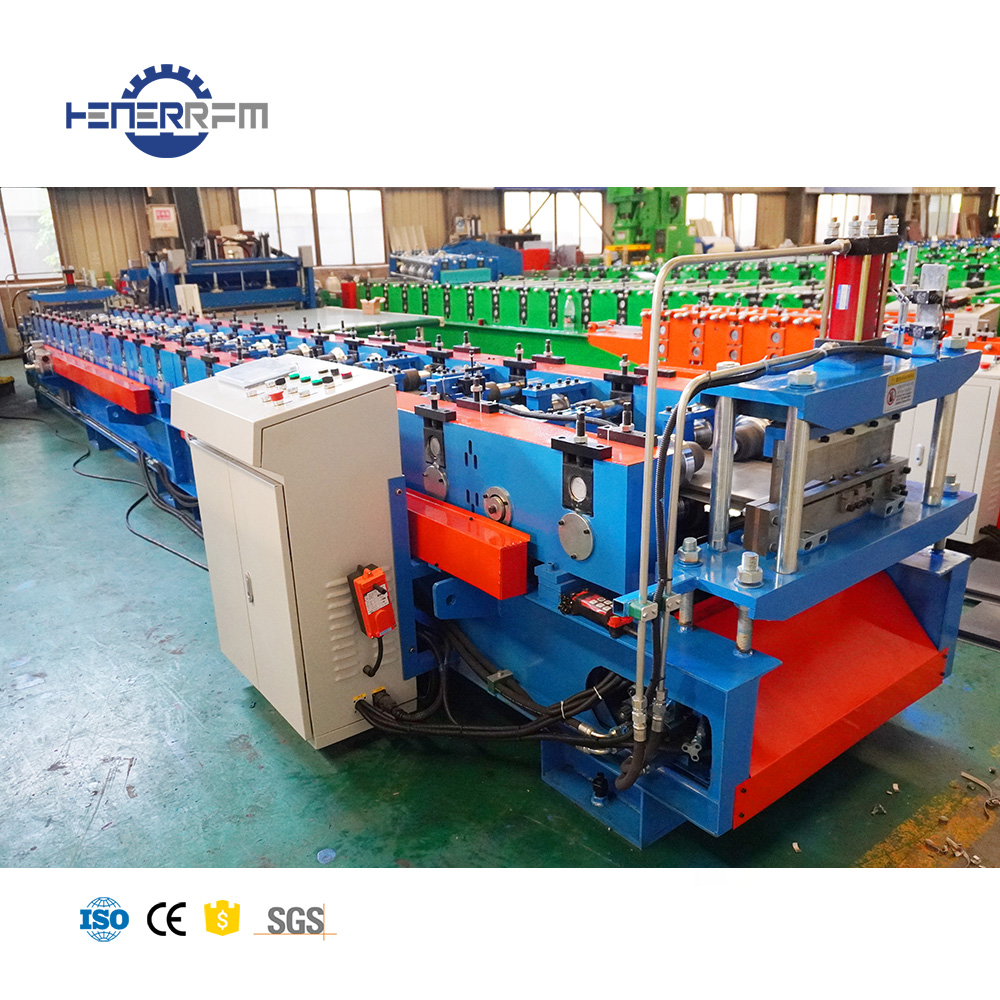

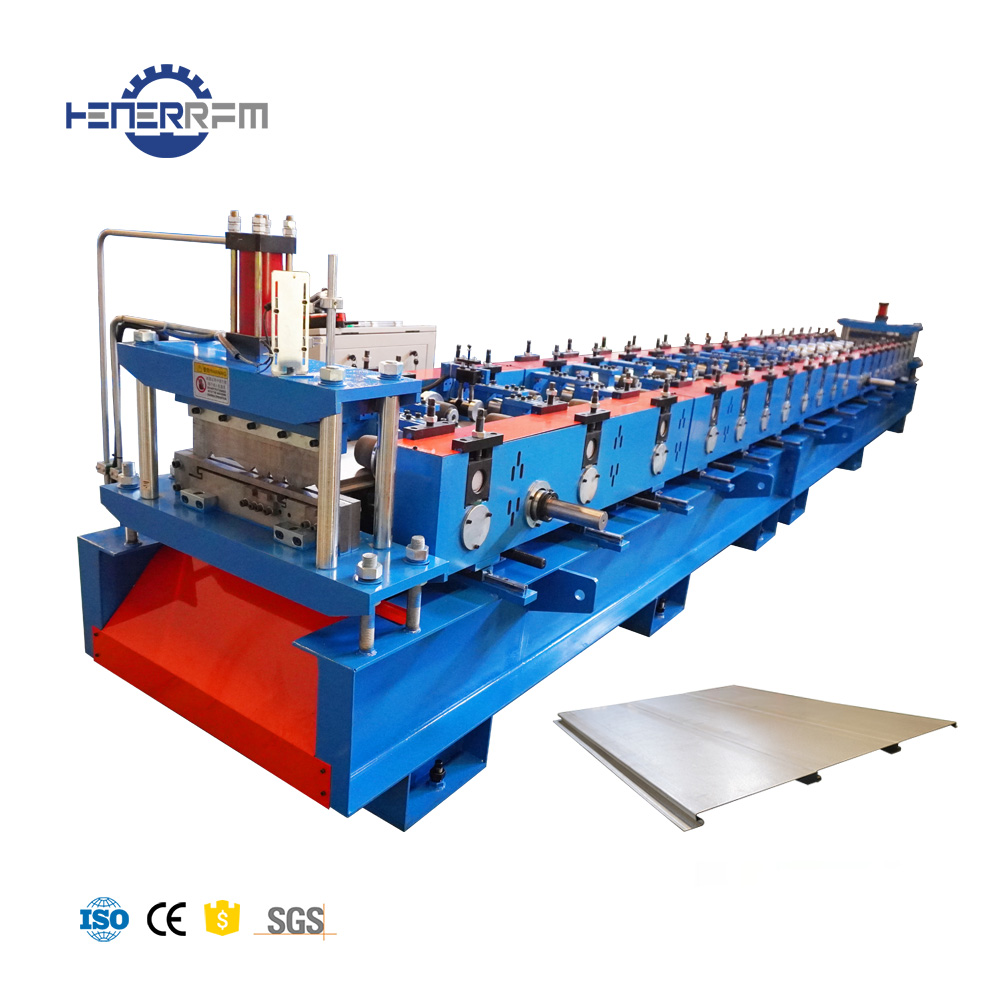

Automatic Type-changing Buckle Wall Panel Making Machine

Video

1 / 7

Automatic Type-changing Buckle Wall Panel Making Machine

$17500.00

≥1 set
$16000.00

≥2 set

Options:

15 m/min
1000-200-25
5.5/7.5kw

Get Latest Price

Model No.
Brand Name
Type	Tile Forming Machine
Tile type	Colored Steel
use	Roof
Place Of Origin	Hebei, China
Brand Name	ZD
Voltage	380v
Dimension(LWH)	8600mmX1600mmX1600mm
Weight	6.2 kg
Warranty	2 Years
Key Selling Points	Easy To Operate
Rolling thinckness	0.3-0.8mm
Feeding width	1000mm
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Core components	Pressure Vessel
Product Name	Type-changing Buckle Wall Panel Machine
Usage	Roof Panel
Roller Material	45#steel Chrome Plated
Shaft Material	High Grade No.45 Forged
Control System	Plc(Imported Brand)
Cutting Blade Material	Cr 12 High Grade Steel
Cutting Thickness (mm)	0.3-0.8mm
Main Frame	350h Steel
Suitable Material	G550 PPGI PPGL Aluminium
Cutting Type	Hydraulic Cutting
Warranty Of Core Components	2 Years

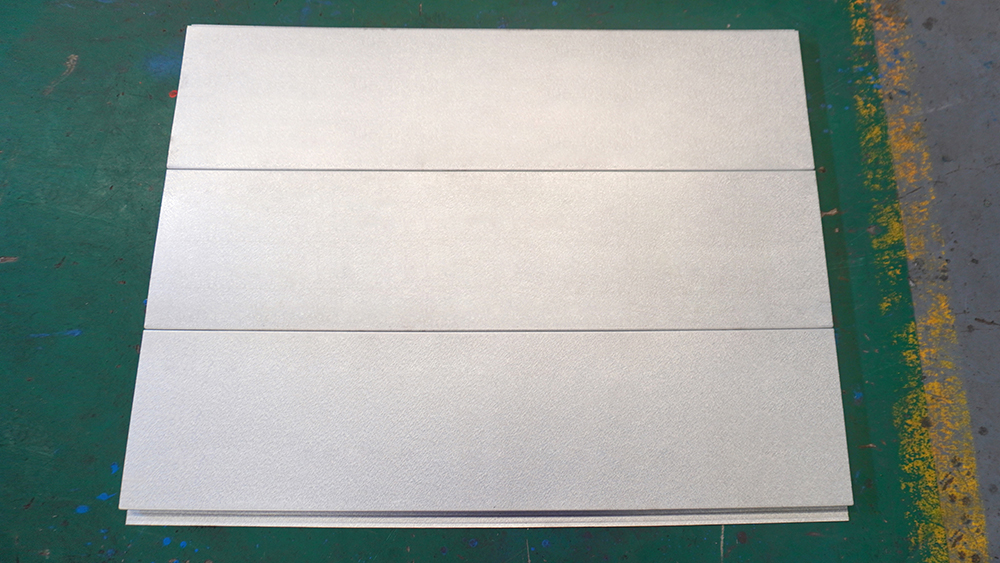

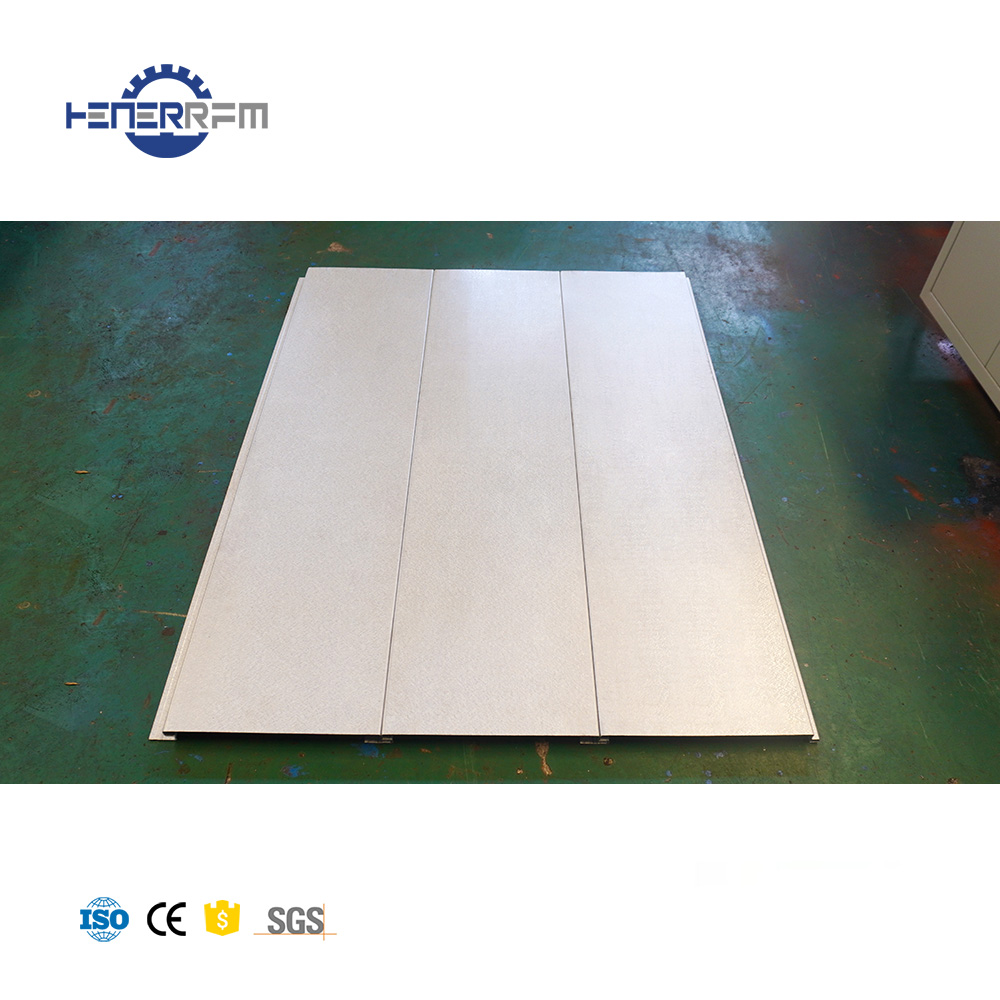

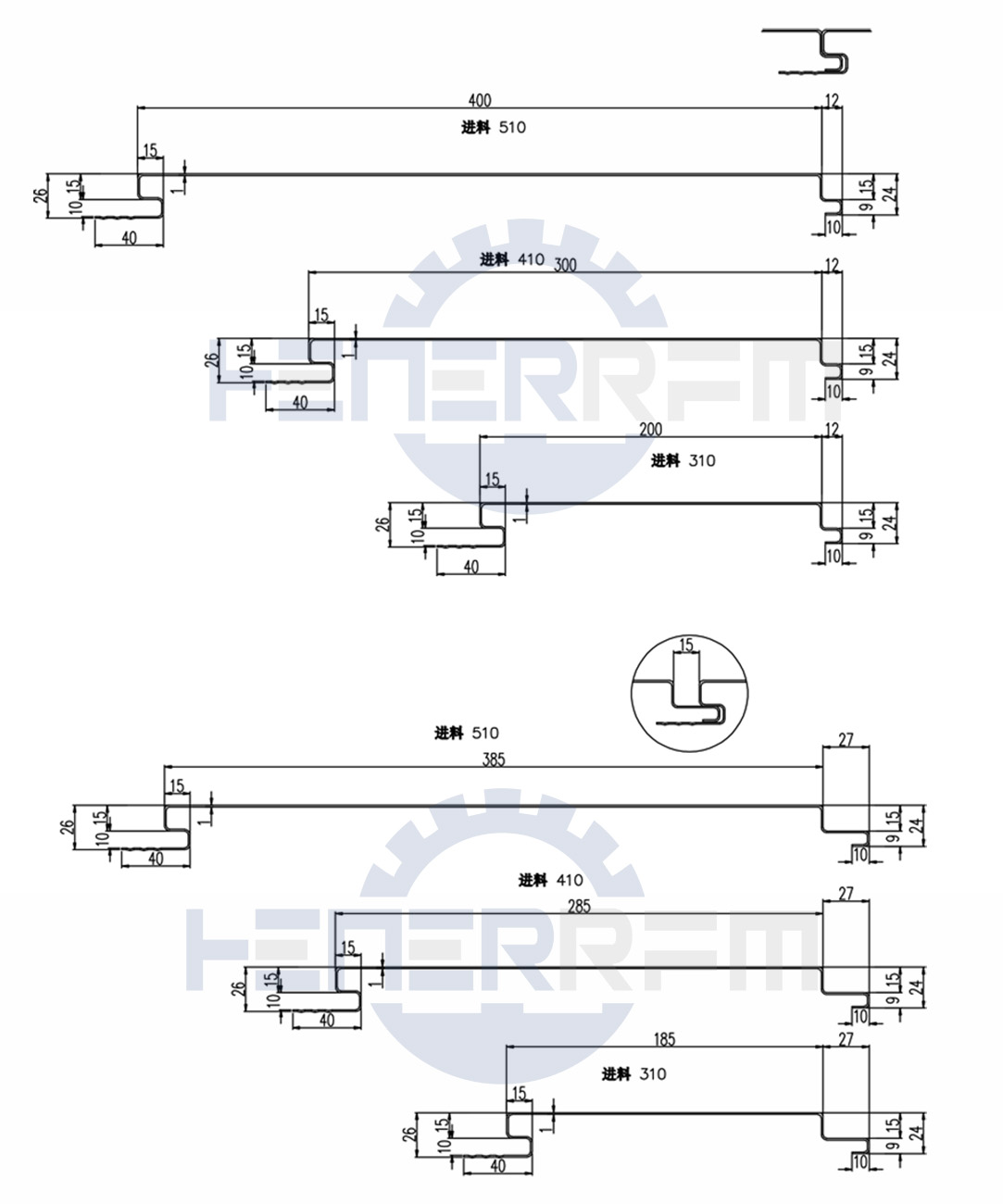

Profile drawing for reference:

It can adapt to the production of wall panels of different types and specifications to meet the special needs of various customers in the market.

1. It can automatically complete the wall panel type change operation, greatly improving production efficiency and reducing manual
intervention and errors.

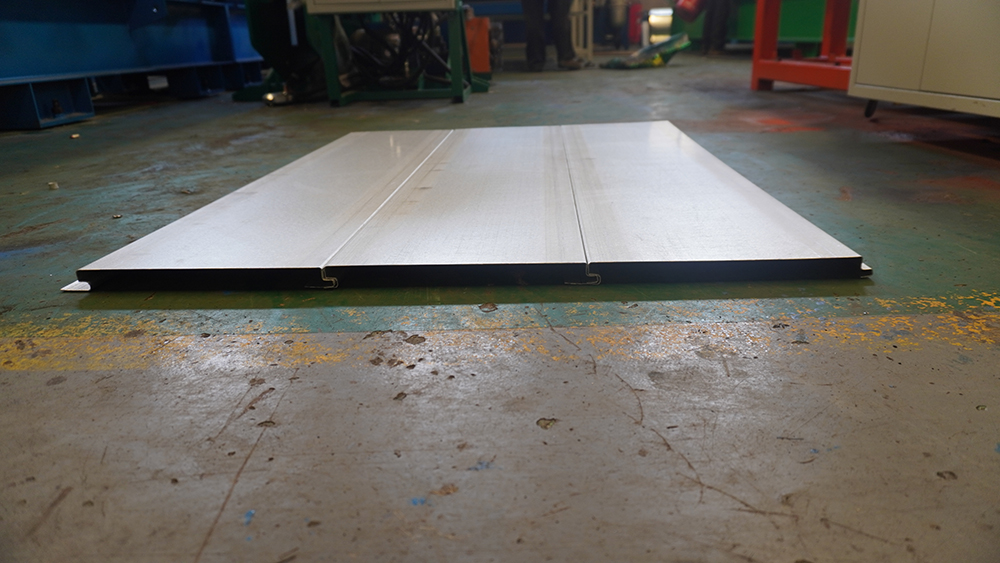

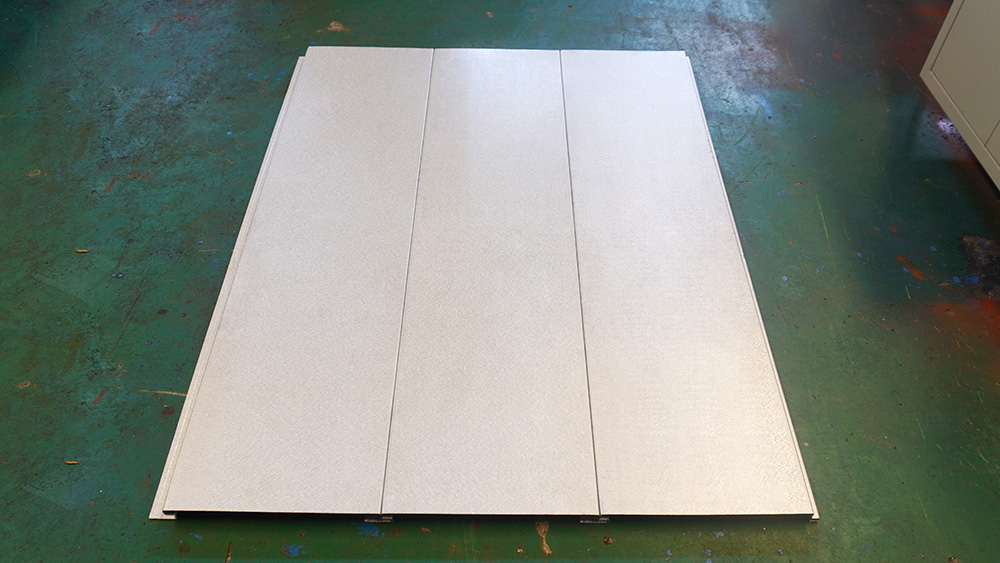

2. Ensure that the button wall panels produced are accurate in size and uniform in specifications, which
improves product quality.

3. It can adapt to the production of wall panels of different types and specifications to meet the
special needs of various customers in the market.

Automatic Type-changing Buckle Wall Panel Making Machine
Raw Material	G550,PPGI,PPGL
Material Thickness	0.3 - 0.8mm(31-21 Gauge)
Machine Frame	350mm H Beam Structure
Material Of Rollers	High Grade 45# Forged Steel. Chromed Treatment (Chrome Thickness:0.05 Mm), Make The Rollers Surface More Smoothly, Improve The Hardness And Prevent Abrasion,Anti Corrosion Increase Of Service Life
Diameter of shafts	Φ80mm
Material of shafts	45# Steel Thermal Refining, Prevent Deformed And Improve The Hardness
Forming speed	About 15-18m/min
Voltage	380v 50hz 3phase Or As local customer request
Work power	7.5 kw
Cutting type	Hydraulic cutting
Cutting blade material	Cr12Mov, with acutting lifespan exceeding 1 million times.

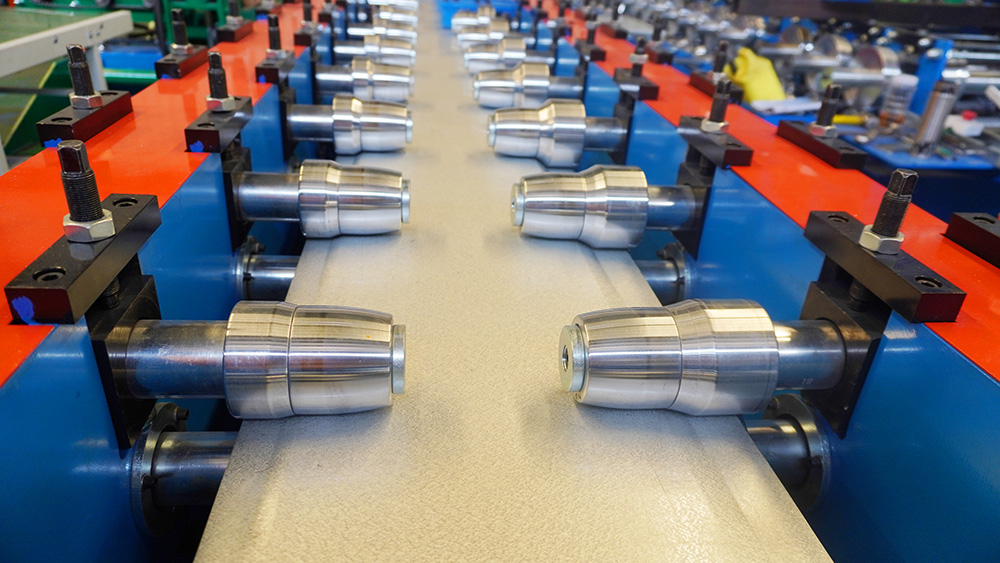

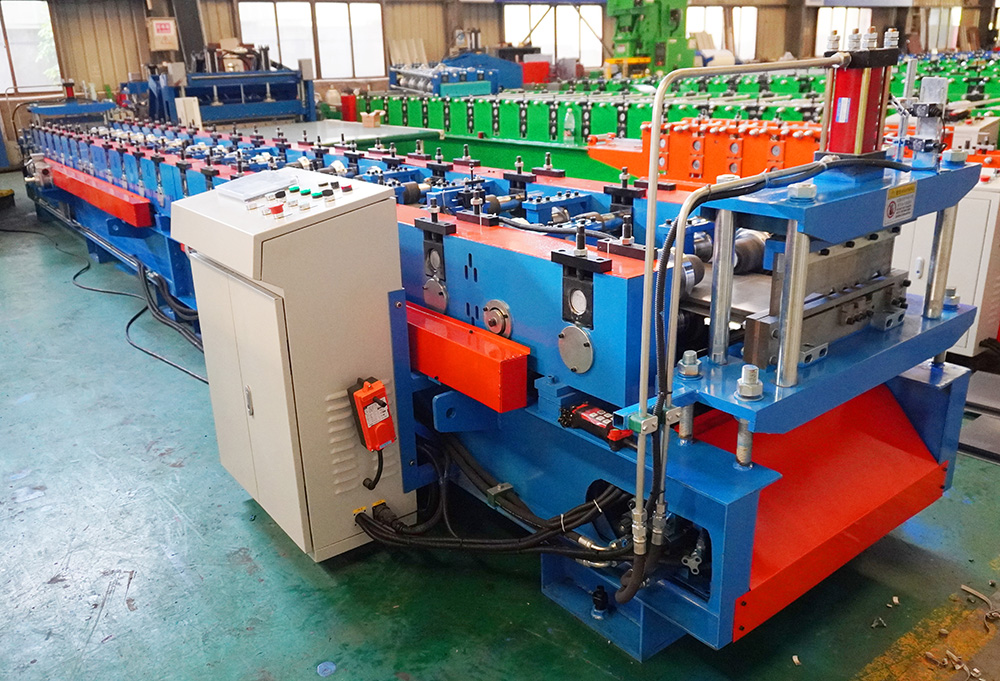

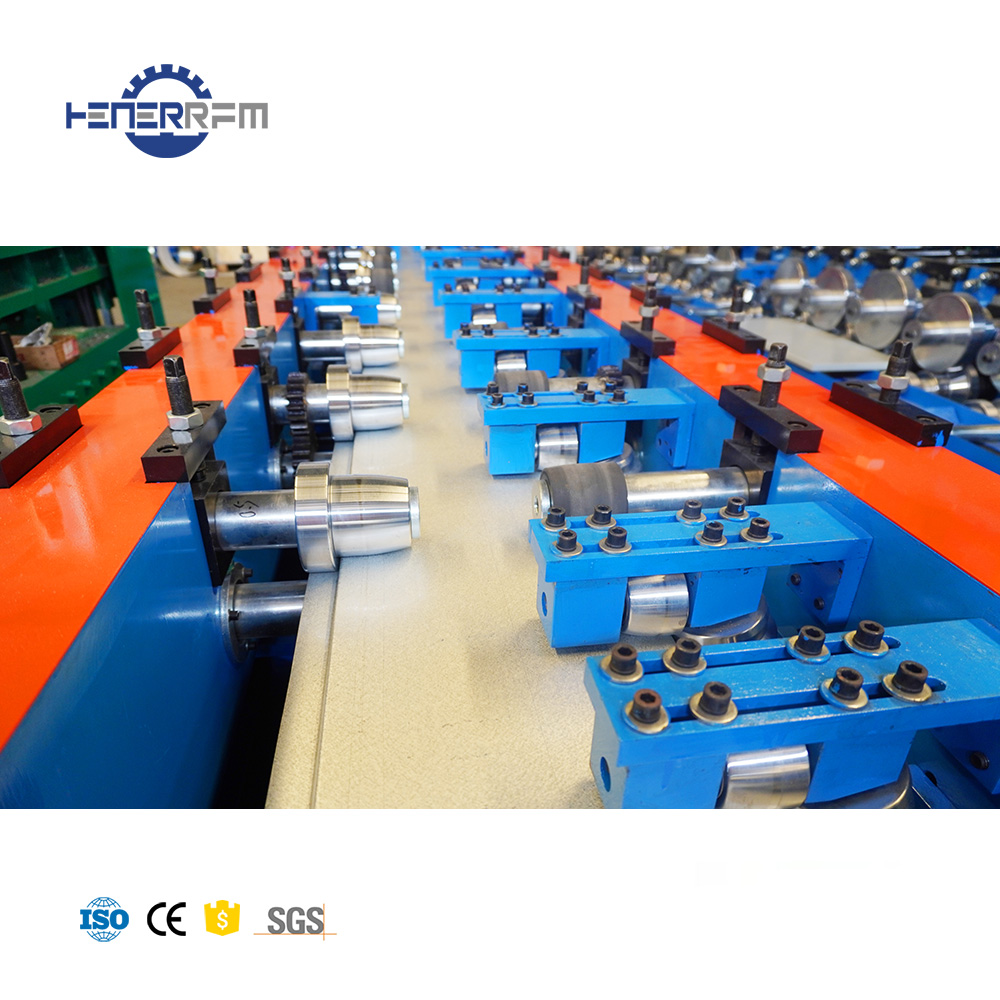

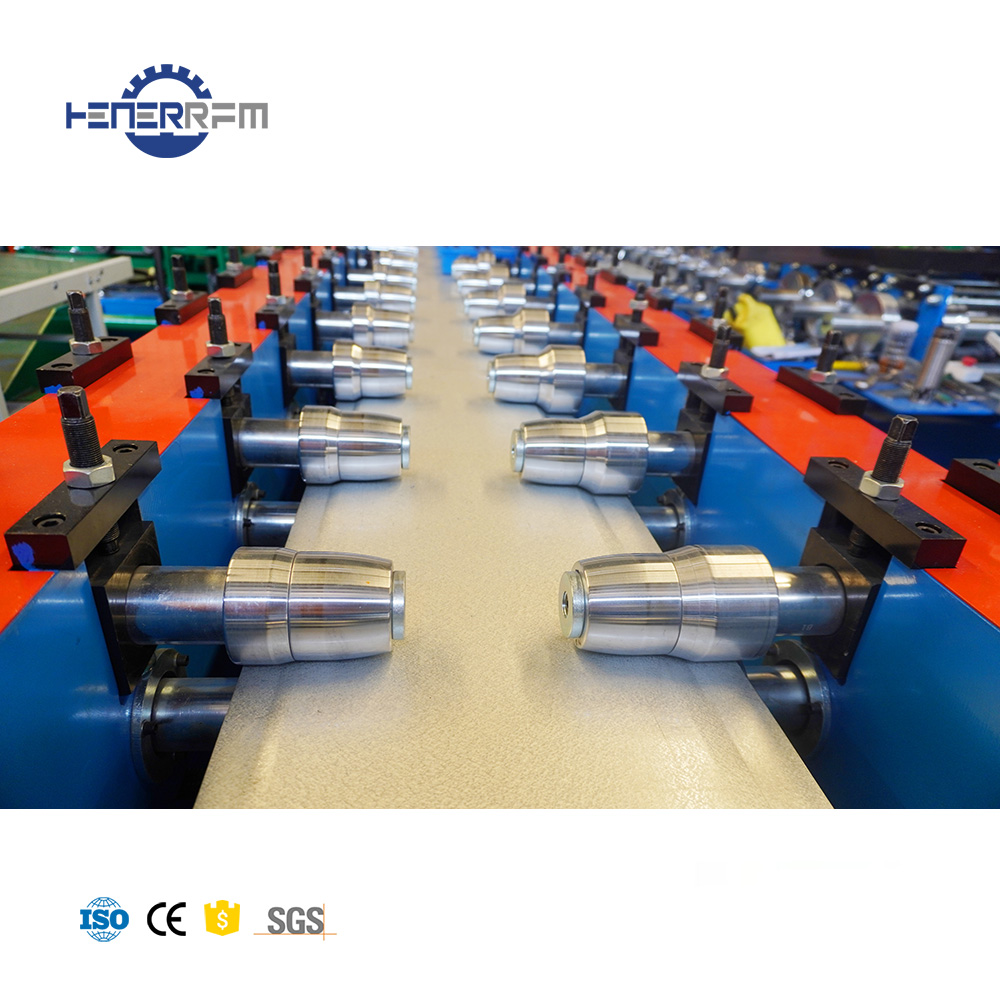

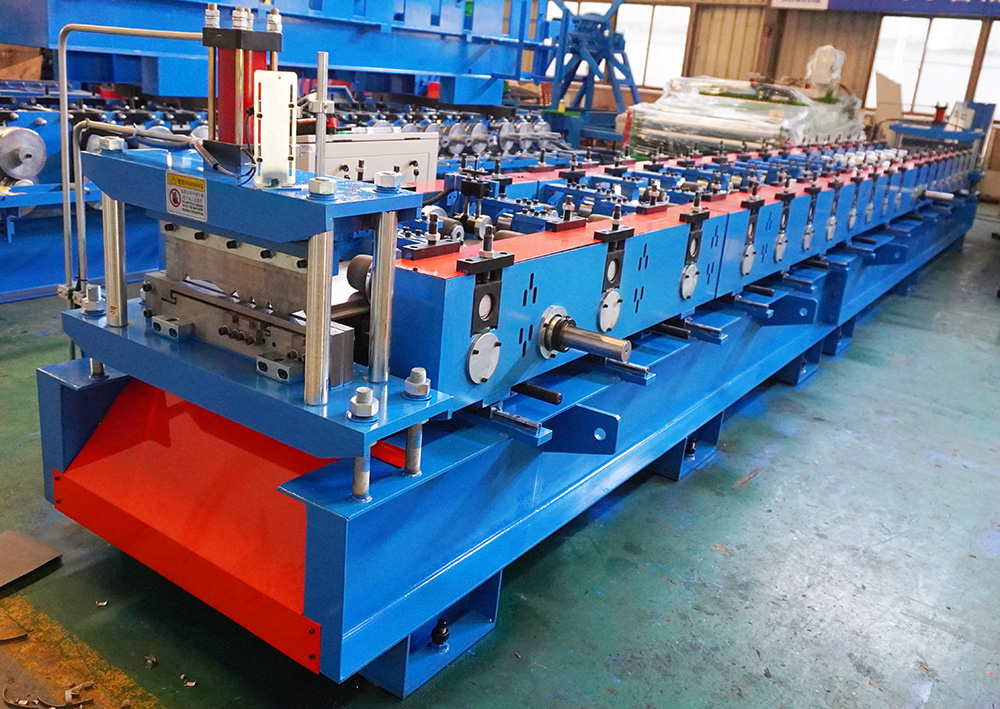

Roll Forming Device

1. Frame:350H steel
2. Roller stations:18stations
3. Roller materila:45# steel with quenched treatment and hard chroming
4. Shaft material:45# steel with tempering treatment
5. Motor power:7.5kw

Our machine use very thick material to manufacturing the machine basic frame, ensure very stable when it running. The machine especially add diagonal bracing to make sure stability.

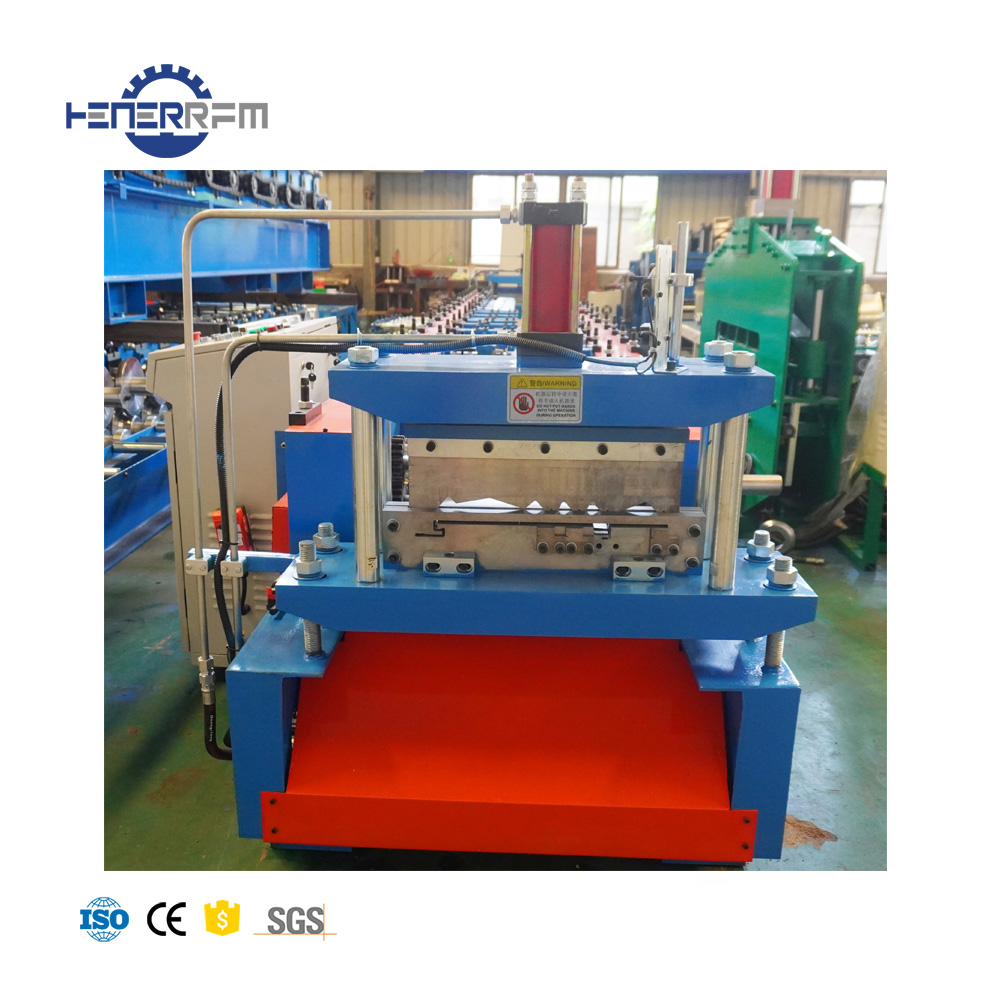

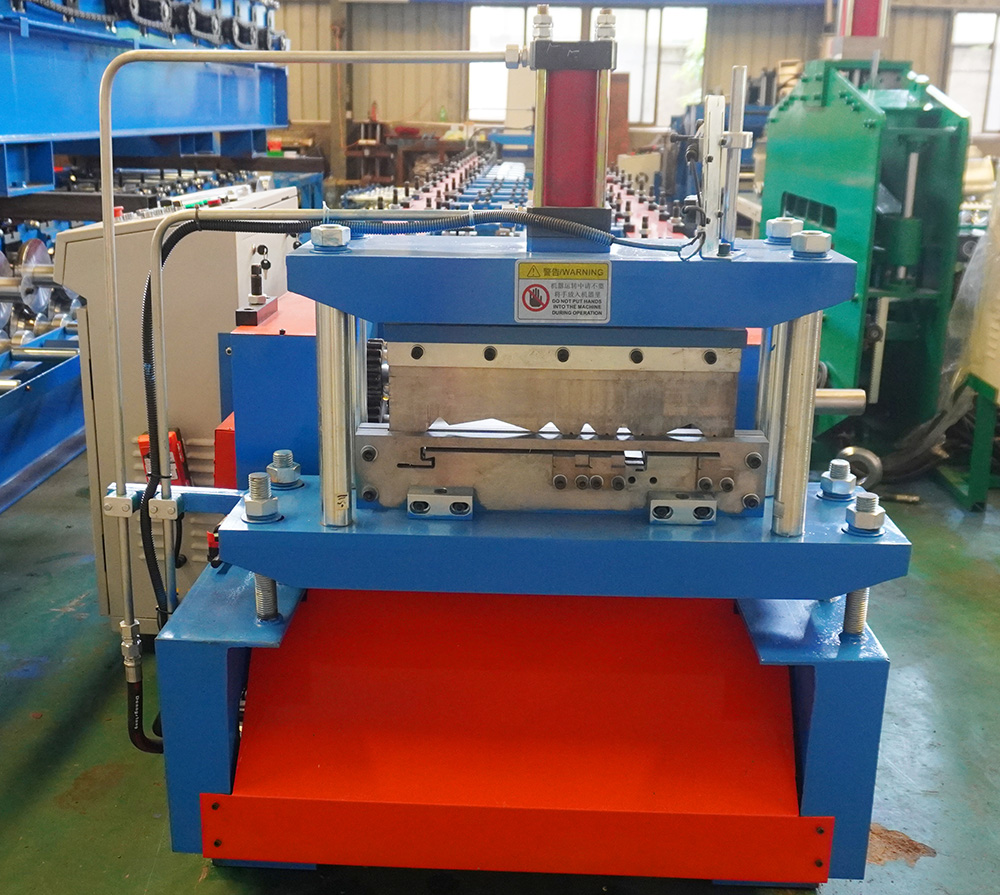

Automatic Shearing System

1. Hydraulic motor rated at 5.5 kW, equipped with an energy accumulator.The cutter is constructed from GB-Cr12 material and undergoes heat treatment.

2. Cutting length tolerance is within ±10 meters per 2 millimeters.

3. Cutting operations are characterized by a stable and safe working environment, producing minimal noise.

PLC control system

PLC brand:Delta(Taiwan) PLC, and transducer and touched screen
1. Encoder brand:Omron
2. Operating language:English and Chinese(or as requested)
You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs
to make it much easier to install the machine while it arrived.

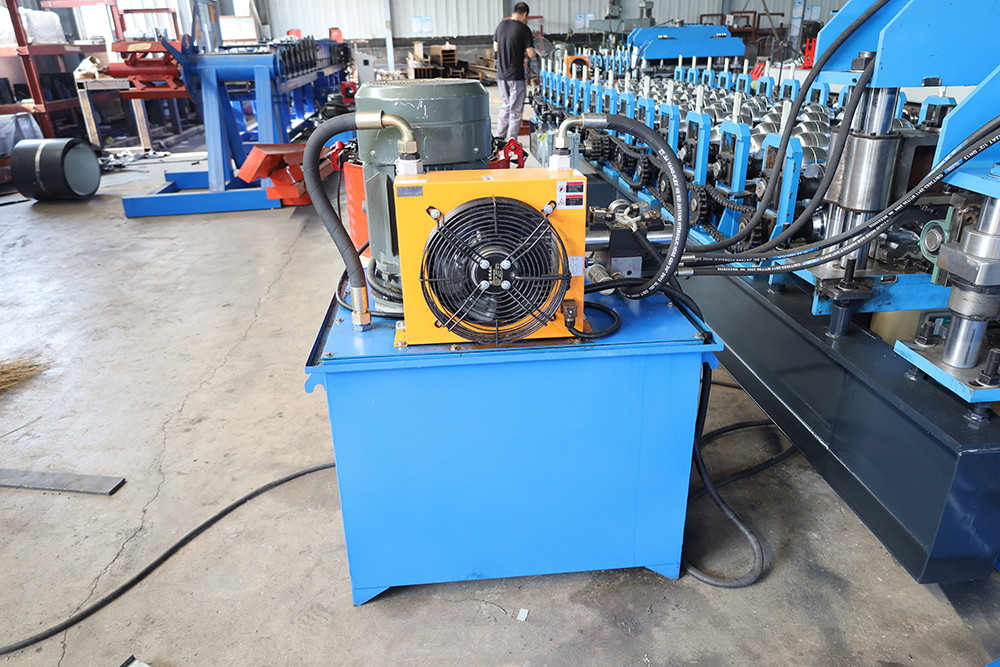

Hydraulic station

The hydraulic oil station is outfitted with 2 solenoid valves and a robust 5.5 kW motor to accommodate the machine's
high-intensity operations. It requires the addition of 46# hydraulic oil. During filling, an oil gauge display is provided,
ensuring precise measurement even if the filling volume exceeds the gauge's scale.

Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ? A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine. Q2. How can we be assured that you will deliver us quality machine with spare parts ? A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality. 2. We can send the technicians to the buyer's factory for the installation of the machine. Q3. What's your payment terms and delivery time? A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery. Q4. Do you have after-sales support? A: Yes, we are happy to provide advice and we also have skilled technicians available across the world. Q5. Do you sell only standard machines? A: No, most of our machines are customized according to customers specifications, also adopt top brand components. Q6. What will you do if the machine is broken? A: We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine. Q7. Can you be responsible for transport? A: Yes, please tell me the destination port or address. we have rich experience in transporting. Q8. How to visit your company? A:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour). 2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour). 3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
