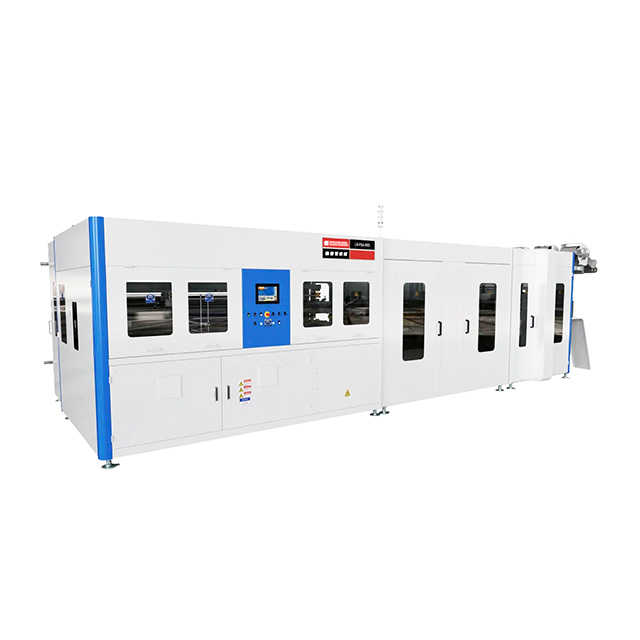

Automatic High-Efficiency Spring Assembly Machine for Mattress Bag with Double Entry
Automatic High-Efficiency Spring Assembly Machine for Mattress Bag with Double Entry
Automatic High-Efficiency Spring Assembly Machine for Mattress Bag with Double Entry
Automatic High-Efficiency Spring Assembly Machine for Mattress Bag with Double Entry
Automatic High-Efficiency Spring Assembly Machine for Mattress Bag with Double Entry
Automatic High-Efficiency Spring Assembly Machine for Mattress Bag with Double Entry
Automatic High-Efficiency Spring Assembly Machine for Mattress Bag with Double Entry

Video

1 / 7

Automatic High-Efficiency Spring Assembly Machine for Mattress Bag with Double Entry

  • $164000.00

    ≥1 set

  • $136800.00

    ≥10 set

Options:

  • LR-PSA-99EX
Get Latest Price

Basic Info

Model No.
Brand Name
Place of Origin Guangdong, China
Brand Name STENBURG
Video outgoing-inspection Provided
Machinery Test Report Provided
Core components Plc
Voltage 3AC380V
power(w) 17KW
Dimension(L*W*H) contact us
Warranty One Year
Product name Fully Automatic Pocket Spring assembly Machine
Production capacity 27-30 strings/min.

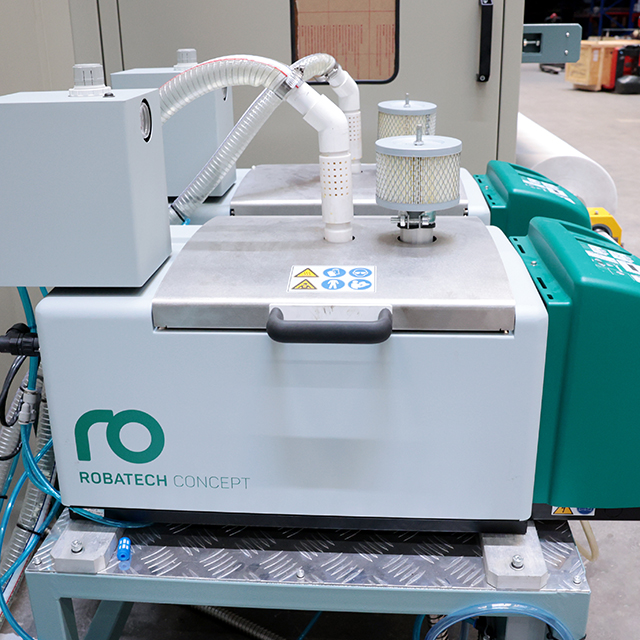

Hot melt application system Nordson (USA) or Robatech (Switzerland)
Capacity of glue tank 2*15kg/2*18kg
Gluing method Continuous gluing mode ;interrupted gluing mode
Control of assembling platform Electronic control
Air Consumption 0.15m3/min.
Air pressure 0.6~0.7mpa
Working temperature +5°C~+35°C
Condition New
Applicable Industries Machinery Repair Shops, Manufacturing Plant
Warranty of core components 1 Year
Showroom Location None
Marketing Type New Product 2024
Weight 4900
Show More

Product description

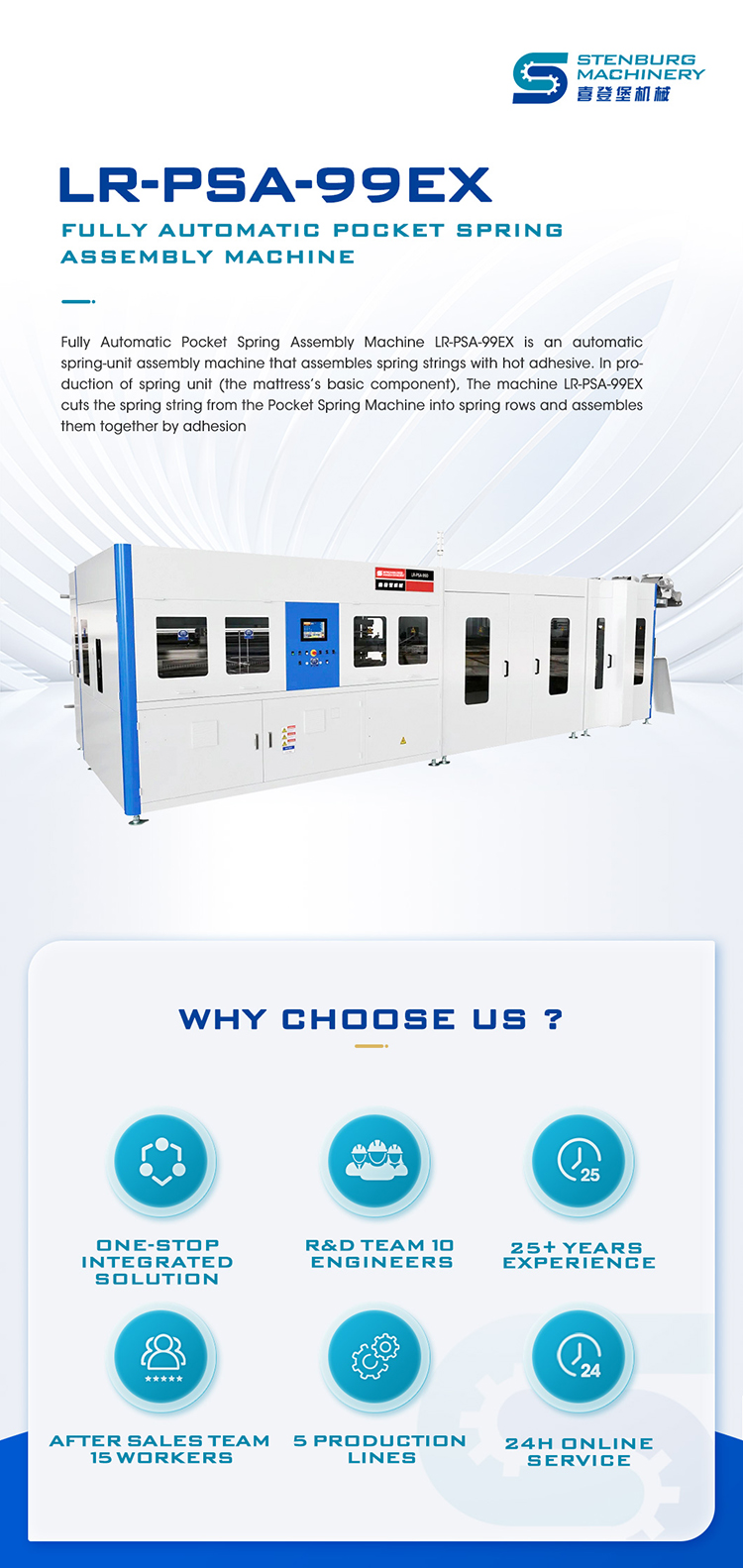

LR-PSA-99EX?Fully Automatic Pocket Spring assembly Machine
Model
LR-PSA-99EX
Production capacity
27-30 strings/min.
Hot melt application system
Nordson (USA) or Robatech (Switzerland)
Capacity of glue tank
2*15kg/2*18kg
Gluing method
Continuous gluing mode；interrupted gluing mode
Possibility of assembling sofa core
Available
Possibility of assembling zoning mattress
Available
Air consumption
0.15m3/min.
Air pressure
0.6~0.7mpa
Power consumption in total
17KW
Voltage
3AC380V
Frequency
50/60Hz
Input current
30A
Cable section
3*10mm2+2*6mm2
Working temperature
+5°C~+35°C
Weight
Approx.4900Kg
Consumption Material Deta
Non-woven fabric
Fabric density
65~80g/m2
Fabric width
450-2200mm
Inner dia.of fabric roll
Min.60mm
Outer dia.of fabric roll
Max.600mm
Hot melt glue
Shape
Pellet or pieces
Viscosity
125°C-6100cps
150°C-2300cps
175°C-1100cps
Softening point
85士5°C
Applicable spring specifications(mm)
Spring Waist Diameter
Φ37~75
Pocket Spring Height
55~280
