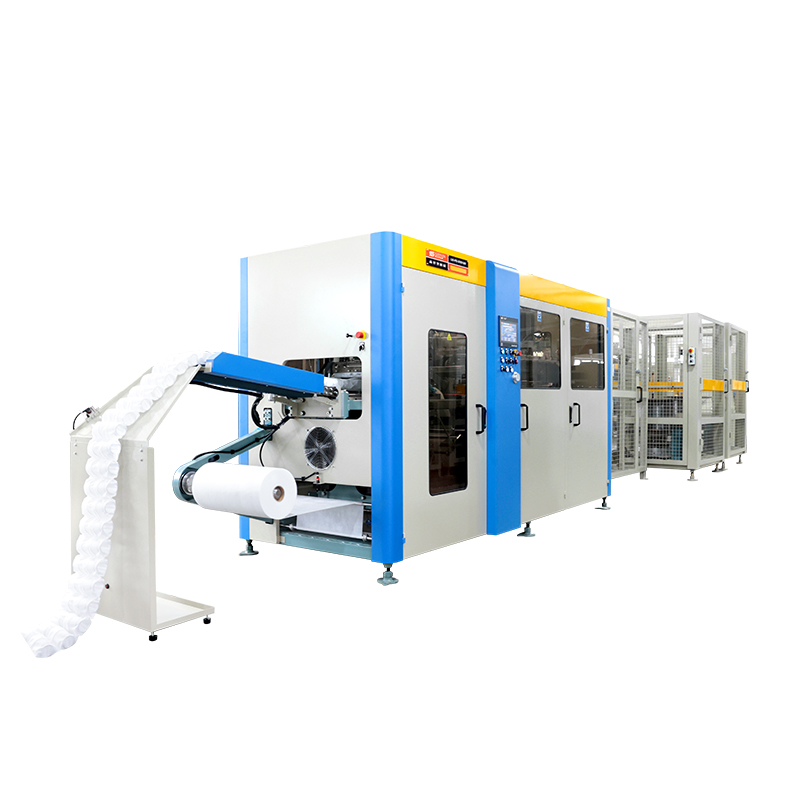

Stenburg LR-PS-S/D180 Mattress Pocket Springs Coiling Machine Price
$51800.00
≥1 set
Options:
- LR-PS-D180
Basic Info
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | STENBURG |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Core components | Plc |

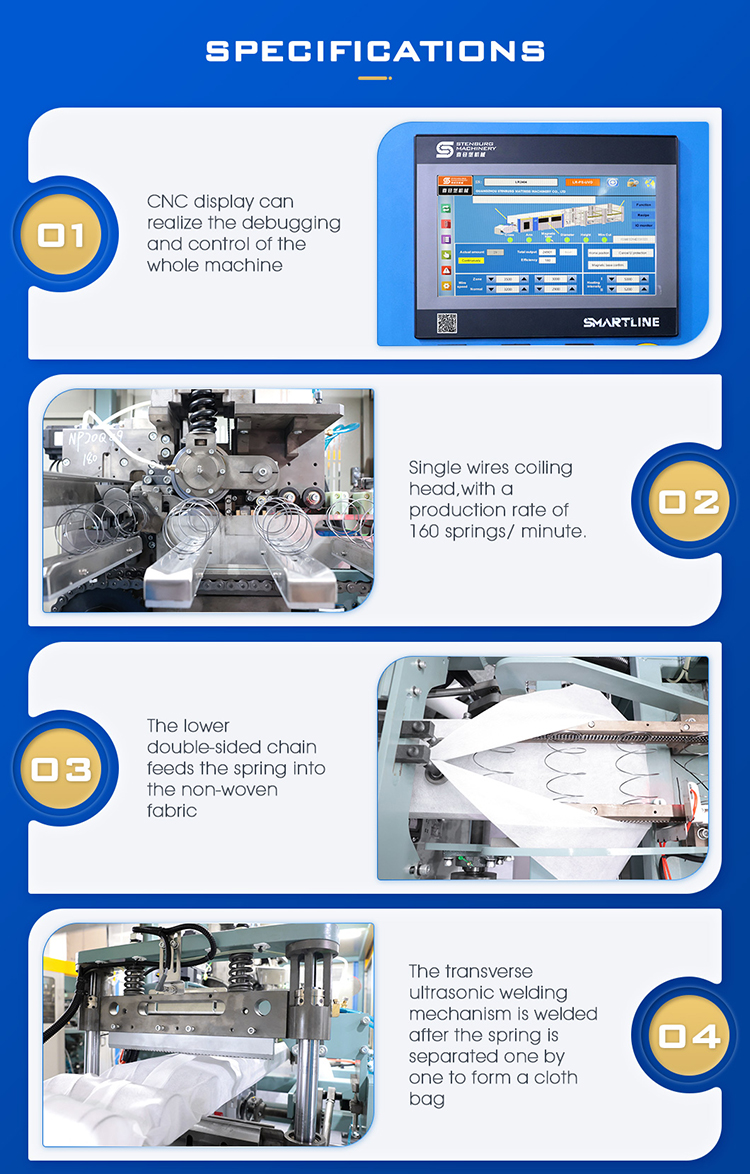

Product description

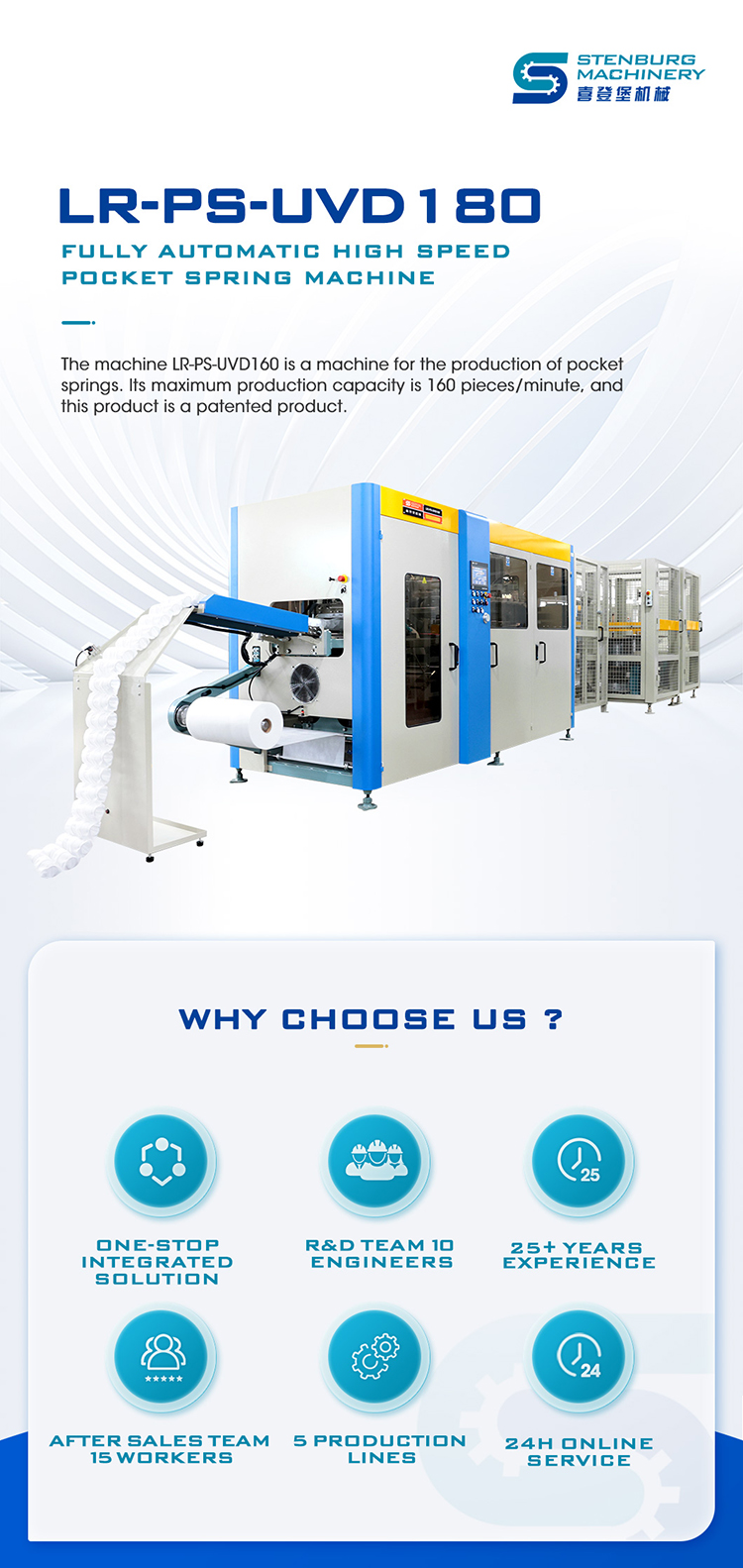

LR-PS-S/D180?Pocket Spring Mattress Coiling Machine |
Model | LR-PS-S180 | LR-PS-D180 | |
Production capacity | 180 springs/min. | ||

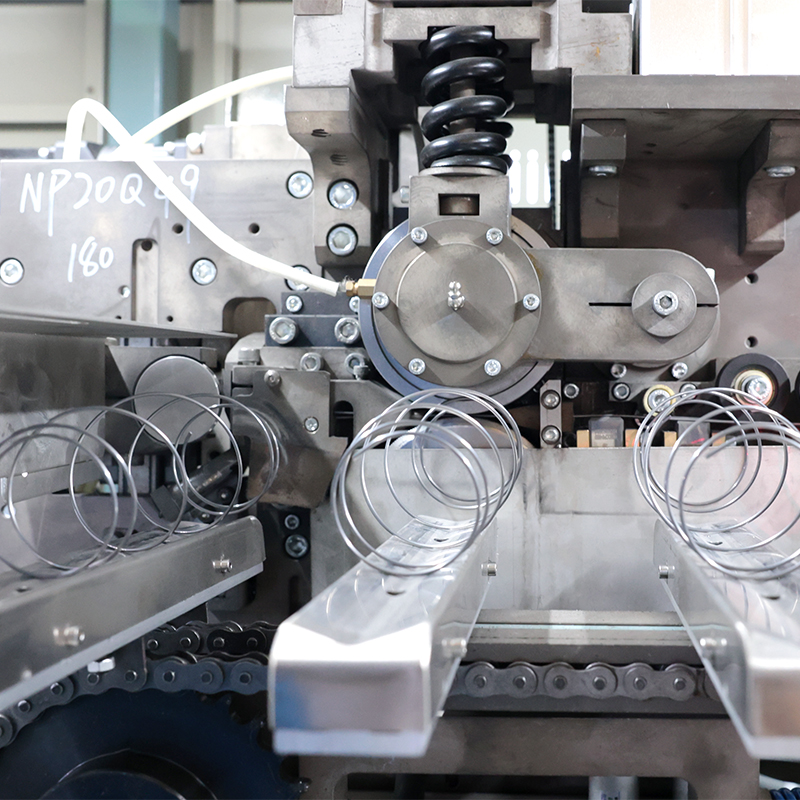

Coiling head | Single wire servo coiling head；Double wire servo coiling head | ||
Working principle | Servo control | ||
Spring shape | Standard versions:barrel and cylindrical | ||
Air consumption | 0.3m3/min. | ||
Air pressure | 0.6~0.7mpa | ||
Power consumption in total | 40KW | 43KW | |
Voltage | 3AC380V | ||
Frequency | 50/60Hz | ||
Input current | 60A | 65A | |
Cable section | 3*16mm2+2*10mm2 | ||
Working temperature | +5°C~+35°C | ||
Weight | Approx.4000Kg | Approx.5000Kg | |
Consumption Material Deta | ||

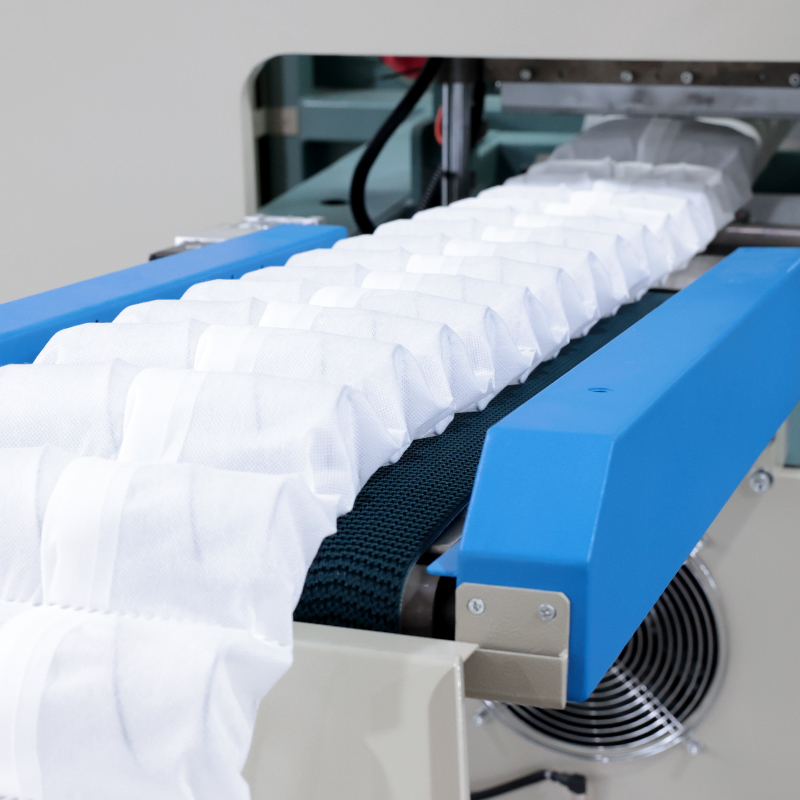

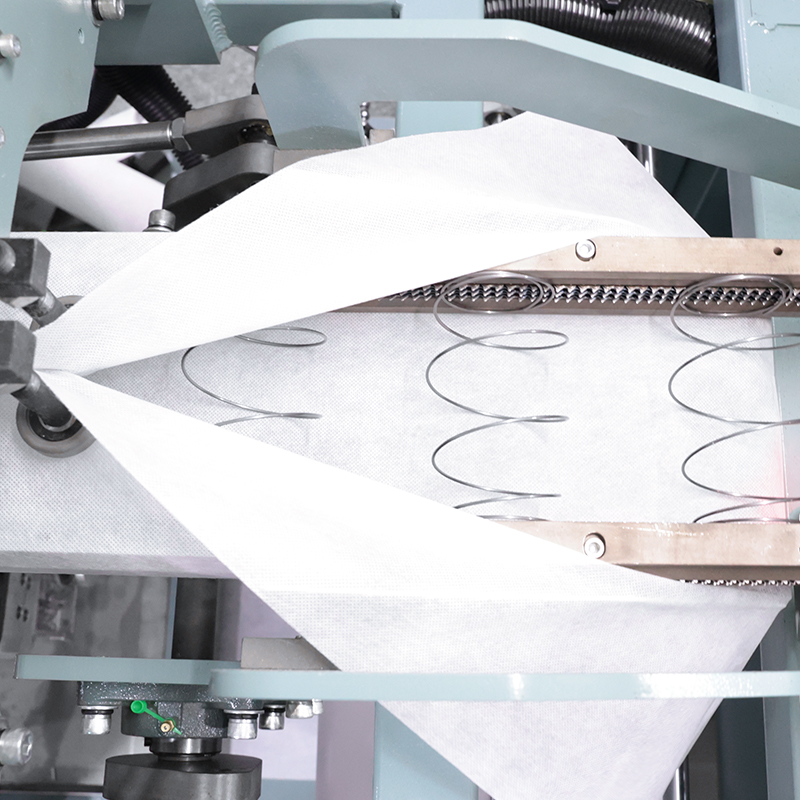

Non-woven fabric | ||
Fabric density | 65~90g/m2 | |
Fabric width | 260-680mm | |
Inner dia.of fabric roll | 75mm | |
Outer dia.of fabric roll | Max.1000mm | |
Steel wire | ||
Wire diameter | 1.3-2.3mm | |
Inner dia.of wire roll | Min.320mm | |
Outer dia.of wire roll | Max.1000mm | |
Acceptable weight of wire roll | Max.1000Kg | |
Applicable spring specifications(mm) | ||
Option1 | Wire diameter：Φ1.6~2.3 Spring Waist Diameter：Φ48~75 Pocket Spring Height：80~250 | |
Option1 | Wire diameter：Φ1.3~1.9 Spring Waist Diameter：Φ38~65 Pocket Spring Height：60~220 | |
Video
Stenburg LR-PS-S/D180: Patented Fully Automatic High-Speed Pocket Spring Coiling Machine1
Stenburg LR-PS-S/D180: Patented Fully Automatic High-Speed Pocket Spring Coiling Machine1
Stenburg LR-PS-S/D180: Patented Fully Automatic High-Speed Pocket Spring Coiling Machine1
Stenburg LR-PS-S/D180 Mattress Pocket Springs Coiling Machine Price
$51800.00
≥1 set
Options:
- LR-PS-D180
