Use:
It is applicable for such sectors including foodstuff, pesticide, pharmaceuticals, daily chemicals etc. The machine can choose from different filling methods according to nature of material including liquid, powder, granule, paste etc.
Features:
1. Mainframe Frequency Conversion System: Imported AC motor and frequency conversion, stable and reliable operation; low speed and large torque ensure excellent performance even under sharp fluctuations of load.

2. Servo Blanking System: Panasonic servo motor controls rotation of blanking bolt directly by pulse number; stable and reliable performance,convenience of regulation.

3. Package Making System: The package making and sealing and filling systems are independent to each other in this system. The two systems are linked and coordinated by mechanical coupling and programmable logic controller (PLC). Therefore, the system is suitable for a variety of products and sizes of package.

4. Finished Product Sealing System: Fully automatic production facility that finishes package making, metering, filling, sealing and other packaging processes by heat-sealing packaging material (polyethylene membrane, multilayer composite membrane etc.). The package shall be three-side or four-side sealed flat package. Fillers of different types may package a variety of products.
5. Integrated Control System: It is composed of PLC, frequency converter etc., featuring a high level of integration, strong control capabilities and high reliability of operation. Touch screen technology eases and facilities operation. The optoelectric transducer,encoder, proximity switch etc. are all equipped with imported and advanced sensing elements, so the mechanical and electrical integration of the entire frame is embodied perfectly.

Standard Configuration:
1. Material contact parts 316 stainless steel
2. A film reel auto-alignment shaft
3. Two sets of horizontal sealing unit
4. One set of vertical sealing unit
5. Initiative film shaft
6. An independent bag former
7. A 3-side and 4-side sealing device
8. A pair of scissors
9. An tearing notch cutter
10. An automatic material-level control system
11. A PLC tracking control system

12. A LCD touch-control operation system
13. An 10-digit press printer
14. A product outlet system
15. An operation manual in English

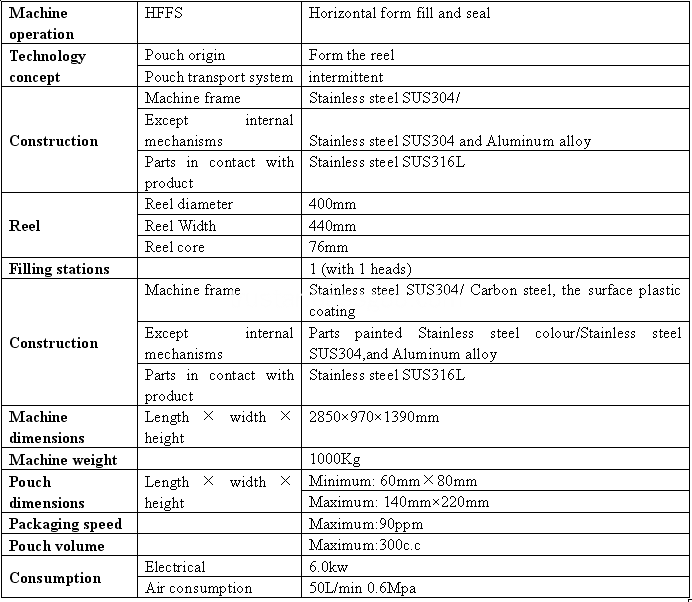

Technical Parameter:
