1. Machine description

This equipment is new model developed base on integrated domestic and foreign vanguard technology. It is a high technology product incorporates pneumatic photo electric mechanic which improve by a large on performance of equipment and working efficiency, it realizes encasing fast, keep running steady and reliable when fast running.

This machine is suitable for sachet, pouch, soft al/al strips, wound plaster, ointment plaster, facial mask plaster, coffee bag into carton. On line product feeding and detecting, leaflet folding (1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, batch number printing, sealing carton with tuck-in or hot melt glue device. Automatically reject when there is lacking of leaflet or product and finished product out put.

2. Features

1) International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2) Adopt human-machine operation system.

3) Automatically stop when machine is overload.

4) Automatically reject lacking of package product and leaflet.

5) Automatically display trouble, Alarm and count finished products.

6) Stable performance, operation is easy.

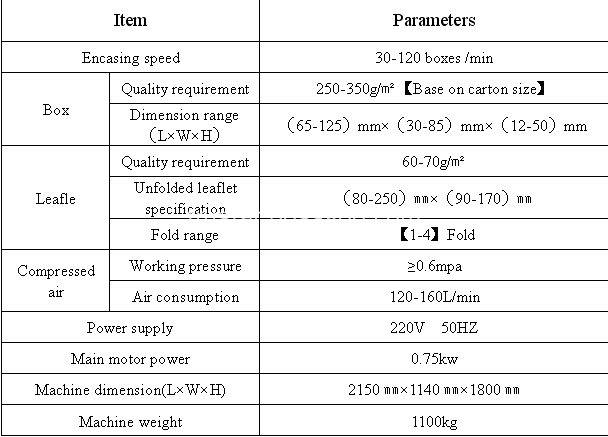

3.Main technical parameters

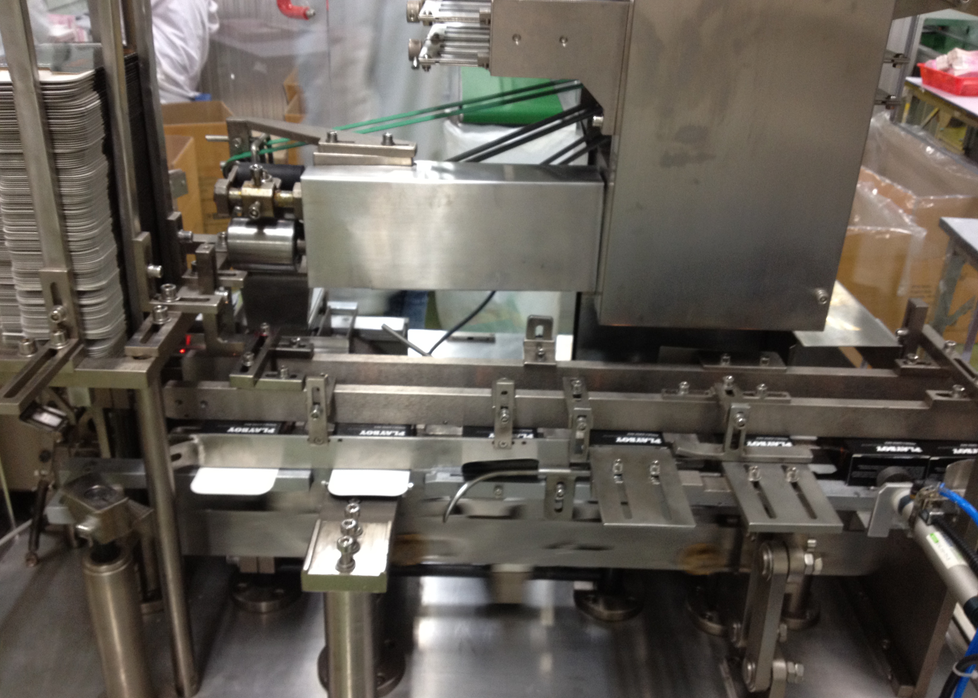

Main machine working parts

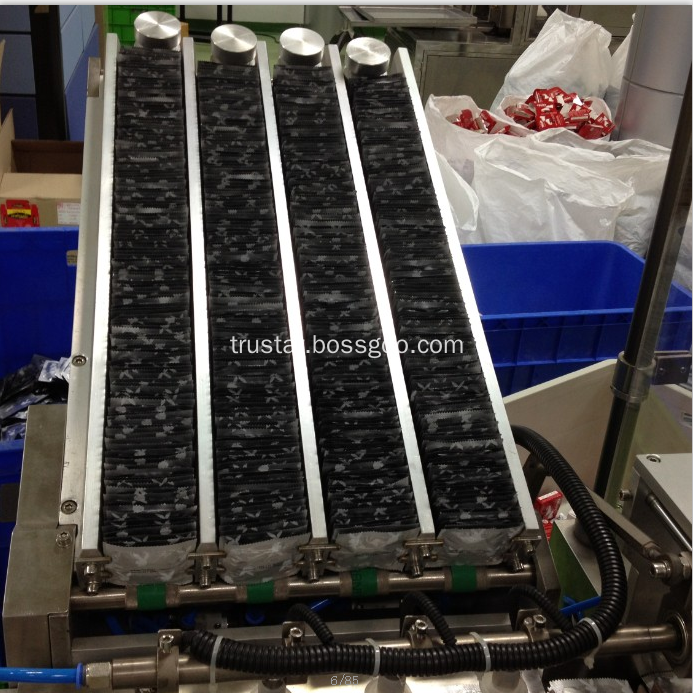

condom stacker

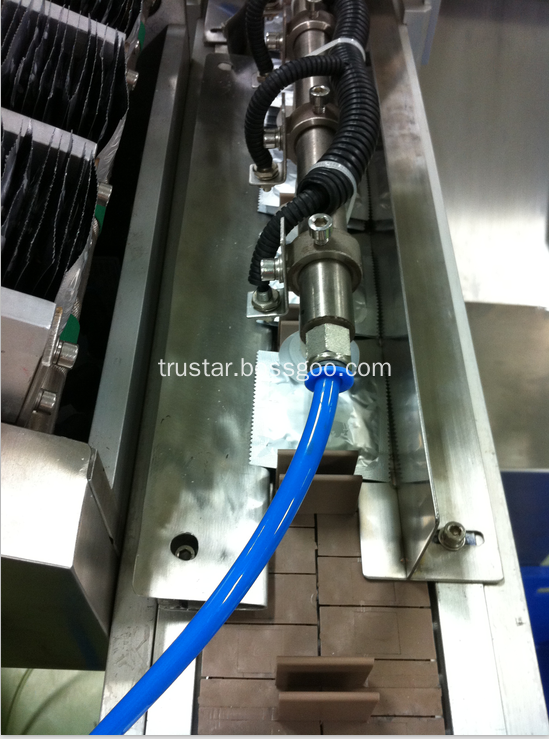

Auto feeding for condom

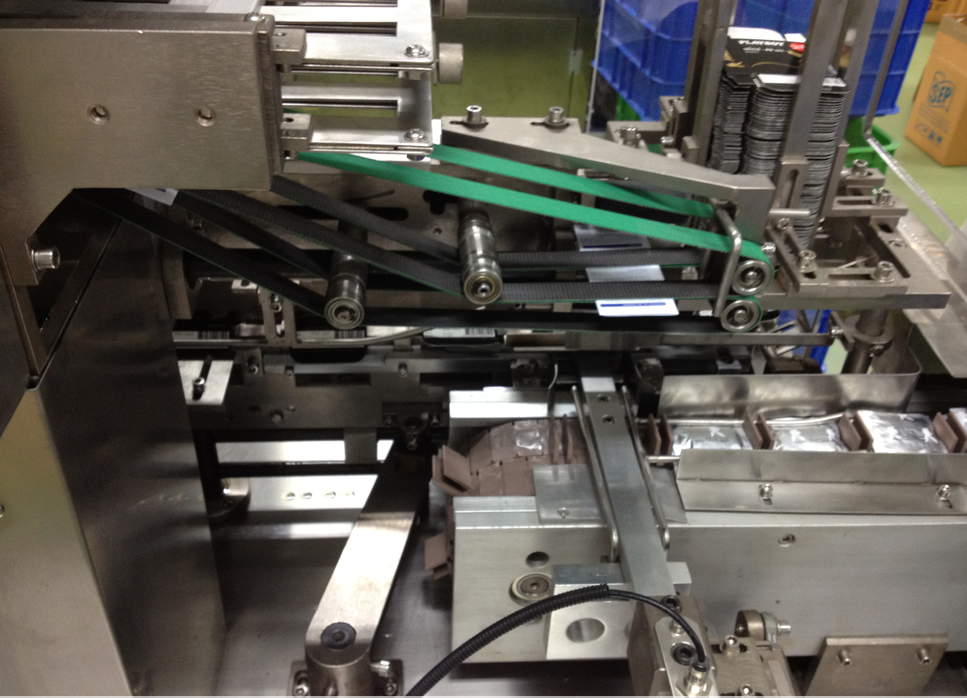

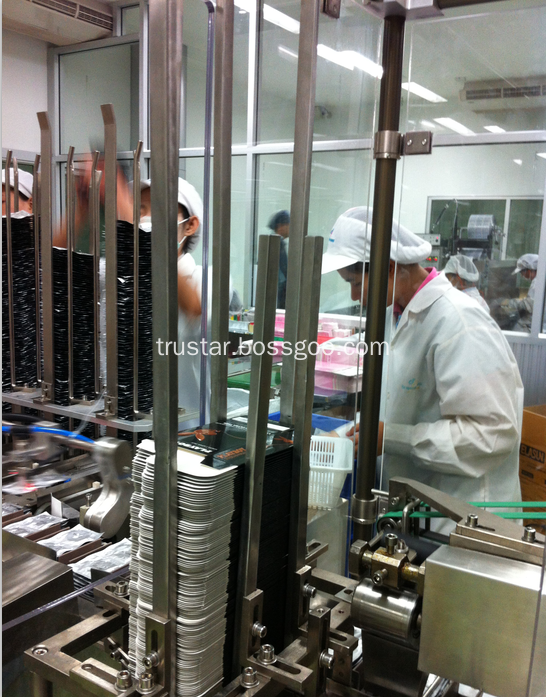

box stacker

leaflet and product pushing

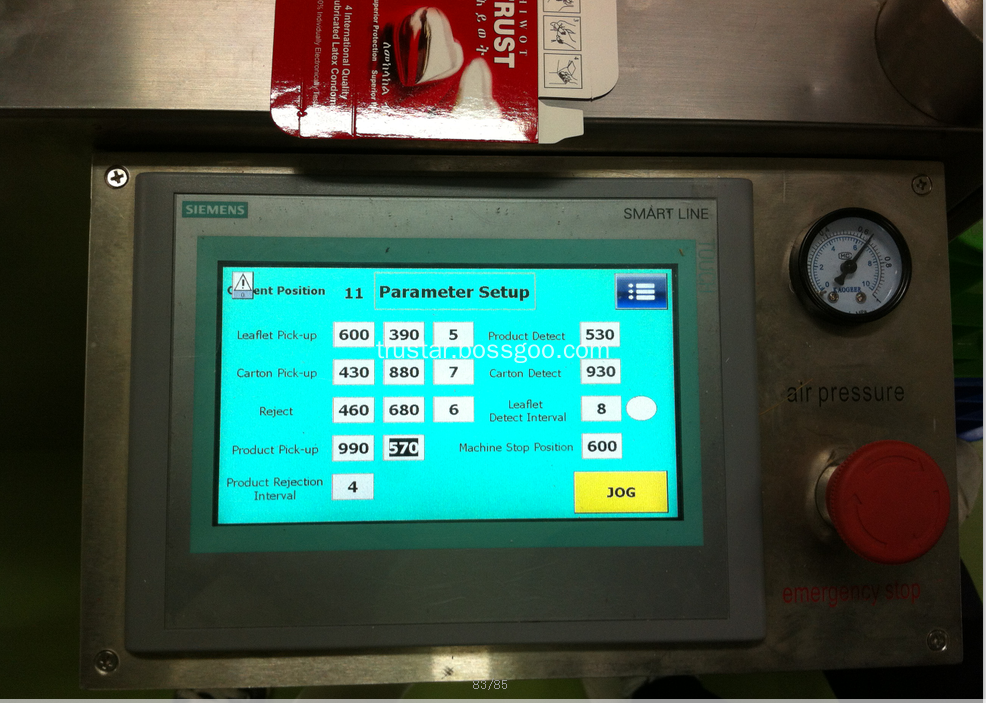

touch screen operation and display

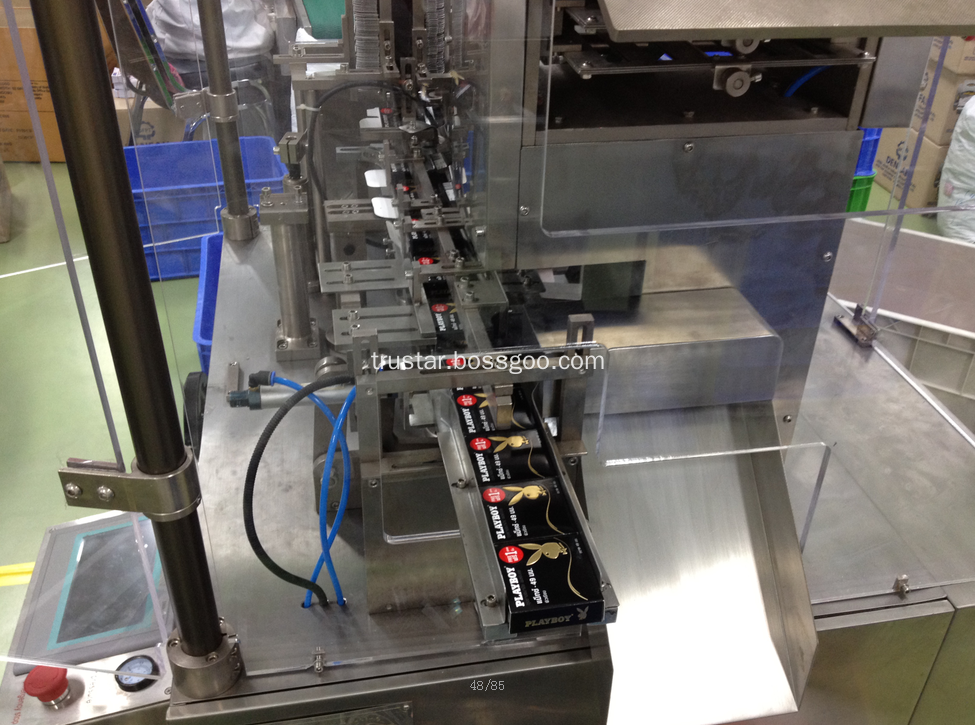

Final product output
