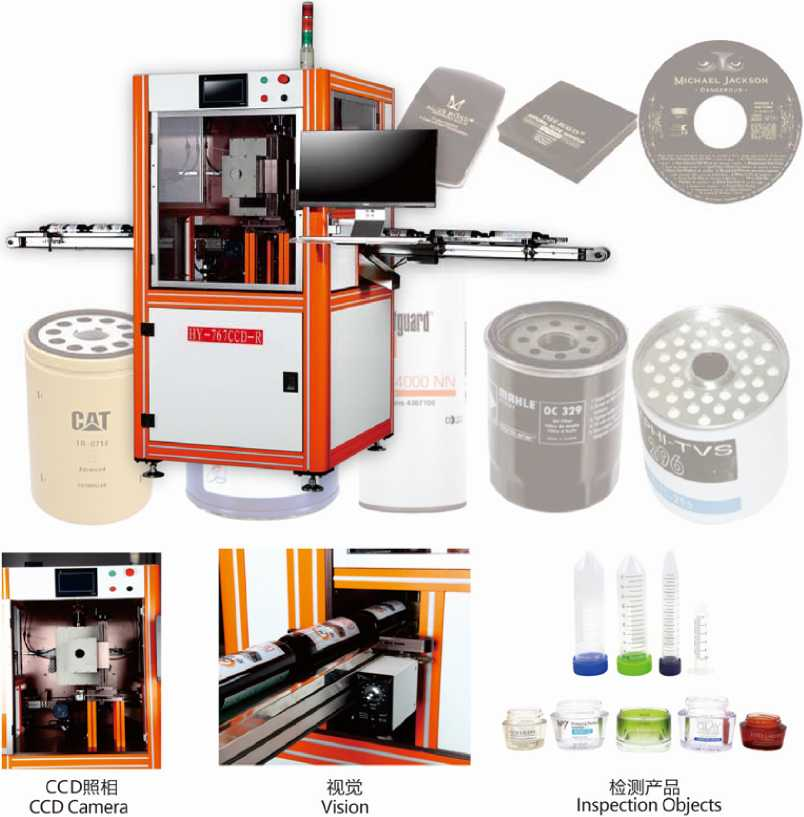

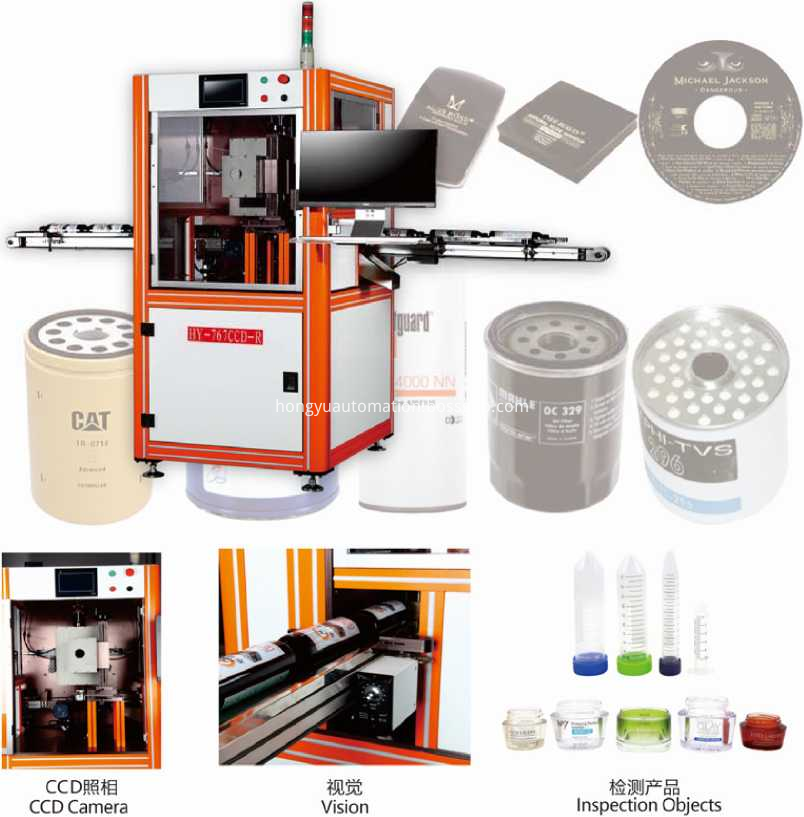

Automatic Screen Printer with CCD Visual Inspection Systerm

$48000.00

≥1 Set/Sets
$45000.00

≥3 Set/Sets

Get Latest Price

Basic Info

Model No.	HY767
Brand Name	HY
Type of printing plate	Screen Printer
Applicable industry	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Advertising Company
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets)	None
Showroom location (in which countries are there sample rooms overseas)	None
status	New
place of origin	China
use	Label Printer
degree of automation	Automatic
Printing color number and surface number	Single Color
warranty period	1 Year
Core selling point	Automatic, High-Accuracy, Long Service Life
Marketing type	Ordinary Product
Mechanical test report	Provided
Video factory inspection	Provided
Core component warranty period	1 Year
Core components	Motor

Company Overview

Product description

?Customized combined silk screen printing and vision inspection automatic production line, to meet the higher standard requirements of various printing and packaging processes.

?Suitable for round, oval, square and other products; entire line is with reasonable structure, convenient debugging and stable operation.

?Electronic components and control systems used on the entire line are internationally famous brands, to ensure higher quality and huger quantity of products.

?It can be customized and installed with automatic labeling, hot stamping and other functions, and flexibly combine fully automated one-stop production lines.

?The same machine and the same computer can realize the simultaneous operation of defect detection and printing positioning dual systems

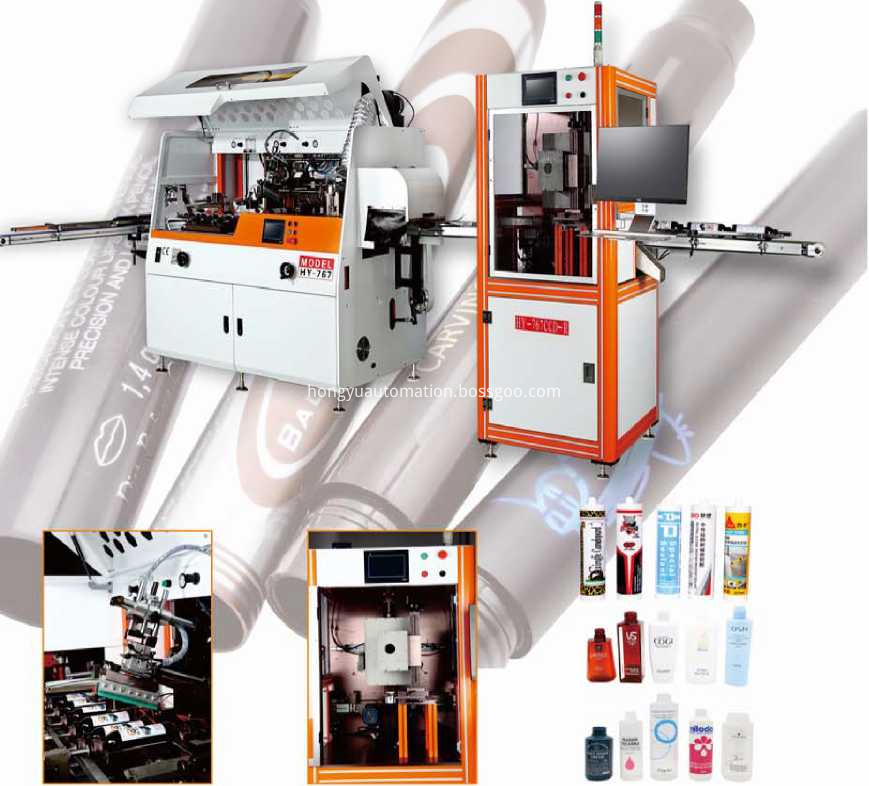

Ccd Screen Printer Png

The main function:

1. Automatic material feeding device;

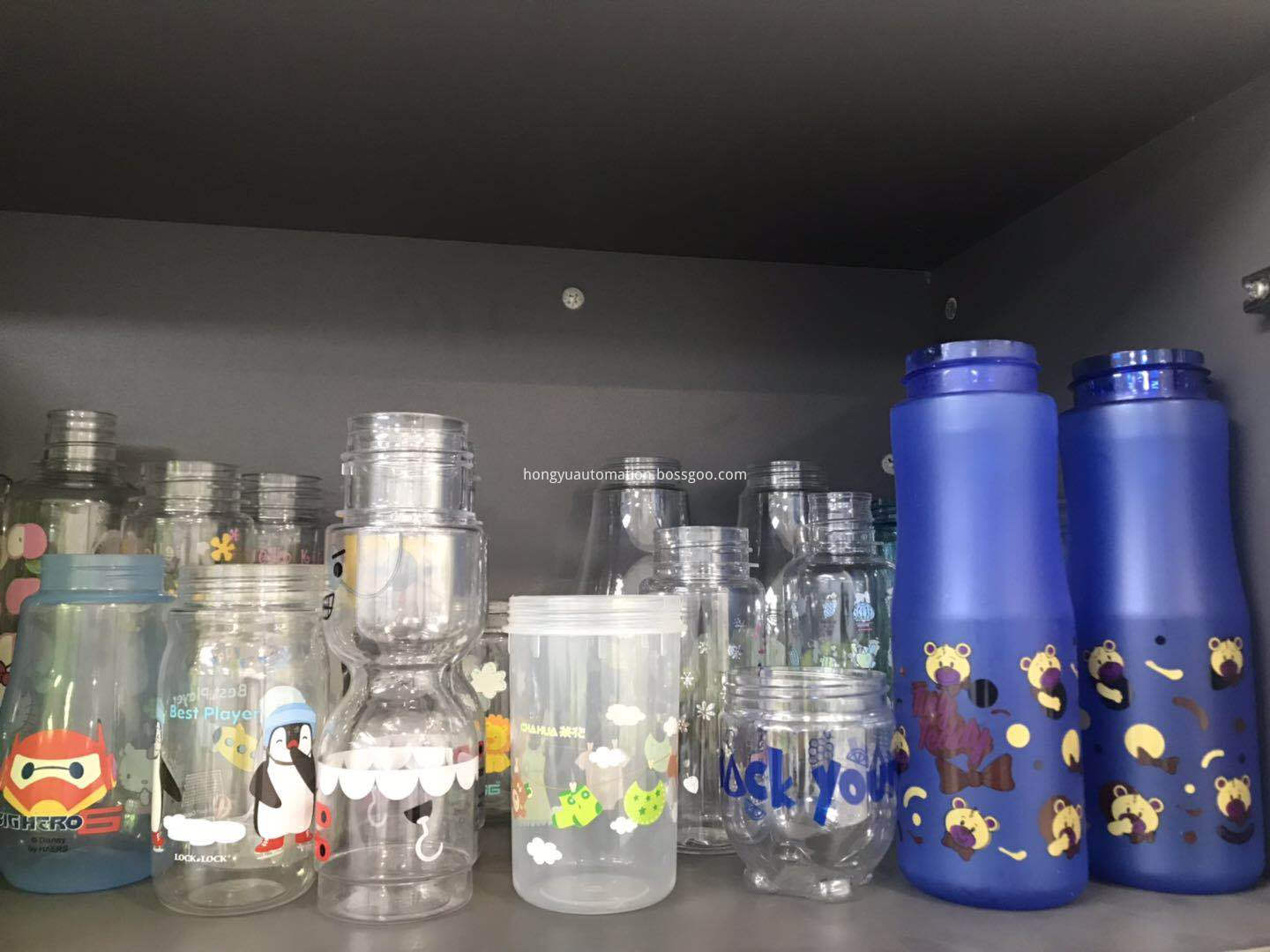

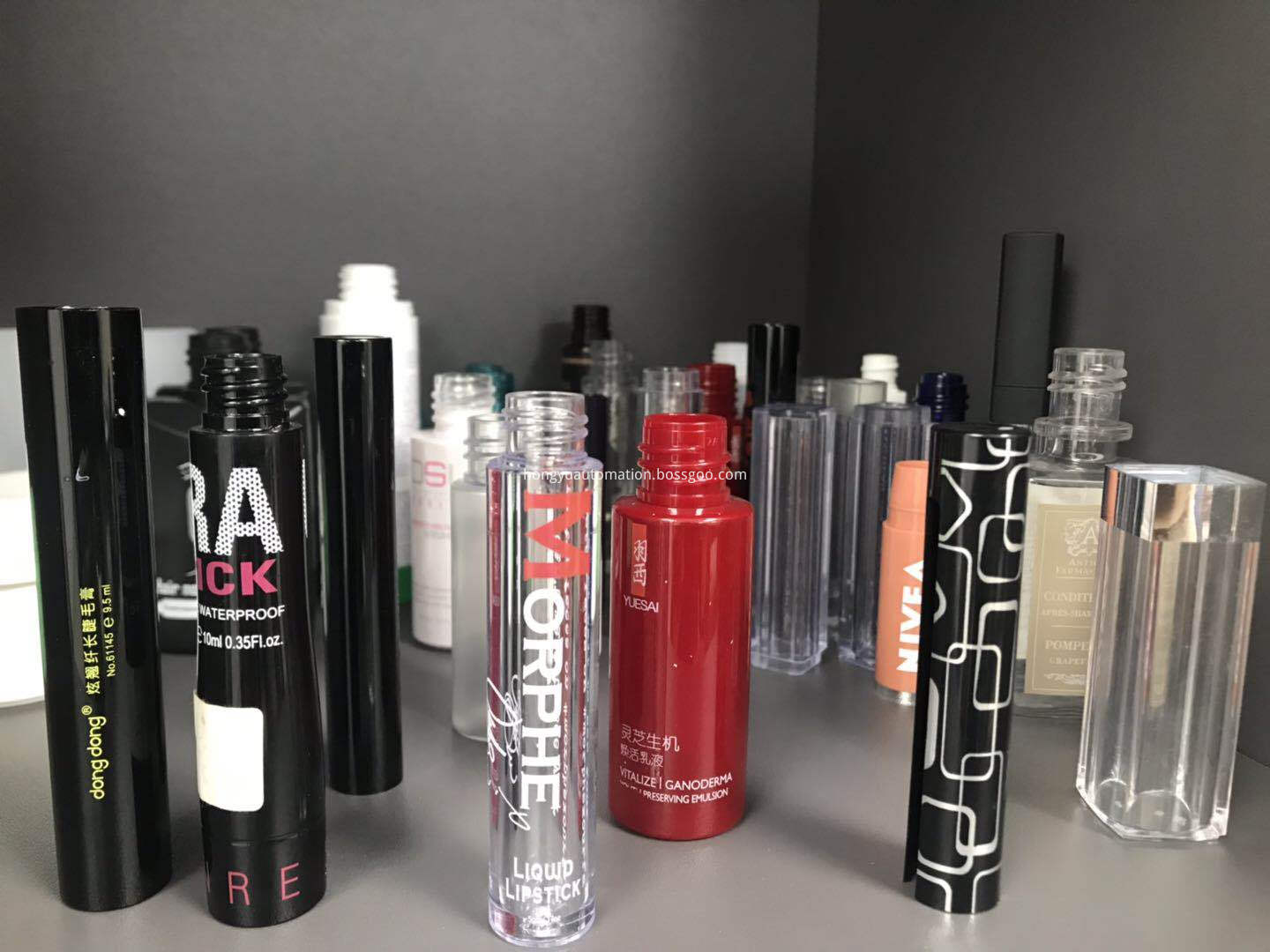

2. Prints on round, oval and square bottles;

3. Automatic U-turn function;

4. Integrated bottle surface flame surface treatment system;

5. Omron PLC and touch screen controlled;

6. Variable frequency control system;

7. Automatic per-alignment system;

8. No bottle and no printing system;

9. Intelligent UV curing system saves energy;

Technical Parameters:

Model	HY767-1
Pint Color	1
Round Printing diameter	Φ25-140mm, Height:60-300mm
Round Printing area	L300xW250mm
Oval Printing diameter	R:25-250mm, Height:60-300mm
Oval Printing area	L120xW40-200mm
Printing speed	3600P/H
In-feed conveyor:	1 unit, length: 2 meters
Out-feed conveyor:	1 unit, Length: 2 meters
Flame treating system:	1 unit, LP gas
UV dryer	1 unit, 5KW
Power	380V 3P 50HZ 5.5KW
Air pressure	80 liter/ minute max. (per color)
Machine size (LxWxH):	Main machine: 2300x1800x1700mm
Weight:	1600 KG
