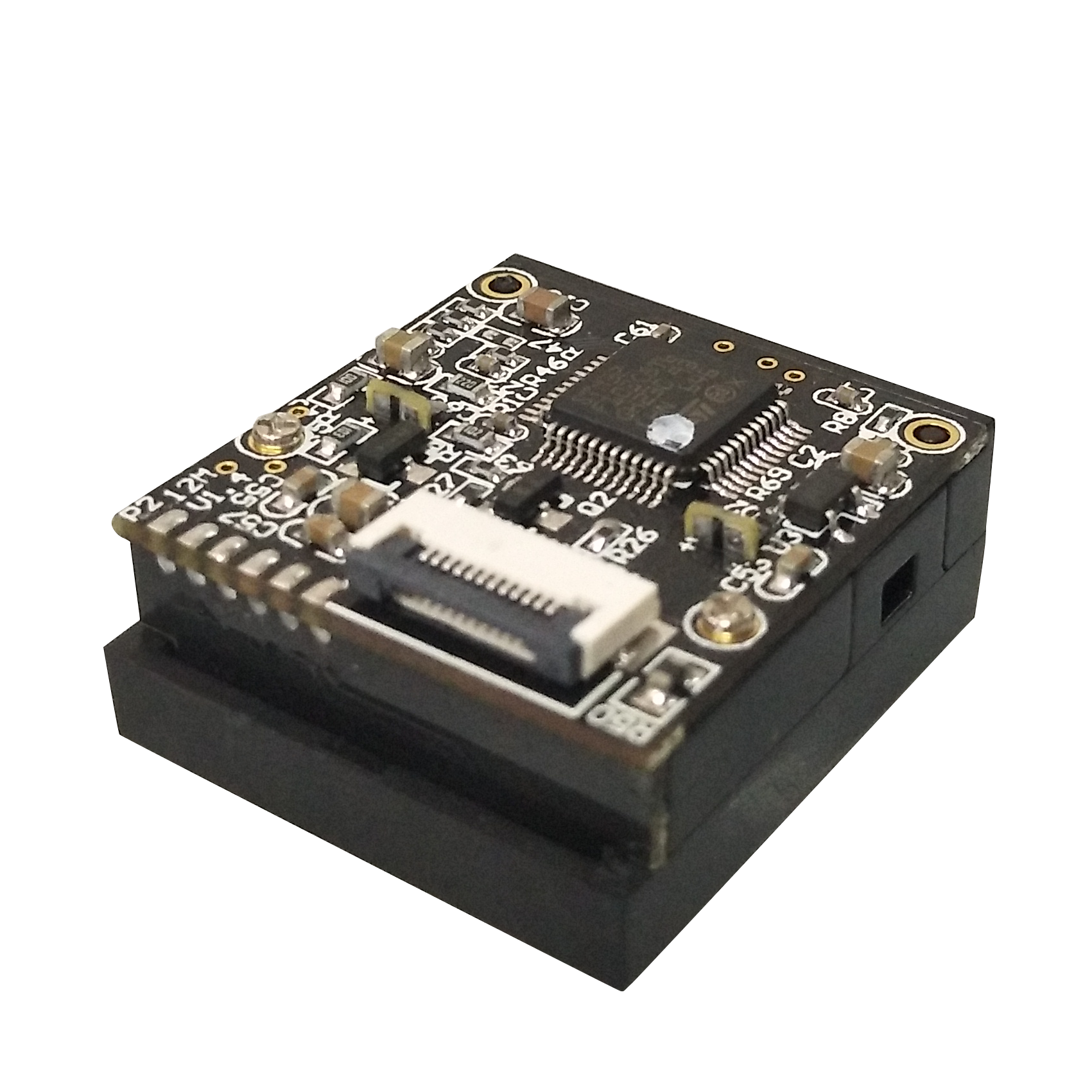

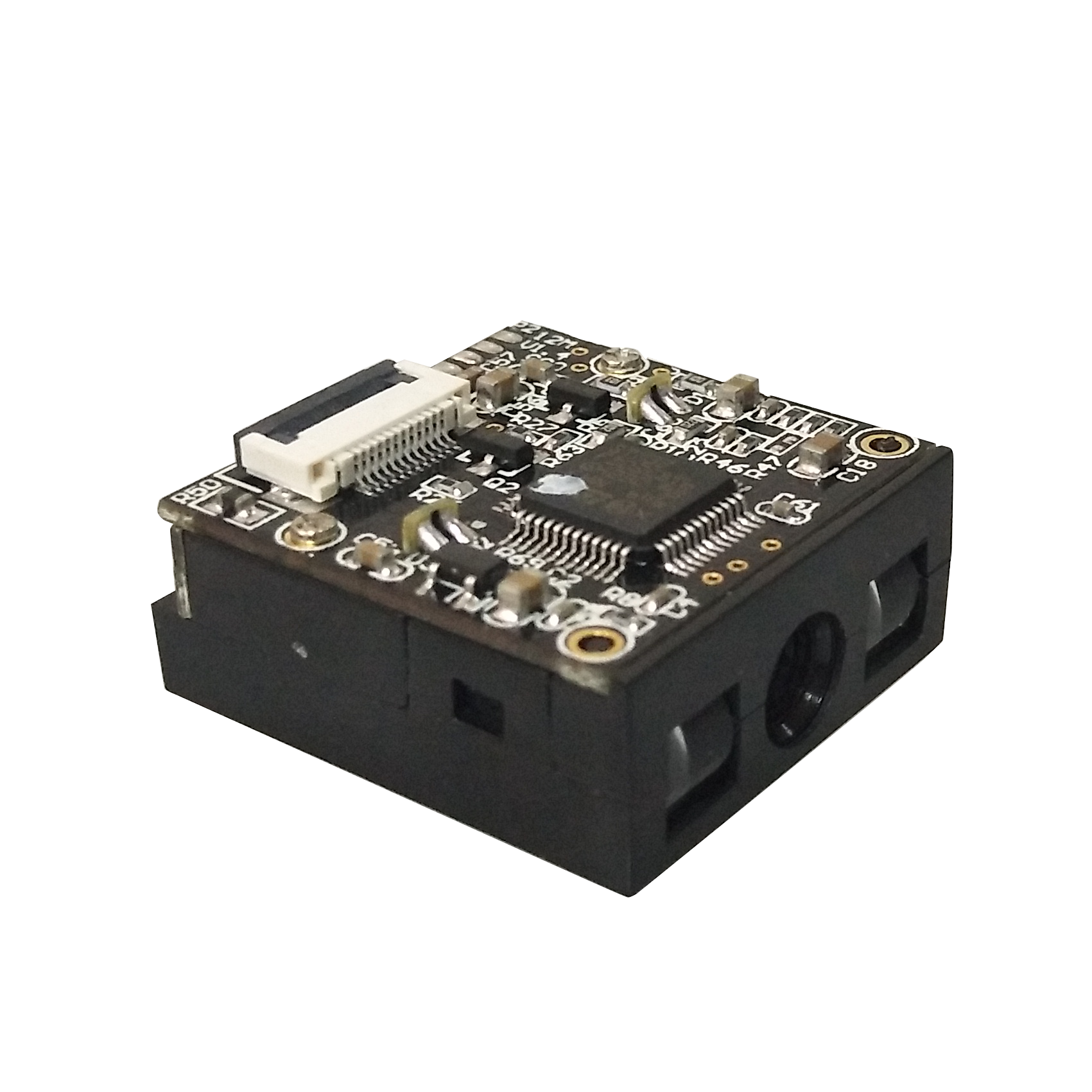

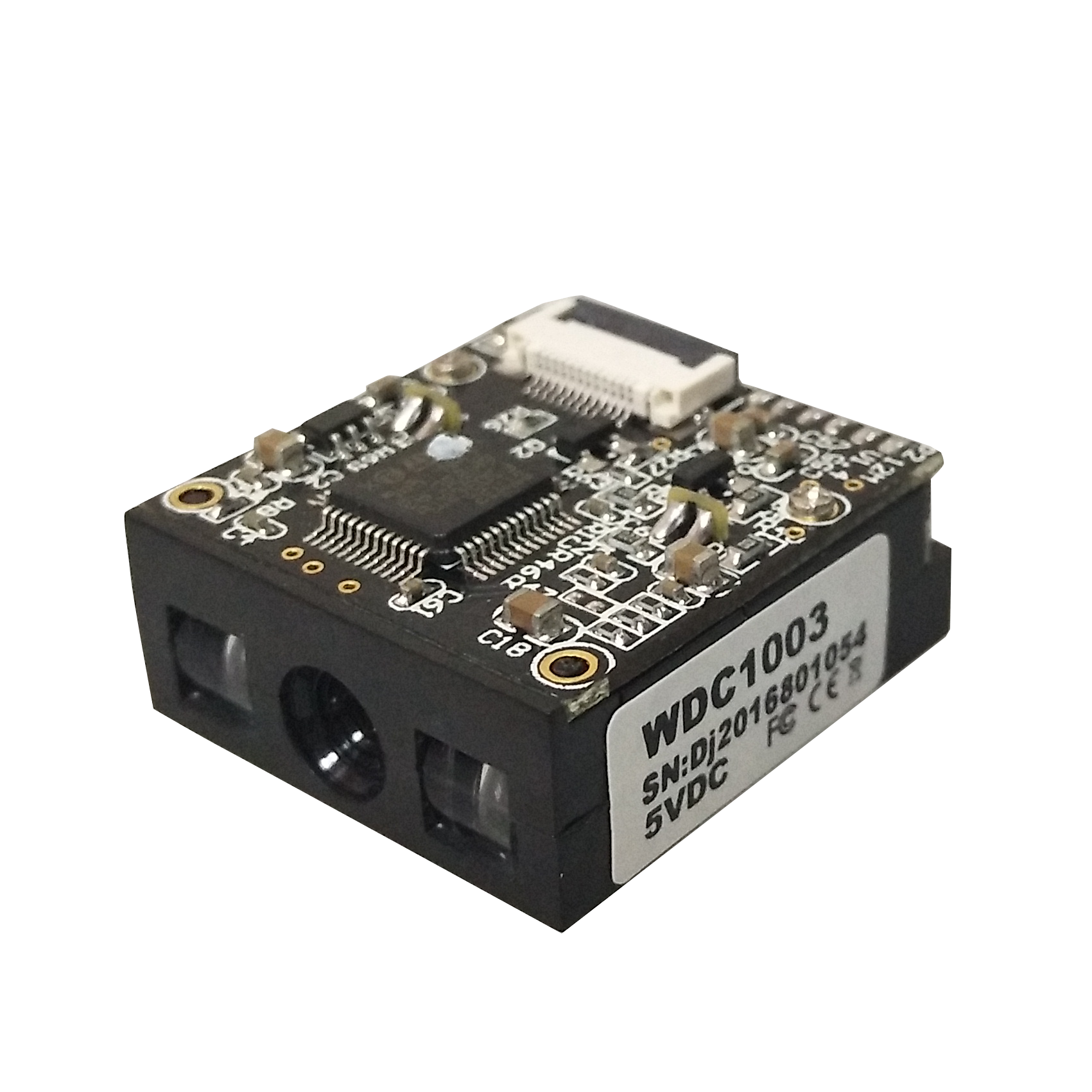

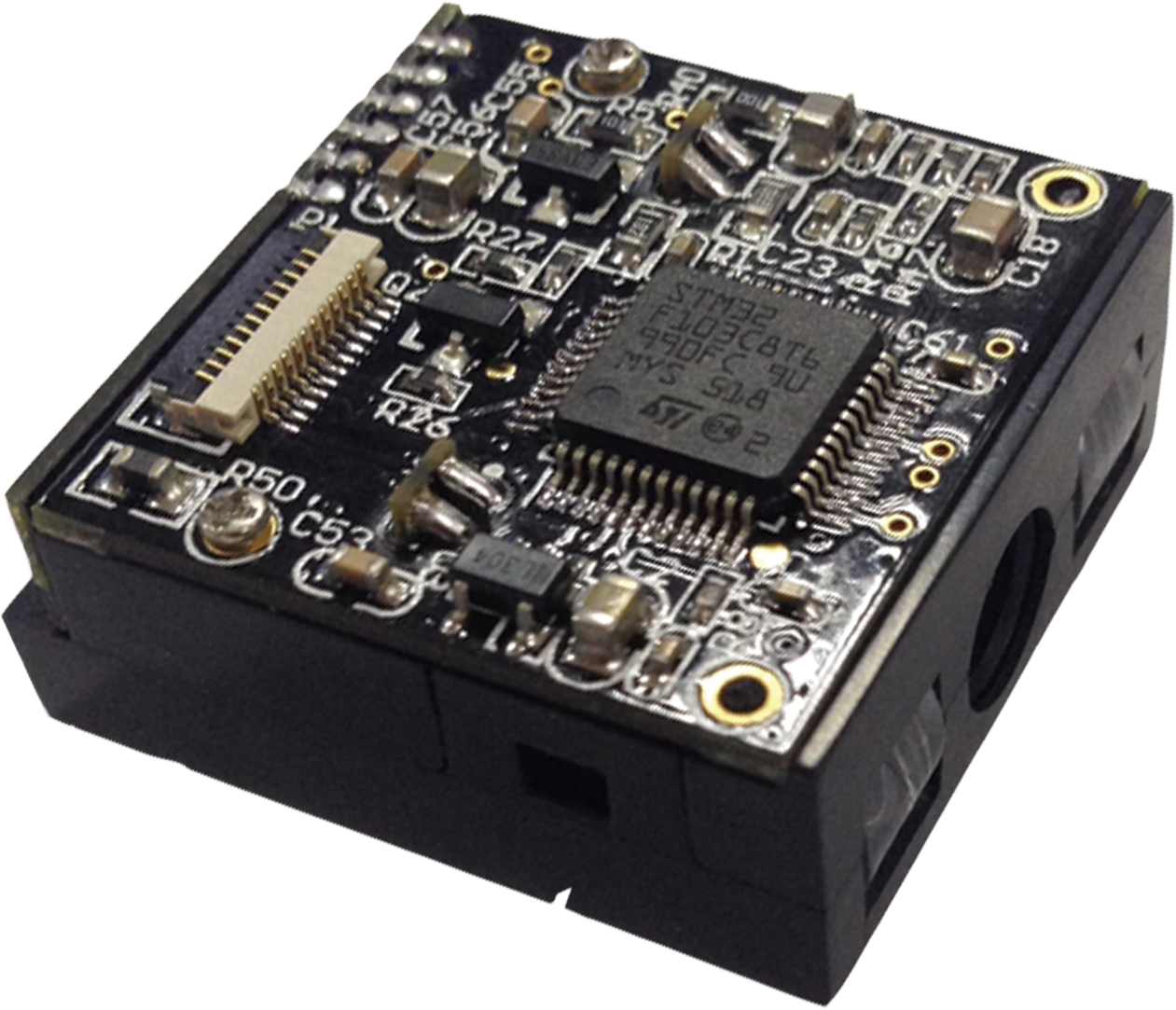

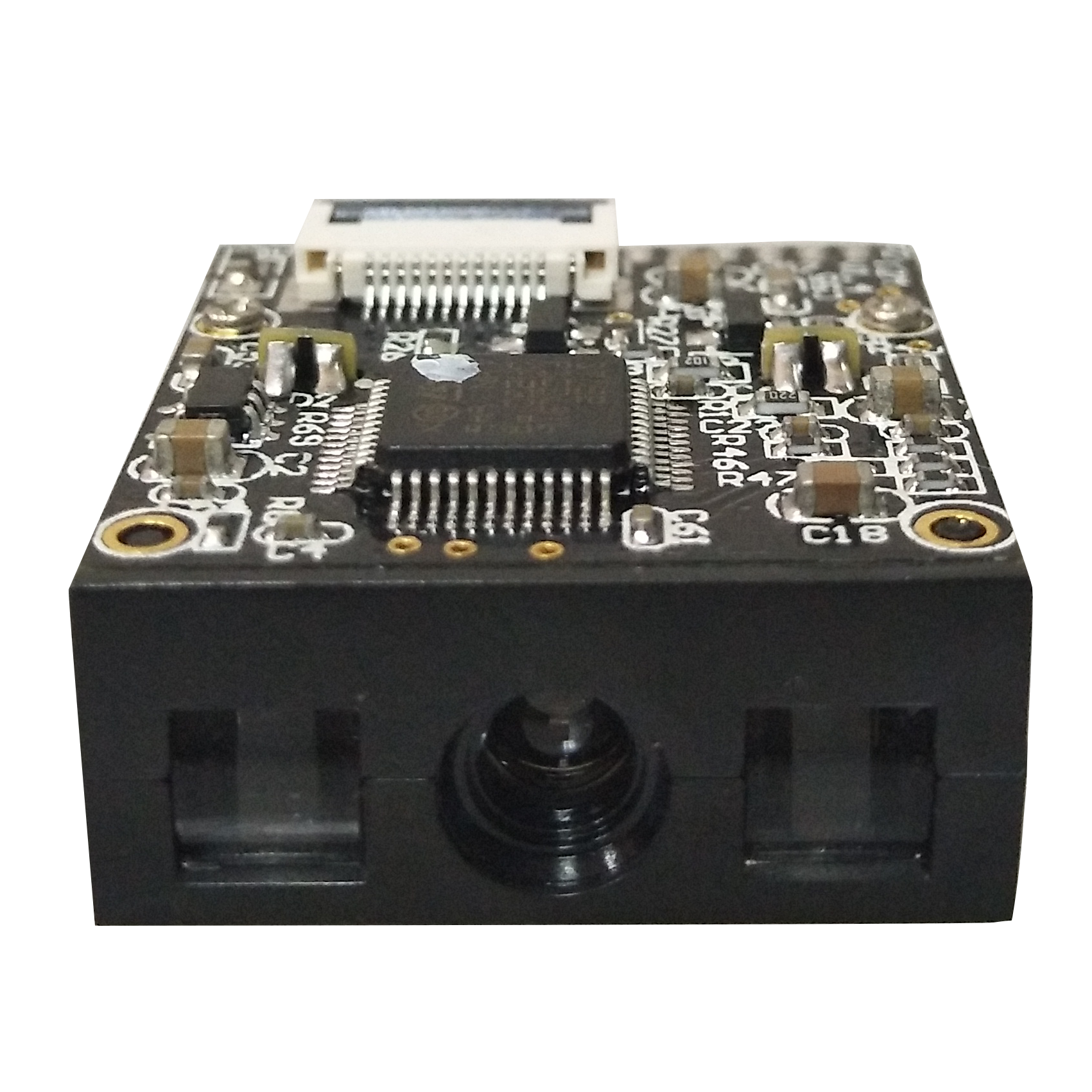

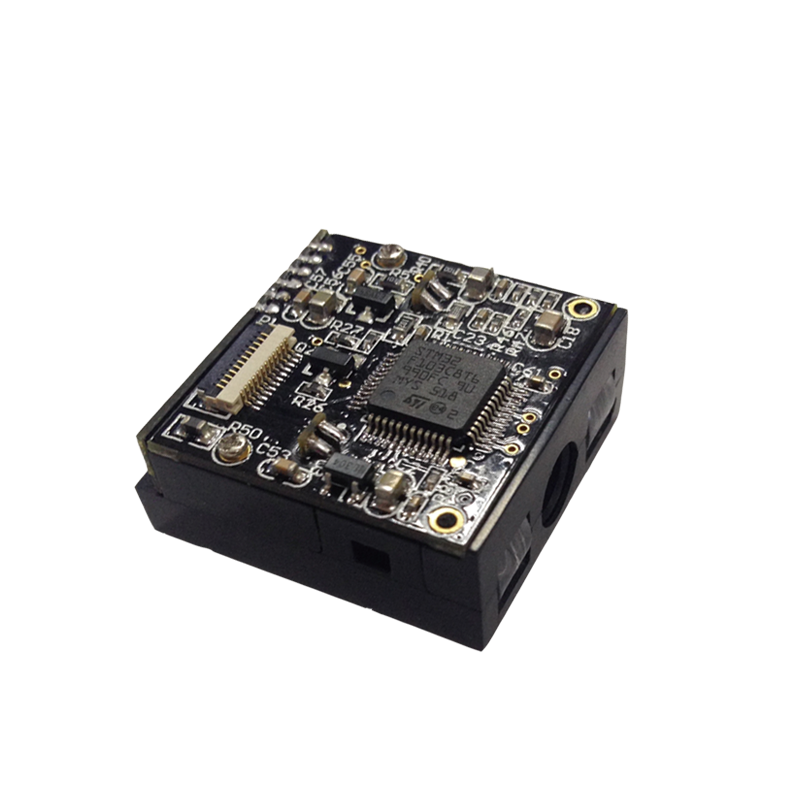

barcode scanner 1D barcode scanner engine

$19.00

≥2 Others
$16.00

≥50 Others
$14.00

≥200 Others

Options:

WDC-1003

Get Latest Price

You might also like

Embedded barcode scanner Self-service cash register

barcode scanner 1D barcode scanner engine

CCD Barcode Scanner Module Quick Payment Kiosk

350+50 Scan Module QR Code Reader Embedded Scanner

Embedded in Kiosk CMOS Scan Engine 1D 2D

Basic Info

Model No.	WDC-1003
Brand Name	winson
Certification	Ce
product status	Stock
Types of	Barcode Scanner
Scanning element type	Ccd, Cmos
Color point	32 Bit
Interface Type	Usb
place of origin	China
Warranty period (years)	1-Year
After-sales service	Call Center And On-Line Technical Support
Private Mold	Yes
Products Status	Stock
Type	Barcode Scanner
Scan Element Type	Cmos
Colour Depth	32 Bit
Interface Type	Usb, Rs232
Max Paper Size	N/A
Optical Resolution	1280X800 Pix
Scan Speed	350+-50 Scans/second
Brand Name	Winson
Place Of Origin	Guangdong, China
Warranty(Year)	2-Year
After-sales Service	Call Center And On-Line Technical Support
Compatibility	Win OS/Max OS/Linux/Android/IOS/Embedded OS
Interface	RS-232/USB HID KEYBOARD/USB VCP
Light Source	650nm Visible Laser Diode
Voltage requirement	DC5V±10% ; Max 260ma
Decode Capabilities	both 1D and 2D
Scan Angle	Pitch angle:±50° Skew angle:±50° Tilt angle:±180°
Min resolution	SR:0.127/5mil(PCS 0.9) HD 3mil(0.076mm)
Min PCS value	>25%UPC/EAN 13(13mil)
Dimensions	42 mm H x 40 mm W x 32 mm D
Certification	Ce

Product description

General Purpose Scanners Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.

Scanner Module Can be customized according to customer demand.

Oem Scan Module Supports Continuous/Auto-Induction , 2modes for option.

Small Barcode Engine upport secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.

Product Description

Specification

Interface	TTL-232/USB
Interface connector	0.5-12P FPC
Voltage requirement	DC 3.3/5V±10%
Current consump	Max:120mA
Photo sensor	CCD linear sensor
Sensor Resolution	2500pix
light source	LED 632nm red led
Scan Rate:	350±50 (scans/second)
