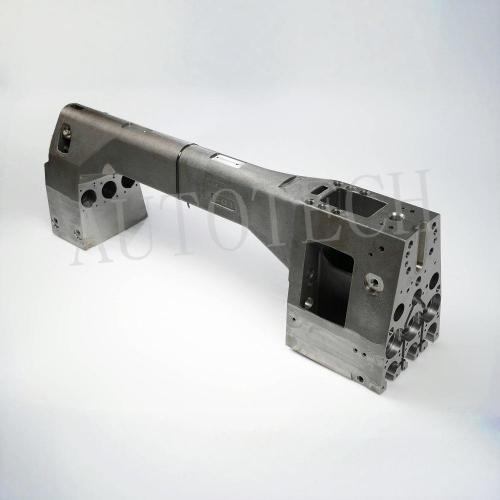

The Base Arm Connector for Food Processing Line is a critical, large-scale structural component designed specifically for high-demand food and beverage production lines. Resembling a robust, telephone-shaped support structure, this 360 kg unit serves as the foundational connection and motion transfer point between major machine sections. Guided by a meticulous Process Design philosophy, it is engineered for exceptional performance in continuous operation environments, distinguishing itself from alternatives like Aluminum Casting, Forging, or Steel Investment Casting for such large, complex geometries.

Manufactured from high-strength QT600-3 ductile iron—produced via Ductile Iron Sand Casting to achieve its complex shape—and refined through extensive precision Machining, this component excels in load-bearing capacity, durability, and sanitary compliance, key requirements for food processing environments. Its Process Design ensures optimal performance from initial concept through final assembly, with the synergy of Ductile Iron Sand Casting (for structural integrity) and precision Machining (for dimensional accuracy) outperforming Aluminum Casting (insufficient strength for large-scale use) and Forging (cost-prohibitive for complex geometries) in this application. Unlike Steel Investment Casting, the chosen Ductile Iron Sand Casting process balances cost-efficiency with the component’s high-performance demands, making it an indispensable part of reliable food and beverage production lines.

?

?

?

Constructed from QT600-3 ductile iron, this material offers an outstanding combination of high tensile strength (600 MPa minimum), excellent wear resistance, and good toughness. The spheroidal graphite structure inherent to ductile iron provides superior fatigue resistance and vibration damping compared to gray iron or many steels, which is crucial for withstanding the constant start-stop cycles, variable loads, and operational vibrations of a food production line. Its durability far exceeds what is typically achievable with Aluminum Casting for a part of this size and structural role.

2.? Optimized Manufacturing for Complex Geometry:

The part's production leverages a hybrid approach perfectly suited to its "telephone" like shape-a large, intricate form with varying wall thicknesses and integrated mounting features.

Ductile Iron Sand Casting: This is the primary and most efficient forming process for creating the near-net-shape of this 360 kg component. Sand casting allows for the economic production of the complex, one-piece structure that includes hollow sections, internal reinforcement ribs, and cast-in mounting bosses. This method provides the design freedom necessary for such a part, which would be prohibitively expensive or technically challenging to produce as a single piece using Steel Investment Casting at this scale or through Forging.

Precision Machining: Following casting, the component undergoes comprehensive CNC machining. This critical step transforms the rough casting into a precision part. All functional interfaces-including large bearing mounting surfaces, critical boreholes for shafts, linkage connection points, and the base mounting plane-are machined to exacting tolerances. This ensures perfect alignment, perpendicularity, and surface finish, which are essential for smooth motion transfer, minimizing wear on connected parts, and guaranteeing the longevity of seals and bearings.

3.? Engineered Through Integrated Process Design:

?

The component's reliability is a direct result of holistic Process Design. This involves:

?

Simulation-Driven Development: Casting process simulation software is used to optimize the mold design, ensuring proper metal flow and solidification to prevent internal defects like shrinkage cavities in critical load-bearing areas.

?

Design for Manufacturability & Assembly (DFM/DFA): The geometry is designed to be both castable and machinable efficiently. Features are added to facilitate easy handling, clamping during machining, and final installation on the production line.

?

Sanitary Design Principles: While the base material itself is not in direct contact with food, the design incorporates smooth contours, avoids pockets where debris or moisture can collect, and allows for effective cleaning around the installed part, supporting overall plant hygiene standards.

4.? Robust and Functional Design:

Weighing 360 kg, this is a substantial component designed to anchor and align moving parts of the machinery. Its "telephone" shape typically incorporates a sturdy vertical column (the "base") transitioning into a horizontal or angled support arm. This design provides a long lever arm for force distribution and precise positioning of connected actuators, pumps, or other line modules. The cast-in features and machined surfaces are engineered to handle significant static and dynamic loads without deflection.

?

Usage Scenarios:

Primary Motion Transfer Hub in Processing Lines: Acts as the central connecting and support structure between a drive unit (e.g., a large motor-gearbox assembly) and an oscillating, rotating, or reciprocating mechanism in machines like fillers, cappers, palletizers, or large mixers.

Support for Heavy Actuators and Pumps: Serves as the rigid mounting platform for large hydraulic or pneumatic cylinders, dosing pumps, or other heavy ancillary equipment on the processing line, ensuring they remain perfectly aligned during operation.

Structural Frame Component in Integrated Systems: Used within the frame of large, continuous processing systems (e.g., baking lines, bottling lines) to connect and support different modular sections, maintaining overall line rigidity and alignment.

Replacement for High-Wear Parts: Supplied as a direct replacement for the same critical component in existing machinery during major overhauls or as an upgrade to restore original equipment precision and performance.

?

?

Maximized Production Uptime: The exceptional strength and fatigue resistance of QT600-3 ensure the connecting arm can endure years of continuous, high-cycle operation without failure. This minimizes catastrophic breakdowns that can halt an entire production line, protecting output and revenue.

?

Reduced Maintenance Costs and Downtime: The precision machining guarantees perfect fit and alignment. This reduces abnormal wear on expensive bearings, seals, and connected components, extending their service life and lengthening intervals between planned maintenance. The component's durability means it rarely needs replacement itself.

?

Preservation of Product Quality: Precise alignment maintained by this rigid component ensures consistent machine operation. This is vital for processes like filling, labeling, or packaging, where misalignment can lead to product waste, spills, or quality defects.

2.? For Maintenance Technicians:

?

Reliable and Easy Installation: Components manufactured to tight tolerances fit together as intended, eliminating time-consuming shimming, filing, or reaming during installation or repair. This speeds up overhaul tasks and reduces labor costs.

?

Predictable Service Life: Technicians can rely on the component's performance, allowing for accurate preventive maintenance scheduling and reducing emergency repair situations.

3.? For Original Equipment Manufacturers (OEMs) of Food Machinery:

?

Proven, High-Performance Component: Sourcing this arm provides OEMs with a reliable, high-strength subsystem, reducing their design risk and validation time for new machine models.

?

Cost-Effective Solution for Complex Parts: The combination of Ductile Iron Sand Casting and Machining offers the optimal balance of performance, geometric complexity, and cost for large parts, often providing a more economical solution than attempting the same part via Steel Investment Casting or fabricating it from multiple welded pieces.

?

Competitive Advantage Analysis:

The QT600-3 Connecting Base Arm's specification is a calculated choice for its application:

?

vs. Aluminum Casting: For a 360 kg structural component bearing significant dynamic loads, Aluminum Casting lacks the necessary stiffness (modulus of elasticity) and long-term fatigue strength. Aluminum parts would be larger and more massive to achieve similar rigidity, and are more prone to wear at bearing surfaces.

?

vs. Steel Investment Casting: While Steel Investment Casting offers excellent detail and surface finish, it becomes exceedingly expensive for a single part of this size and weight. Ductile Iron Sand Casting is the far more scalable and cost-appropriate process for large, heavy castings, especially when final precision is achieved through machining.

?

vs. Forging:Forging produces parts with excellent grain structure and strength. However, it is unsuitable for producing the complex, hollow, "telephone" shape with internal features in a single piece. Achieving this geometry would require forging multiple pieces and welding, introducing potential weakness and alignment issues.

?

vs. Fabricated/Welded Steel: A welded fabrication could be considered, but it would be challenging to match the vibration-damping properties, homogeneity, and cost-effectiveness of a well-designed single casting for this specific shape and function.

?

Conclusion:

The Base Arm Connector for Food Processing Line is a cornerstone of reliability in modern food and beverage processing lines. It exemplifies how strategic material selection (QT600-3), appropriate manufacturing processes (Ductile Iron Sand Casting and Machining), and intelligent Process Design converge to create a component that is not just a piece of metal, but a guarantor of continuous production. It provides plant operators with peace of mind, OEMs with a trusted building block, and maintenance teams with a reliable part. In the demanding world of food production, where downtime is measured in lost product and revenue, this connecting base arm stands as a testament to engineered durability and precision.
