BC6050 Mainland Mechanical Shaping Machine Tool Price

Video

1 / 7

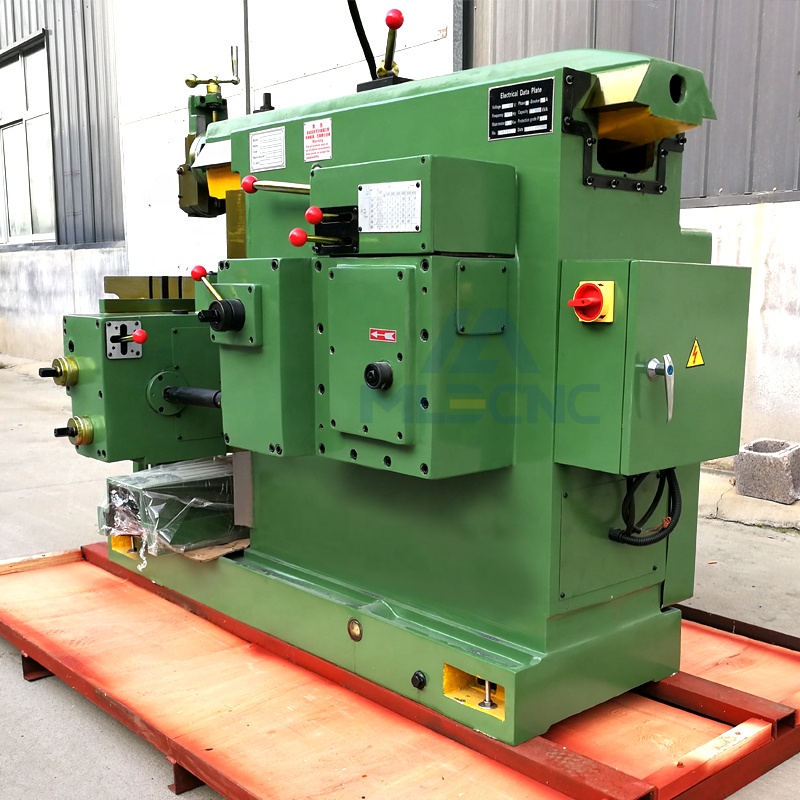

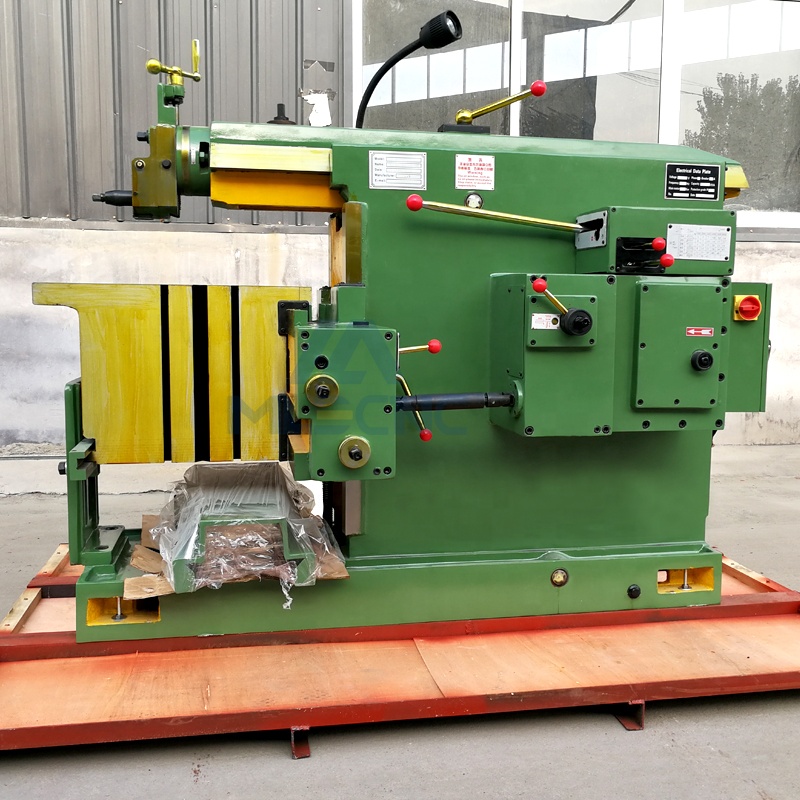

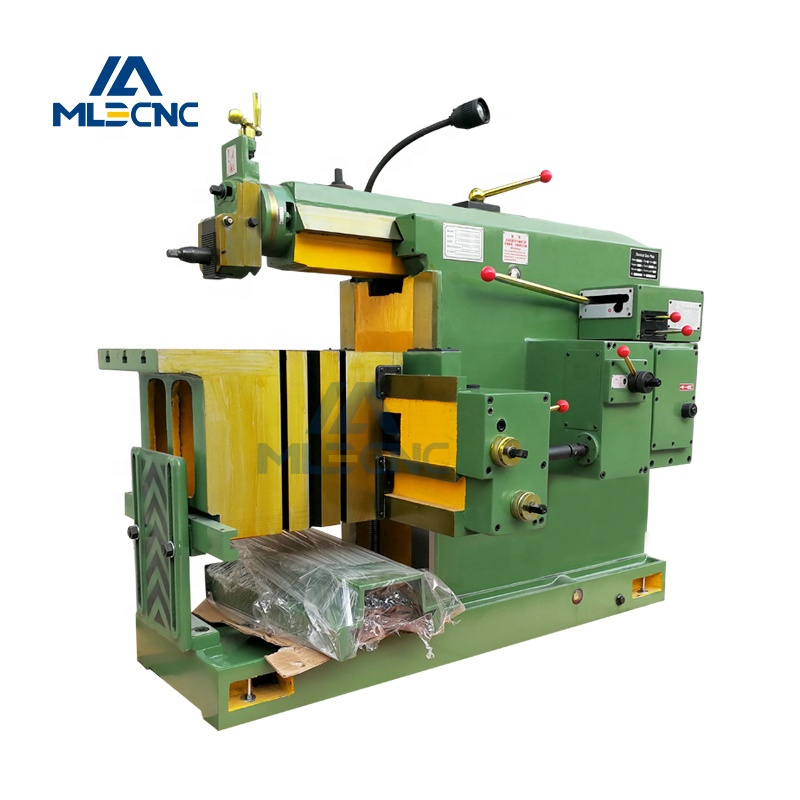

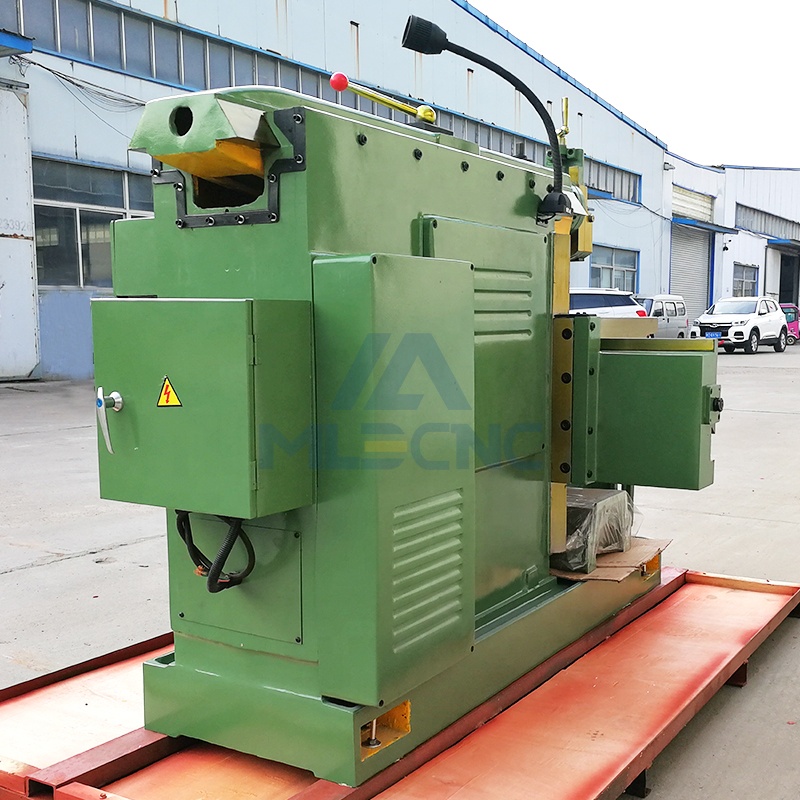

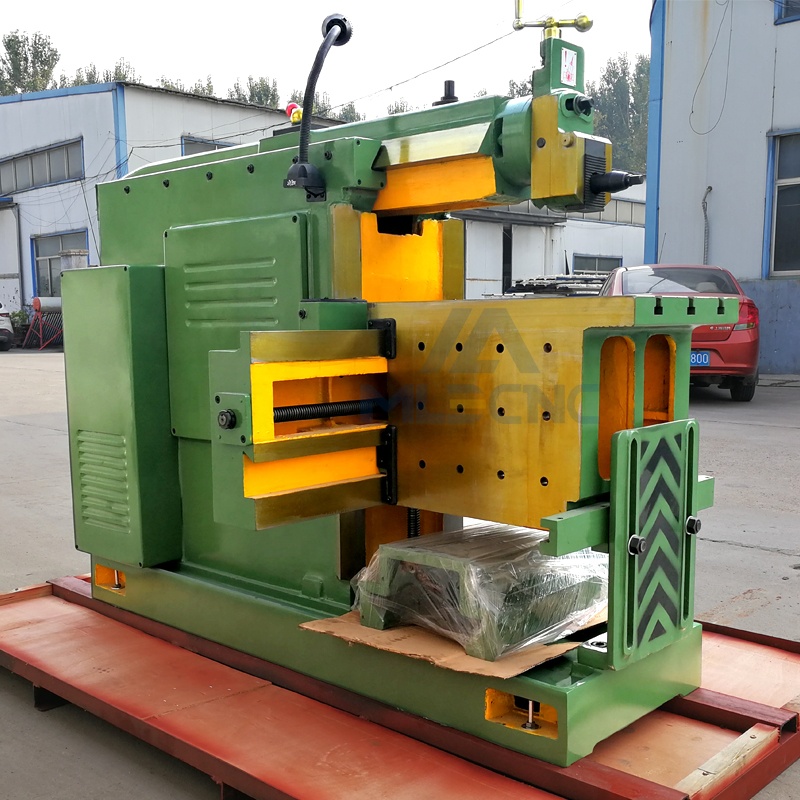

BC6050 Mainland Mechanical Shaping Machine Tool Price

$4140.00

≥1 set
$3960.00

≥3 set

Options:

BC6063
BC6050

Get Latest Price

You might also like

High Efficiency Horizontal Shaper Machine SHM85 B6085

1 set (MOQ)

Heavy Duty Shaping Machine Price - Factory Direct Metal Shaper Planer Machine SHM85 B6085

1 set (MOQ)

Horizontal Metal Shaping Machine Tool B6085 Shaper Machine Mechanism

1 set (MOQ)

BC6085 Horizontal Slotting Machine for Metal Shaping

1 set (MOQ)

China Factory Direct Sell BC60100 Mechanical Metal Shaper Planer Machine Manufacturer

1 set (MOQ)

BC60100 BY60125 Metal Shaper Machine with Head Slotting Function

1 set (MOQ)

Horizontal Slotting Machine B635A Shaper Machine Price

1 set (MOQ)

BC6050 Metal Horizontal Shaping Machine

1 set (MOQ)

High Precision Horizontal Planer Shaper Machine BC6085 BC6090 for Metal Shaping

1 set (MOQ)

China High Quality BC6063 Shaping Machine

1 set (MOQ)

Basic Info

Model No.
Brand Name
Place of Origin	Shandong, China
Brand Name	Mainland
Condition	New
Video Outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing type	New Product 2020
Warranty Of Core Components	1.5 years
Core components	Gearbox
Voltage	Customer's requirement
Dimension(LWH)	200013001500
Warranty	1 Year
Key Selling Points	Low Maintenance Cost
Power (kW)	3
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Retail, Energy & Mining
Showroom Location	Viet Nam, Russia
Name	Metal Shaping Machine
Maximum Shaping Length	500mm
Worktable SIZE	500
Colour	customized
After Warranty Service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
After-sales Service Provided	Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Local Service?Location	Viet Nam, Russia
Weight	1800
Certification	CE ISO

Product description

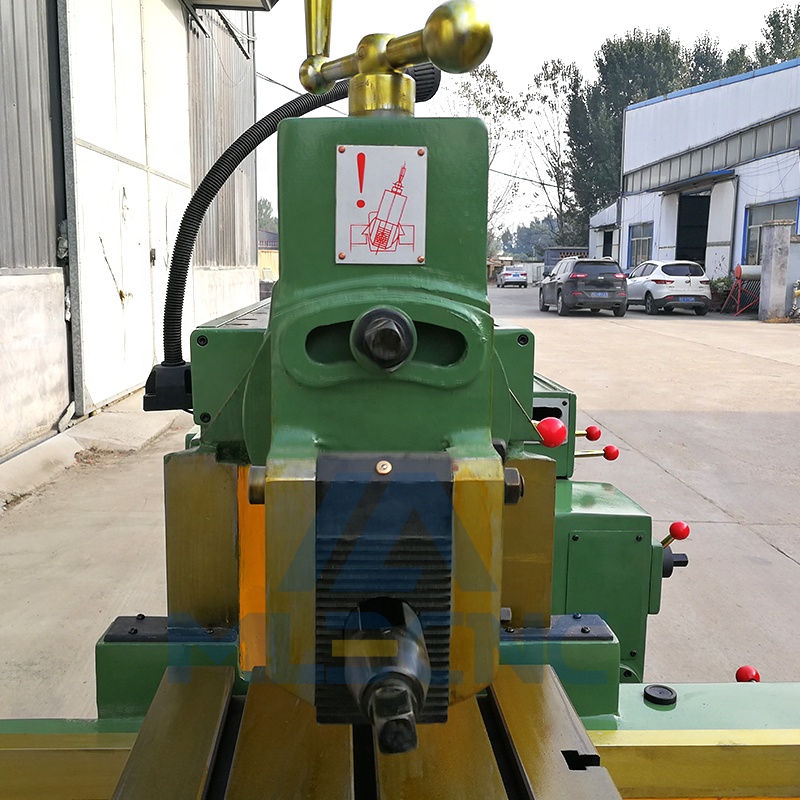

1. The tool post can rotate with more angle in the vertical plane,
2. Manual feeding is available For tool post.
3. For slotting shaping more economic machining equipment.
4. worktable feeding on cross and vertical specially for swallow tail machining and channel machining.
5. suitable for single piece or small match production.

Model			unit	BC6050	BC6063/6066	BC6085
Max. cutting length			mm	500	630/660	850
Max. Table horizontal travel			mm	525	630	710
Distance from the ram bottom to table			mm	370	385	400
Max. table vertical travel			mm	270	360	360
Dimensions of table surface(L×W)?			mm	500×360	630X400/ 660X400	800X450
Max. travel of the tool post			mm	120	120	160
Max. swivel angle of the tool post			mm	±60°	±60°	±60°
Max. section of tool (W×T)(			mm	20×30	20×30	30×45
Number of ram strokes per minute				14-80	14-80	17-100
range of table feed:	horizontal		0.2-0.25	0.4-5.0	0.25~3
range of table feed:		Vertical		0.08-1.00	0.08-1.00	0.12~1.5
Rapid feed of table	horizontal		0.95	0.95	3
Rapid feed of table		Vertical		0.38	0.38	1.5
Width of the T-slot?			mm	18	18	22
Power of the main motor			kw	3	3	5.5
N.W/G.W			kg	1760	1870	3090
Overall dimensions(L×W×H)			cm	200×130×155			295x132x169
