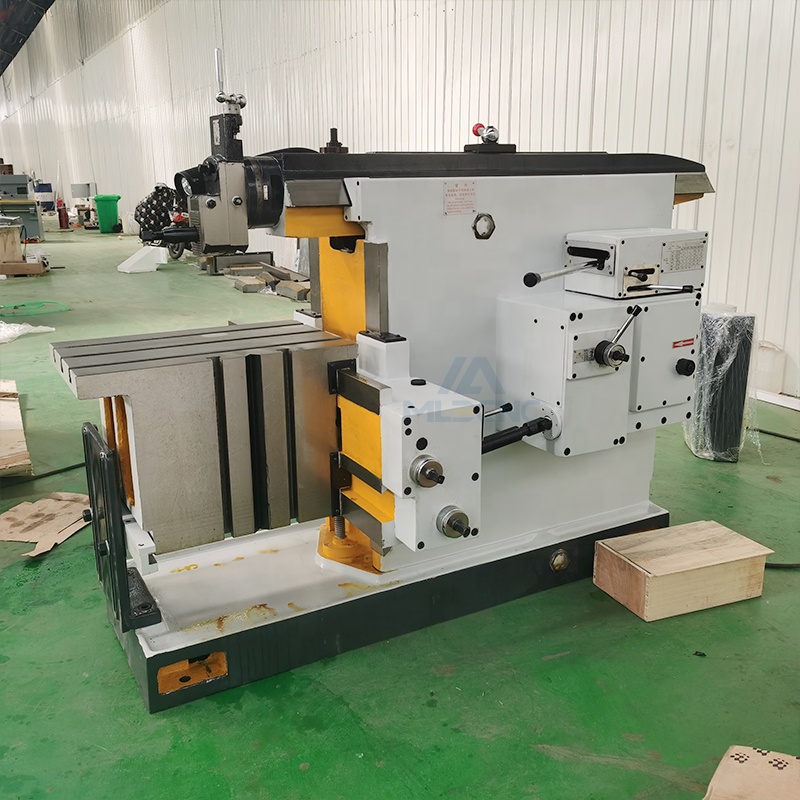

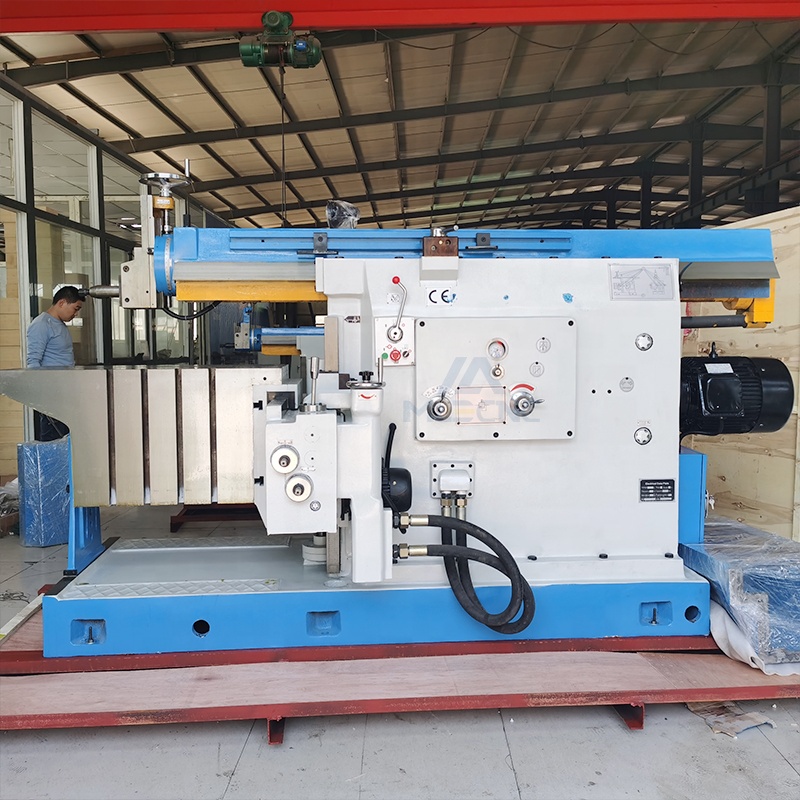

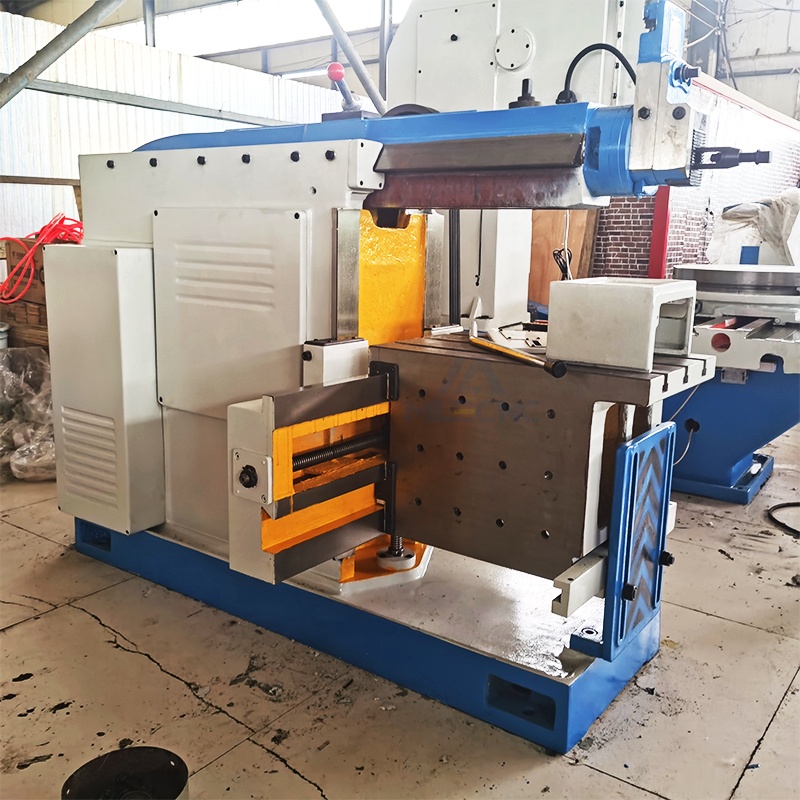

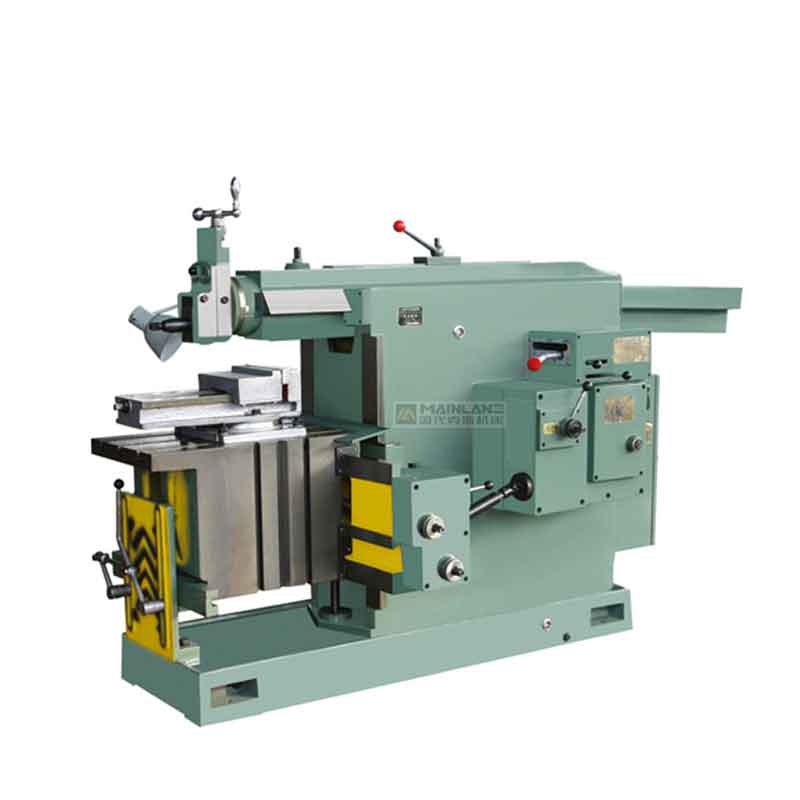

High Efficiency Horizontal Shaper Machine SHM85 B6085
$4230.00
≥1 set
Options:
- BC6085
Get Latest Price
You might also like
Basic Info
| place of origin | China |
|---|---|
| Brand Name | Mainland |
| Condition | New |
| Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided |
Show More
Product description
1. The tool post can rotate with more angle in the vertical plane,
2. Manual feeding is available For tool post.
3. For slotting shaping more economic machining equipment.
4. worktable feeding on cross and vertical specially for swallow tail machining and channel machining.
5. suitable for single piece or small match production.
2. Manual feeding is available For tool post.
3. For slotting shaping more economic machining equipment.
4. worktable feeding on cross and vertical specially for swallow tail machining and channel machining.
5. suitable for single piece or small match production.
Model | unit | BC6050 | BC6063/6066 | BC6085 | |||
Max. cutting length | mm | 500 | 630/660 | 850 | |||
Max. Table horizontal travel | mm | 525 | 630 | 710 | |||
Distance from the ram bottom to table | mm | 370 | 385 | 400 | |||
Max. table vertical travel | mm | 270 | 360 | 360 | |||
Dimensions of table surface(L×W)? | mm | 500×360 | 630X400/ 660X400 | 800X450 | |||
Max. travel of the tool post | mm | 120 | 120 | 160 | |||
Max. swivel angle of the tool post | mm | ±60° | ±60° | ±60° | |||
Max. section of tool (W×T) | mm | 20×30 | 20×30 | 30×45 | |||
Number of ram strokes per minute | 14-80 | 14-80 | 17-100 | ||||
range of table feed: | horizontal | 0.2-0.25 | 0.4-5.0 | 0.25~3 | |||
Vertical | 0.08-1.00 | 0.08-1.00 | 0.12~1.5 | ||||
Rapid feed of table | horizontal | 0.95 | 0.95 | 3 | |||
Vertical | 0.38 | 0.38 | 1.5 | ||||
Width of the T-slot? | mm | 18 | 18 | 22 | |||
Power of the main motor | kw | 3 | 3 | 5.5 | |||
N.W/G.W | kg | 1760 | 1870 | 3090 | |||
Overall dimensions(L×W×H) | cm | 200×130×155 | 295x132x169 | ||||
1. Allen wrench
2.Allen wrench
3. Crank handle
4.Spanner
5.Oil gun
6. Foundation bolts
7. Tool box
2.Allen wrench
3. Crank handle
4.Spanner
5.Oil gun
6. Foundation bolts
7. Tool box
