OPS-H470 i5-10400 with GTX 1050Ti Detailed Product Description

?

The OPS-H470 module, equipped with an Intel Core i5-10400 desktop processor and a dedicated NVIDIA GeForce GTX 1050 Ti graphics card, is engineered for premium digital signage and professional visualization applications that demand superior graphical performance. This combination transforms a standard digital display into a powerful workstation-grade platform capable of rendering complex graphics, 3D content, and high-frame-rate video with ease.

?

Unmatched Processing and Graphics Performance

?

The system is built around the Intel Core i5-10400 CPU, a 10th Generation desktop processor with 6 cores and 12 threads. With a base clock speed of 2.9 GHz and a maximum turbo frequency of 4.3 GHz, it delivers robust computational power for data-intensive tasks. The true differentiator, however, is the inclusion of a discrete NVIDIA GTX 1050 Ti GPU. This dedicated graphics card provides dedicated video memory and processing power far exceeding that of integrated graphics, making this module perfect for applications like virtual reality (VR) previews, high-end gaming displays in entertainment venues, or GPU-accelerated data visualization.

?

Versatile Multi-Display Support

?

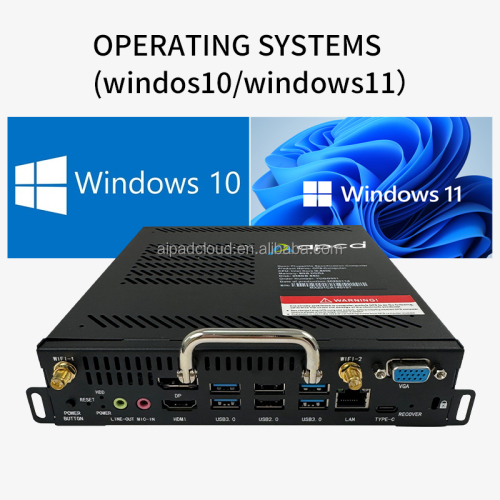

Leveraging the power of the GTX 1050 Ti, the module supports high-resolution output across multiple displays simultaneously. It features three distinct video outputs:

?

? An HDMI port supporting 4K (3840x2160) resolution at 60Hz.

?

? A DisplayPort (DP) offering the same high 4K@60Hz capability.

?

? The standard OPS 80-pin connector, which provides another HDMI 4K@60Hz output.

?

This setup is ideal for video walls or multi-screen installations where each screen requires independent, high-quality content.

Robust System Architecture

?

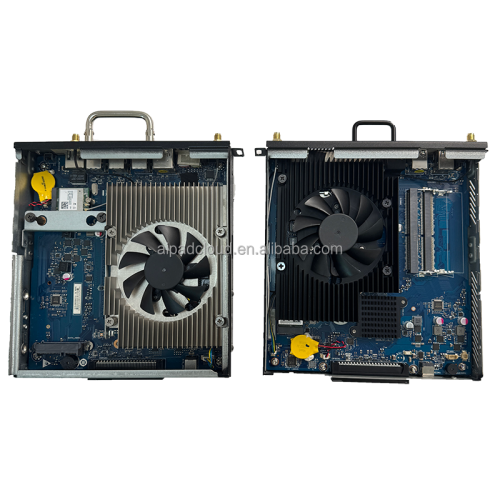

The module utilizes the Intel H470 chipset, providing stable and feature-rich support for the 10th and 11th Gen Intel processors. It includes two SO-DIMM slots for DDR4 memory, supporting a maximum capacity of 64GB to ensure fluid multitasking. For storage, a single M.2 2280 slot is available, supporting both PCIe 4x (for high-speed NVMe SSDs) and SATA protocols, allowing for a fast and responsive system boot and application loading.

?

Comprehensive Connectivity Options

?

Network connectivity is ensured by a Realtek Gigabit Ethernet card. An M.2 2230 slot is reserved for adding a Wi-Fi module, providing wireless network flexibility. The audio solution is based on the ALC897 HD audio chip, supporting line-out and microphone-in jacks, with audio also available via the OPS connector. The module offers a generous array of USB ports: four USB 2.0 ports, two USB 3.0 ports, and one Type-C port for modern peripherals.

?

Design and Operational Reliability

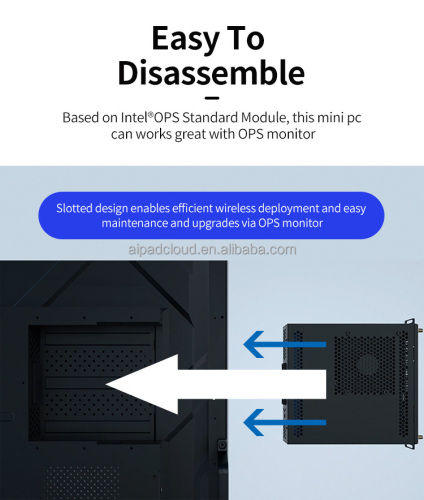

The physical design adheres to the OPS standard with a size of 180 x 195 x 42mm, ensuring broad compatibility with OPS-ready displays. The BIOS is a modern UEFI type, supporting a wide range of configuration and management features. The device is built to operate reliably in environments with temperatures ranging from -5°C to 45°C and storage conditions from -20°C to 70°C, with humidity tolerance between 5% and 90% non-condensing, making it suitable for a variety of challenging indoor environments.
