OPS-i5 1135G7 Detailed Product Description

?

The OPS module featuring the Intel Core i5-1135G7 processor is a highly efficient and compact computing solution tailored for mainstream digital signage, interactive kiosks, and corporate communication displays. Balancing performance with power efficiency from the 11th Generation Tiger Lake platform, this module is an excellent choice for deployments where reliability, modern features, and sleek design are paramount.

Efficient Processing Core

?

This module is powered by the Intel Core i5-1135G7, a quad-core, eight-thread processor designed for mobile platforms. It operates at a base frequency of 2.4 GHz, capable of reaching up to 4.2 GHz with Intel Turbo Boost Technology. This CPU provides more than enough power for smooth 4K video playback, web-based applications, and routine digital signage operations, all while maintaining optimal energy consumption.

?

Capable Integrated Graphics

?

The integrated Intel Iris Xe Graphics is a standout feature, offering significantly improved graphical performance over Intel's older HD Graphics solutions. It fully supports synchronous dual displays, allowing for flexible content presentation. The video outputs are comprehensive:

? An HDMI 2.0 port delivering 4K Ultra HD resolution at 60Hz.

?

? A DisplayPort output, also supporting 4K 60Hz.

?

? The standard JAE 80-pin OPS socket for integrated HDMI output (4K@60Hz).

?

This ensures crisp and vibrant visuals for any high-definition content.

?

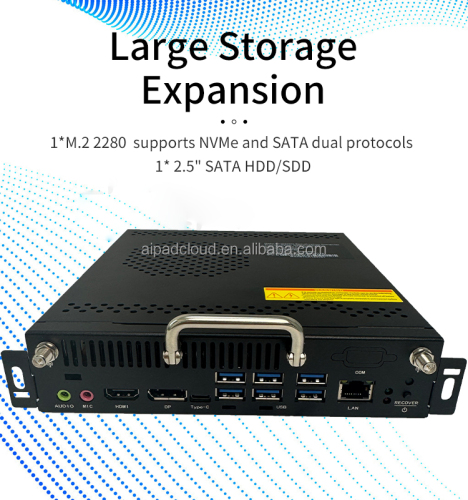

Memory, Storage, and Expandability

?

The module is equipped with a single SO-DIMM slot for DDR4 memory, supporting 2666MHz and 3200MHz speeds. While it may not support the maximum 64GB like other models, it provides sufficient memory for most digital signage applications. Storage is handled by a single M.2 2280 slot that supports both NVMe and SATA protocols, offering a good balance between high speed and cost-effective storage options. Notably, this model does not include a 2.5-inch drive bay, favoring a more compact form factor.

Connectivity and Audio Features

?

Network connectivity is provided by a reliable Realtek Gigabit Ethernet controller. Wireless capabilities can be added via an M.2 2230 slot designed for a Wi-Fi and Bluetooth combo module. The USB port selection is robust, including two USB 3.0 ports, four USB 2.0 ports, and a Type-C port. Audio is managed by the ALC897 HD audio codec, supporting line-out and microphone input, with these functions also accessible through the 80-pin OPS interface.

?

Compact Design and Operational Specifications

?

This model features a particularly compact size of 180 x 120 x 30mm, making it one of the slimmest OPS options available. This is ideal for ultra-slim displays where space is at a premium. It incorporates security features like TPM 2.0 and a UEFI BIOS that supports diskless boot and timed startup. Designed for standard indoor use, its operating temperature range is 0°C to 45°C, with a humidity range of 5% to 95% non-condensing.
