BTA Solid drill head type64

Name: BTA Solid drill head type64
Brand: Shanghai Xunxian Industrial Co., Ltd
Rating: 4.3 (27 reviews)

Get Latest Price

Type64 BTA Solid Drill Head: Adjustable Diameter with Gasket System

Product Overview

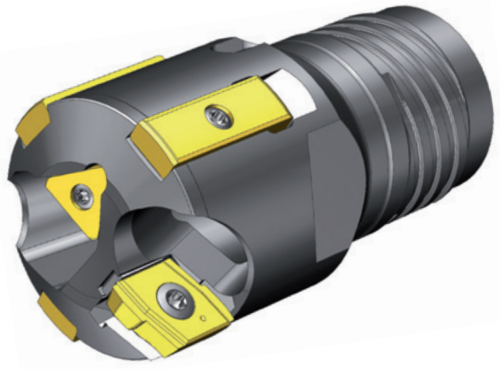

The Type64 BTA Solid Drill Head is a revolutionary large-diameter deep hole drilling solution designed for maximum flexibility and cost efficiency. Featuring a unique modular design with swappable carbide blades and guide strips, this innovative tool incorporates a precision gasket system that allows for diameter adjustment within the 28.71-74.99 mm range. This eliminates the need for multiple fixed-diameter tools, providing unprecedented versatility for manufacturers facing varying project requirements.

As part of our premium BTA Drill Heads collection, the Type64 combines the durability of Solid Carbide Drill Heads with adjustable functionality, making it an exceptional BTA Tool Replacement Part that adapts to your evolving production needs.

Technical Specifications

Model: Type64 BTA Solid Drill Head
Design: Modular with swappable components
Diameter Range: 28.71 mm - 74.99 mm (adjustable via gasket system)
Adjustment Method: Precision gaskets for fine diameter tuning
Key Components: Interchangeable carbide blades and guide strips
Construction: High-strength alloy steel body with premium carbide inserts
Compatibility: Standard BTA drilling systems
Coolant Requirement: High-pressure oil for BTA chip evacuation

Type64 BTA Solid Carbide Drill Head - Adjustable Diameter Design - Xunxian Industrial

Product Features & Advantages

Gasket-Based Diameter Adjustment: Unlike fixed-diameter drill heads, the Type64 allows precise diameter modifications using engineered gaskets, enabling one tool to cover a wide range of applications.
Modular Component System: Swappable blades and guide strips enable targeted replacement of worn parts, reducing maintenance costs by up to 80% compared to replacing entire solid heads.
Extended Application Range: With adjustment capability across nearly 50 mm of diameter variation, a single Type64 head replaces multiple conventional tools.
Superior Carbide Performance: Premium-grade carbide cutting edges ensure exceptional wear resistance and cutting efficiency in challenging materials.
Optimized Chip Flow: Advanced geometry of blades and guide strips facilitates efficient chip evacuation in BTA drilling operations.
Robust Construction: Heavy-duty alloy steel body provides stability during large-diameter drilling, minimizing vibration and ensuring hole accuracy.
Quick Change Capability: Modular design allows for rapid component replacement, minimizing machine downtime during maintenance.

Setup and Operation Process

Determine Required Diameter: Identify the exact hole diameter needed for your application within the adjustable range.
Select Appropriate Gaskets: Choose gaskets of specific thickness according to the diameter adjustment guide provided.
Clean All Components: Ensure blades, guide strips, gaskets, and body are free of debris before assembly.
Assemble with Gaskets: Install selected gaskets between components as directed to achieve desired diameter.
Secure Components: Tighten all fasteners to specified torque values using calibrated tools.
Verify Diameter: Measure assembled tool diameter with precision instruments to confirm specifications.
Mount on Machine: Install the adjusted Type64 head onto your BTA drilling system using standard procedures.
Set Cutting Parameters: Adjust speed, feed, and coolant pressure based on diameter setting and material.
Monitor Performance: Observe tool performance and adjust gaskets as needed for future diameter changes.

Application Scenarios

The Type64's adjustable diameter makes it ideal for industries with varying hole size requirements:

Heavy Equipment Manufacturing: Drilling various diameter holes in construction, mining, and agricultural machinery components.
Energy Sector Projects: Creating holes in wind turbine components, generator parts, and power transmission equipment.
Shipbuilding and Marine: Machining propeller shafts, rudder stocks, and offshore platform components.
Industrial Machinery: Manufacturing large rollers, cylinders, and bearing housings with different diameter specifications.
Job Shops and Fabricators: Handling diverse projects with varying diameter requirements without multiple tool investments.
Infrastructure Components: Producing large-scale structural elements for bridges, towers, and industrial facilities.

Benefits for Customers

Significant Cost Savings: One adjustable tool replaces multiple fixed-diameter heads, reducing tooling inventory investment by 60-80%.
Reduced Maintenance Expenses: Only worn components need replacement (blades/strips), not the entire assembly, cutting maintenance costs substantially.
Enhanced Operational Flexibility: Quickly adapt to different diameter requirements without waiting for specialized tools to be ordered.
Minimized Production Downtime: Diameter adjustments can be made during scheduled maintenance, keeping production flowing.
Precision Control: Gasket system enables exact diameter adjustments to meet tight tolerance requirements.
Simplified Inventory Management: Stock fewer tools and components, reducing storage space and capital tied up in inventory.
Long-Term Investment Protection: The main body can be reused indefinitely with new components, maximizing your tooling investment.

Certifications and Compliance

All Xunxian Industrial BTA products, including the Type64 drill head, are manufactured under stringent quality control systems. Our materials meet international standards for tool steel and carbide compositions. We maintain complete traceability and documentation for all components, ensuring consistent quality and performance.

Customization Options

Special Gasket Sets: Custom thickness combinations for specific diameter increments beyond standard offerings.
Material-Specific Inserts: Alternative carbide grades or advanced coatings optimized for specific workpiece materials.
Extended Range Components: Modified blades and guide strips for diameters slightly beyond the standard range.
Custom Geometries: Special chipbreaker designs or edge preparations for unique material challenges.
Complete Component Kits: Pre-packaged replacement sets for common diameter settings.

Production Process & Quality Assurance

Material Selection: Certified alloy steel and premium carbide from approved suppliers with full traceability.
Precision Machining: CNC machining of body components and precision grinding of carbide inserts.
Gasket Manufacturing: Precision production of adjustment gaskets with controlled thickness tolerances.
Test Assembly: Components are test-assembled to verify fit, function, and adjustment range.
Dimensional Verification: Comprehensive measurement of all critical dimensions at multiple diameter settings.
Performance Testing: Sample units undergo simulated drilling tests to verify performance across the adjustable range.
Final Inspection: Each completed unit undergoes final quality audit before packaging and documentation.

Customer Testimonials

"The Type64's adjustable diameter system has transformed our large hole drilling operations. We've reduced our tool inventory by 75% while maintaining complete flexibility for different project requirements." - Heavy Machinery Solutions, USA

"As a job shop handling diverse projects, the Type64 has become our most valuable drilling asset. The ability to adjust diameters means we can respond to customer needs faster without additional tooling costs." - Precision Manufacturing Group, Germany

"These Deep Hole Drill Tips have dramatically reduced our maintenance costs. We only replace worn components instead of entire heads, and the gasket system makes diameter changes quick and precise." - Industrial Components Inc., Italy

Frequently Asked Questions (FAQ)

Q: How accurate is the gasket adjustment system?
A: Our precision-engineered gaskets provide diameter adjustment accuracy within ±0.02 mm when properly installed according to our guidelines.
Q: What maintenance intervals are recommended?
A: Inspect cutting edges every 8-10 hours of operation. Gaskets should be replaced whenever components are changed to ensure optimal diameter accuracy.
Q: Can I use the same gaskets multiple times?
A: We recommend using new gaskets for each diameter adjustment to ensure optimal performance and accuracy, as gaskets can compress with use.
Q: What's the typical delivery time for replacement components?
A: Standard replacement components ship within 1-2 weeks. Custom components may require 3-4 weeks for manufacturing.
Q: Is special training required to adjust diameters?
A: Basic mechanical skills are sufficient. We provide detailed adjustment guides, and our technical team is available for support during initial implementation.
Q: How does the Type64 compare to fixed-diameter BTA Tool Replacement Parts?
A: The Type64 offers greater flexibility and cost efficiency over time. While initial investment may be slightly higher, the ability to cover multiple diameters and replace only worn components results in significantly lower total cost of ownership.
Q: Can the Type64 be used for both through-hole and blind hole drilling?
A: Yes, the Type64 is suitable for both applications within its diameter range. Always consult our technical guidelines for specific parameter recommendations based on your application.
