Reliable BTA Solid Drill Head for Heavy Duty Use

Product Overview

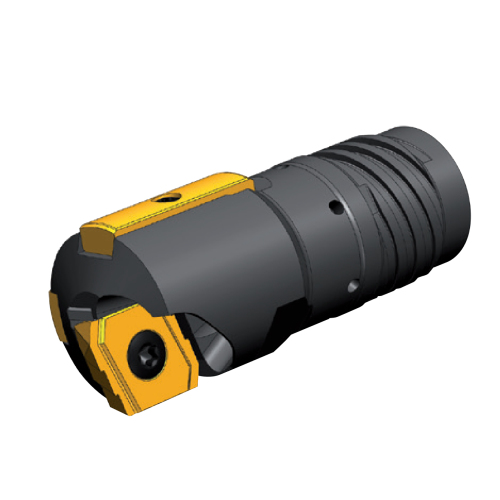

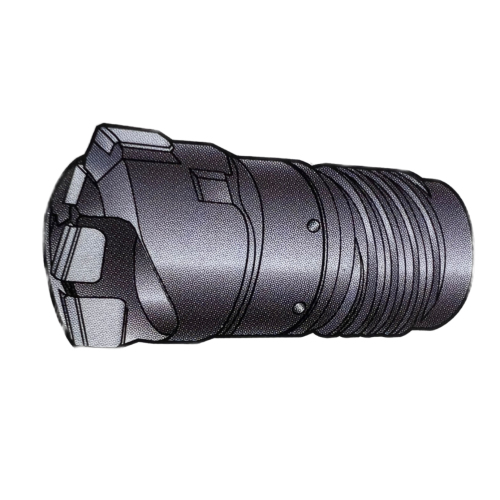

Our Reliable BTA Solid Drill Head is engineered for heavy-duty deep hole drilling applications, delivering unmatched durability and precision in demanding industrial environments. As a core component of BTA (Boring and Trepanning Association) systems, this solid drill head ensures efficient chip evacuation and stable performance, making it ideal for high-volume production. It is designed to seamlessly integrate with our Indexable Inserts for Deep Hole Drills, enhancing tool life and reducing operational costs. Crafted from premium materials, this drill head guarantees reliability for critical tasks in sectors like oil & gas, aerospace, and mold manufacturing.

Technical Specifications

The BTA solid drill head features robust construction with precise engineering. Key specifications include:

• Material: High-grade carbide or alloy steel, depending on customization.
• Diameter Range: Available from 12 mm to 80 mm, with tolerances within ±0.02 mm.
• Shank Type: Standard BTA shank for compatibility with most deep hole drilling machines.
• Coating Options: Titanium nitride (TiN) or diamond-like carbon (DLC) coatings for enhanced wear resistance.
• Operating Temperature: Stable performance up to 600°C, ensuring reliability under heavy loads.
• Weight: Varies by size; typically 0.5 kg to 5 kg for standard models.

These specifications ensure optimal performance when paired with accessories like BTA Guide Pads for guided stability.

Product Features and Advantages

Our BTA solid drill head stands out with innovative design and superior functionality. Below are its key features and competitive advantages:

Core Features

• Solid One-Piece Design: Eliminates vibration and deflection, ensuring accurate hole geometry and extended tool life.
• High-Quality Carbide Construction: Provides exceptional hardness and thermal resistance, reducing wear in continuous operations.
• Optimized Flute Geometry: Facilitates efficient chip removal, minimizing clogging and heat buildup.
• Compatibility with Guide Systems: Works seamlessly with Carbide Guide Pads to maintain alignment and reduce bore deviation.

Advantages Over Competitors

• Enhanced Durability: Outlasts standard drill heads by up to 40% in heavy-duty tests, lowering replacement frequency.
• Precision Engineering: Manufactured with CNC grinding for consistent quality, ensuring repeatable results across batches.
• Cost-Effective Maintenance: Supports easy replacement with our Drill Tool Replacement Inserts, simplifying upkeep and reducing downtime.
• Versatile Application: Suitable for both blind and through holes in tough materials like stainless steel and titanium.

How to Use: Step-by-Step Guide

Follow these steps for optimal performance and safety when using the BTA solid drill head:

1. Inspection: Check the drill head for any damage or wear before installation. Ensure compatibility with your BTA drilling machine.
2. Installation: Securely mount the drill head into the BTA holder, aligning it with guide pads. Tighten to manufacturer-recommended torque.
3. Parameter Setting: Adjust machine parameters—recommended speed: 200-800 RPM, feed rate: 0.05-0.2 mm/rev based on material.
4. Lubrication: Apply high-pressure coolant for chip evacuation and heat reduction, crucial for deep hole drilling.
5. Operation: Start drilling with steady pressure; monitor for abnormal vibrations or noise.
6. Maintenance: Regularly inspect wear and replace components like Indexable Inserts for Deep Hole Drills as needed to maintain precision.

Application Scenarios

This BTA solid drill head is versatile for various heavy-duty industries, enabling efficient deep hole drilling in challenging environments.

Oil & Gas Industry

Used for drilling precise holes in drill pipes and valves, where reliability and durability are critical to withstand high-pressure conditions.

Aerospace Manufacturing

Ideal for creating engine components and landing gear parts, requiring tight tolerances and smooth finishes in heat-resistant alloys.

Mold and Die Production

Applied in mold base drilling for plastic injection molds, ensuring straight and deep holes with minimal tool deflection.

In these scenarios, integration with BTA Guide Pads enhances stability, while our Carbide Guide Pads offer added wear resistance for prolonged use.

Benefits for Customers

Choosing our BTA solid drill head translates to tangible value for procurement managers and end-users:

• Reduced Operational Costs: Longer tool life and easy maintenance with Drill Tool Replacement Inserts cut downtime and spare part expenses.
• Improved Productivity: High drilling speeds and accuracy boost output, meeting tight production schedules.
• Enhanced Quality: Consistent hole dimensions and surface finishes reduce rework and scrap rates.
• Reliability in Heavy-Duty Use: Robust design ensures fewer failures, enhancing safety and workflow continuity.

Certifications and Compliance

Our manufacturing processes and products adhere to international standards, assuring quality and safety:

• ISO 9001:2015 certified for quality management systems.
• Complies with CE markings for industrial tool safety in European markets.
• Materials meet RoHS and REACH regulations for environmental compliance.
• Regular third-party testing for hardness and dimensional accuracy.

Customization Options

We offer tailored solutions to meet specific customer needs, ensuring optimal fit for unique applications:

• Size Customization: Drill heads can be produced in non-standard diameters or lengths upon request.
• Material Selection: Options include premium carbide grades or coated variants for specialized materials.
• Shank Modifications: Adapted to fit proprietary or older machine models.
• Bulk Ordering: Volume discounts and branded packaging available for large procurement deals.

Production Process

Our drill heads are manufactured with precision and rigorous quality control:

1. Design & Engineering: CAD-based prototyping to optimize geometry for performance.
2. Material Sourcing: Selection of high-grade carbide or steel from certified suppliers.
3. CNC Machining: Precision grinding and shaping using advanced CNC equipment.
4. Heat Treatment: Hardening processes to achieve desired toughness and wear resistance.
5. Quality Inspection: Each unit undergoes dimensional checks and performance testing.
6. Packaging: Secure packaging to prevent damage during shipping.

This process ensures compatibility with accessories like Indexable Inserts for Deep Hole Drills for seamless integration.

Customer Testimonials and Reviews

Feedback from global clients highlights our product’s reliability and value:

• Precision Tools Inc., Germany: "The BTA solid drill head reduced our drilling time by 20% in heavy steel plates. Excellent durability and perfect fit with our guide systems."
• Global Energy Solutions, USA: "Used in oilfield equipment manufacturing, these drill heads withstand harsh conditions. Their compatibility with BTA Guide Pads made installation straightforward."
• Asia Aerospace Components, Japan: "High precision for aircraft parts. The customer support for customization was top-notch, enhancing our production efficiency."

FAQ

Common questions from international procurement experts answered below:

What materials is this BTA solid drill head suitable for?

It is designed for tough materials like stainless steel, alloy steels, titanium, and cast iron. For optimal results, pair with appropriate Carbide Guide Pads and coolant.

How often should I replace the drill head or its components?

Inspect regularly after 50-100 hours of heavy use. Components like Drill Tool Replacement Inserts can be swapped out as needed, extending the main tool’s life.

Is this compatible with all BTA drilling machines?

Yes, it uses standard BTA shanks. For non-standard machines, we offer customization—contact us for specifics.

What certifications do you provide for quality assurance?

We supply ISO 9001 documentation and material certificates with each shipment, ensuring compliance for industrial use.

Can I order samples before bulk procurement?

Yes, sample units are available for testing. Reach out to evaluate performance in your specific application.
