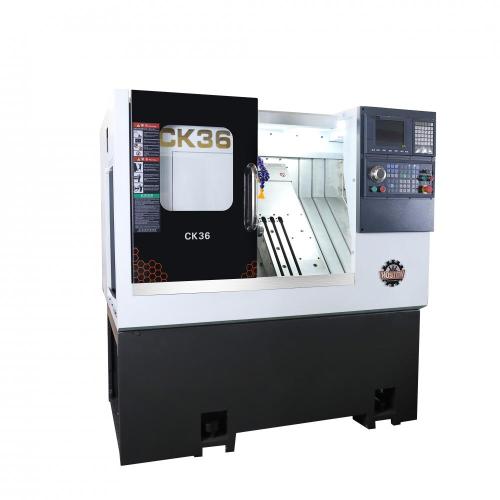

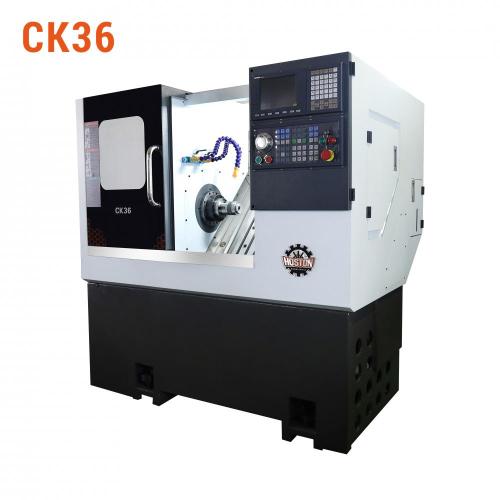

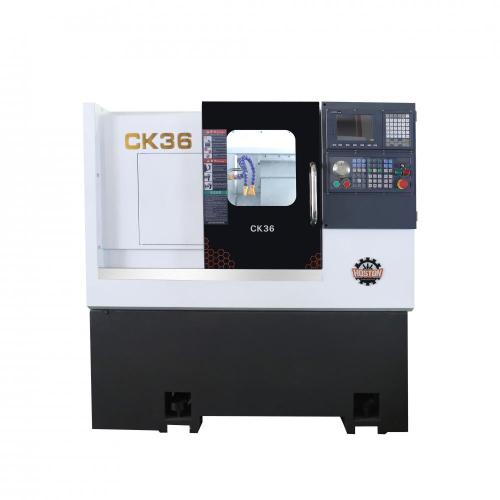

CK36 CK46 CNC Horizontal Turret Lathe Machine
Spindle bore:
- 46mm
Maximum turning diameter (mm):
- 400mm
Basic Info
| Brand Name | Hoston |
|---|---|
| status | New |
| Types of | Horizontal |
| Maximum turning diameter (mm) | 2000 |
| Maximum workpiece length (mm) | 2000 |
| Processing capacity | Medium Duty |
Product description

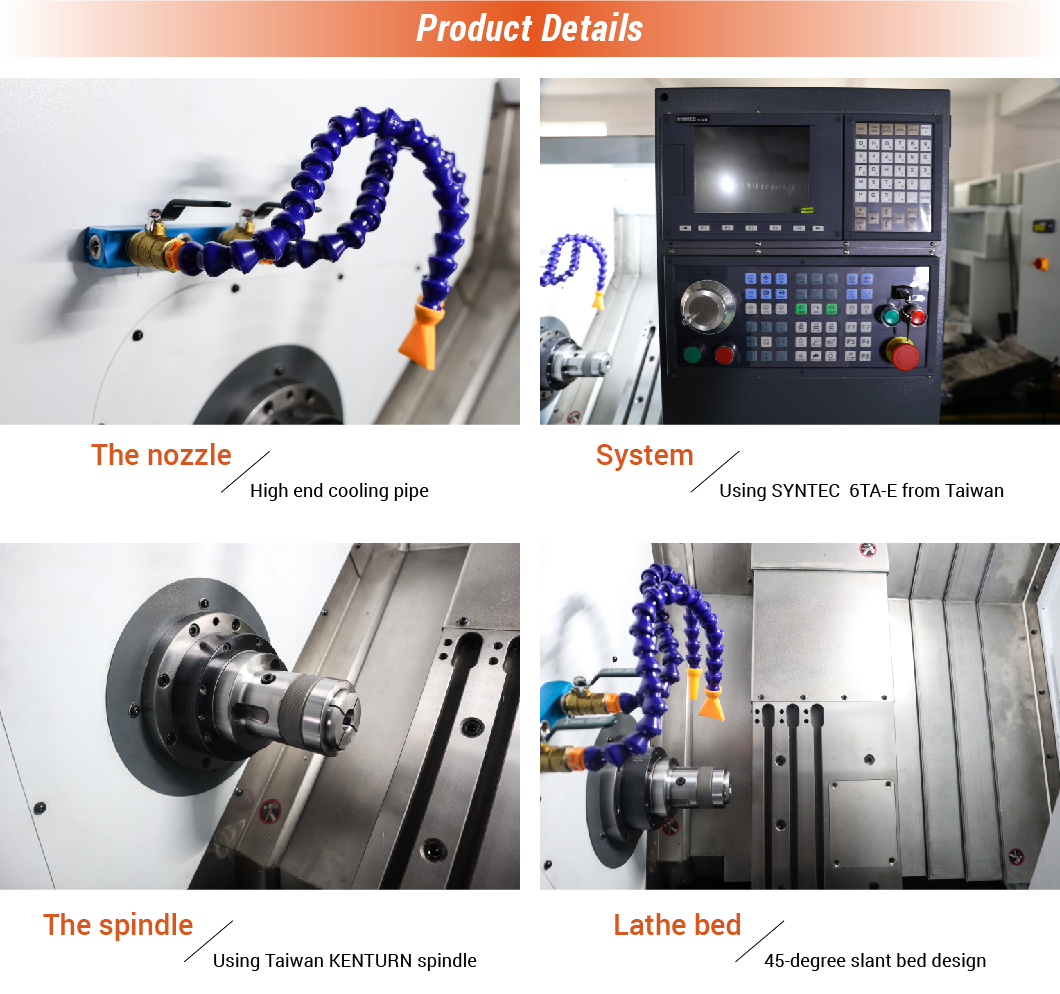

Machine Features
1. The CNC lathe machine has high precision, high Rigidity, heavy duty sleeve spindle
2. The CNC turning machine has integral cast iron base, 30° inclined bed, good rigidity, easy operation and chip removal
3. Our CNC lathe has high rigidity, high precision, high speed Japanese ball screw, Japanese precision ball screw
| Item | Unit | CK36 | CK46 | |
| Capacity | Max swing over bed | mm | 400 | 450 |
| Max cutting diameter | mm | 350 | 360 | |
| Max machining dia.(disk) | mm | 135 | 135 | |
| Max machining dia.(shaft) | mm | 220 | 220 | |
| Travel | X axis travel | mm | 750 | 950 |
| Z axis travel | mm | 270 | 290 | |
| Precision | Spindle runout | mm | 0.004 | 0.004 |
| X/Z axis reposition precision | mm | 0.002 | 0.002 | |
| Body structure | Slant bed degree | ° | 45 | 45 |
| Spindle | Spindle speed | rpm | 6000 | 6000 |
| Chuck diameter | inch | 5" | 6" | |
| Spindle nose | A2-4 | A2-5 | ||
| Spindle bore | mm | 46 | 56 | |
| Max bar diameter | mm | 35 | 45 | |
| Hight between worktable and spindle | mm | 70 | 70 | |
| Rapid speed | X axis rapid speed | m/min | 27 | 27 |
| Z axis rapid speed | m/min | 27 | 27 | |
| Motor power | Spindle | kw | 4.0 | 5.5 |
| X axis feed motor | kw | 1.1 | 1.7 | |
| Y axis feed motor | kw | 1.1 | 1.7 | |
| Tool holder form | Row of knives | 8 | 8 | |
| Tool size | mm | 20*20 | 20*20 | |
| Boring bar diameter | mm | φ20 | φ20 | |
| Other | Dimension | mm | 1800×1300×1600 | 2160×1600×1800 |
| Weight | kg | 1800 | 2600 |
