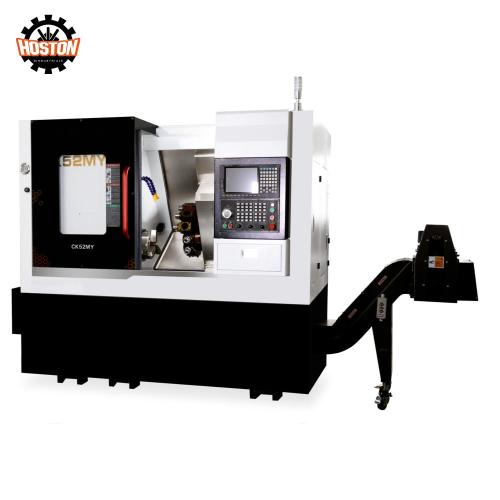

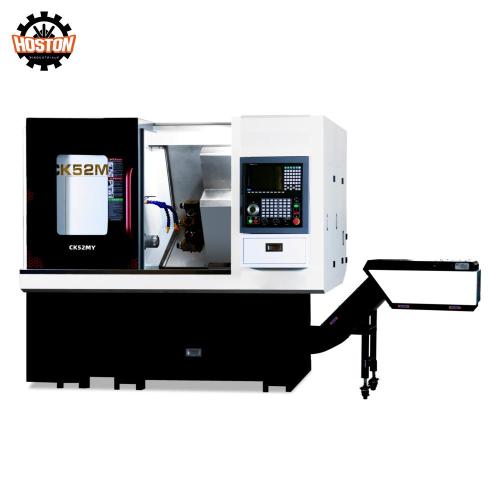

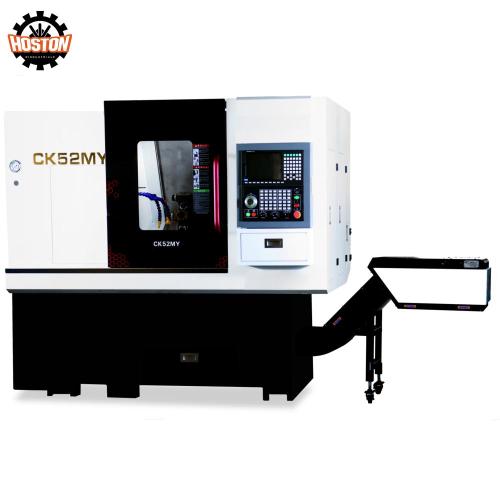

CNC metal cutting lathe machine tool CK52MY
Spindle bore:
- 63mm
Maximum turning diameter (mm):
- 450mm
Basic Info
| Model No. | CK52MY |
|---|---|
| status | New |
| Types of | Horizontal |
| Maximum turning diameter (mm) | 460 |
| Maximum workpiece length (mm) | 400 |
| Processing capacity | Medium Duty |
Product description
Machine Features
1. The cnc turning and milling machine has hjigh precision, high rigidity, heavy duty sleeve spindle
2. The cnc machine has integral cast iron base, 30° inclined bed, good rigidity, easy operation and chip removal

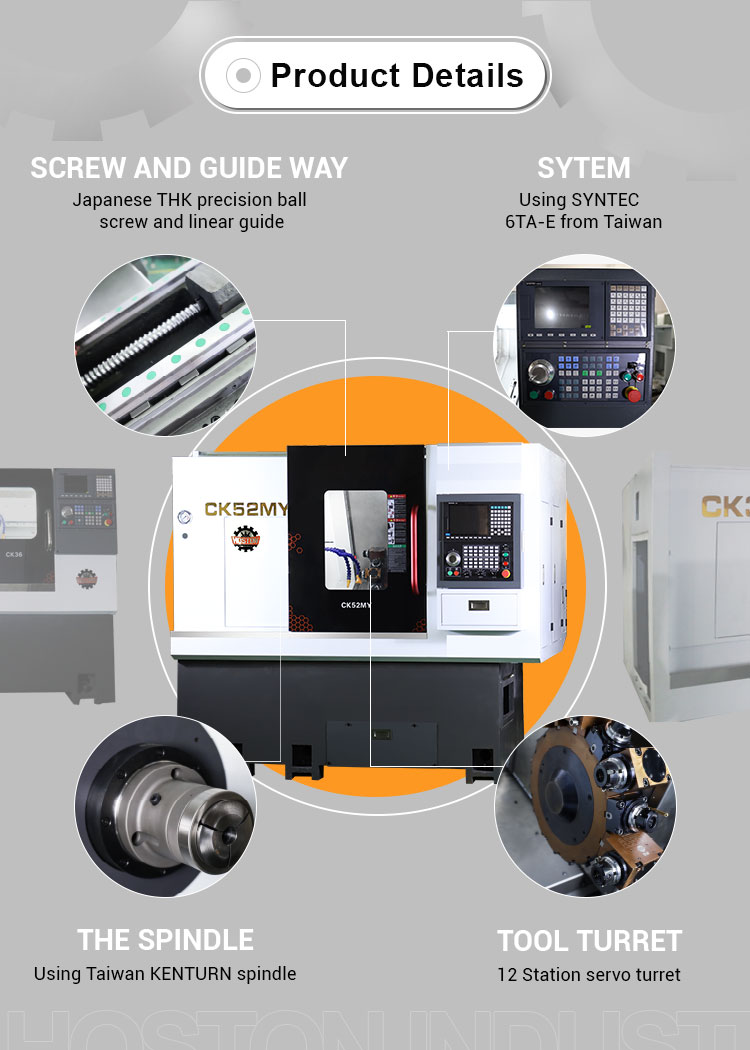

3. The cnc milling lathe machine has high-rigidity, high-precision, high-speed Japanese roller guides, Japanese precision ball screws

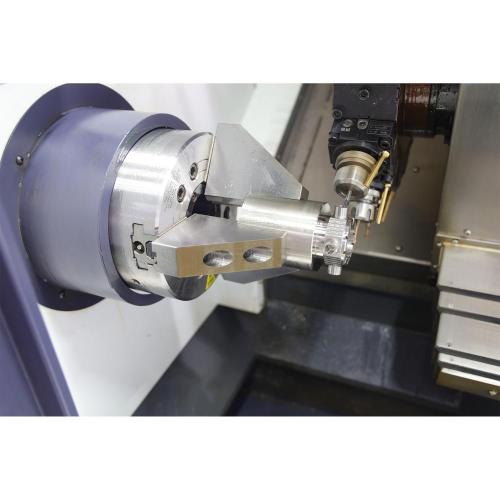

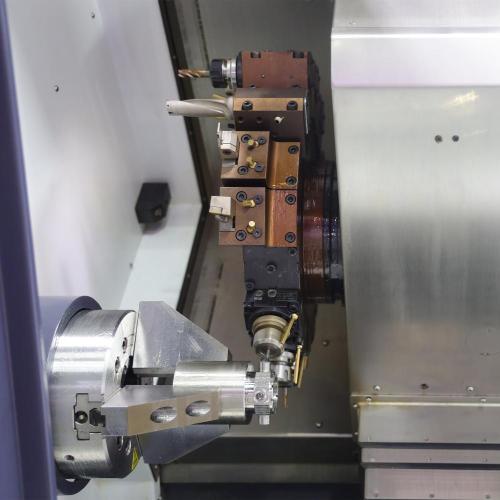

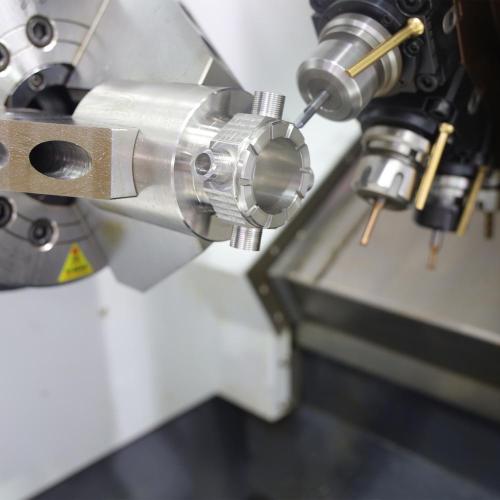

4. The horizontal cnc lathe machine uses servo power turret with Y-axis can realize turning and milling compound machining
5. The tailstock is controlled by hydraulic pressure, and the mandrel is automatically extended. It has good rigidity and is easy to operate. It can process long shaft parts.
|
|
Item |
Unit |
CK52MY |
CK46MY |
CK108MY |
CK106MY |
|
Capacity |
Max swing over bed |
mm |
450 |
450 |
450 |
450 |
|
Max cutting diameter |
mm |
450 |
450 |
450 |
450 |
|
|
Max cutting length |
mm |
380 |
380 |
550 |
550 |
|
|
Travel |
X axis travel |
mm |
250 |
250 |
250 |
250 |
|
Y axis travel |
mm |
±50 |
±50 |
±50 |
±50 |
|
|
Y axis travel |
mm |
400 |
400 |
600 |
600 |
|
|
Precision |
Spindle runout |
mm |
0.004 |
0.004 |
0.004 |
0.004 |
|
Spindle index position accuracy |
|
±0.002° |
±0.002° |
±0.002° |
±0.002° |
|
|
X//Y/Z axis reposition precision |
mm |
0.002 |
0.002 |
0.002 |
0.002 |
|
|
Spindle |
Spindle speed |
rpm |
4000 |
5000 |
4000 |
5000 |
|
Chuck diameter |
inch |
8" |
6" |
8” |
6” |
|
|
Spindle nose |
|
A2-6 |
A2-5 |
A2-6 |
A2-5 |
|
|
Spindle bore |
mm |
63 |
56 |
63 |
56 |
|
|
Max bar diameter |
mm |
52 |
45 |
52 |
45 |
|
|
Turret |
Type |
|
BT40 15-station powered turret with Y-axis |
BT40 15-station powered turret with Y-axis |
BT55 12-station powered turret with Y-axis |
BT55 12-station powered turret with Y-axis |
|
|
Optional BT55 12-station power turret with Y-axis |
Optional BT55 12-station power turret with Y-axis |
|
|
||
|
Outer Shank dia. |
|
BT40 20 / BT55 25 |
BT40 20 / BT55 25 |
25 |
25 |
|
|
Inner shank dia. |
mm |
BT40 25 / BT55 40 |
BT40 25 / BT55 40 |
40 |
40 |
|
|
Rapid speed |
X axis rapid speed |
m/min |
24 |
24 |
24 |
24 |
|
Y axis rapid speed |
m/min |
24 |
24 |
24 |
24 |
|
|
Z axis rapid speed |
m/min |
24 |
24 |
24 |
24 |
|
|
Motor power |
Spindle |
kw |
7.5 |
7.5 |
11 |
7.5 |
|
X axis feed motor |
kw |
2.4 |
2.4 |
2.4 |
2.4 |
|
|
Z axis feed motor |
kw |
2.4 |
2.4 |
2.4 |
2.4 |
|
|
Y axis feed motor |
kw |
1.7 |
1.7 |
1.7 |
1.7 |
|
|
Milling motor |
kw |
3.1 |
3.1 |
3.1 |
3.1 |
|
|
Other |
Dimension |
mm |
2400×1700×1920 |
2400×1700×1920 |
2620×1700×1920 |
2620×1700×1920 |
|
Weight |
kg |
3200 |
3200 |
4200 |
4200 |
|
|
|
Optional without Y-axis to retain turn-mill function |
|
CK52M |
CK46M |
CK106M |
CK108M |
