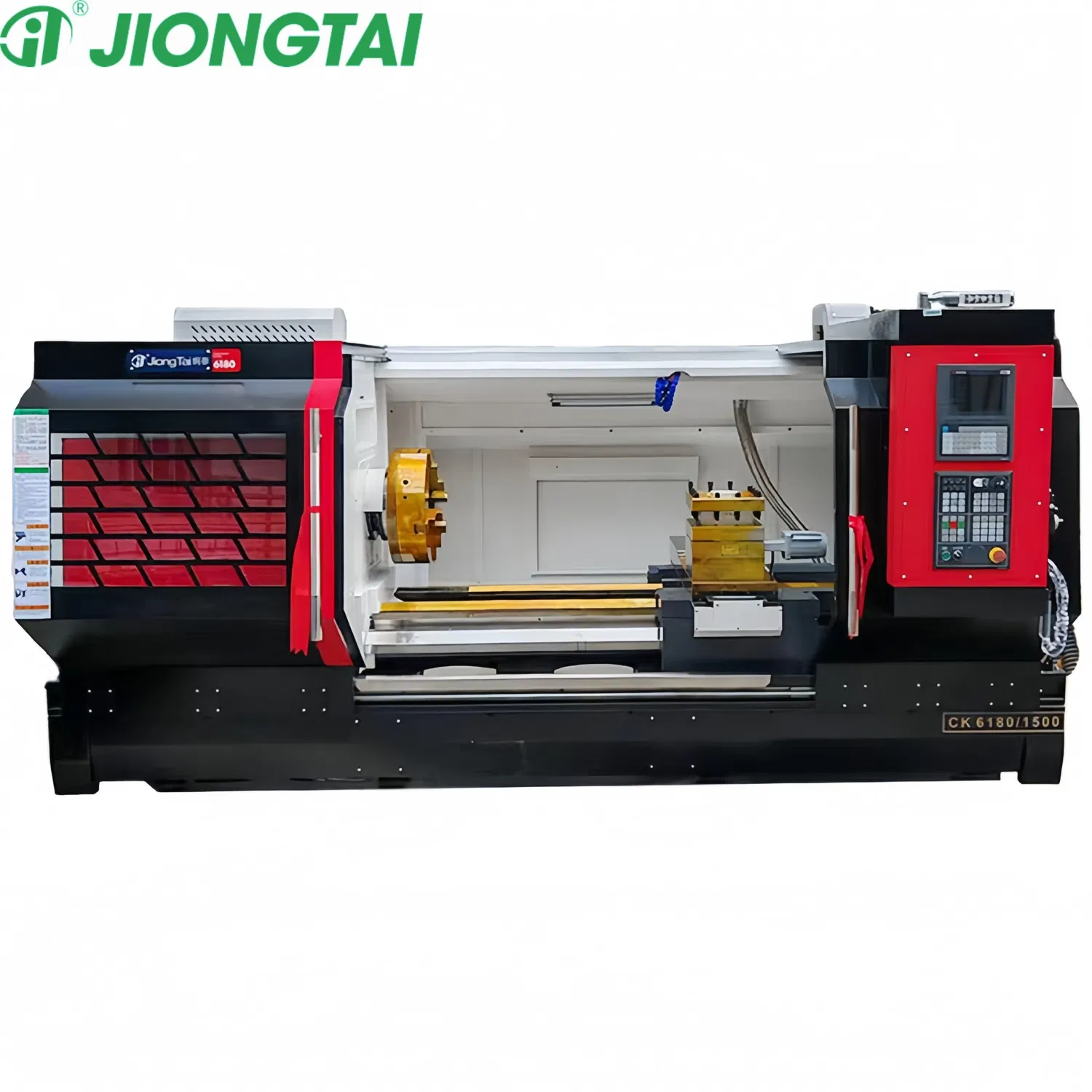

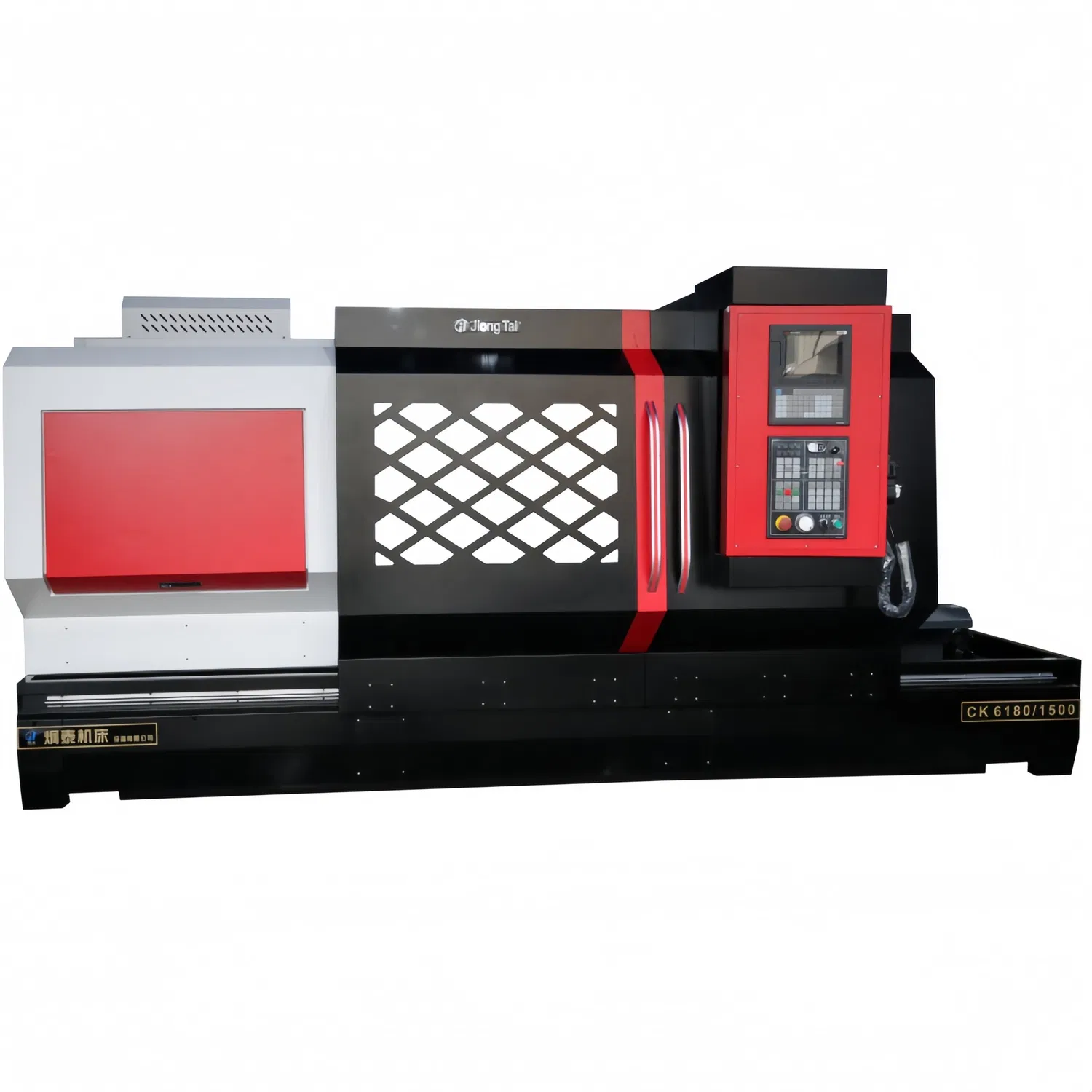

Model NO.	CK6180-1500
Type	Horizontal Lathe
Processing Accessory	Chuck CNC Lathe
Guide Rail	Horizontal Guide Rail

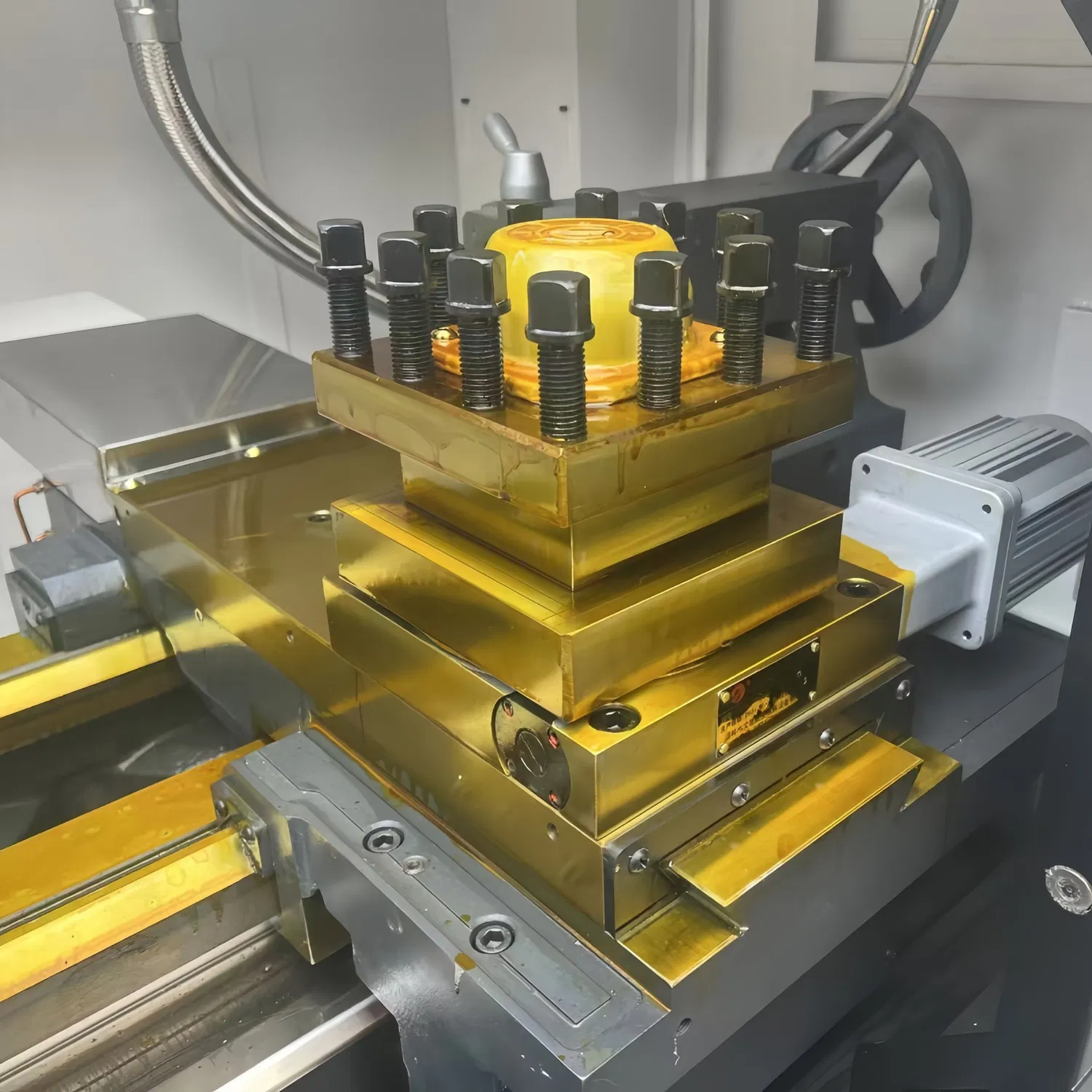

Tool Holder	Single-tool Holder CNC Lathe
Power Source	Manual
Controlling Mode	CNC
Automatic Grade	Automatic
Setting Mode	Floor-type
Precision	High Precision
Certification	CE
Condition	New
CNC System	GSK System
Cooling Pump	210W
Main Motor	15W
X-Axis Motor	10W
Z-Axis Motor	15W
Transport Package	Seaworthy Packing

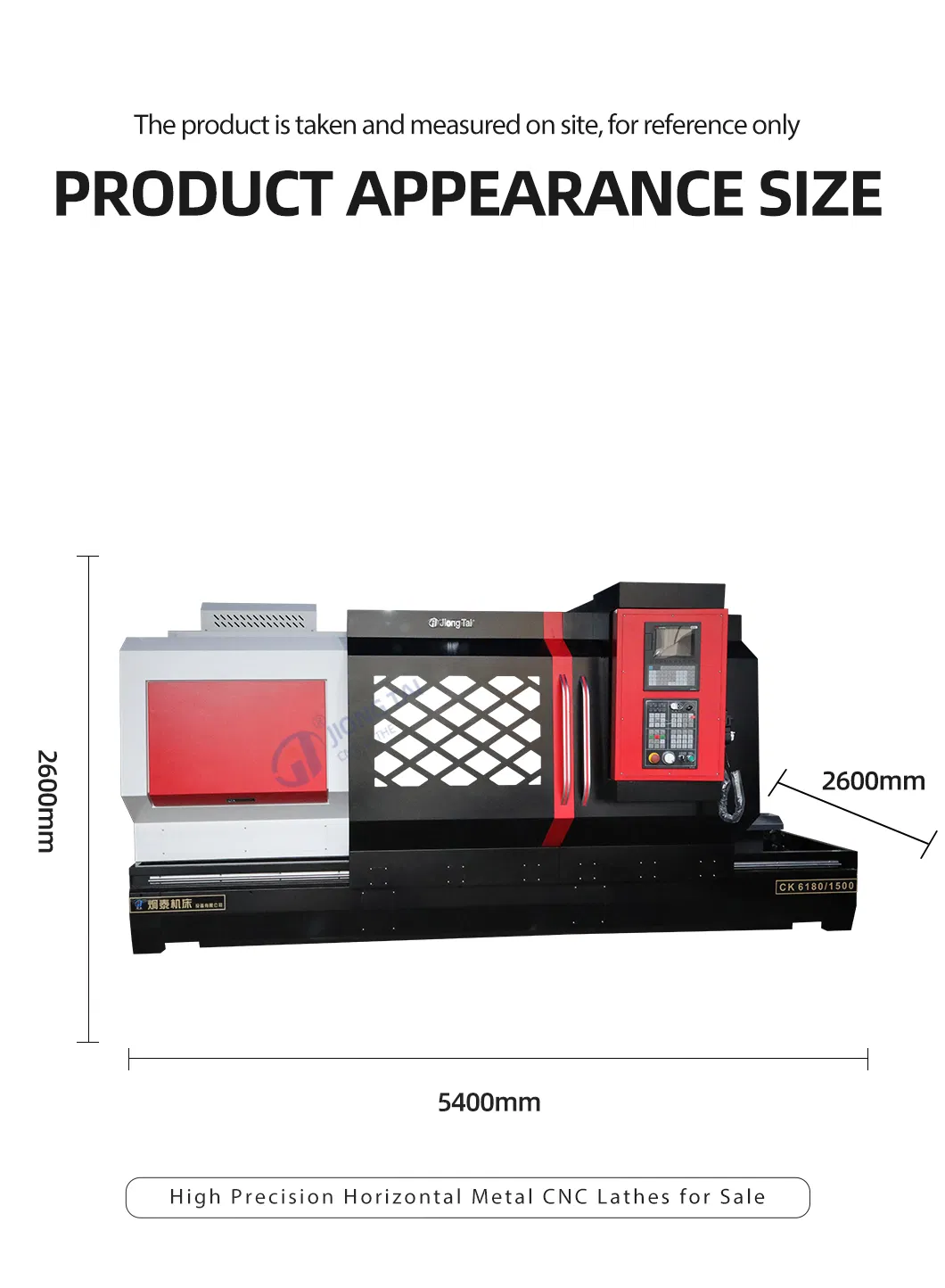

Specification	5400*2600*2600mm
Trademark	JT
Origin	China
HS Code	8458110000
Production Capacity	1500 Sets/Year

Product Description

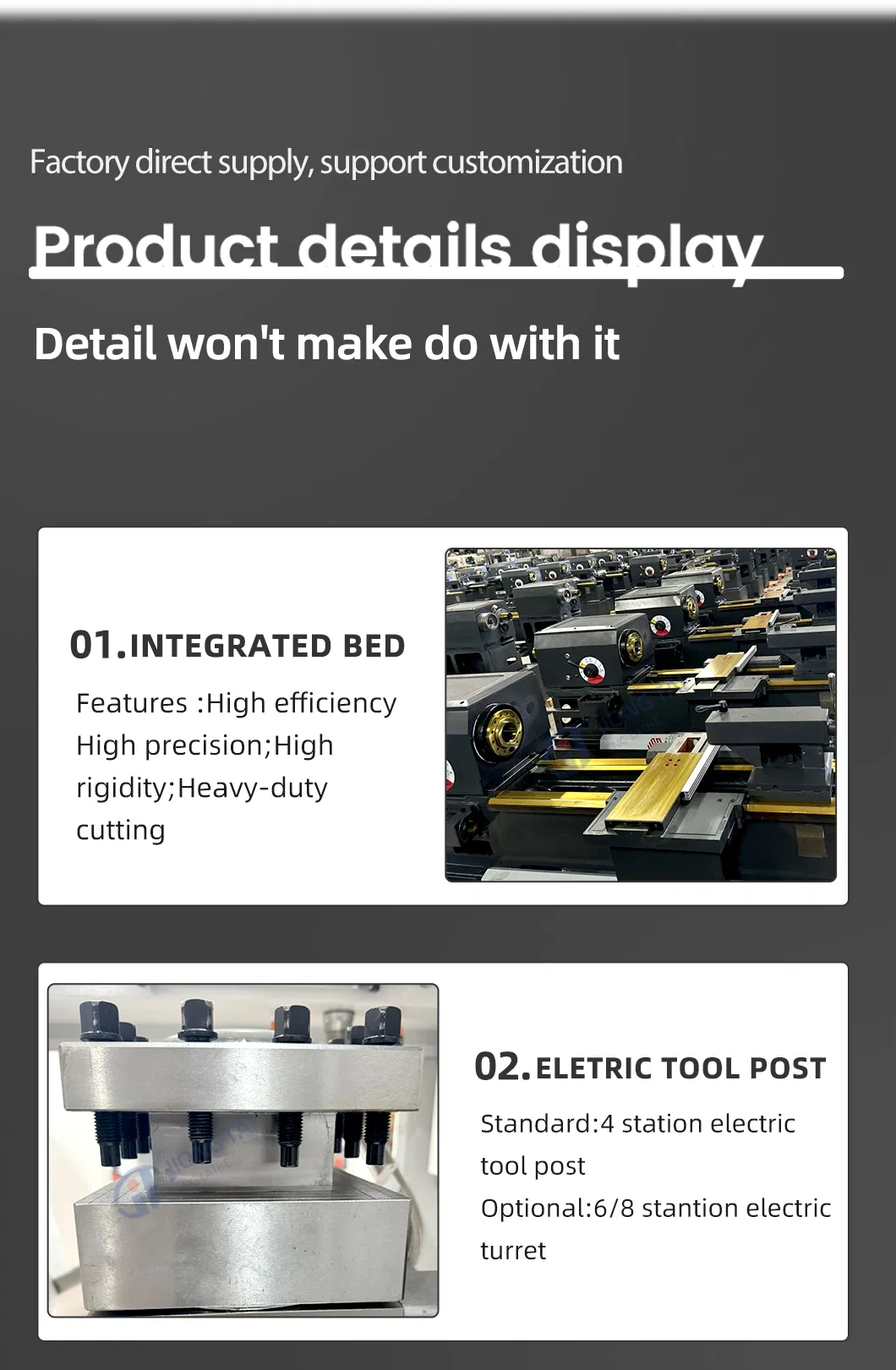

Feature:

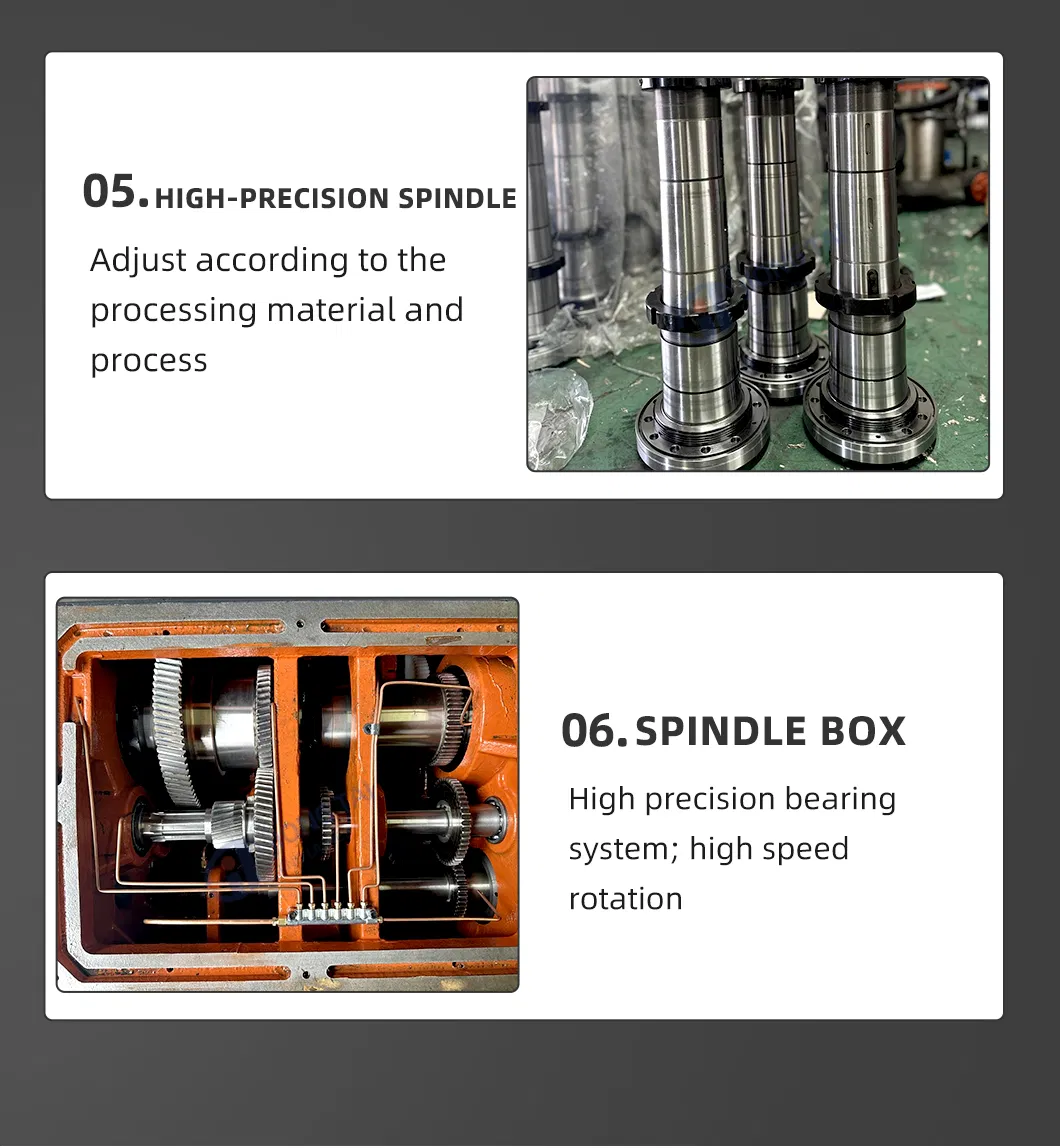

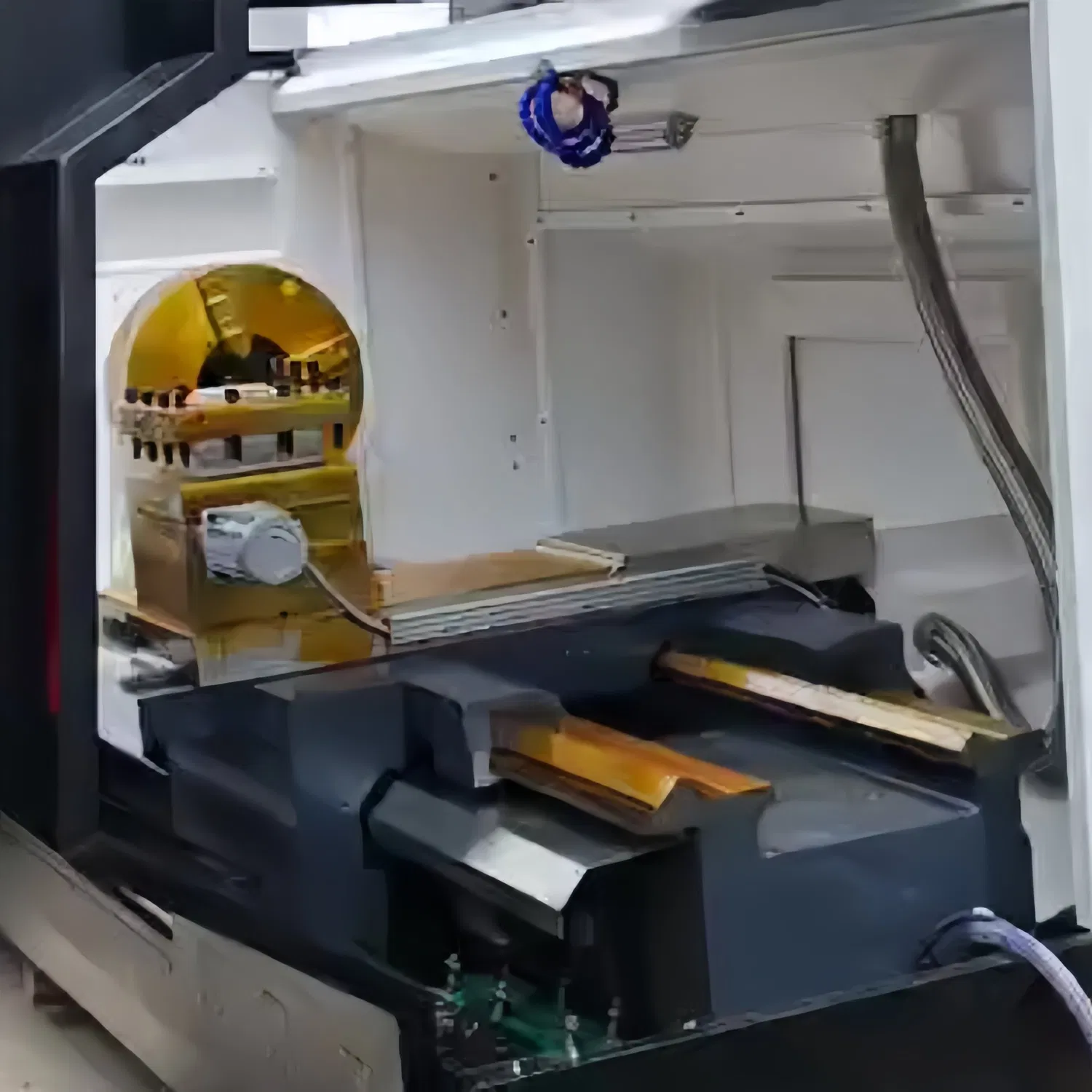

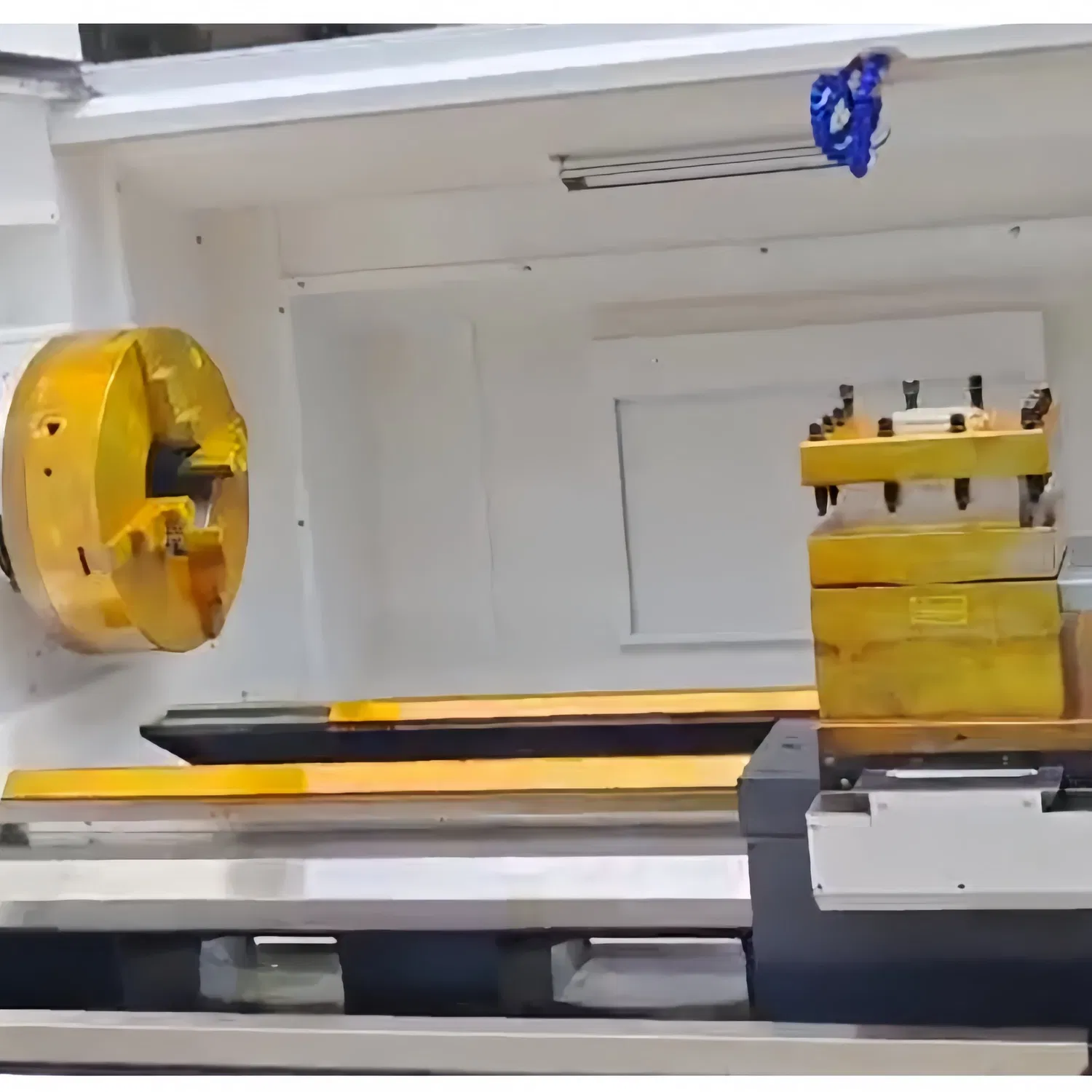

High rigidity integral lathe: the integrated design of the bed and bed base, the ultra-wide guide rail bed, and the reasonable arrangement of ribs make the bed have high rigidity and stability, and good chip removal and waterproof performance. High rigidity and long life headstock: the design of the spindle bearing is arranged in the form of a heavy-duty machine tool to ensure the rigidity of the spindle. The cooling adopts the external circulation oil cooling design to ensure the high reliability of the lubrication of the main shaft bearing, and at the same time reduce the temperature rise of the main shaft bearing, the main shaft has high precision and the main shaft bearing has a long service life.

Product Parameters

ITEM	UNIT	CK6180-1500
General rule
CNC system		GSK
Net weight	kg	5600
Power specification (Standard configuration)	mm	Three-phase 380V/50HZ
Scope of work
Maximum tuming diameter of the bed	mm	800
Maximum tuming diameter through sliding plate	mm	480
Maximum travel of X-axis (Transverse)	mm	470
Maximum travel of Z-axis (Longitudinal)	mm	870,1620,2120,3120
Bed
Width of bed guide rail	mm	4600, Bed foot'integral casting
Maximum centricity	mm	750,1500,2000,3000
Spindle
Main shaft head model		C-11
Spindle inner hole taper		Metric (1:20)
Spindle bore	mm	104
Spindle speed change level teaching manual level 3	rpm	40-125;110-350;290-950
Spindle motor power	kw	15

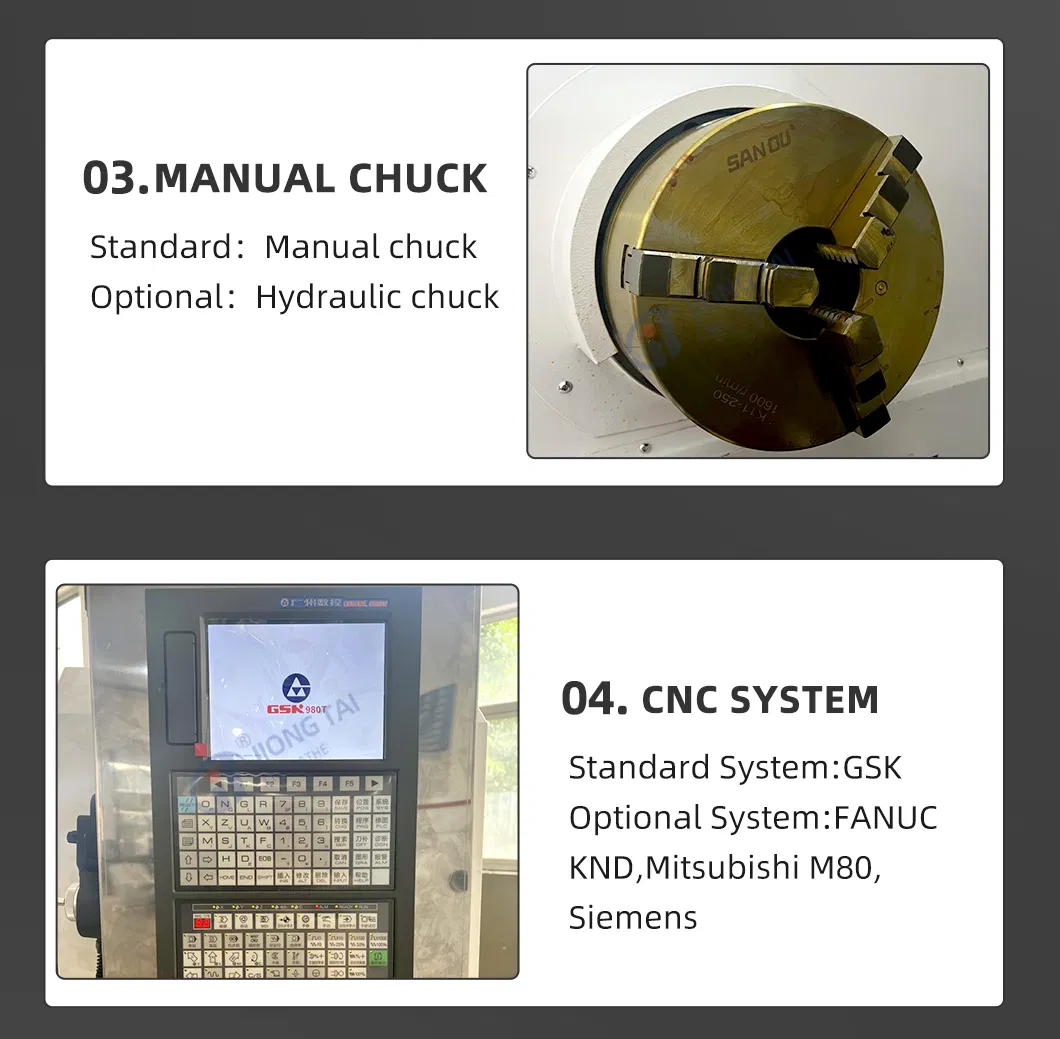

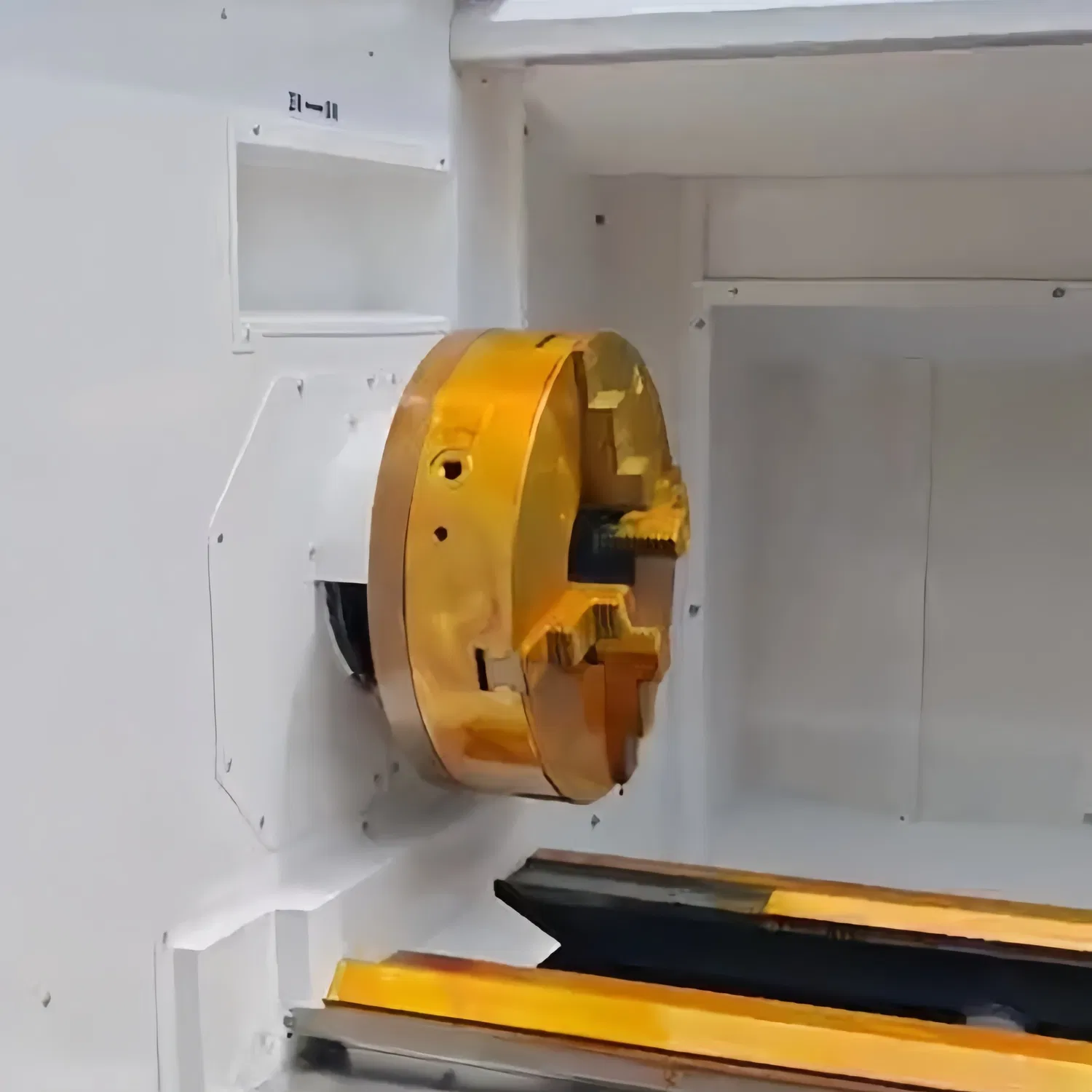

Manual collet size	mm	Single-acting 630 fourjaw Manual Chuck
Servo shaft
X-axis screw rod		3210
Z-axis screw rod		6310
Working accuracy
Rapid feed speed of X/Z axis	m/min	8;4
Positioning accuracy	mm	X-axis ≤ 0.002 Z-axis ≤ 0.025
Repetitive positioning accuracy	mm	X-axis ≤ 0.015 Z-axis ≤ 0.010
Roundness	mm	≤ 0.01
Diameter unifomity	mm	≤ 0.03/iength 300
Flatness	mm	≤0.02/diameter 300
Surface roughness (Steel parts)	um	≤Ra3.2um
Tailstock
Diameter of tailstock sleeve	mm	120
Tailstock sleeve stroke	mm	250
Tailstock center taper hole		MT6#
