CNOMO 30mm Solenoid Valve Coil 24VDC 110VAC 220VAC

This solenoid coil is same with AMISCO EVI 30/9, which is popularly used in CNOMO 30mm pneumatic solenoid valves. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Power: 2W, 3W, 6W, 7W, 7.5W, 2.5VA, 5VA, 7VA, 8VA. CNOMO direct solenoid valves are poppet valves 3 ways, ready to be assembled on the 06-05-80 CNOMO standard base. Available in the normally closed and normally opened version with or without manual operator. As standard, manual operator works with push and push+turn function in order to satisfy all needs.

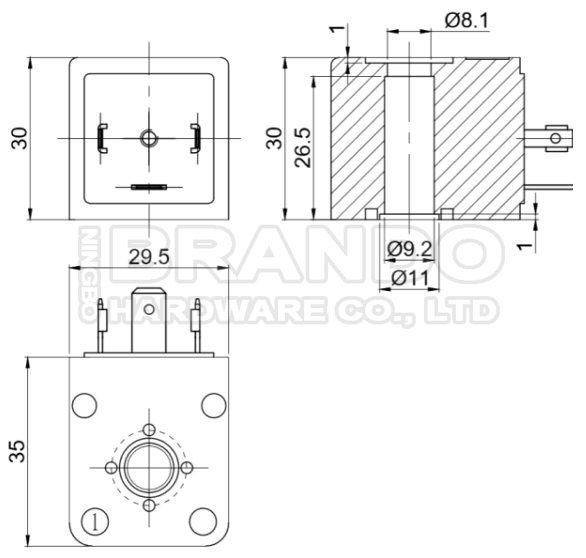

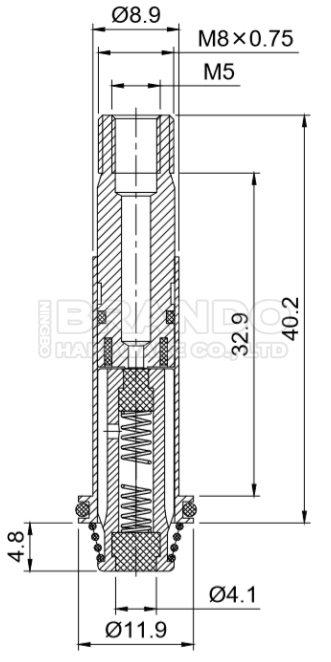

Dimension and Data of CNOMO Solenoid Valve Coil, Armature:

BRANDO Solenoid Valve Coils Production Video:
