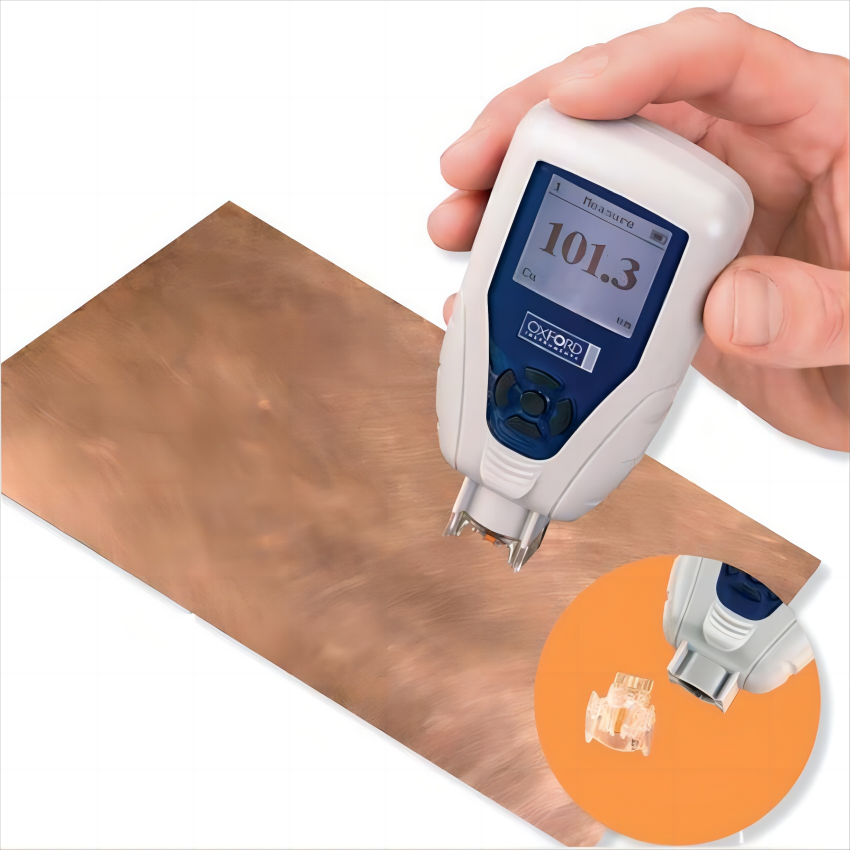

Coating Thickness Handheld Gauges

Name: Coating Thickness Handheld Gauges
Brand: Welltronics Technology Limited
Rating: 4.1 (16 reviews)

Get Latest Price

You might also like

Hitachi CMI165 PCB Thickness Tester

1 Piece/Pieces (MOQ)

CMI165 Surface Copper Thickness Gauge

1 Piece/Pieces (MOQ)

CMI165 PCB Thickness Tester

1 (MOQ)

Oxford CMI165 PCB Thickness Tester

1 (MOQ)

Hitachi CMI95M for Cooper Thickness Classification

1 Set/Sets (MOQ)

Hitachi Desktype Cooper Thickness Tester CMI700

1 Set/Sets (MOQ)

Hitachi Handheld Hole Copper Tester

1 Set/Sets (MOQ)

Coating Thickness Handheld Gauges

1 (MOQ)

Handhold Copper Thickness Gauge Hitachi 95M

1 Set/Sets (MOQ)

Hitachi Desktype Cooper Thickness Tester CMI700 CMI760

1 Set/Sets (MOQ)

Basic Info

Model No.	CMI165
Brand Name

Product description

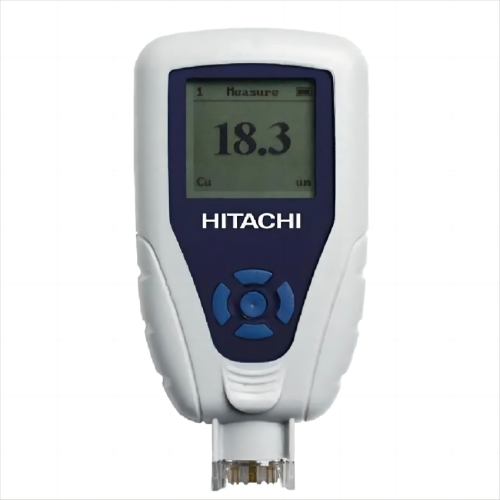

The Hitachi Cooper Thickness Tester is a portable testing instrument designed specifically for the PCB industry. It utilizes advanced eddy current testing technology to quickly and accurately measure the thickness of the copper plating within a via without damaging the PCB. Its compact design and lightweight design make it easy to carry to the production site for real-time testing, significantly improving inspection efficiency and flexibility.

PCB Cooper Thickness Tester Applications

PCB Manufacturing: During PCB production, the uniformity of via copper thickness is crucial to the electrical performance of the board. The CMI165 can be used to monitor via copper thickness in real time on the production line, ensuring that every board meets design requirements.

Quality Control and Inspection: During the inspection of finished PCBs, this instrument can quickly verify that via copper thickness meets standards, effectively preventing board failures caused by insufficient or excessive via copper thickness, thereby improving product quality and customer satisfaction.

R&D and Experimentation: During the development of new PCB materials and processes, the Hitachi handheld Cooper Thickness Tester can be used to evaluate variations in via copper thickness under different process conditions, providing data support for process optimization.

?CMI165 Surface Cu Thickness Tester Data

Durable Life: The Hitachi handheld copper hole tester features a built-in high-performance lithium-ion battery that supports rechargeable power. A full charge provides hours of continuous operation, meeting the needs of long-term testing. The battery life is carefully designed to withstand frequent charge and discharge cycles, ensuring stable performance over long-term use and reducing maintenance costs.

Temperature Compensation: The instrument features automatic temperature compensation, which detects the temperature of the product being tested in real time and automatically adjusts measurement parameters to eliminate the effects of temperature on the results. This feature enables accurate hole copper thickness measurements in varying ambient temperatures, ensuring accurate and reliable test data.

Fast and Non-Destructive: The Hitachi handheld copper hole tester utilizes eddy current testing technology, enabling rapid measurement speeds, completing a hole measurement in just seconds. Importantly, this non-destructive testing method does not damage the PCB, ensuring the integrity and reusability of the board. This is particularly important for high-value, precision PCB products.

High-Precision Measurement: The instrument offers a measurement accuracy of up to ±1μm, meeting the high-precision requirements of the PCB industry for hole copper thickness measurement. Whether measuring micro or macro vias, the instrument provides accurate measurement results, providing a solid foundation for production and quality control.

Easy to operate: The Hitachi handheld copper via tester features a large, color touchscreen interface with a user-friendly interface and intuitive operation. Users can easily set up measurements, view and export data, and other functions with simple touch operations, eliminating the need for specialized training.
