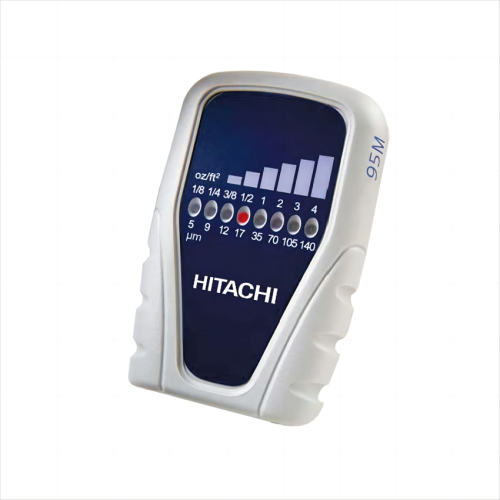

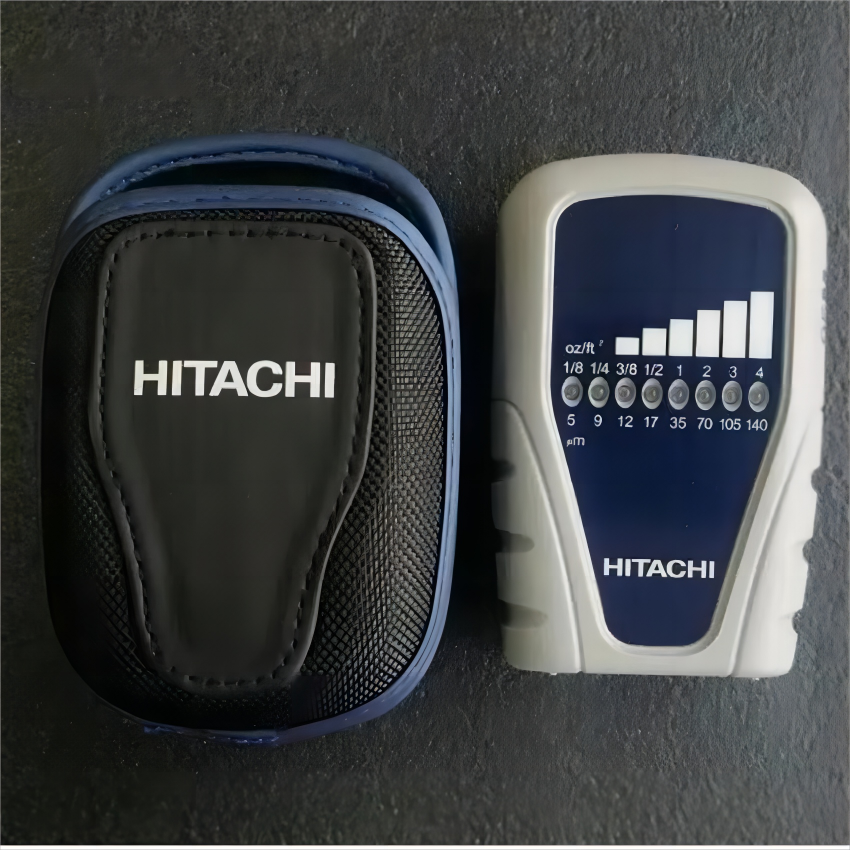

Handhold Copper Thickness Gauge Hitachi 95M

Video

1 / 7

Handhold Copper Thickness Gauge Hitachi 95M

$750.00

≥1 Set/Sets

Get Latest Price

You might also like

Hitachi CMI165 PCB Thickness Tester

1 Piece/Pieces (MOQ)

CMI165 Surface Copper Thickness Gauge

1 Piece/Pieces (MOQ)

CMI165 PCB Thickness Tester

1 (MOQ)

Oxford CMI165 PCB Thickness Tester

1 (MOQ)

Hitachi CMI95M for Cooper Thickness Classification

1 Set/Sets (MOQ)

Hitachi Desktype Cooper Thickness Tester CMI700

1 Set/Sets (MOQ)

Hitachi Handheld Hole Copper Tester

1 Set/Sets (MOQ)

Coating Thickness Handheld Gauges

1 (MOQ)

Handhold Copper Thickness Gauge Hitachi 95M

1 Set/Sets (MOQ)

Hitachi Desktype Cooper Thickness Tester CMI700 CMI760

1 Set/Sets (MOQ)

Basic Info

Model No.	95M
Brand Name	Hitachi
place of origin	Japan
Brand	Hitachi
Model	95M
Units	oz/ft2 ,um

Product description

Key Benefits of the?CMI95M Cu Thickness Tester

Flexible Battery Operation: Powered by a user-replaceable 9V battery, the CMI95M offers unparalleled flexibility and portability for a variety of work environments. A built-in low-battery indicator ensures uninterrupted operation and alerts you when battery replacement is necessary.

CE Certified: The CMI95M complies with stringent international safety standards, providing peace of mind and ensuring seamless regulatory compliance.

Exceptional Durability: This instrument is designed to withstand the rigors of daily use without compromising performance or reliability, ensuring consistent results over time.

User-Friendly Design: The CMI95M's streamlined design requires minimal training for effective operation. It seamlessly integrates into your existing workflow, increasing productivity without extensive setup or adjustments.

Exclusive Soft Touch Probe: The CMI95M utilizes a unique probe design that prevents damage or scratching of the copper surface during inspection. This innovative feature eliminates the risk of inadvertently compromising the integrity of the board, ensuring accurate measurements without any adverse effects.

PCB Cooper Thickness Tester Common Applications

PCB Manufacturing and Assembly: The CMI95M plays a critical role in ensuring precise copper thickness on every PCB layer, minimizing defects and improving overall product quality. By detecting inconsistencies early, it helps streamline manufacturing processes and reduce waste.

Copper Foil Surface Thickness Inspection: The CMI95M's fast and accurate measurement capabilities enable rapid identification of defective copper foil, eliminating scrap and rework costs associated with substandard material. This proactive approach to quality control improves efficiency and reduces production downtime.

In summary, the CMI95M copper foil thickness tester is a rugged, cost-effective, and sophisticated solution for companies seeking to optimize their manufacturing processes. Its combination of durability, ease of use, and high accuracy makes it an essential tool for ensuring product quality and reducing operating costs.

Specification:? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

Dimension:? 2.5"(W)*1.25"(T)*4.1"(H),? 66mm(W)*32mm(T)*104mm(H)

Weight:? ±1% (125g)

Battery:? ?9V, user can change

Range:? ?oz/ft2? ?1/8, 1/4 , 3/8, 1/2, 1,? ?2,? ? 3,? ? 4

? ? ? ? ? ? ? ?um:? ? ? ?5,? ? ?9,? ? 12,? 17, 35 ,70, 105, 140

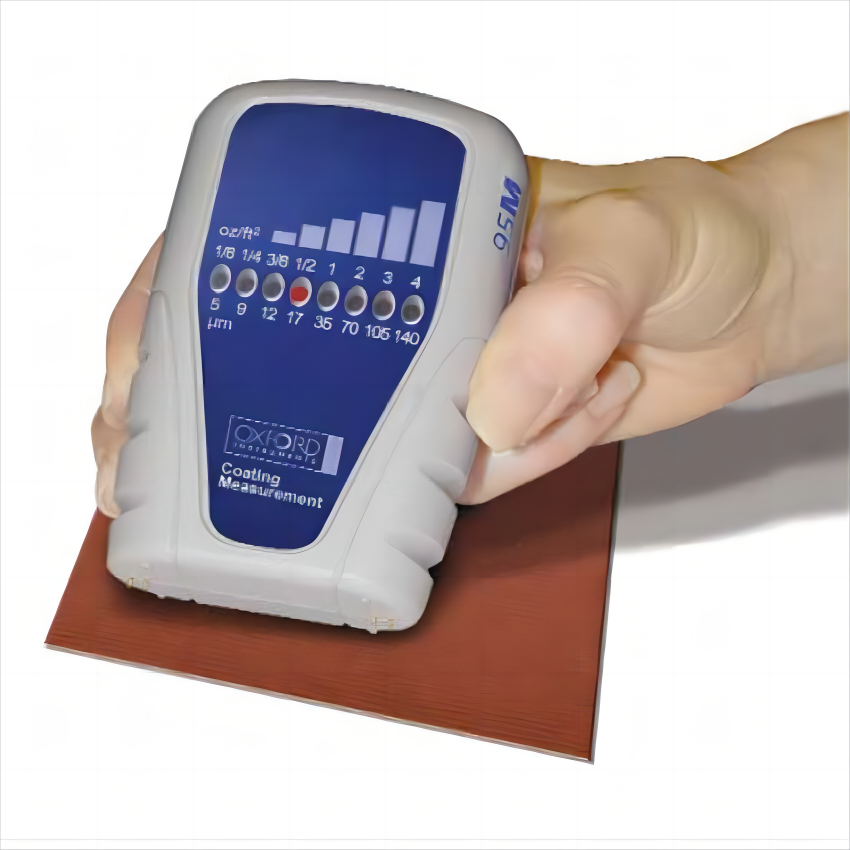

Our CMI95 is easy to use, simply place a unique soft contact probe on the copper surface, then note the thickness measurement on the indicator, and use field-proven microresistance technology to arrange the copper foil and copper laminates by thickness. The 95M is robust and highly accurate. Since it has been calibrated at the factory, the instrument does not need to be calibrated.

?	95M? ?	CMI165	CMI511(CMI500)	CMI563	CMI760(CMI700)
Technique	Microresistance?	microresistance	Eddy curreny	microresistance	microresistance
Cooper Foil	√	√	×	√	√
Cooper Clad Laminate(CCL)	√	√	×	√	√
Cooper-Surface	×	√	×	√	√
Cooper-Fineline	×	√	×	√	√
Cooper Thru-hole	×	×	√	×	optional
Temperature Compensation	×	√	√	×	√ (ETP Probe)
Replacement Probe Tip	×	√	×	√	√ (SRP-4 Probe)
Unit Selection	oz?or um	mil or um	mil or um	mil or um	mil or um
?	?	?	?	?	?
Thickness Range	8 indicator lights 1/8-4 oz 5-140?um	Electroless Cu 0.01-0.5 mil 0.25-12.7 um Electroplated Cu 0.1-10 mil 2-254 um	0.08-4.0 mil 2-102 um	Electroless Cu 0.01-0.5 mil 0.25-12.7 um Electroplated Cu 0.1-6 mil 3-152 um	b

Elevating PCB Foil and Copper Clad Laminate Inspection

In the complex world of PCB manufacturing, ensuring accurate copper thickness of copper foil and copper clad laminate (CCL) is crucial. Our CMI95M copper thickness gauge is a game-changer, delivering precision and efficiency in measuring surface copper thickness during inspection and circuit board manufacturing.

Speed, Accuracy

The CMI95M is designed to measure surface copper thickness of copper foil and copper clad laminate (CCL) in just one second, streamlining your quality control workflow. With a measurement range from 1/8 oz/ft2 to 4.0 oz/ft2 (equivalent to 5-140 microns), the instrument covers a wide range of copper thickness requirements and ensures comprehensive inspection capabilities.

User-Friendly Design, Seamless Operation

The CMI95M features a user-centric design and an intuitive interface that simplifies the measurement process. Simply place the unique soft-touch probe on the copper foil surface, and the thickness measurement is instantly displayed on the gauge. This easy and convenient operation minimizes training time and increases shop floor productivity.

Micro-Resistance Technology: The Core of Precision

At the heart of the CMI95M lies field-proven micro-resistance technology, which accurately classifies copper foil and laminates by thickness. This advanced technology ensures consistent and reliable measurement results, eliminating guesswork and reducing the risk of errors in quality assurance processes.

Rugged, Affordable, and Highly Accurate

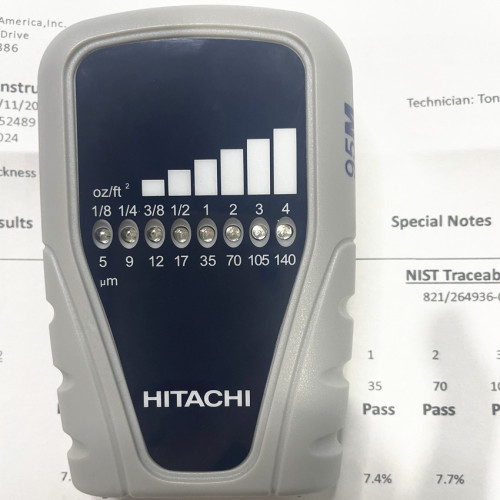

The CMI95M is built to withstand the daily use of manufacturing environments. Its rugged construction ensures long-lasting durability, while its affordable price makes it an ideal investment for businesses of all sizes. Furthermore, the meter's high accuracy, backed by factory calibration, eliminates the need for frequent recalibration using standards, saving you time and resources.
