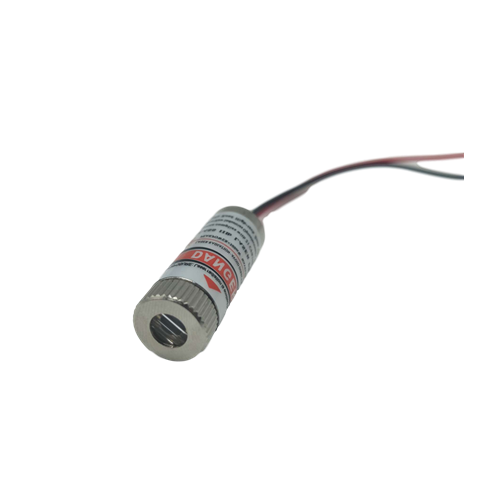

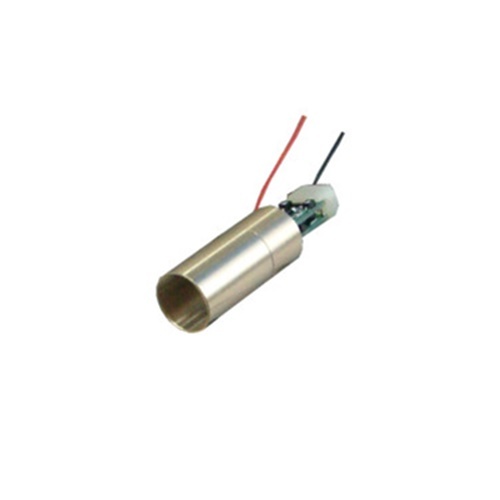

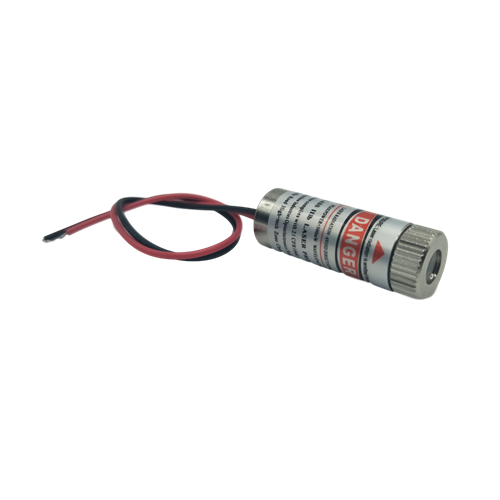

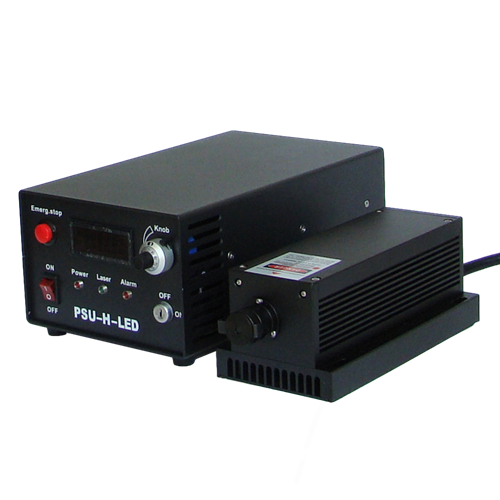

CNI offers compact laser modules equipped with a USB connector, phono jack, or bare wire leads. Each USB-equipped laser module has collimated output, an on/off switch, and a built-in highly attenuating electrical filter to eliminate noise in the laser output, regardless of the power supply used. The laser modules are available with collimated or adjustable-focus output in the visible or NIR. Also available are turnkey laser diode modules that emit at visible or IR laser wavelengths.

 The compact design, low cost and easy operation, are the choice for being designed and integrated into OEM instruments and systems, and also for end users' applications in scientific research, medical treatment and industrial development.

Specifications

	S-GDL	PGL-DB	PGL-D12	PGL-VI	PGL-F	PGL-H	PGL-H1	PGL-I-R (90-264VAC)	PGL-FS  (90-264VAC)	PGL-V-H (90-264VAC)
Dimensions
	Φ12*13 mm2	Φ8*15 mm2	Φ12*20/38/40 mm2	Φ12*/50 Φ15*90 mm2	Φ19*90/101 mm2	Φ20*48/ 62mm2	Φ26×100(L) mm2	Φ20*65mm2	77*30*30 mm2	97*40*40 mm2
405		1-50 mW	1-200 mW	1-200 mW	1-80 mW	1-200 mW
445		1-30 mW	1-30 mW		1-50 mW					1-1000 mW
447		1-30 mW	1-30 mW			1-1000 mW				1-1600 mW
450		1-30 mW	1-30 mW	1-50 mW	1-80 mW	1-50 mW				1-1000 mW
473				1-30 mW			1-50 mW
520		1-30 mW	1-30 mW	1-50 mW	1-50 mW	1-800 mW				1-300 mW
532	1-80 mW			1-80 mW		1-500 mW	1-800 mW	1-50 mW	1-80 mW	1-300 mW
561				1-5 mW			1-20 mW
589				1-30 mW			1-80 mW
593.5							1-30 mW
635		1-50 mW	1-100 mW	1-100 mW	1-20 mW	1-300 mW				1-800 mW
637		1-50 mW	1-100 mW	1-100 mW	1-50 mW	1-300 mW			1-200 mW
640		1-50 mW	1-100 mW	1-100 mW					1-200 mW
655		1-50 mW	1-120 mW	1-120 mW		1-800 mW				1-1000 mW
685					1-50 mW
808		1-50 mW	1-400 mW	1-400 mW		1-1500 mW			1-200 mW	1-2000 mW
845					1-50 mW
980		1-30 mW	1-400 mW	1-400 mW		1-1500 mW
1060						1-1500 mW
1064			1-300 mW	1-300 mW			1-1000 mW	1-300 mW		1-1000 mW

Note: Customized work available on request. Click power range above for datasheets download.
