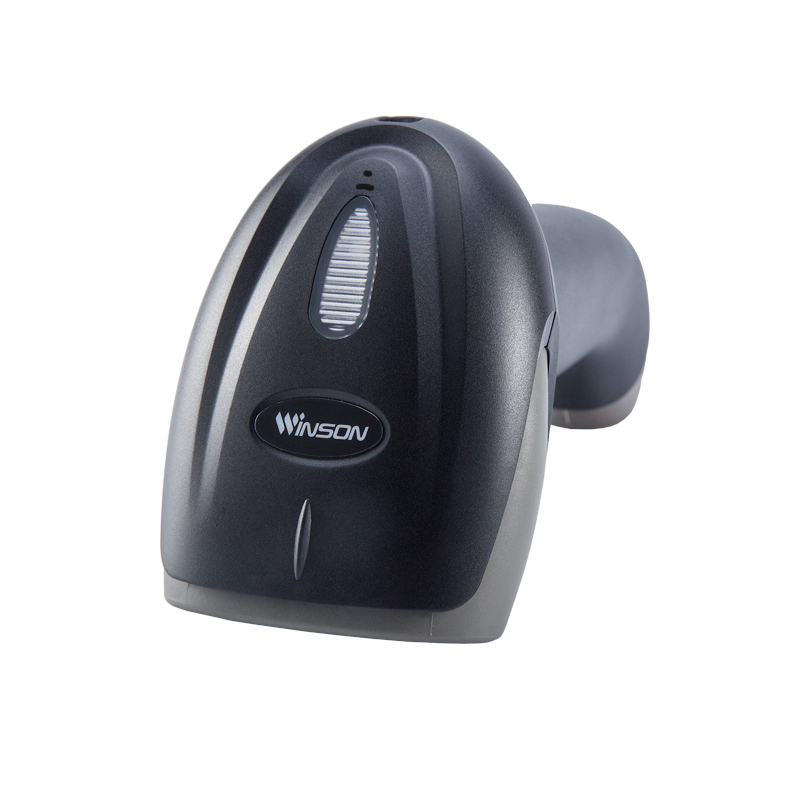

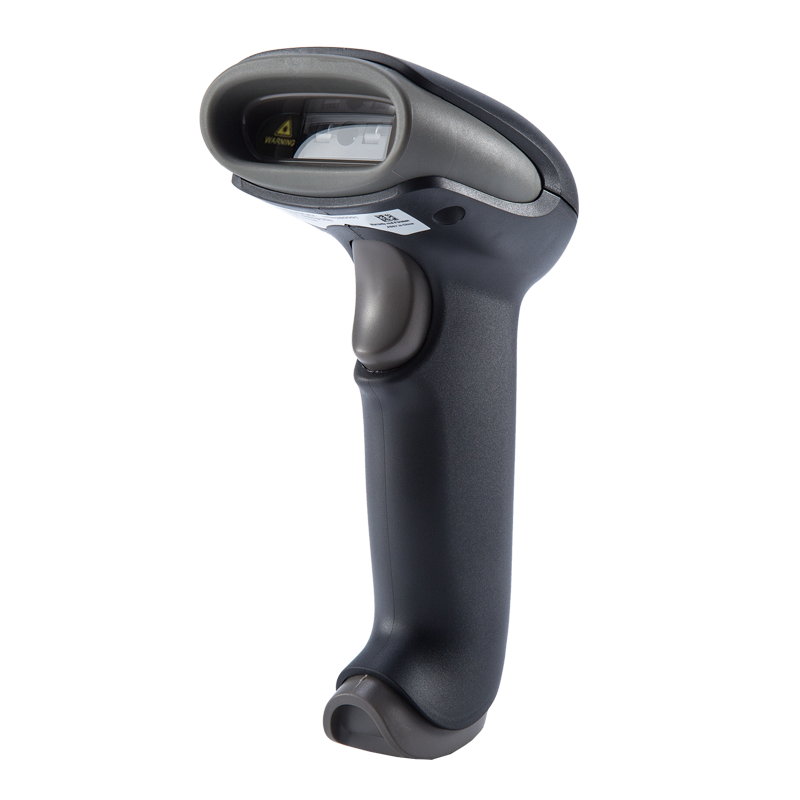

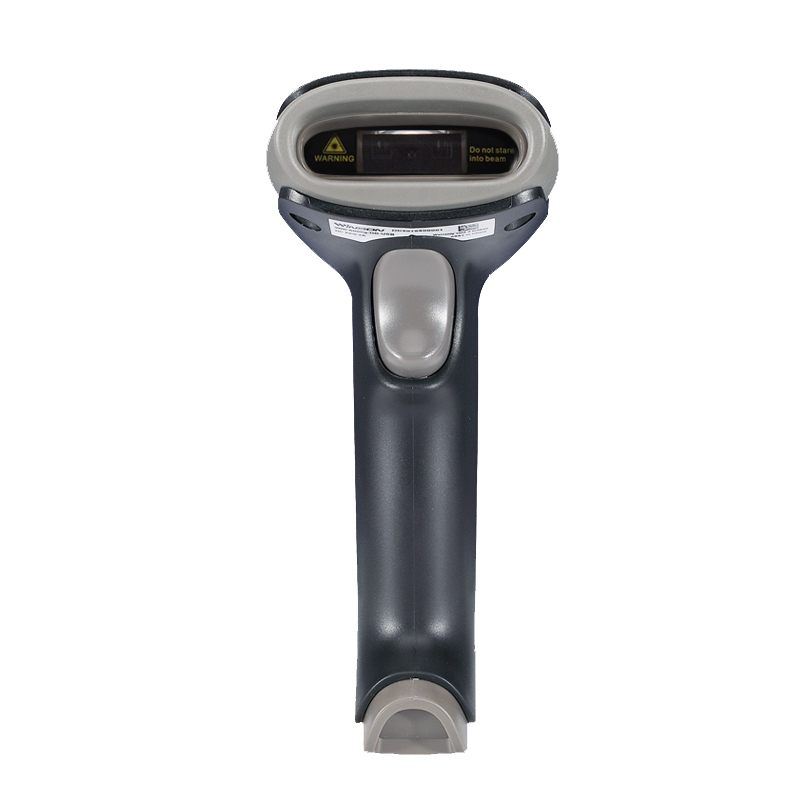

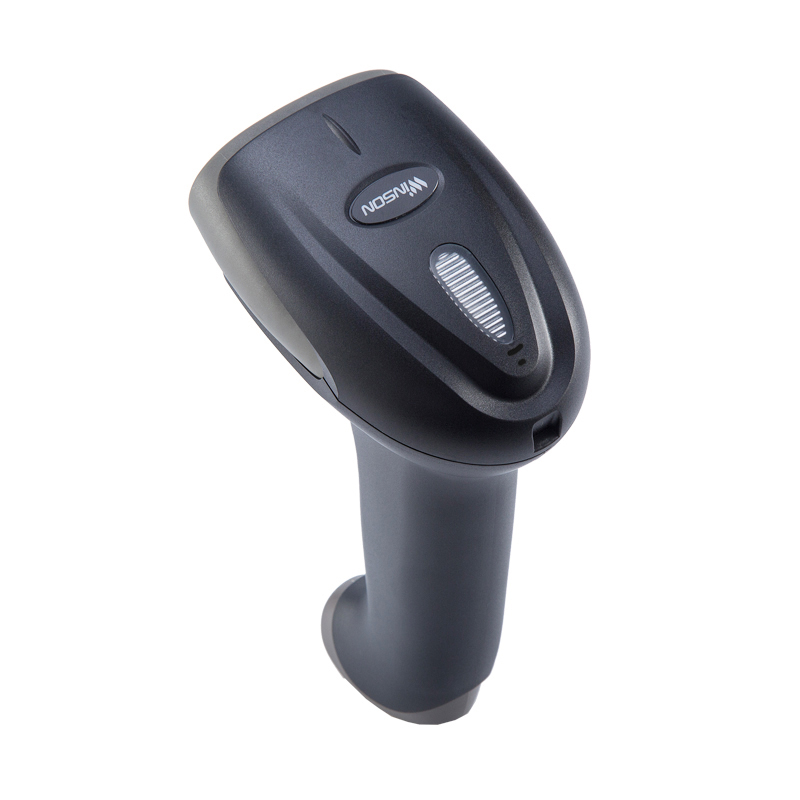

usb wireless scanner bar code scanner barcode product

$29.00

≥1 Others
$25.00

≥50 Others
$23.00

≥200 Others

Options:

WNC-6084/V

Get Latest Price

You might also like

Wholesale 2d handheld Long Range QR Code Scanner

$7.90

1 unit (MOQ)

Compact Size Portable CCD Barcode Reader

$1.00

1 unit (MOQ)

usb wireless scanner bar code scanner barcode product

Winson 2D CMOS Codabar Barcode Reader

Winson WNC-5060g Handheld Barcode Scanner

Basic Info

Model No.	WNC-6084/V
Brand Name	winson
Certification	Ce, Other
product status	Stock
Types of	Barcode Scanner
Scanning element type	Ccd
Color point	32 Bit
Interface Type	Usb
place of origin	China
Warranty period (years)	1-Year
After-sales service	Call Center And On-Line Technical Support
Products Status	Stock
Type	Wireless 1D Scanner
Scan Element Type	CCD Barcode Scanner
Colour Depth	32 Bit
Interface Type	usb, COM, PS/2
Max Paper Size	N/A
Optical Resolution	1500 pix
Scan Speed	350+50(scans/second)
Brand Name	Winson
Place Of Origin	Guangdong, China
Warranty(Year)	1-Year
After-sales Service	Call Center And On-Line Technical Support
Color	Black
Product Name	Wireless 1D Scanner
Product Type	1D CCD Barcode Scanner
Photo sensor	CCD linear sensor
Communications	Wired transmission mode
Communication frequency	BT 4.0
Voltage requirement	5VDC±10%
Print Contrast	20%UPC/EAN 13(13mil)
Current	Max:135mA
Light Source	632nm red LED
Dimensions	90mm67mm168mm

Product description

barcode Engine

Barcode scan usb wireless scanner auto scan 2d barcode reader bar code scanner barcode Engine

Supports Continuous/Auto-Induction , 2modes for option Qr Code Desktop Reader Online.

Plug and play, driver-free, convenient for usage Waterproof Scanner.

barcode Engine

winson company

Product Detail

Technical Specifications
Wireless specifications
Communication mode				Wired transmission mode/ Wireless Read-time mode&Inventory mode/Cache mode
Communication frequency				BT 4.0(2.402 to 2.480GHz Adaptive frequency hopping)
Transmission range				≤10M(In empty area 15M)
Battery capacity				1500mAh (Lithium battery)
Charge Time from Empty to Full Charge				4.5H
Scans per Battery Charge				30,000 (1 scan per second)
Memory				100,000@13Byte barcode
Electrical Characteristics
Interface Supported		USB HID KEYBOARD
Input Voltage		DC 5V±10%
Current		Max:135mA
Optical Characteristics
Image Sensor		CCD Linear Sensor
Sensor Resolution		2500pixels
Light Source		632nm Red LED
Performance Characteristics
Decoding rate:		350 scans/second±20 scans/second
Scanning Angle		Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40°
Min Resolution		0.105/4mil(PCS 0.9)
Min .PCS value		>25%UPC/EAN 13(13mil)
Language		Multiple Languages
Data Edition		Support for custom data output
Decode Capability		EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST
Physical Characteristics
Dimensions		Scanner:90mm67mm168mm(LWH)
Weight		Scanner:160g
Indicator		Beeper, LED
Environmental Characteristics
Temperature		-20° to 65°C / -4° to 149°F(operation) /-30° to 70°C /-22° to 158°F(storage)
Humidity		5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light:		Up to 80,000 lx
Shock Drop Test		1.5m drop onto concrete surface
Decoding Depth of Field
Symbology	Resolution		Barcode number		Barcode width	Nearest	Farthest
Code 128	5mil		20		4.3x1.5cm	6.5cm	10cm
Code 128	15mil		7		4.3x1.5cm	6cm	33cm
Code 39	6.67mil		16		4.4x1.5cm	6.5cm	16cm
Code 39	20mil		4		4.3x1.5cm	6cm	45cm
