Product description

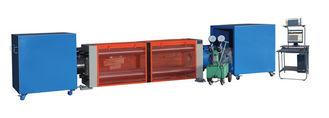

Computer-controlled static load anchoring testing machine, Material testing machine

Introduction

This computer control static load anchoring testing machine is used to test mechanical strength of anchorage device, clamps, connectors, it’s widely used in railway, hydraulics engineering etc. It's kind of common material testing machine.

Features

1. Computer control, automatic data acquisition, process.

2. Test curve real-time indication

3. English operation menu, friendly HMI, easy operation

Technical specifications

Spec.	MGW-5000	MGW-6500
Force Effective test range	2%-100%	2%-100%
Force indicating value relative error	±1%	±1%
Displacement measure range	0-200mm	0-200mm
Displacement indicating value relative error	±1%	±1%
Force rate control range	1MPa--52 MPa	1MPa--52 MPa
Force rate controlled relative error	±1%	±1%
Displacement rate controlled relative error	±1%	±1%
Force/displacement holding controlled range	0.3%--100%F.S	0.3%--100%F.S
Force/displacement holding relative error	±1%	±1%
Repeatability	±0.5%	±0.5%
Relative resolution	±0.5%	±0.5%
Piston stroke(mm)	200mm	200mm
Stretch distance (mm)	3200mm	3400mm
Overall size(mm)	3200mm×780mm×650mm	3400mm×800mm×680mm
Net weight(kg)	3000kg	4000kg
