Full automatic Cement compression bending testing machine, Construction material strength testing machine, Material testing machine

Standards: GB/T17671-1999, ISO 679:1989

Descrption

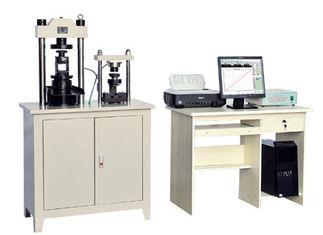

This full automatic Cement compression bending testing machine is mainly used to test the compression and bending strength of cement mortar, it's controlled by computer, driven by hydraulic. It's kind of advanced Construction material strength testing machine.

Features

Double test space, space saving,

Computer control, easy in operation, automatic test

Technical specifications

Max. test Load	300KN/10kN
Load relative error	≤±1%
Load rate	0.3KN/S~10KN/S(compression) 50N/s(flexure)
load rate error	±5%
Platen size	φ155mm(compression) 80X150mm(flexure)
Piston Max. stroke	80mm
piston dia.	φ130mm(compression) Φ60mm(flexure)
hydraulic Max. pressure	25MPa
Pump rate flow	1.52L/min
motor power	0.75kW
Main machine overall size	820×450×1300mm
Main machine total weight	500Kg
