Computer Memory control Automatic Cementing Toe Lasting Machine TH-747MA
$33500.00
1 Set/Sets (MOQ)
Basic Info
| Model No. | TH-747MA |
|---|---|
| Brand Name | DGSF |
| Applicable industry | Manufacturing Plant, Machinery Repair Shops |
| Out-of-warranty service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Where to provide local services (in which countries are there overseas service outlets) | Turkey, United Kingdom, Viet Nam, Pakistan, India, Kenya, Bangladesh, South Africa, Uzbekistan |
| Showroom location (in which countries are there sample rooms overseas) | Turkey, United Kingdom, Viet Nam, Pakistan, India, Kenya |
| Video factory inspection | Provided |
Product description

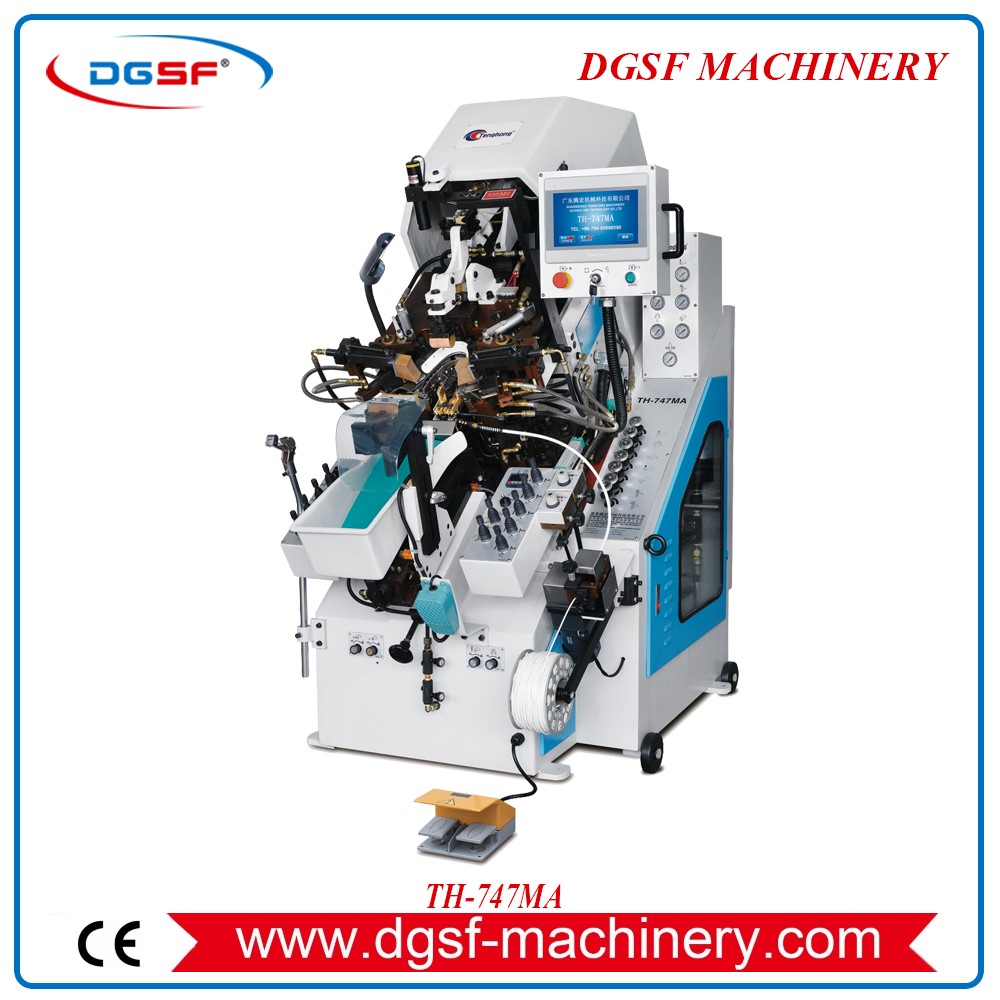

Computer Memory control Automatic Cementing Toe Lasting Machine TH-747MA
Product Description
◎The insole and vamp of TH-747MA Automatic Shoe Lasting Machine do not need to glue manually in the beginning because of the automatic cementing system. It can reduce labour and vamp will stick with insole tightly after oven forming section to keep perfect shape.

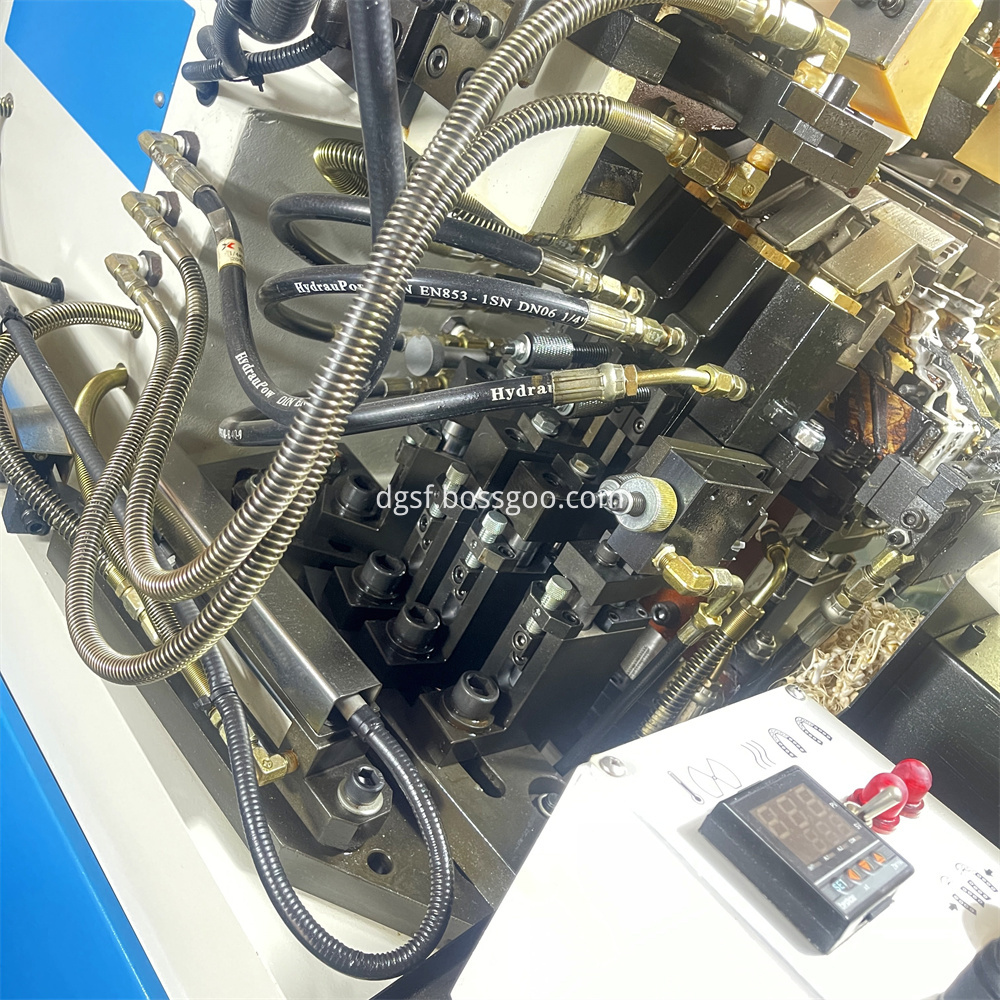

◎The Lasting Machine first pincer and second set of pincer are designed of easy-tooling structure, quickly changed it without tools
◎The Toe Lasting Machine second pincer`s angle memorized by linear wire potentiometer could deflect angle according to shoe shapes.
◎Designed of three-tier pincer trajectory structure, assembly can shift from each side, matching the size of the first pincer for easy-tooling structure without tools.
◎Accurately memorized the position of pincer trajectory, it use wire potentiometer importing from Italy to change positon to data.(Including switch positon memory of second pincer`s angle)
◎The Shoe Lasting Machine pincer trajectory could automatically/manually switch to left or right foot and displayed by the signal light.
◎With scale displayer, the newly designed of wiper downward position electric adjustment could adjust without any tools quickly and get perfect lasting position according to different types of shoes.
◎The rising position and the starting position of last supporter could be adjusted on the side of machine with numerical displayer.
◎Brand new design of five pointed toe-band, to perform better lasting result with easy tooling mechanism.
◎Parameters memory of wiper movement used wire potentiometer importing from Italy to change wiper`s positon to data, and it accurately memorized lasting movement of different shoes.
◎Importing from Japanese FUJI`s colorful monitor interface and with up to 300 sets of memory of shoe models, it memorized all the parameters of lasting.
Product Specifications
Model TH-747MA
Amount of pincers 9
Automatic cementing YES
Motor power 2 HP
Heating power 1.75KW
Hydraulic pressure 50kg/cm2
Oil Pressure 50 kg/cm2
Capacity 1500-1800 pairs
N.W. 1150KG
G.W. 1200KG
Voltage 380V / 220V 50-60HZ
Hydraulic oil capacity 110 liters
Machine size(LxWxH) 980X1750X1950 mm
Packing size(LxWxH) 1080x1850x2150mm
HS.code 84532000
Country of origin Made in China

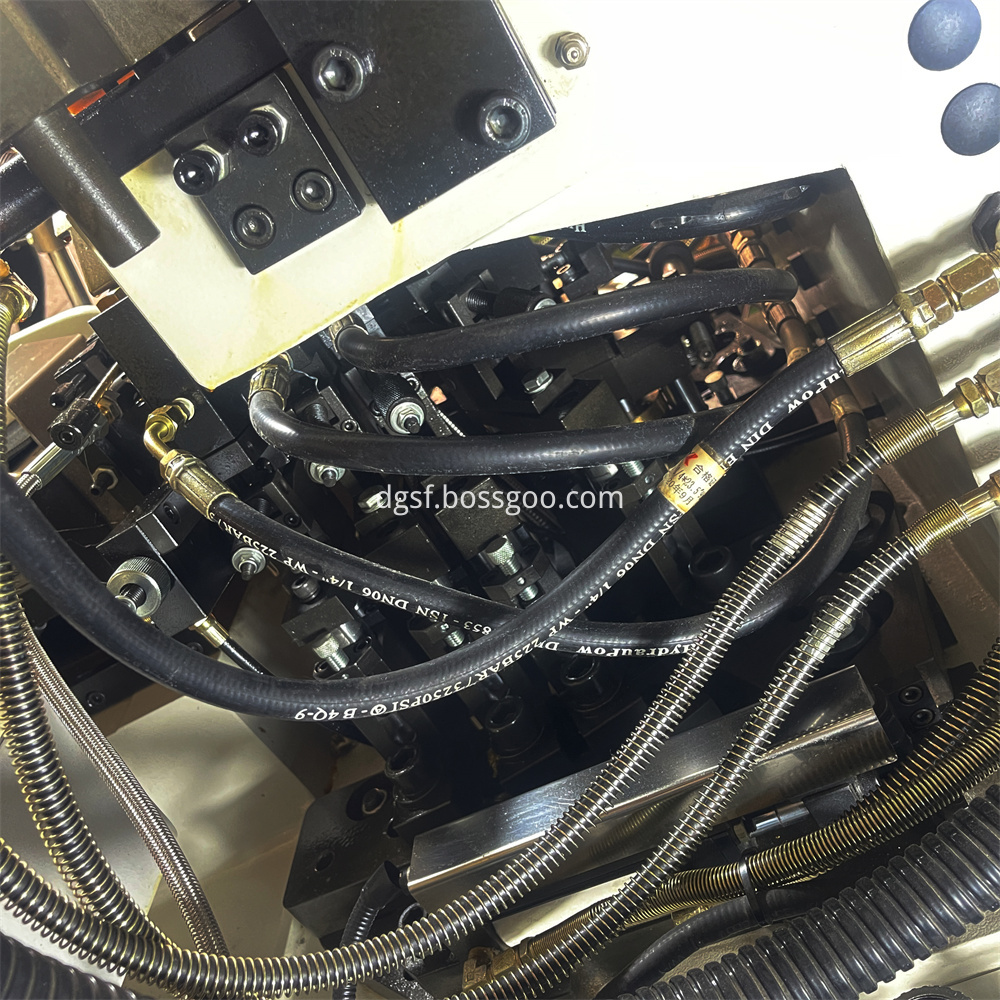

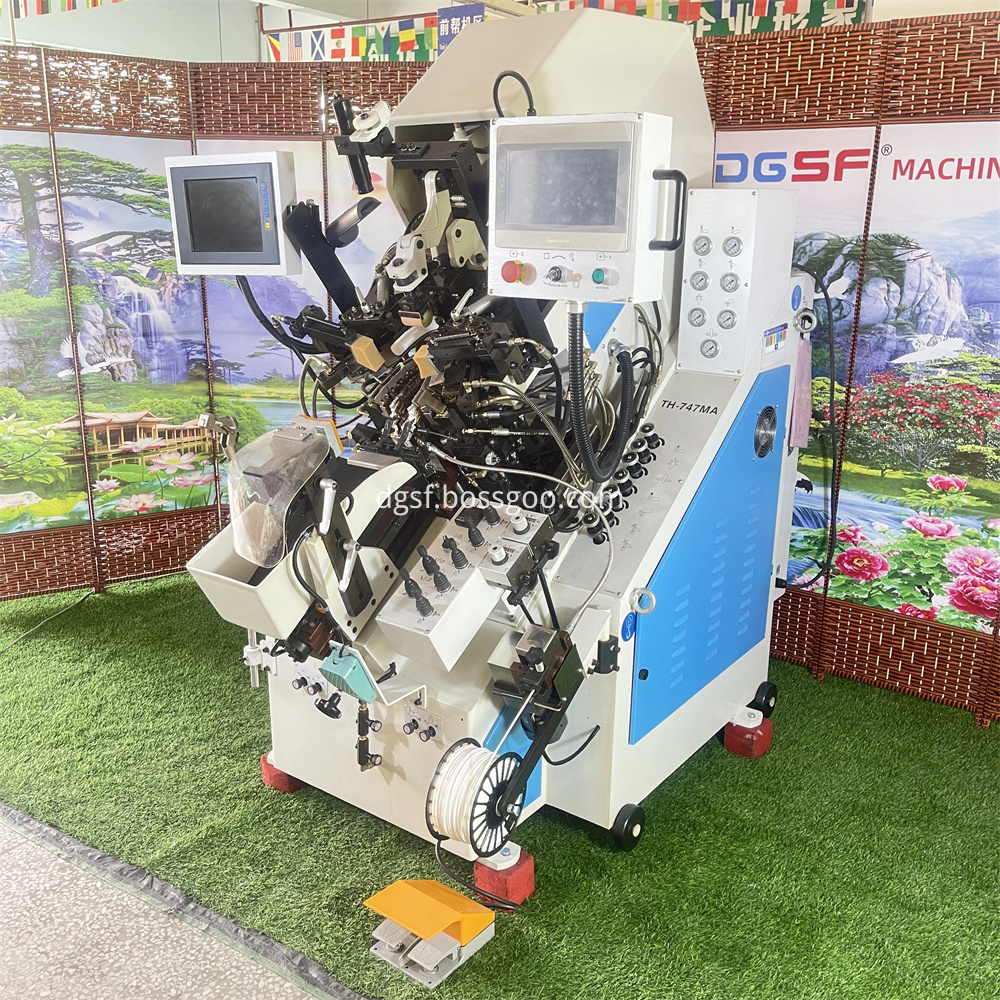

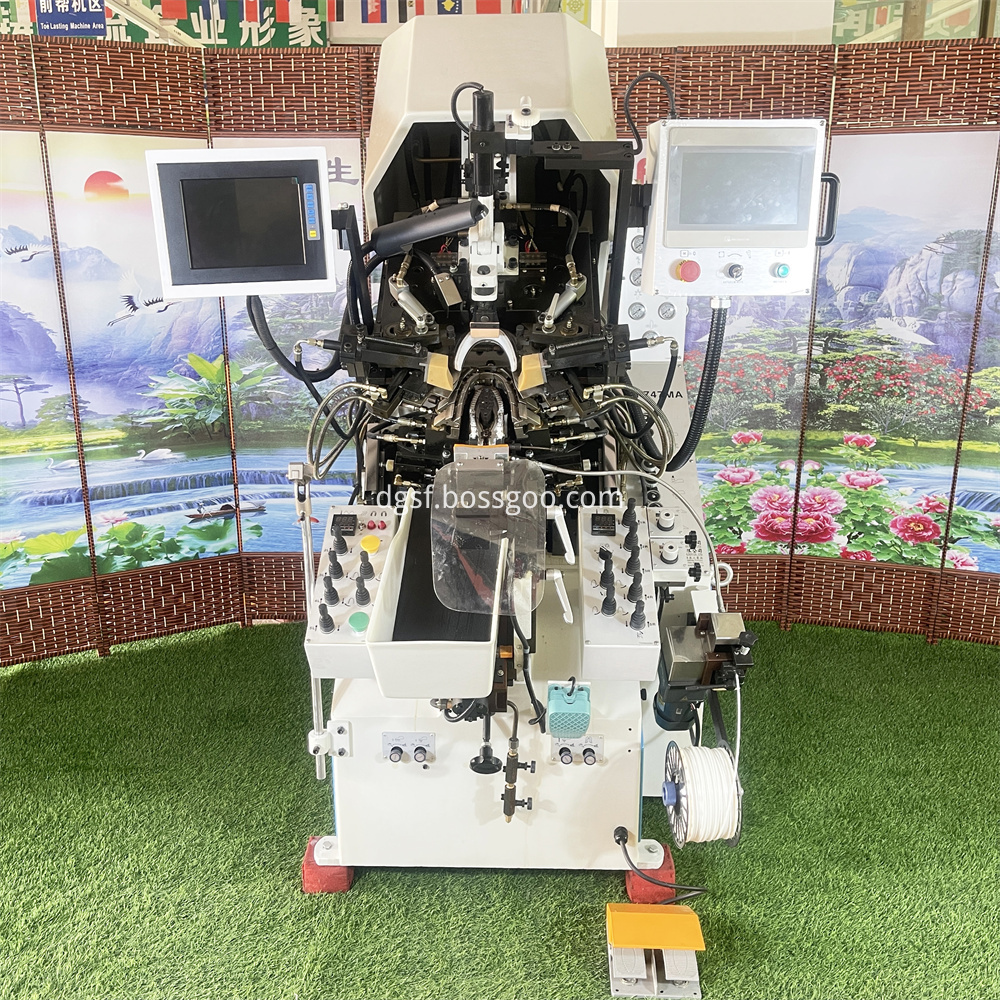

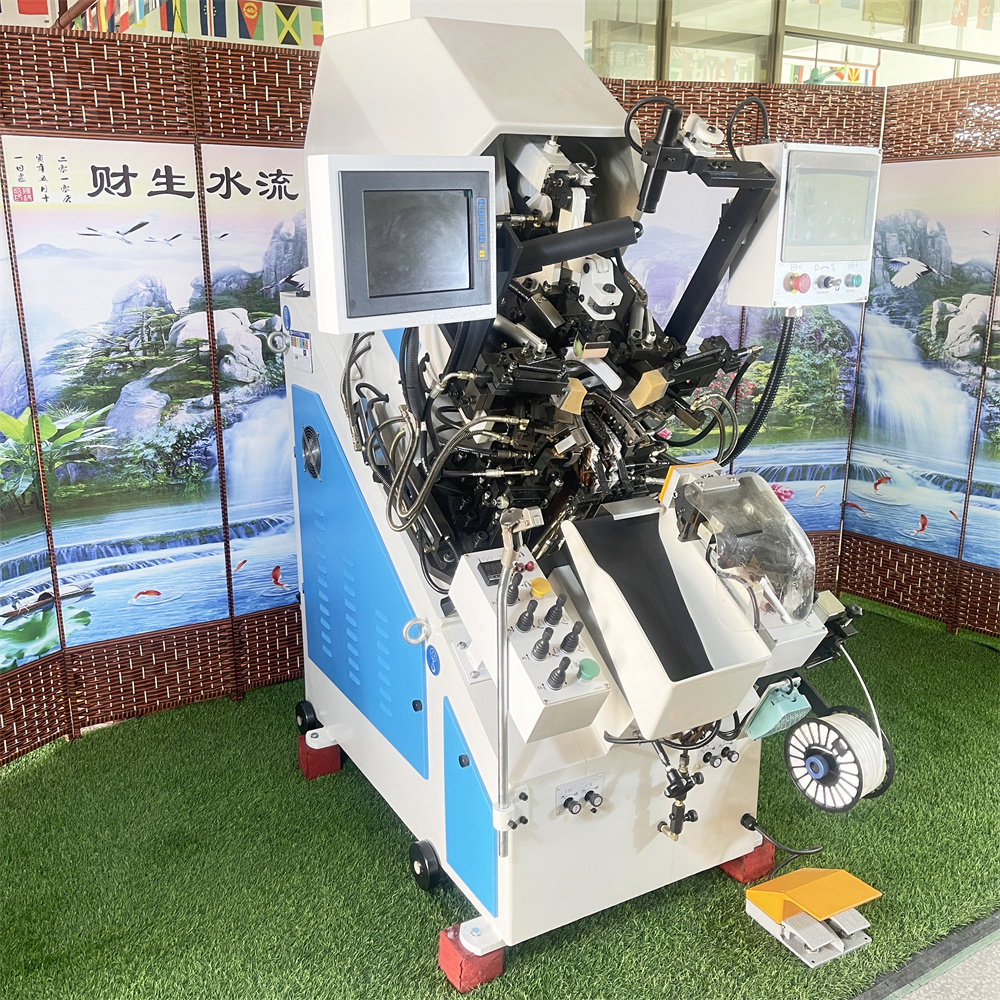

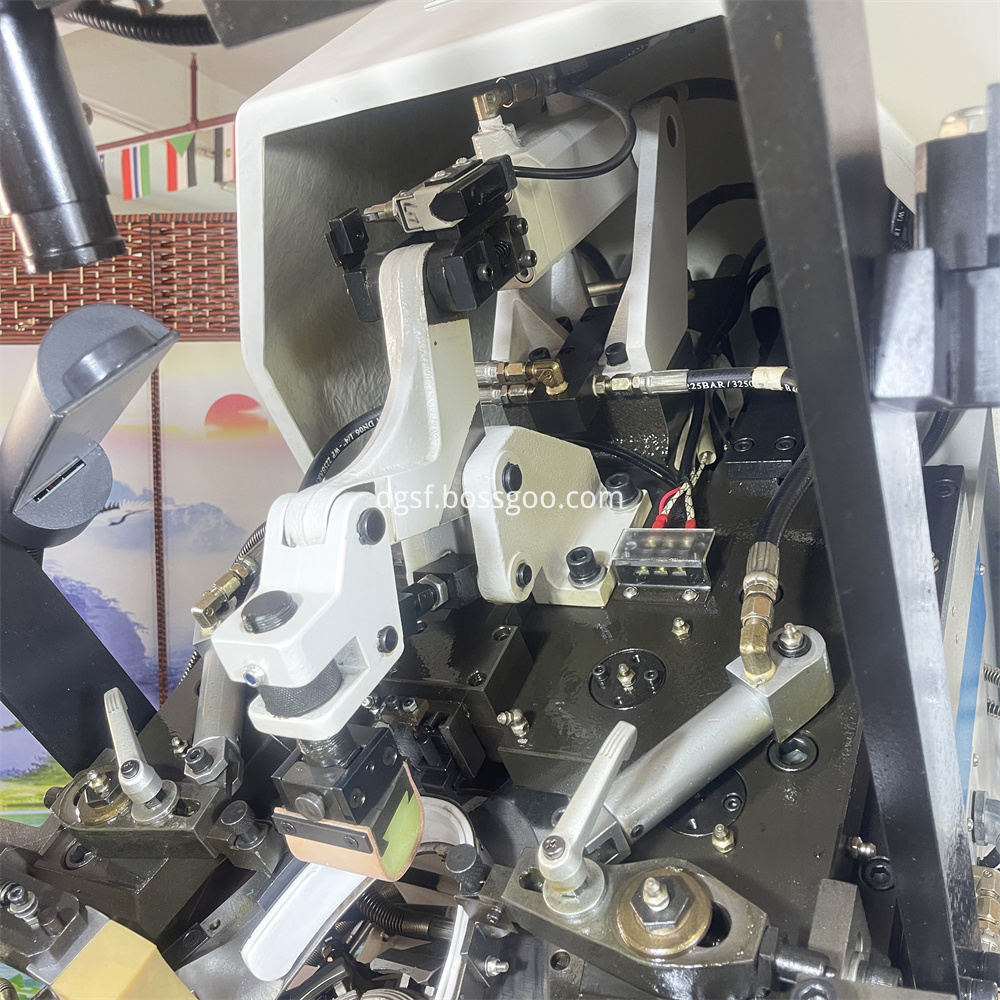

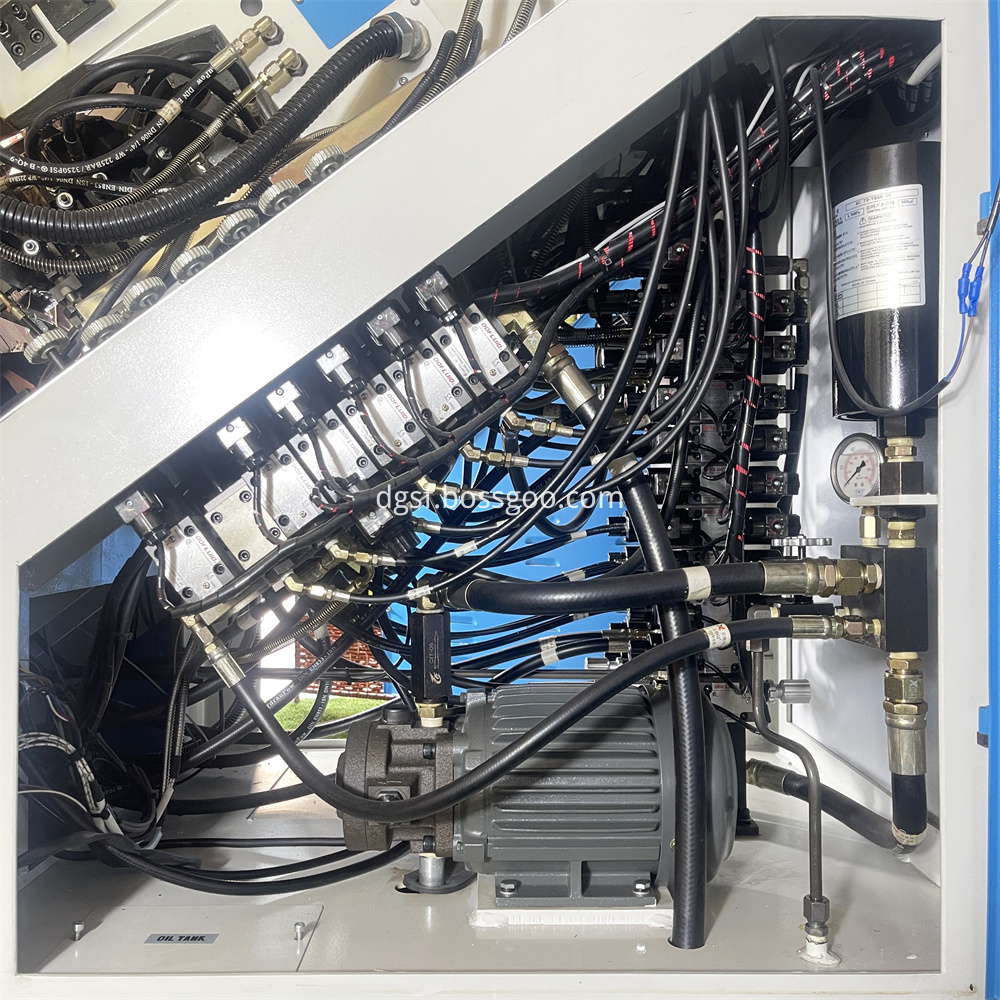

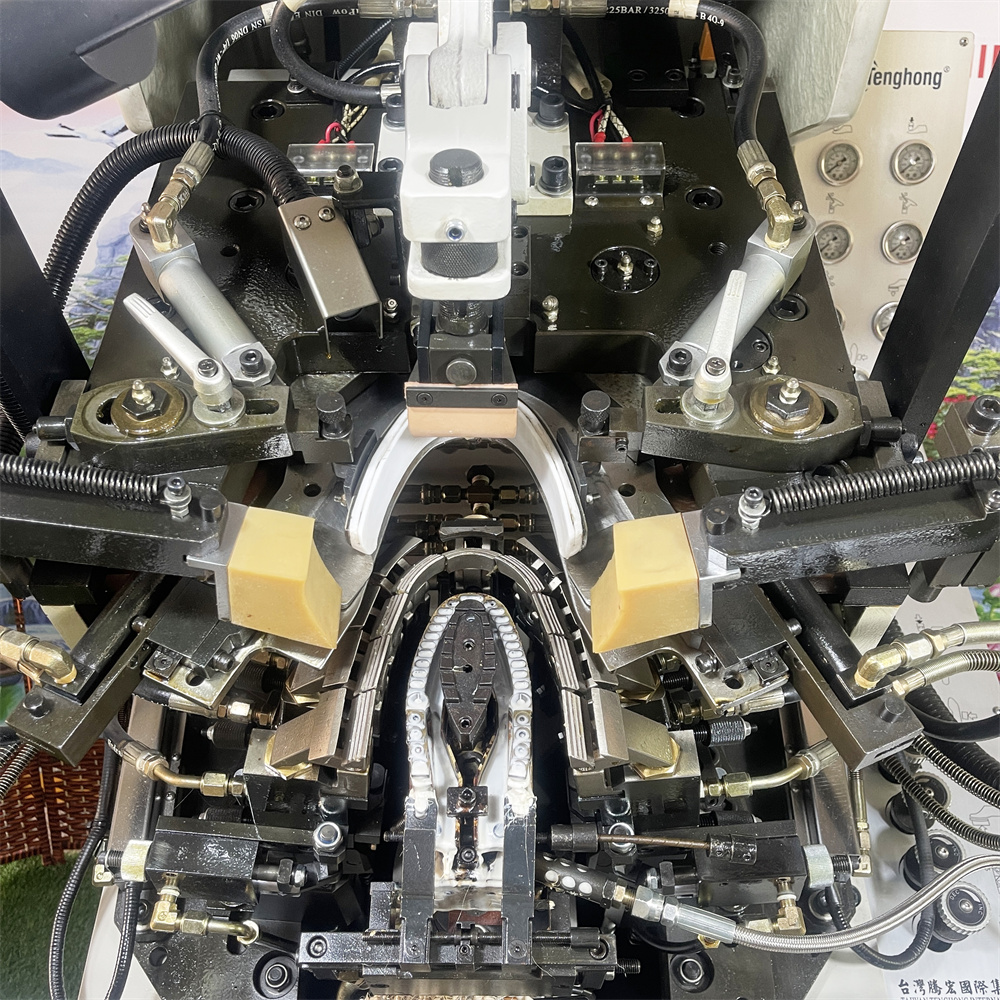

Product Images
Video
Computer Memory control Automatic Cementing Toe La
Computer Memory control Automatic Cementing Toe La
Computer Memory control Automatic Cementing Toe La
Computer Memory control Automatic Cementing Toe La
Computer Memory control Automatic Cementing Toe La
Computer Memory control Automatic Cementing Toe La
Computer Memory control Automatic Cementing Toe La
Computer Memory control Automatic Cementing Toe Lasting Machine TH-747MA
