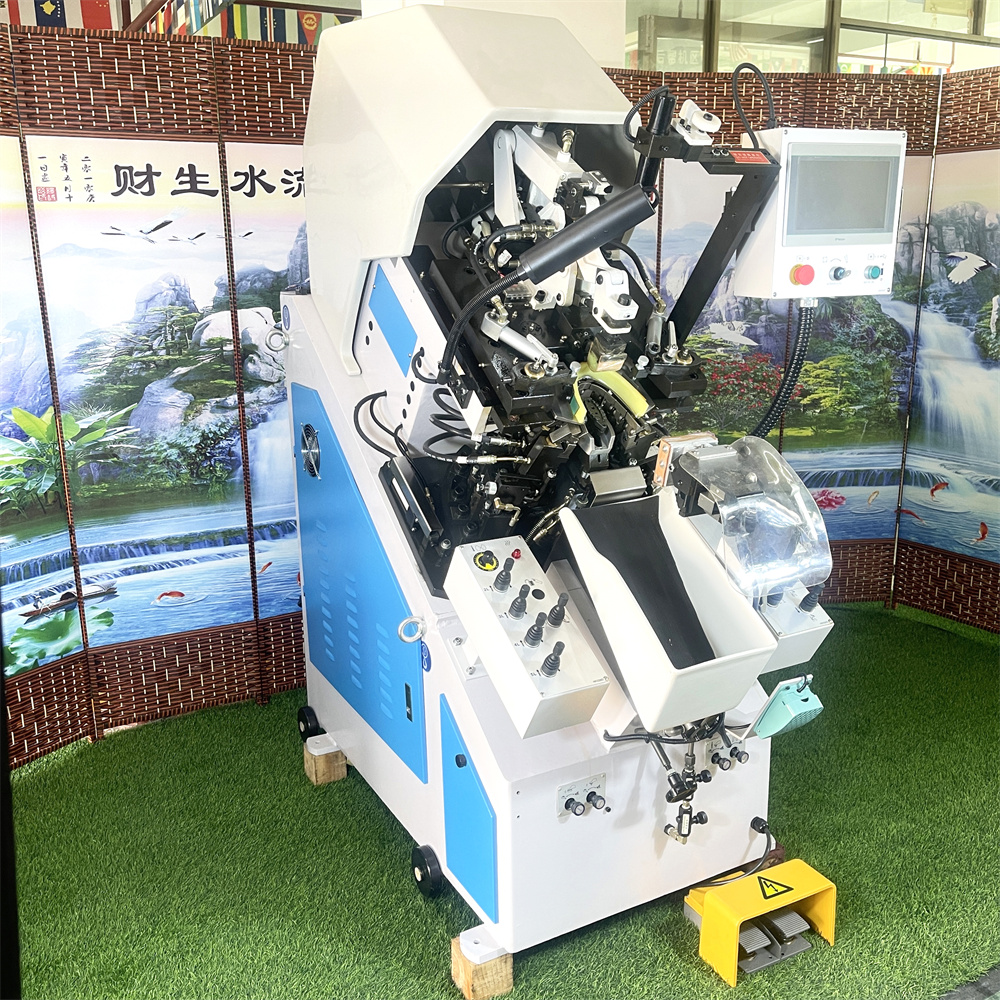

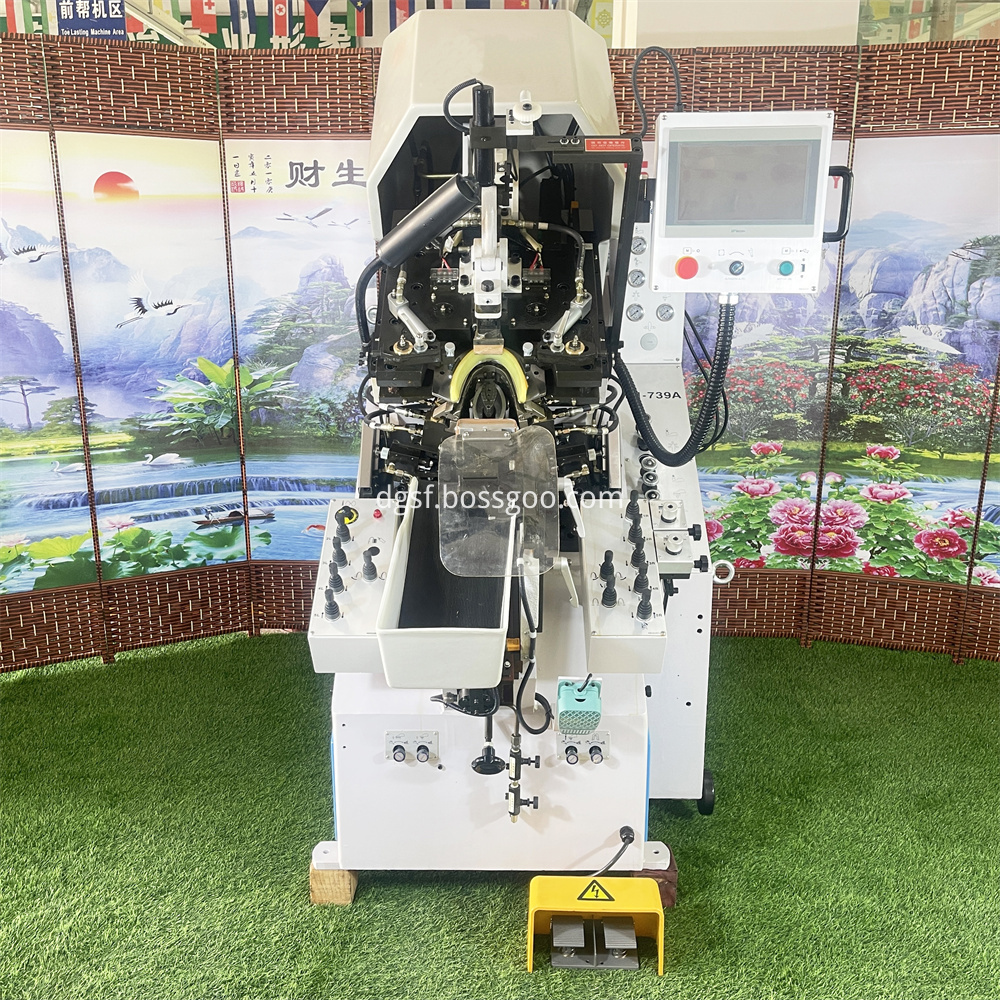

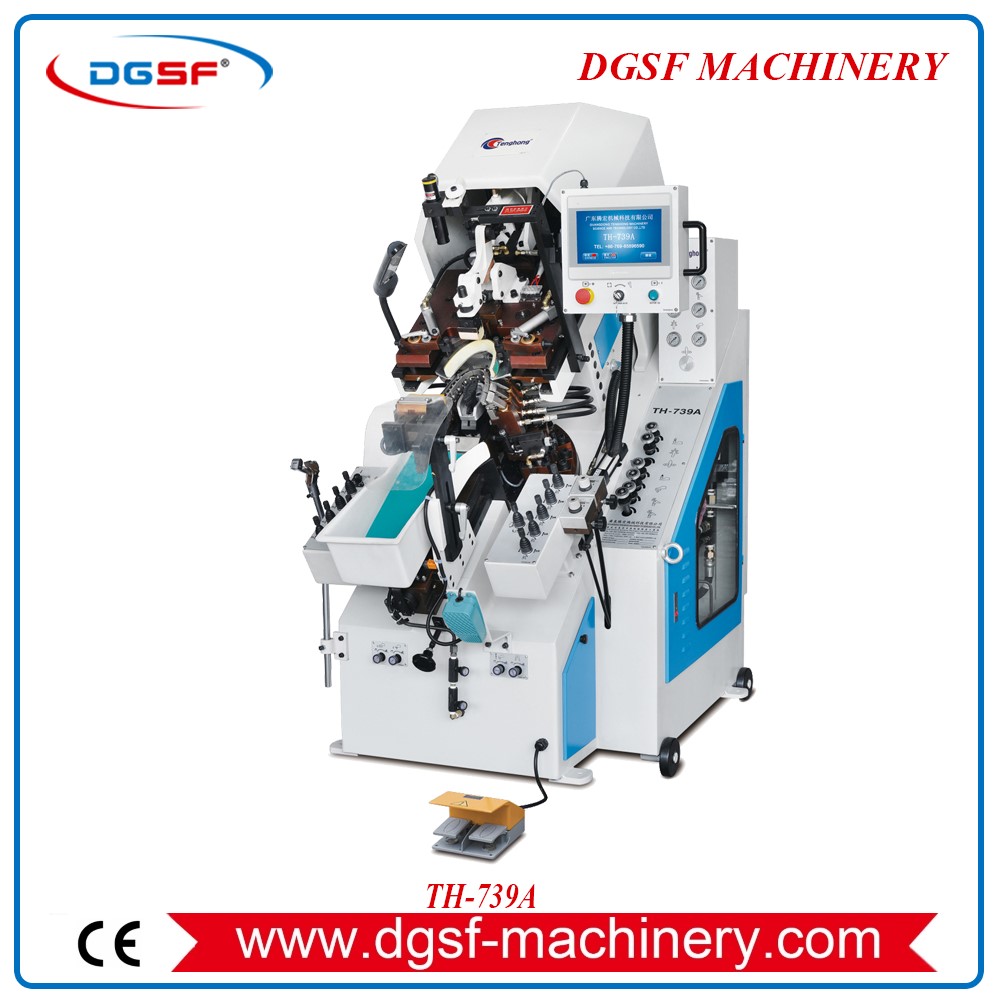

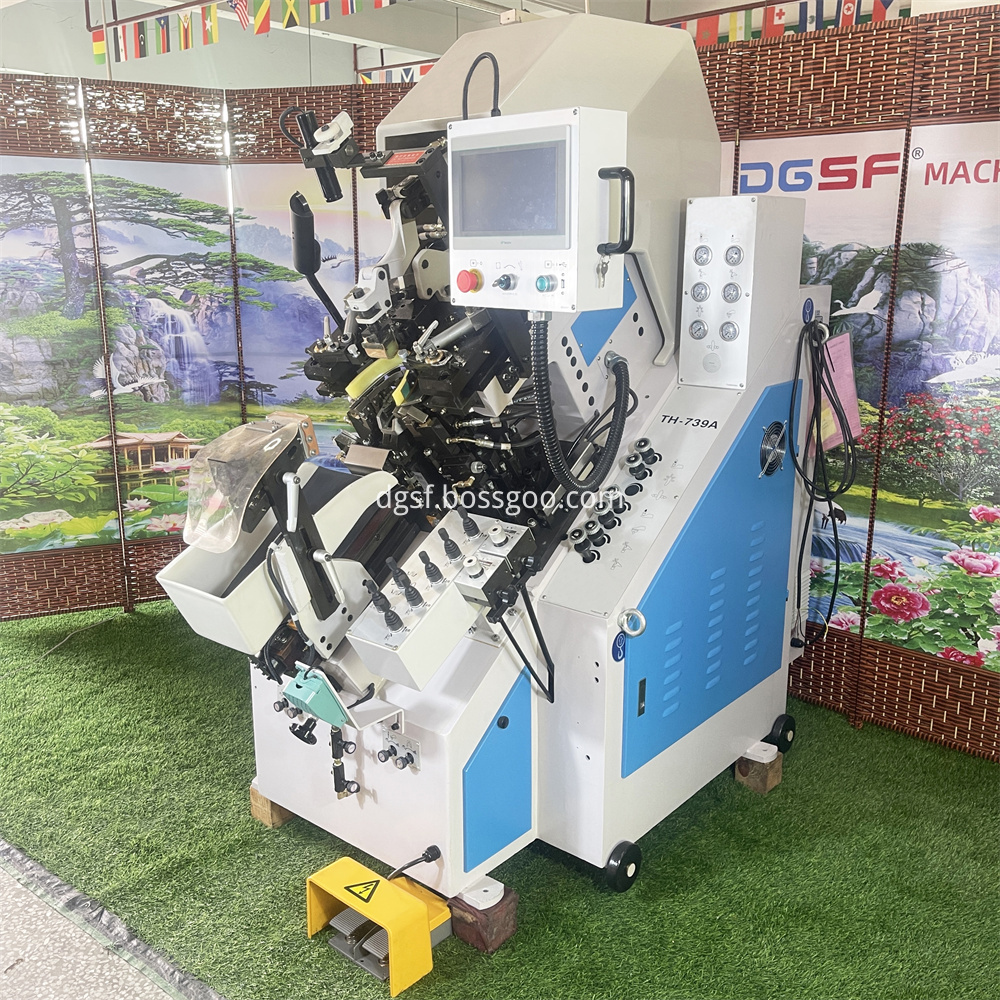

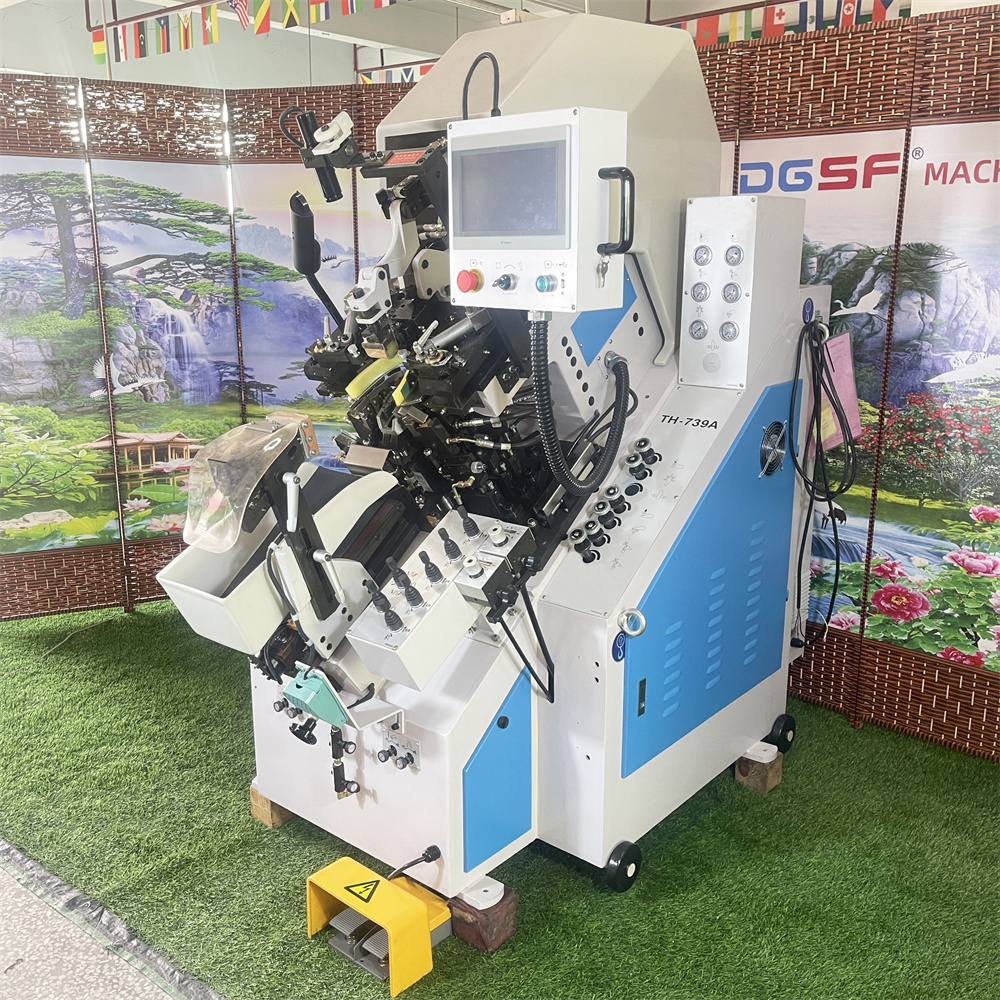

Computerized Memory Controlling Toe Lasting Machine TH-739A

Product Description

Features of Computerized Memory Controlling Toe Lasting Machine 739A: ( Without Hot-Melt System)

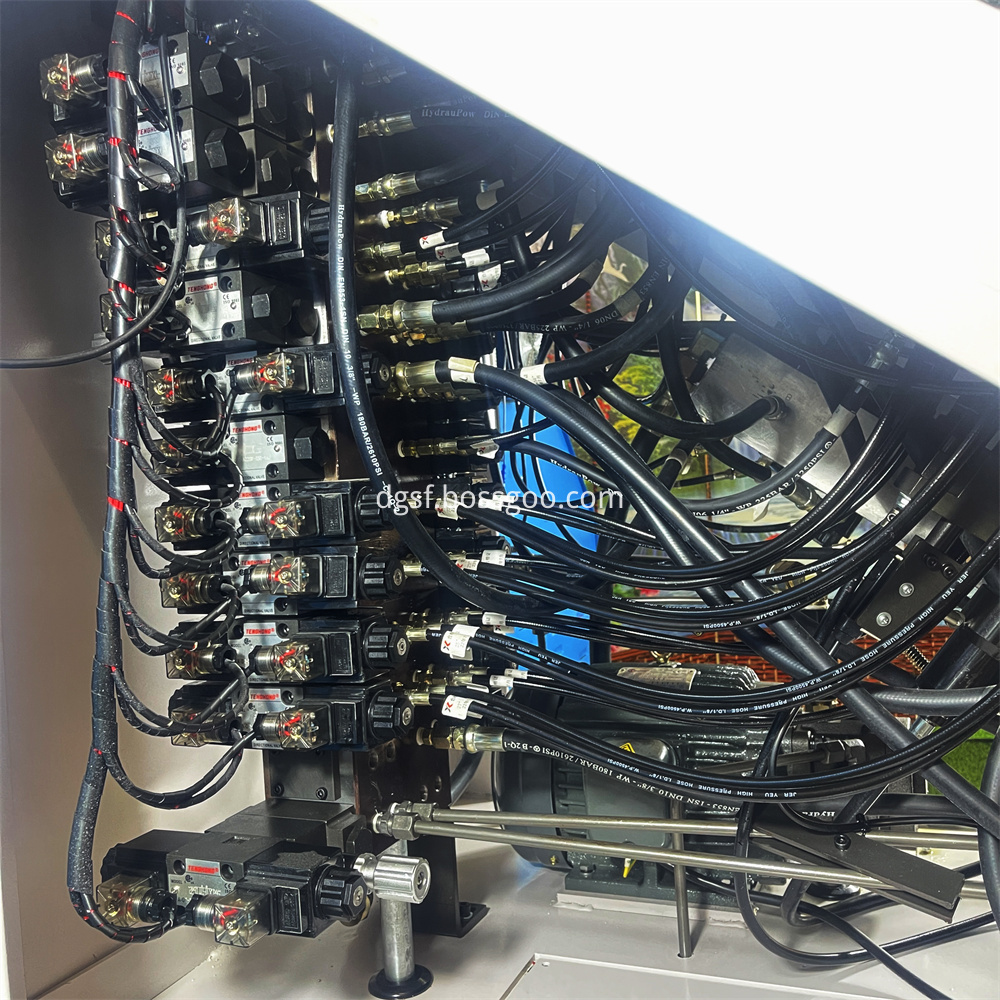

It's fully hydraulic operated system Automatic Shoe Lasting Machine.

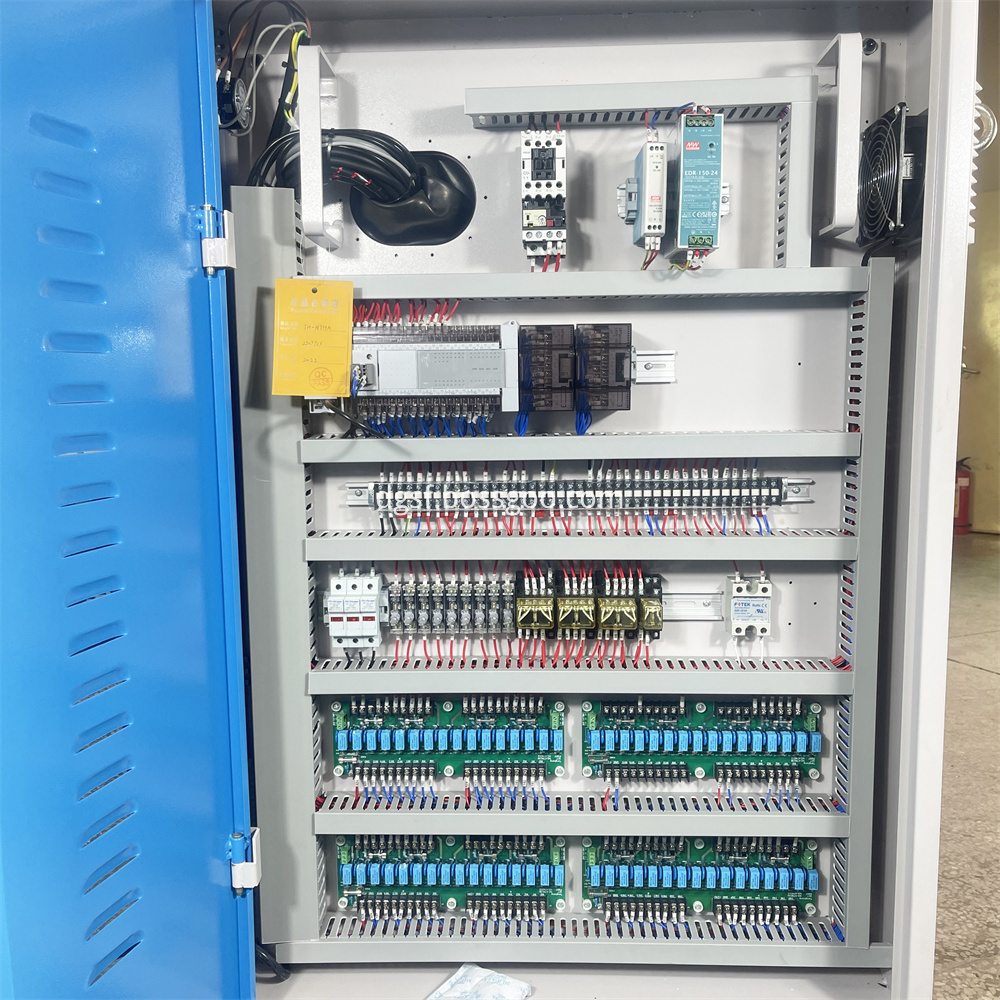

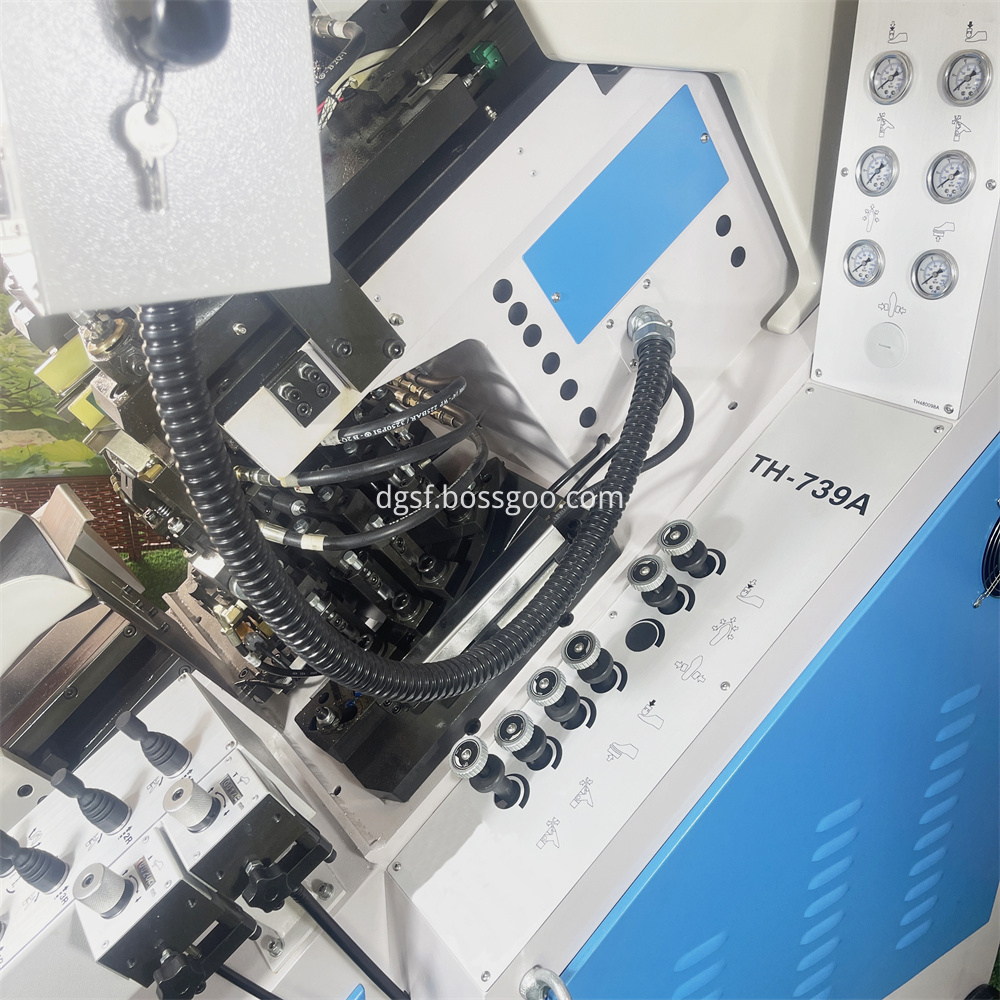

The PLC controlling system is inputted into the Shoe Lasting Machine touch screen to operate the machine with the graphical symbols.

The setting of the parameters (time and stroke) is by numerical key in, with the protection of the key switch to avoid the reading or changing by the non-authorized.

Up to 100 different shoe models are programmable and memorable with this Shoe Machine.
Error diagnostic readable on the monitor.

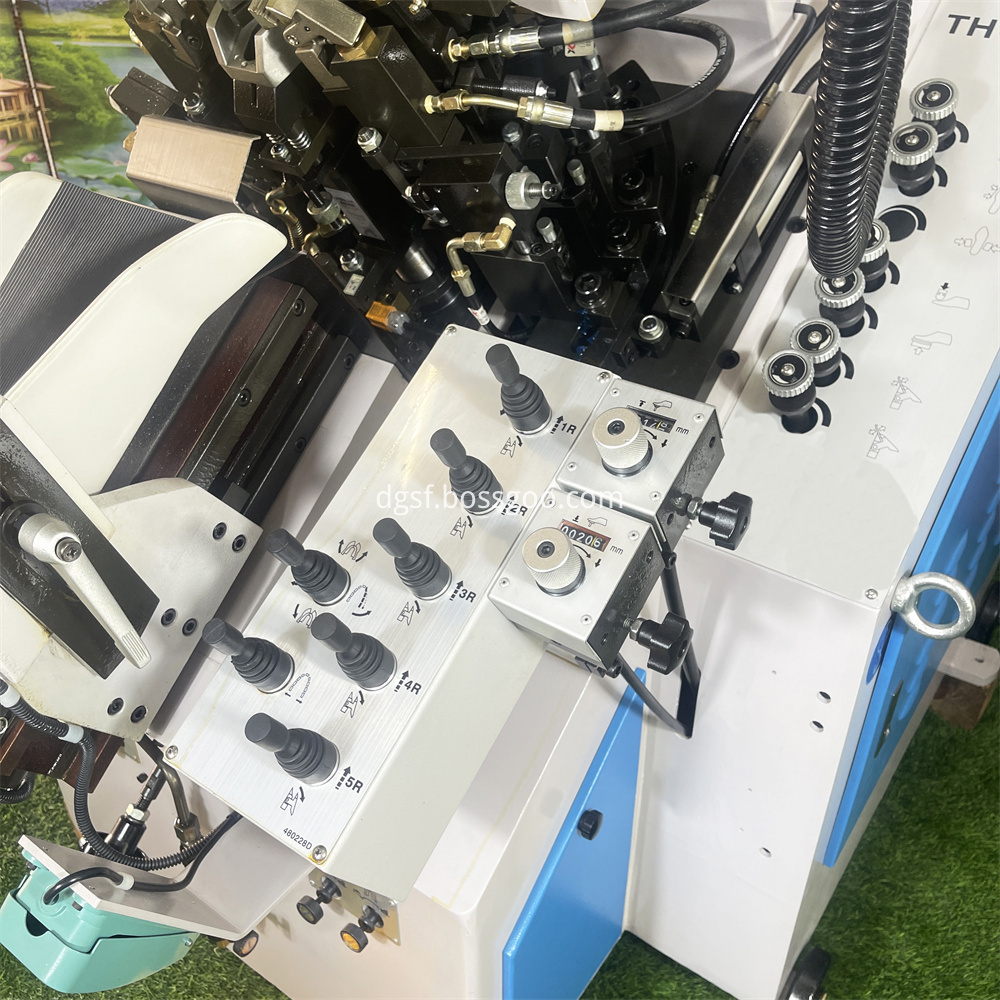

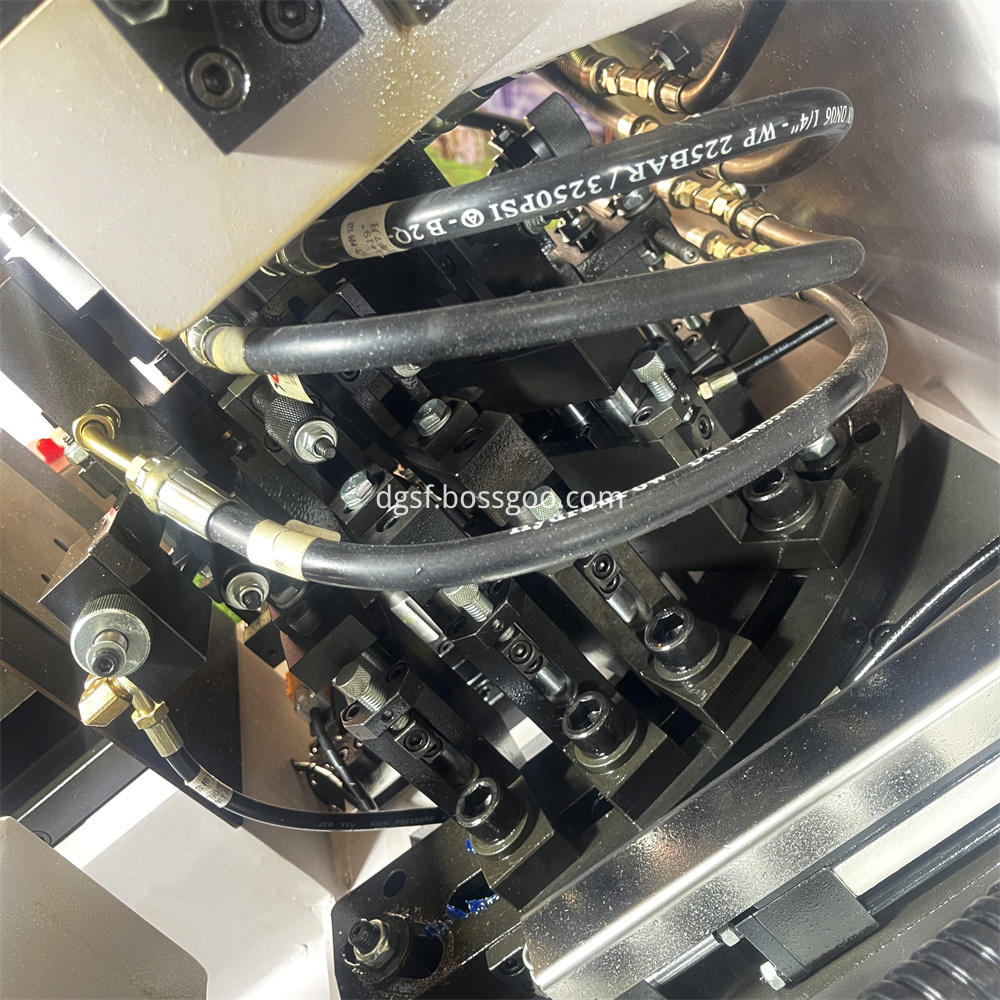

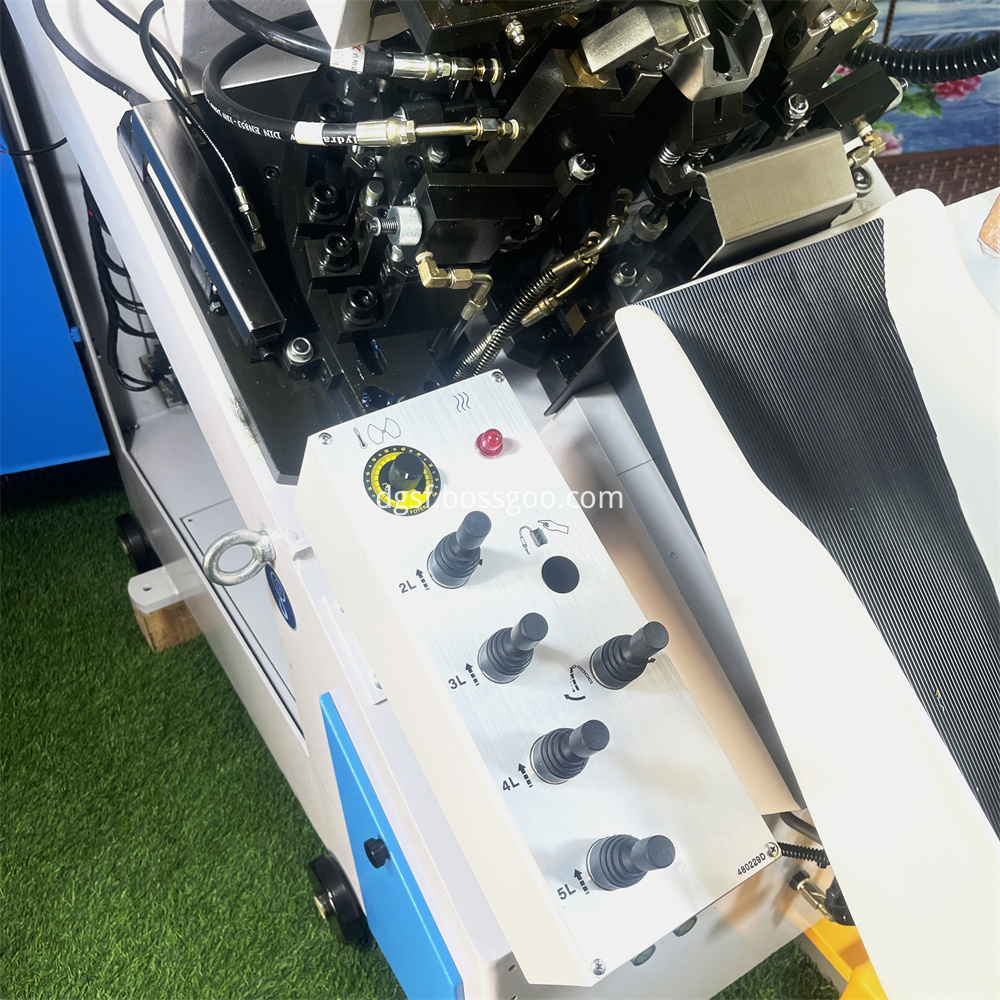

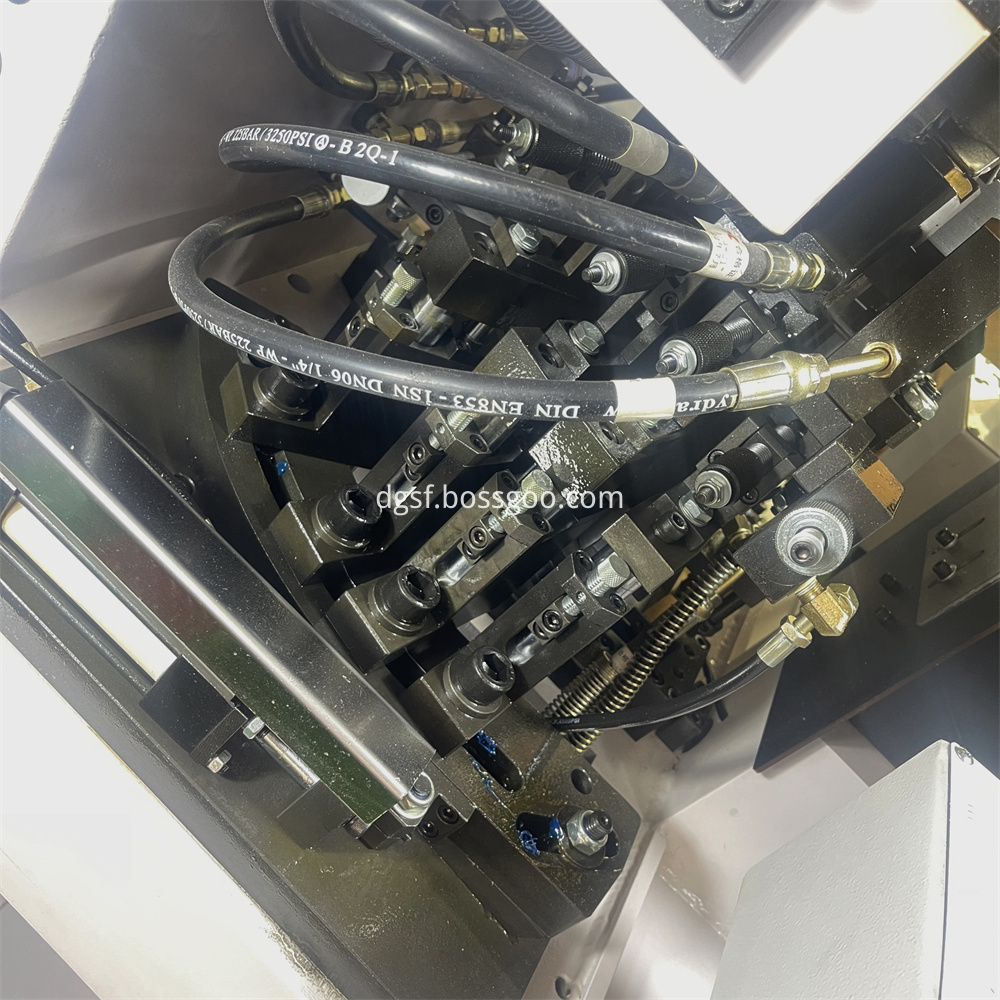

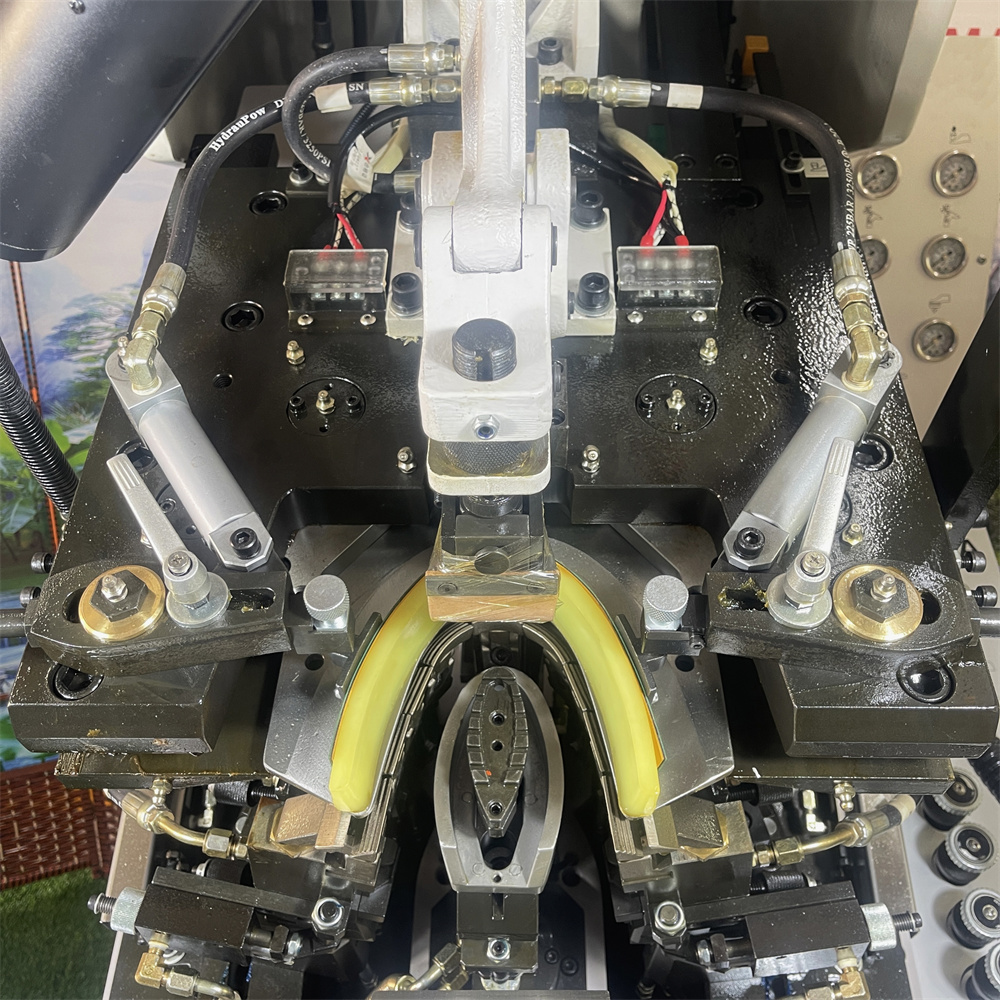

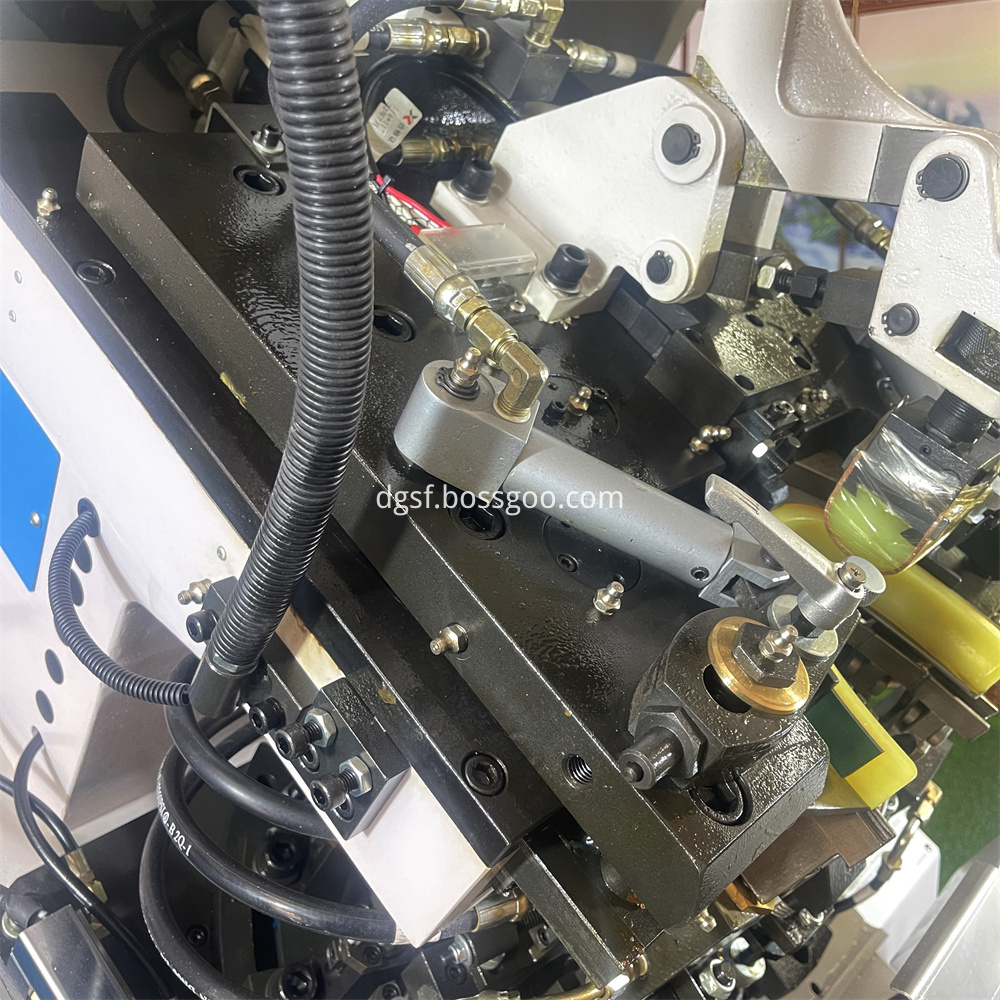

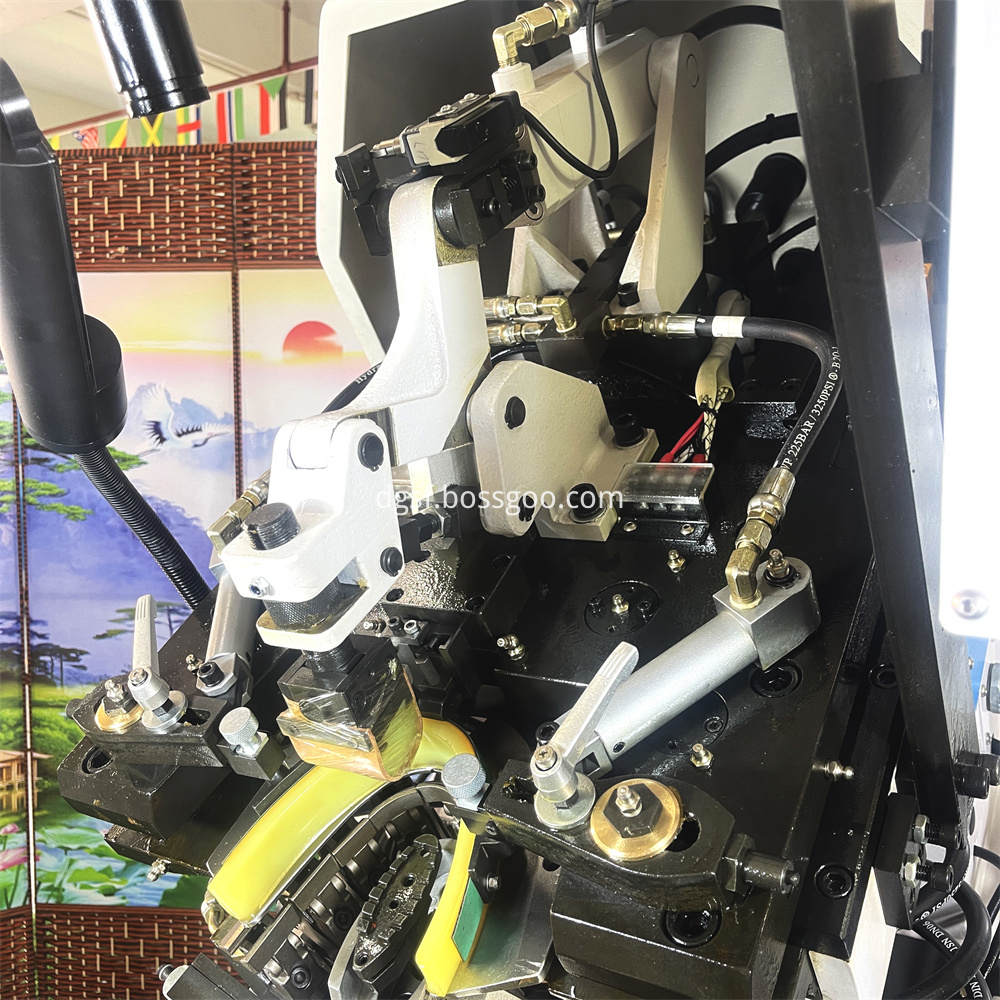

9 fine adjustable and quick-exchangeable pincers.
The first pincer can be adjusted with the 15 degrees swing angle left or right, it is suitable for the pincer arrangement of the special toe shape shoes.

The automatic turning inward of the fifth pincers, increase the lasting perfection of the inner part.
Each pincer can be set with automatic pulling or manual operated, preventing the upper made of different materials is only pulled on one side.

After the upper clamping movement of the pincers, it is possible to operate the pincer release and clamp movement manual.

The clamping pressure of the pincers can be set with the decompress function during the second time upward movement of the last support.

The upward stroke of the last support can be adjusted from the knob outside the machine and equipped with the position indicator.

There are two step upward movement functions for the last support, preventing the slipped of the last when combined with the movement of the heel support.

The position of the last support can be quickly adjusted forward or backward up to 16mm.

The toe pusher mechanism is designed with adjustable two step pressure. During the movement of the initial pressure, there are two ways (pressure controlled or position controlled) can be set for the best operation.

The forward movement of the wiper can be adjusted as no stepped variable speed controlled.

The standard equipment: Auxiliary wiper mechanism, Auxiliary side pusher mechanism, and Toe projector mechanism.

Product Specifications

Model TH-739A
Amount of pincers 9
Automatic cementing NO

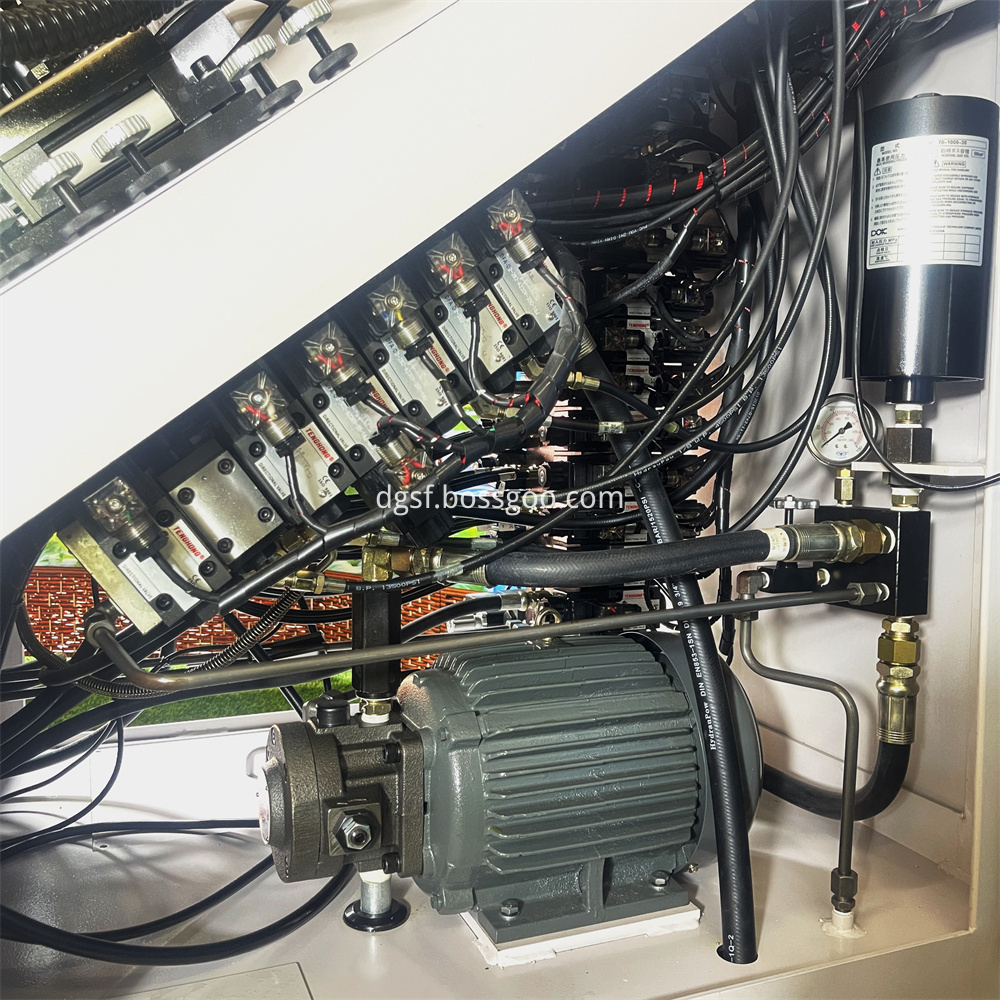

Motor power 2 HP
Heating power 1.00KW
Hydraulic pressure 50kg/cm2
Oil Pressure 50 kg/cm2
Capacity 1500-1800 pairs
N.W. 1130KG
G.W. 1180KG
Voltage 380V / 220V 50-60HZ
Hydraulic oil capacity 110 liters
Machine size(LxWxH) 980X1750X1950 mm
Packing size(LxWxH) 1080x1850x2150mm
HS.code 84532000
Country of origin Made in China

Product Images
