COMS Engine Scanner Module

Options:

Get Latest Price

You might also like

Basic Info

Model No.	WDI-2010
Brand Name	winson
Certification	Ce
product status	Stock
Types of	Barcode Scanner
Scanning element type	Ccd
Color point	32 Bit
Interface Type	Usb
place of origin	China
Warranty period (years)	1-Year
After-sales service	Call Center And On-Line Technical Support
Products Status	Stock
Type	Barcode Scanner
Scan Element Type	Cmos
Colour Depth	32 Bit
Interface Type	usb, TTL-232
Max Paper Size	N/A
Optical Resolution	648*488 pix
Scan Speed	350±50 (scans/second)
Brand Name	Winson
Place Of Origin	Guangdong, China
Warranty(Year)	1-Year
After-sales Service	Call Center And On-Line Technical Support
Product Name	Barcode Reader Module
Interface	TTL-232/USB
Interface connector	0.5-12P FPC
Photo sensor	CMOS array sensor
Voltage / Current	DC 3.3V±5%; Max 100ma
Sensor resolution	648*488 pixels
Print Contrast	20%UPC/EAN 13(13mil)
Compatibility	Win OS/Mac OS/Linux/Android/IOS/Embedded OS
Dimensions (W X D X H)	28mm x 20mm x 10.5mm
Weight	5g
Certification	Fcc, Rohs

Product description

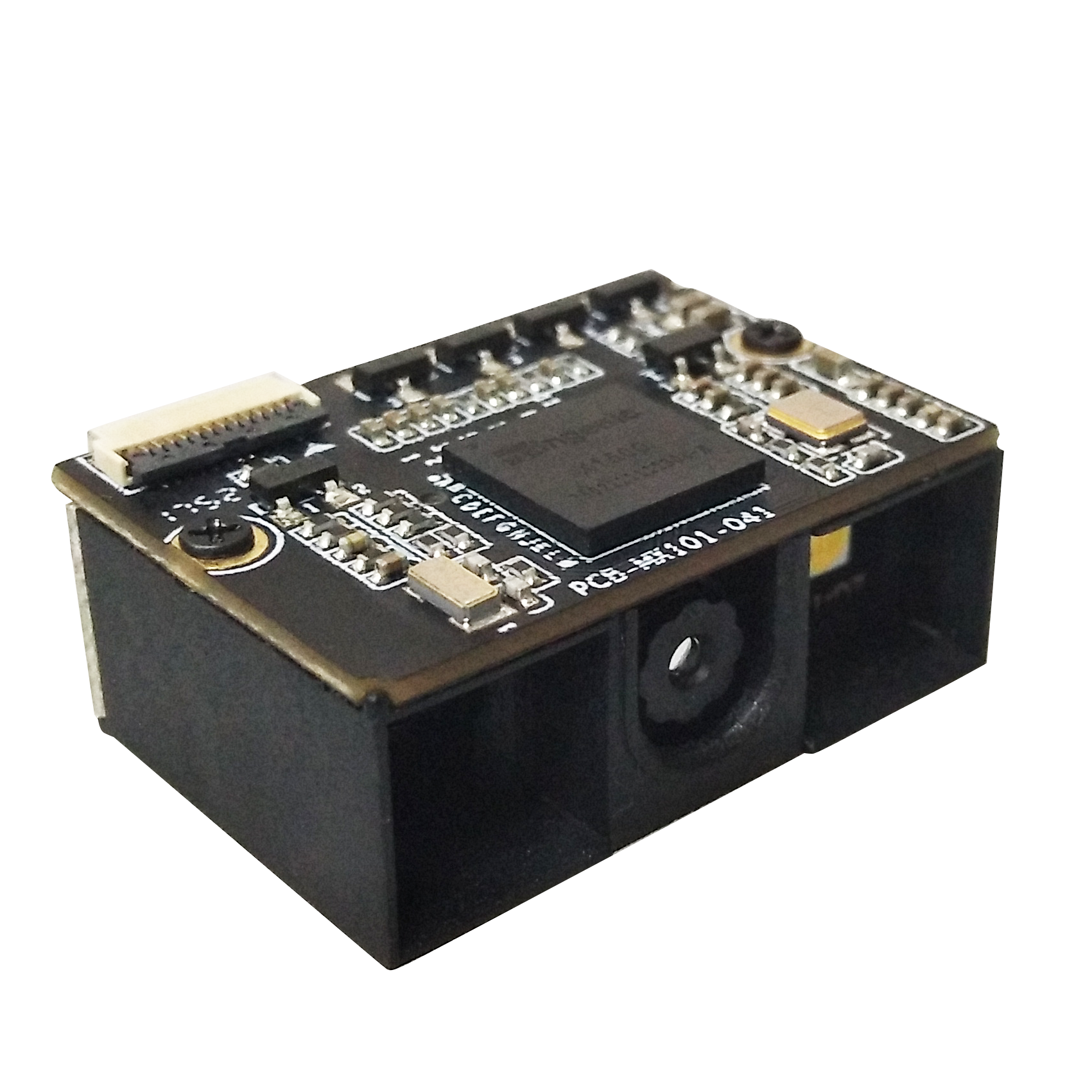

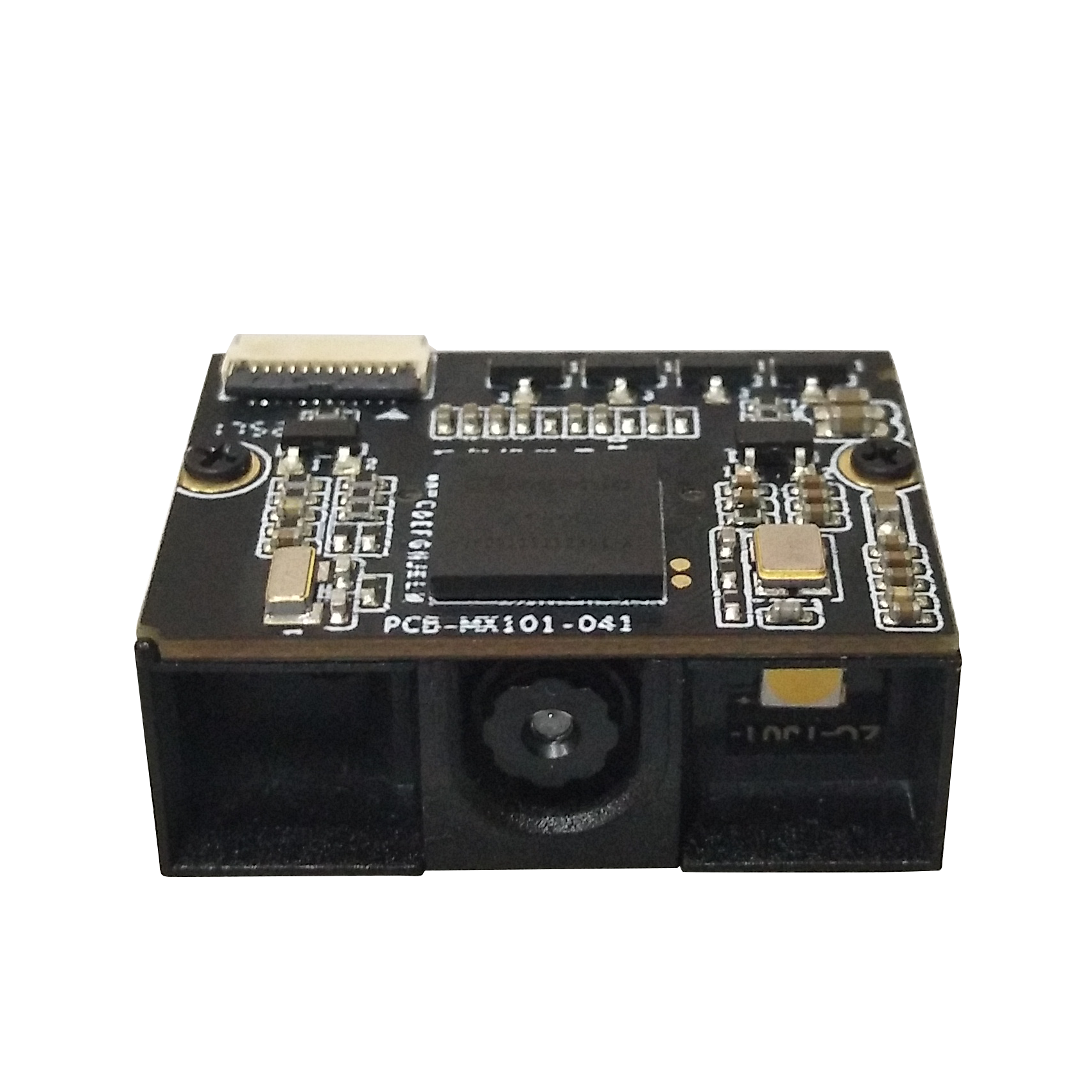

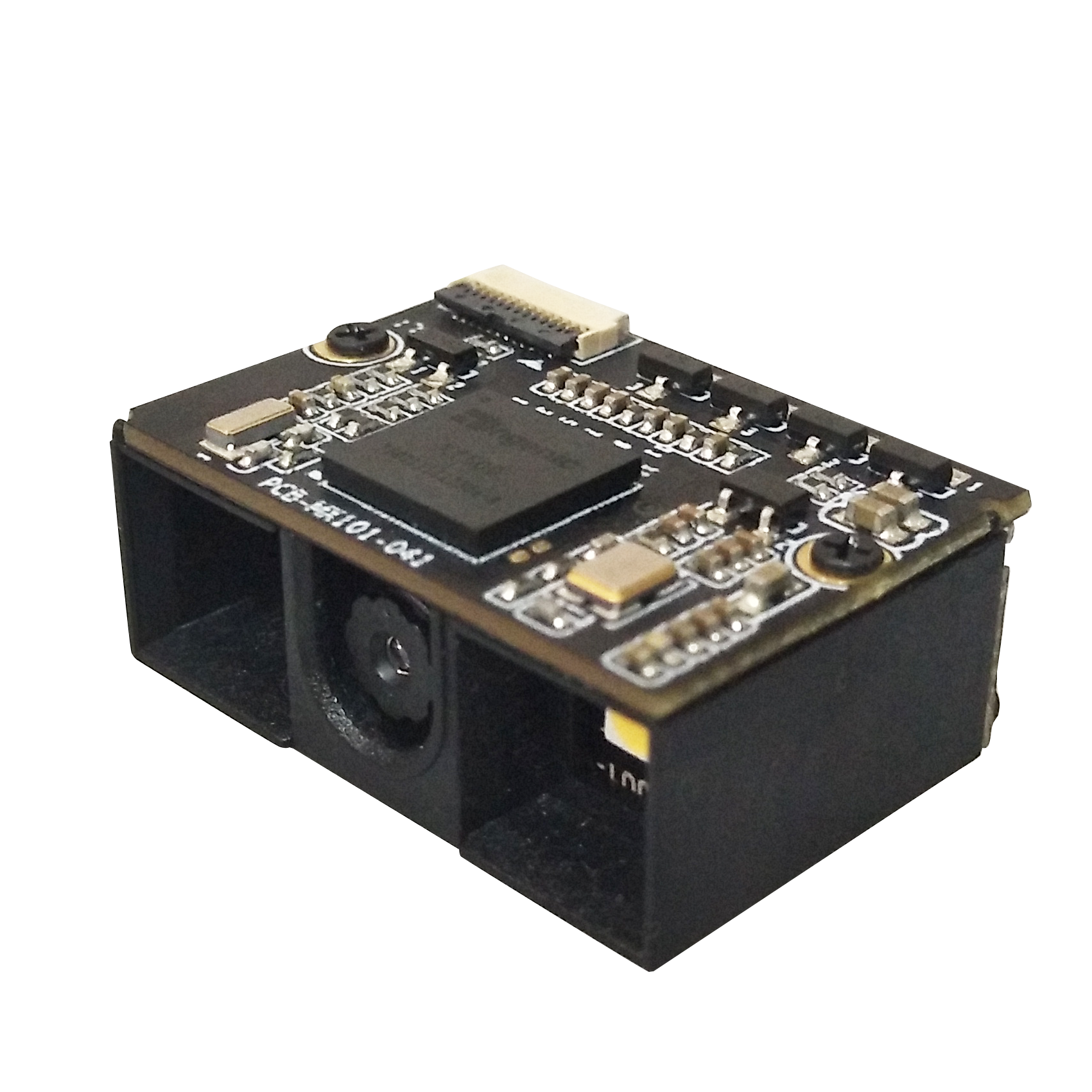

Winson WDI-2010 Mini Size Scanner Module 2D Code Scanner Modul OEM Scan Engine

Engine Scanner Module Winson Wholesale Price 2D Barcode OEM Module COMS Engine Scanner Module

winson company

Product Detail

Technical Parameters
Electrical Characteristics
Interface	TTL-232/USB
Interface connector	0.5-12P FPC
Voltage requirement	DC 3.3V±5%
Current consumption	Max:100mA
Optical Characteristics
Photo sensor	CMOS array sensor
Sensor resolution	648X488 pixels
Light source	white LED*1
Aim light source	Red Bar LED
Performance Characteristics
Decode angle	Pitch angle:±65° Skew angle:±60° Tilt angle:±180°

Min resolution	1D:5mil(0.127mm)
Min.PCS value	>20%UPC/EAN 13(13mil)
Field of View	40°(H),29°(V)
Language	multiple languages
Identification	1D:UPC/EAN,Code 128, Code 39, Code 93, Interleaved 2 of 5, Codabar, 2D:QR,Mirco QR,PDF417 ,Mirco PDF417,Data Matrix,Aztec
Physical Characteristics
Dimension	28mm x 20mm x 10.5mm(LWH)
Weight	5g
Configurations	Decode
Environmental Characteristics
Temp	-20° - 50°
Humidity	5 - 95% (operation) ) 5 - 95% (storage)
Ambient light	fluorescent light 1600 Lux max, direct sun light 80,000 lx max
Shock drop test	1.2m drop onto concrete surface
Regulatory
Electrical safety	UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed.
MI/RFI	FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN55024
Environmental	RoHS
