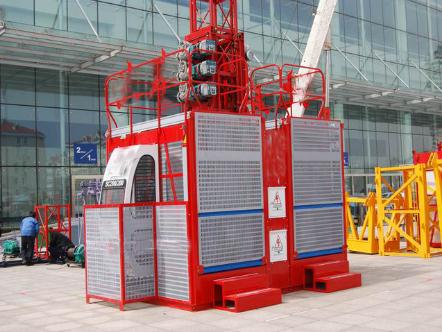

SC-type construction is a lift by the gear, rack drive elevator, mainly for high-rise building construction people, goods transportation, this lift can be very convenient installation and removal;and higher as the building.
SC-type construction of the lift has a very reliable electrical and mechanical safety systems is the construction of safe and efficient transportation equipment.
Features:
Direct start-up and stop;
Simplicity and cost saving;
Installation, removal is very conenient.

Type specification

Rated load(kg): 2*2000

Rated erection load(kg): 2*1000

Jib attachment rated load(kg):300/600

Cage size(m):3.0*1.3*2.4 3.0*1.5*2.4

Lifting speed(m/min):33

Rated output(kw):2*3*11

Rated frequency(Hz):50/60

Rated current(A):2*2*33.2

Voltage rating(V):~380±5﹪

Power supply fuses(A):2*96

Protective class:IP55

The durative rate of electrifying:FC-25﹪

Safety device(m/s):1.2

Snclosure weight(kg):1480

Cage weight(kg):2*2000

Mast section weight(kg):150/170/190/210

Mast section length(mm):1508
