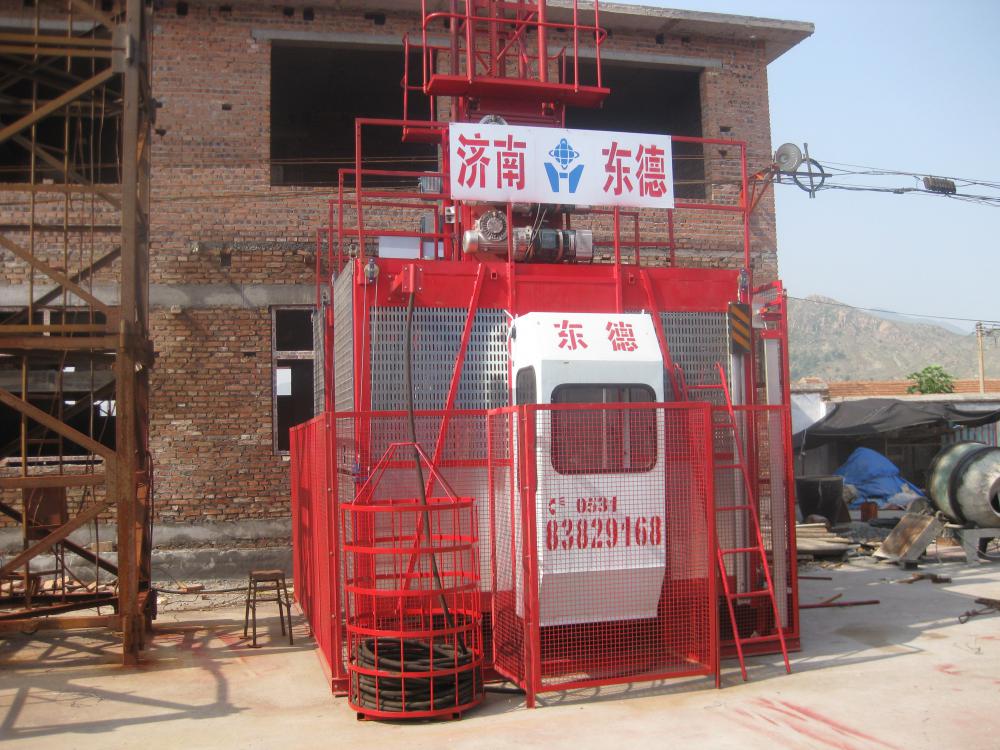

SC-type construction is a lift by the gear, rack drive elevator, mainly for high-rise building construction people, goods transportation, this lift can be very convenient installation and removal;and higher as the building.
SC-type construction of the lift has a very reliable electrical and mechanical safety systems is the construction of safe and efficient transportation equipment.

SCB type construction lift, construction elevator in the SC model, based on the increased frequency device, its performance is more superior, more stable, not only energy saving, and adjustable speed, greatly increasing the ease of use of modern construction of new products.
Features:
Emergy, starting current is less than the rated current;
Speed adjustable up to enhance the speed of 63m/min;
Frequency control system;
Kai brake smooth, low mechani cal wear and tear.

Type specification

Rated load(kg): 2*2000

Rated erection load(kg): 2*1000

Jib attachment rated load(kg):300/600

Cage size(m):3.0*1.3*2.4 3.0*1.5*2.4

Lifting speed(m/min):33

Rated output(kw):2*3*11

Rated frequency(Hz):50/60

Rated current(A):2*2*33.2

Voltage rating(V):~380±5﹪

Power supply fuses(A):2*96

Protective class:IP55

The durative rate of electrifying:FC-25﹪

Safety device(m/s):1.2

Snclosure weight(kg):1480

Cage weight(kg):2*2000

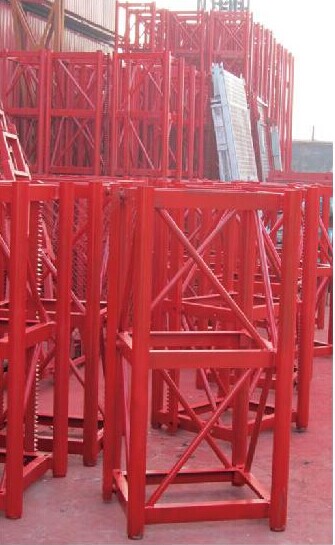

Mast section weight(kg):150/170/190/210

Mast section length(mm):1508
